Features

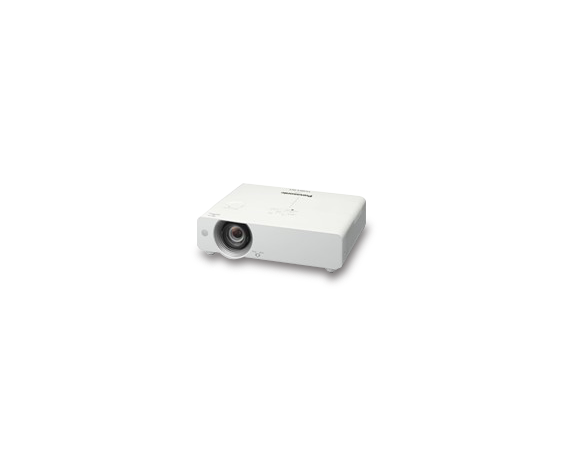

The Panasonic PT-VW435NEA is a compact and Portable LCD Projector that delivers a brighter and more crisp projection. The Daylight View Basic function produces easy-to-see images even in bright rooms, and the new Wireless Manager ME 6.0 enables high-speed wireless projection from multiple devices.

Create smoother, more productive meetings with presentations from anywhere in the room, with the Panasonic PT-VW435NEA Projector.

A Highly Bright Portable Projector with 4,300 lm.

The PT-VW435NEA ranks high in the Portable Projector category with its high brightness of 4,300 lm. This also incorporates a variable iris that
produces a high contrast of 3,500:1. Both aspects combine to provide brighter, sharper projection for versatile situations.

The Daylight View Basic Function Ensures Clear Images Even in Brightly Lit Rooms

Panasonic's Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms.

A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone colour and brightness level according to the surrounding illumination.

High-Speed Wireless Projection from Multiple Devices

The PT-VW435NEA offers the convenience of high speed wireless projection from PCs and Laptops. Set up is extremely easy and multiple participants can bring and use their own Notebook for projection. PCs can be arranged in a flexible layout without passing around cables, allowing people to present from anywhere in the room. PDF files, JPEG images, web pages, and photos (taken with the built-in Camera on iOS devices) can even be projected by wireless transmission from iPad, iPhone and iPod Touch devices using the Panasonic Wireless Projector for iOS application.

The Wireless Manager ME 6.0 application provided with the Projector allows easy transfer*¹ of data from the screen of a personal computer*² through a PC's wireless LAN function*³. It can also be used to transfer audio files*⁴. Additionally, screen images from multiple Computers can be projected by using Multi-Live mode including Four-Window Multi Style, Four-Window Index Style and 16-Window Index Style. The latest Wireless Manager ME 6.0 greatly shortens the starting time and increases the transfer speed*⁵. The graphical user interface (GUI) has been redesigned to make operation simpler and easier to understand. This all combines to make presentations and lectures more flexible and effective.

The PT-VW435N provides a host of convenient wireless functions, including Live mode and Multi-Live mode. In Live mode, the image projected is identical to the image seen on the PC screen. In Multi-Live mode, you can wirelessly connect with up to 16 PCs at the same time.

The Panasonic Wireless Projector for iOS application, which is free and available from the App Store, allows wireless projection from an iPad, iPhone or iPod Touch. When images or document files*⁶ are opened, the image is sent to the Projector and displayed.
Presentations can be done using only the Wireless Projector and an iPad, iPhone or iPod Touch. Various touch screen operations, such as rotating the direction of the screen, flicking to turn pages, and pinching to zoom in or out, are possible.

Optional Easy Wireless Stick Simplifies Projection

When not installing Wireless Manager ME 6.0, the ET-UW100 Easy Wireless Stick can be used for a simpler, speedier projection method.

The ET-UW100E integrates a wireless application and a wireless LAN adapter. Simply plug it into the computer's USB port for easy wireless projection of the Computer screen.

USB Display Function for Easy Projection Using a USB Cable

By installing the Wireless Manager ME 6.0*⁷ application in a personal Computer in advance and connecting*⁸ the USB ports on the Projector and the Computer with a USB cable, Wireless Manager ME 6.0 will automatically start up and output computer images and sound from the Projector. Multi-Live mode and other functions can also be used in the same manner as when using a wireless connection.

USB Memory Viewer for Projection without a PC

JPG/BMP image files and text files stored on a USB Memory device can be projected by simply inserting the USB Memory device into the USB port of the PT-VW435NEA.

The USB Memory Viewer on the PT-VW435NEA makes it easier than ever to give presentations without having to use a Computer.

Maximum 4,000 Hour Lamp Replacement Cycle / 4,000 Hour Air Filter Replacement Cycle

The PT-VW435NEA has a maximum lamp replacement cycle of 4,000 hours.*⁹ The air filters also has a replacement cycle of 4,000 hours.*¹⁰ This reduces maintenance hassles for long periods of use, and helps to lower maintenance costs and reduce environmental impact.

Easy Lamp and Air Filter Replacement Simplifies Maintenance

For easier maintenance, you can replace the lamp from the top and the air filter from the side and the back, even after the Projector is installed on the ceiling.

This eliminates the need to detach the Projector from its mounting bracket in ceiling mounted applications.

Quiet 29-Db*¹¹ Design Does Not Interrupt Meetings or Classes

The quiet design keeps noise levels down to 29 dB, so the sound of the cooling fan is hardly noticeable. This helps the audience to keep their attention on the speech when someone is giving a presentation, or on the screen images during quiet scenes.

1.6x Zoom Lens Allows Flexible Installation

When projecting onto a 100 inch wide screen, the 1.6x zoom lens lets the PT-VW435NEA support a wide range of projection distances, from 2.5 to 4.1 metres (8.2 to 13.5 feet).

Lens Shift Moves the Image Vertically Without Distortion

The PT-VW435NEA features the Lens Shift function in the vertical direction. It moves the image position vertically without distorting it.

10 Watt Speakers and a Microphone Input Enables Audio Playback Directly from the Projector

These Portable Projectors feature high-output 10 Watt Speakers that produce a high sound volume without requiring external Speakers. They also feature a microphone input terminal that allows microphone sounds to be output from the Projector. These features make presentations even more effective.

A Wide Variety of Functions for Easy Setup

Auto Input Signal Search

The Auto Input Signal Search function automatically detects the input signal and selects the input channel based on the signal. This function lets you start a presentation without any complicated set up required.

Input Guidance Function

If the input signal cannot be detected, the Input Guidance function will display connection instructions on the Projector screen, for easy set up.

Real-Time Keystone Correction

With Real-Time Keystone Correction, the Projector automatically senses if you adjust its angle (in the vertical direction) during operation and instantly makes whatever keystone correction is necessary for optimal viewing.

Colour-Board and Blackboard Modes

Colour-Board and Blackboard modes adjust the colours to provide high-quality projection possible in rooms that don't have a screen.
The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of Projectors.

HDMI Input Terminal and Abundant Interfaces

Extensive interfaces include an HDMI input terminal, 2 sets of computer (RGB) input terminals, a wired LAN terminal, and a serial (RS-232C) terminal for external control. These features support a wide range of system architectures for portable, or ceiling mounted use.

Easy Remote Monitoring and Control over a LAN

Web browser on a Computer connected through a wired LAN system lets you remotely operate Projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall Projector status. In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic Projectors from a single PC.

Direct Power Off

The Direct Power Off function keeps the cooling fan turned on even when you unplug the power cord right after use. This lets you put everything away and carry the Projector quickly to your next presentation or lecture.

*1 DVD video, Blu-ray video and content set with DRM (Digital Rights Management) cannot be transferred.
*2 Wireless Manager ME 6.0 are supported by Windows^®XP / Window Vista^®/ Windows^®7 and Macintosh (Mac OS X v10.6/v10.7).
*3 If the Computer is not equipped with a wireless LAN function, a wireless LAN card is required. In the case of Macintosh Computers, only the built-in wireless LAN function is supported. Network functions such as Live mode and Multi-Live mode can also be used with a wired LAN.
*4 Windows and Windows Vista Computers must be logged on to using the Administrator's account. The first time that a Windows 7 Computer is used, the sound driver may require setting.
*5 The transfer speeds may vary depending on the situation.
*6 Supported file types include PDF, PowerPoint, Excel, Word, Keynote, Numbers, Pages, Text, and Rich Text. However, document files that contain animation, links, embedded motion images or audio, a Slideshow function, word art, comment displays that have open passwords, or have been scanned at high resolution cannot be sent.
*7 The latest Wireless Manager ME 6.0 will be released on our website shortly.
*8 The first time a USB cable is connected, a USB driver must be installed.
*9 This is the maximum value when the lamp power is set to Eco, with the lamp turned on for 2 hours and off for 0.25 hour. Increases in the lamp on cycle or extended use with the lamp continuously turned on will shorten the lamp replacement cycle. When the lamp power is set to Normal, the lamp replacement cycle is 2,500 hours. The usage environment affects the lamp replacement cycle.
*10 The lamp power: Eco. The usage environment affects the duration of the filter.
*11 With the lamp power set to ECO.
