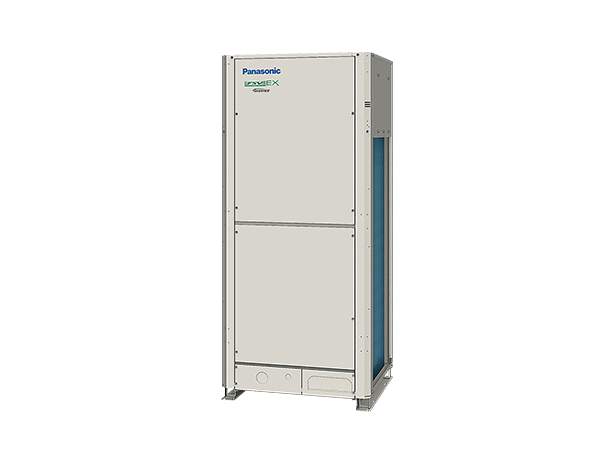

2-Pipe Mini-VRF LZ Series
For small-scale commercial and residential use
The Mini-VRF LZ Series is designed for light commercial and residential use with extraordinary energy-saving performance and a high external static pressure of 35 Pa.
2-Pipe Mini-VRF LZ Series
Features
Panasonic R32 Refrigerant Leak Detector
R32 being a mildly flammable refrigerant (category A2L), the design and installation of systems operating with R32 must comply with the relevant refrigerant safety regulations. Those regulations which apply to our R32 Mini-VRF systems and the unique “incorporated circulation air flow” method is “IEC 60335-2-40 (ed. 6.0) for safety and flammability.“
The restrictions imposed on the refrigerant charges in a system due to the flammability of R32 are more severe than those imposed by toxicity. Therefore, in standard applications using our R32 Mini-VRF systems, toxic concentrations cannot occur.
The restrictions imposed on the refrigerant charges in a system due to the flammability of R32 are more severe than those imposed by toxicity. Therefore, in standard applications using our R32 Mini-VRF systems, toxic concentrations cannot occur.
|
Cooling/Heating kW (rated) |
12.1/12.5 |
12.1/12.5 |
14.0/16.0 |
14.0/16.0 |
15.5/16.5 |
15.5/16.5 |
22.4/25.0 |
28.0/28.0 |
|
Cooling/Heating Btu/h (rated) |
41,300/42,700 |
41,300/42,700 |
47,800/54,600 |
47,800/54,600 |
52,900/56,300 |
52,900/56,300 |
76,500/85,300 |
95,600/95,600 |
|
Model No. |
U-4LZ2E5 |
U-4LZ2E8 |
U-5LZ2E5 |
U-5LZ2E8 |
U-6LZ2E5 |
U-6LZ2E8 |
U-8LZ2E8 |
U-10LZ2E8 |
|
|
|
|
|
|
|
|
Extraordinary Energy-Saving Performance
The operation efficiency has been improved using a highly efficient R32 refrigerant, a DC Inverter compressor, a DC motor, and a heat exchanger design.
Energy Savings Design
1. Panasonic’s inverter compressor to improve partial-load capacity.
2. 2 pieces of the printed circuit board for easy maintenance.
3. Large-size accumulator to maintain compressor reliability for extended max piping length.
4. DC fan motor for optimum air volume.
5. Newly designed fan blades to inhibit air turbulence and increase efficiency.
6. Redesigned heat exchanger & copper tubes to increase efficiency.
7. Centrifugal oil separator improves oil separation efficiency and reduces refrigerant pressure loss.
2. 2 pieces of the printed circuit board for easy maintenance.
3. Large-size accumulator to maintain compressor reliability for extended max piping length.
4. DC fan motor for optimum air volume.
5. Newly designed fan blades to inhibit air turbulence and increase efficiency.
6. Redesigned heat exchanger & copper tubes to increase efficiency.
7. Centrifugal oil separator improves oil separation efficiency and reduces refrigerant pressure loss.
Variable Evaporation Temperature (VET) for Energy Saving and Comfortable Air conditioning
The indoor and outdoor units work in tandem to control evaporation temperature, refrigerant volume, and airflow. This enables optimal air conditioning according to the number of people in the room and the indoor temperature, as well as energy savings and comfort.
Note: When fan speed is set to Auto.
Demand Response Ready
Simple Demand Response
Featuring inverter control technology, LZ2*** series systems are Demand Response Management (DRM) ready. With this control, power consumption at times of peak load can be set in three steps to deliver optimum performance. This helps to correspond with the local power management for reducing peak power consumption, and to reduce annual power consumption with minimal loss in comfort.
*Demand controller. Relay contact point: No voltage relay. **Current input is DC 24V 10mA Use a very small electric current contact point for the relay. ***LZ2 series require to purchase Demand Terminal Kit.
Flexible Demand Response
To use this function with the LZ2 series, it is necessary to purchase the Demand Terminal Kit (CZ-CAPDC3) (sold separately), install it on the outdoor unit at the site, and perform the appropriate settings.
A maintenance remote controller for service and special connection wiring are required for setting up the outdoor unit after installation of the kit, please contact your dealer for details.
A maintenance remote controller for service and special connection wiring are required for setting up the outdoor unit after installation of the kit, please contact your dealer for details.
High Durability
Wide Operating Range
Cooling operation is possible even when the outdoor temperature is as low as -10°C DB or as high as 52°C DB. As for heating operation, it is possible even when the outdoor temperature is as low as -20°C WB. The remote controller temperature can be set from 18°C up to 30°C (cooling), 16°C up to 30°C (heating)*.
*Depending on the type of remote controller.
Note: Cooling/heating capacity depend on indoor/outdoor temperature. Please refer technical databook.
Note: Cooling/heating capacity depend on indoor/outdoor temperature. Please refer technical databook.
Rust-resistant and Easy to Maintain
The anti-corrosion Blue Fin treatment of the heat exchanger provides greater resistance against corrosion. Panasonic also uses a copper tube condenser, which makes it easy to repair and maintain. All models are equipped with Blue Fin condenser.
ote: Selecting this unit does not completely eliminate the possibility of rust developing. For details concerning unit installation and maintenance, please consult an authorised dealer.
Smart Power Saving with IoT
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: A wireless remote controller is provided with the product.
Smart Management of Power Consumption
Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6WBLW/6BLW are required per unit.
Highly Flexible Installation and Design
･ Maximum total piping length 180 m (12.1/14.0/15.5 kW) / 300 m (22.4/28.0 kW)
･ Actual piping length 90 m (12.1/14.0/15.5 kW) / 100 m (22.4/28.0 kW)
･ Elevation difference of maximum 50 m in case of outdoor unit is higher than indoor unit.
･ Maximum 15 meters height difference between indoor units.
･ Up to 13 indoor units connectable in case of 22.4/28.0 kW.
･ High external static pressure of 35 Pa.
･ Demand response is capable with additional demand terminal kit CZ-CAPDC3.
･ Actual piping length 90 m (12.1/14.0/15.5 kW) / 100 m (22.4/28.0 kW)
･ Elevation difference of maximum 50 m in case of outdoor unit is higher than indoor unit.
･ Maximum 15 meters height difference between indoor units.
･ Up to 13 indoor units connectable in case of 22.4/28.0 kW.
･ High external static pressure of 35 Pa.
･ Demand response is capable with additional demand terminal kit CZ-CAPDC3.
* In South Australia, demand response capability is legally required from April 2023.
Specs
U-4LZ2E5
U-4LZ2E8
U-5LZ2E5
U-5LZ2E8
U-6LZ2E5
U-6LZ2E8
U-8LZ2E8
U-10LZ2E8
R32 Refrigerant- Inverter
- DRED ready
- Heat Pump
High external static pressure 35 Pa
Wide operation range: Cooling: -10°C to 52°C DB, Heating at: -20°C to 18°C WB
Diversity ratio 50-150% (4/5/6/8 HP) / 20-150% (10 HP)
Actual piping length: 90 m (4/5/6 HP) / 100 m (8/10 HP)
Total piping length: 180 m (4/5/6 HP) / 300 m (8/10 HP)
System difference of elevation: 50 m (outdoor unit above) / 40 m (below)
