Aero Z Series (AKR) Wall-Mounted Split System Air Conditioner

Purify Around-the-Clock with nanoe™ X

Panasonic Aero Z Series (AKR) wall-mounted split system air conditioner delivers energy efficient heating and cooling for your home. Aero series air conditioners feature nanoe™ X air purification technology that can be run independently 24 hours a day. The iAUTO-X function provides faster cooling from start-up while AEROWINGS deliver faster and further airflow across the room. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy continuous comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.

Aero Z Series (AKR) Wall-Mounted Split System Air Conditioner

SHOP NOW

Features

Stay Comfortable All Year Round

Panasonic Aero Z Series (AKR) air conditioner offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone's comfortable all year round.

Purify Your Home All Day Long with 24-hour nanoe™ X Air Purification

Breathe easy at home, all day long. Panasonic's nanoe™ X technology continuously cleans and purifies your indoor air, even on surfaces and soft furnishings. nanoe™ X can be activated with or without heating/cooling function turned on, thereby saving you electricity. This purification technology keeps your living space feeling fresh and clean, creating a safe haven for you and your loved ones 24/7.

LEARN MORE

Breathe Cleaner, Live Better: The Benefits of nanoe™ X Air Purification

Active Air Purification with nanoe™ X

Known as nature’s detergent, hydroxyl radicals (also known as OH radicals) are natural reactive molecules seek to react with other elements such as hydrogen. This reaction enables hydroxyl radicals to inhibit the growth of pollutants. nanoe™ X can inhibit several types of bacteria, viruses, mould, allergens, pollen and certain hazardous substances. Furthermore, nanoe™ X also deodourises odour and moisturises skin and hair.

Asthma and Allergy Friendly

Panasonic nanoe™ X technology has been approved by the National Asthma Council Australia's Sensitive Choice program, helping those with asthma and allergies breathe easier.

Connect & Control Your Air Conditioners Anywhere, Anytime

With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect and control multiple air conditioning units from anywhere, at home or away.

LEARN MORE

Advanced Smart Control with Voice Assistant Compatibility

Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

LEARN MORE

*Comparison of ECO mode & normal mode by using 3.5kW Inverter Model. Not applicable for multi-split systems.

Wide Cooling Capacity Range

With indoor cooling capacity range up to 9.5kW, Panasonic Aero Z series air conditioners offers the flexibility to scale cooling operation according to different needs and preferences, even for large spaces.

Comfort Cooling Environment for Your Needs

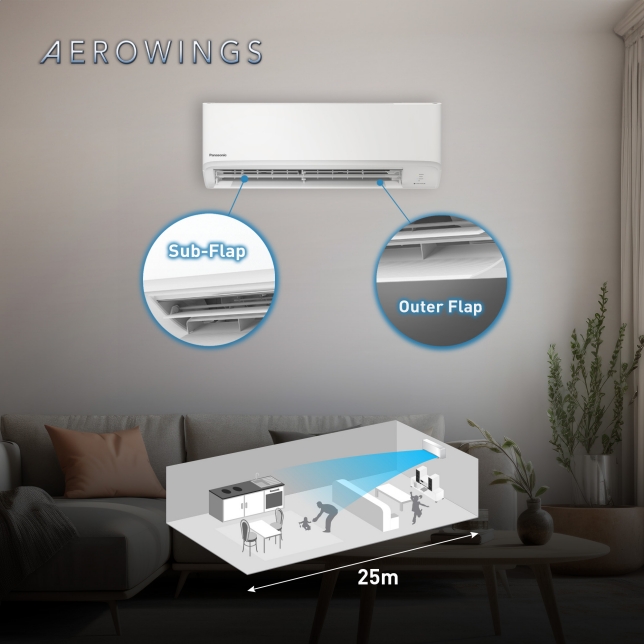

Faster and Further Airflow with AEROWINGS

AEROWINGS concentrates cool air for further and faster airflow across the room up to 25 meters* using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.

*Applicable to CS-Z95AKR only.

Faster and Further Airflow with AEROWINGS

Faster Cooling with iAUTO-X

iAUTO-X provides 25%* faster cooling through the use of Panasonic Thermal Enhancement Technology (P-TECh) which enables the compressor to achieve maximum frequency quickly from start-up, allowing you to relish the cooling comfort instantly, even on a scorching hot day.

*Comparison of iAUTO-X mode & normal COOL mode by using 3.5kW Aero Z Series (AKR) model. Not applicable for multi-split systems.

LEARN MORE

Superior Quality & Reliability

Panasonic is uncompromising in product quality, durability, reliability and safety. We lead the market in many of the most extreme climates in the world for a good reason. Our products are engineered to provide uninterrupted cooling or heating when you need it most.

Robust Design and Long Term Endurance

1 Corrosion-Resistant Blue Fin Condenser

All Panasonic outdoor units feature Blue Fin coating, which protects the condenser from corrosion caused by air, water, and other corrosive elements.

Wireless Remote Controller

The handheld wireless remote controller is designed for ease of operation and convenience with five quick access keys.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller

The optional wired remote controller provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Cooling Capacity	2.05 kW	2.50 kW	3.50 kW	4.20 kW	5.00 kW	5.00 kW	6.00 kW	7.10 kW	8.00 kW	9.5 kW
Cooling Capacity	6,990 Btu/h	8,530 Btu/h	11,900 Btu/h	14,300 Btu/h	17,100 Btu/h	17,100 Btu/h	20,500 Btu/h	24,200 Btu/h	27,300 Btu/h	32,400 Btu/h
Heating Capacity	2.80 kW	3.20 kW	4.00 kW	5.00 kW	6.00 kW	6.00 kW	7.20 kW	8.00 kW	9.00 kW	10.3 kW
Heating Capacity	9,550 Btu/h	10,900 Btu/h	13,600 Btu/h	17,100 Btu/h	20,500 Btu/h	20,500 Btu/h	24,600 Btu/h	27,300 Btu/h	30,700 Btu/h	35,100 Btu/h
Indoor Unit	CS-Z20AKRW	CS-Z25AKRW-1	CS-Z35AKRW	CS-Z42AKRW	CS-Z50AKRW	CS-Z50AKRW-1	CS-Z60AKRW-1	CS-Z71AKRW	CS-Z80YKR	CS-Z95AKR
Outdoor Unit	CU-Z20AKR	CU-Z25AKR-1	CU-Z35AKR	CU-Z42AKR	CU-Z50AKR	CU-Z50AKR-1	CU-Z60AKR-1	CU-Z71AKR	CU-Z80YKR	CU-Z95AKR
Detailed Page	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE

Specs

CS-Z20AKRW_CU-Z20AKR

nanoe X Generator Mark 1
Built-in Wi-Fi
iAUTO-X
ECO Mode with A.I. Control
AEROWINGS
Inverter
Refrigerant R32
DRED ready

nanoe™ X 24-hour air purification inhibits various pollutants and deodorises odours

Manage your air conditioner using mobile device with Built-in Wi-Fi and Comfort Cloud App

iAUTO-X Mode lets you enjoy instant powerful cooling during start-up

AEROWINGS concentrates cool air for further and faster airflow across the room

ECO Mode with A.I. control intelligently balances energy savings and comfort

Energy efficiency with Inverter technology and R32 refrigerant

	CS-Z20AKRW_CU-Z20AKR	CS-Z25AKRW-1_CU-Z25AKR-1	CS-Z35AKRW_CU-Z35AKR	CS-Z42AKRW_CU-Z42AKR	CS-Z50AKRW_CU-Z50AKR	CS-Z50AKRW-1_CU-Z50AKR-1	CS-Z60AKRW-1_CU-Z60AKR-1	CS-Z71AKRW_CU-Z71AKR	CS-Z80YKR_CU-Z80YKR	CS-Z95AKR_CU-Z95AKR
Indoor unit	CS-Z20AKRW	CS-Z25AKRW-1	CS-Z35AKRW	CS-Z42AKRW	CS-Z50AKRW	CS-Z50AKRW-1	CS-Z60AKRW-1	CS-Z71AKRW	CS-Z80YKR	CS-Z95AKR
Outdoor unit	CU-Z20AKR	CU-Z25AKR-1	CU-Z35AKR	CU-Z42AKR	CU-Z50AKR	CU-Z50AKR-1	CU-Z60AKR-1	CU-Z71AKR	CU-Z80YKR	CU-Z95AKR
Cooling Capacity (min-max) (kW)	2.05 (0.95-2.80) kW	2.50 (0.95-3.70) kW	3.50 (1.00-4.20) kW	4.20 (1.15-5.10) kW	5.00 (1.15-6.10) kW	5.00 (1.25-6.70) kW	6.00 (1.70-7.50) kW	7.10 (1.70-8.50) kW	8.00 (2.30-9.00) kW	9.50 (2.80-11.20) kW
Heating Capacity (min-max) (kW)	2.80 (0.90-4.10) kW	3.20 (0.90-4.40) kW	4.00 (0.90-5.70) kW	5.00 (0.90-6.80) kW	6.00 (0.98-7.70) kW	6.00 (1.10-8.00) kW	7.20 (1.70-9.80) kW	8.00 (1.70-10.60) kW	9.00 (2.20-11.60) kW	10.30 (2.40-12.30) kW
Cooling Capacity (min-max) (Btu/h)	6,990 (3,240-9,550) Btu/h	8,530 (3,240-12,600) Btu/h	11,900 (3,410-14,300) Btu/h	14,300 (3,920-17,400) Btu/h	17,100 (3,920-20,800) Btu/h	17,100 (4,260-22,800) Btu/h	20,500 (5,800-25,600) Btu/h	24,200 (5,800-29,000) Btu/h	27,300 (7,840-30,700) Btu/h	32,400 (9,550-38,200) Btu/h
Heating Capacity (min-max) (Btu/h)	9,550 (3,070-14,000) Btu/h	10,900 (3,070-15,000) Btu/h	13,600 (3,070-19,400) Btu/h	17,100 (3,070-23,200) Btu/h	20,500 (3,340-26,300) Btu/h	20,500 (3,750-27,300) Btu/h	24,600 (5,800-33,400) Btu/h	27,300 (5,800-36,100) Btu/h	30,700 (7,500-39,600) Btu/h	35,100 (8,180-41,900) Btu/h
Cooling Indoor Air Flow (L/s)	178 L/s	188 L/s	193 L/s	193 L/s	208 L/s	328 L/s	337 L/s	352 L/s	367 L/s	407 L/s
Heating Indoor Air Flow (L/s)	195 L/s	200 L/s	202 L/s	202 L/s	228 L/s	328 L/s	359 L/s	367 L/s	377 L/s	420 L/s
Dehumid (L/h)	1.30 L/h	1.50 L/h	2.00 L/h	2.40 L/h	2.80 L/h	2.80 L/h	3.30 L/h	4.10 L/h	4.70 L/h	5.00 L/h
Cooling Running Current (A)	2.0 A	2.55 A	3.60 A	5.00 A	6.70 A	5.60 A	7.10 A	8.80 A	10.10 A	12.00 A
Heating Running Current (A)	2.7 A	3.20 A	3.85 A	5.45 A	7.30 A	6.10 A	7.80 A	8.90 A	9.80 A	11.70 A
Max Current (A)	4.8 A	6.30 A	7.20 A	8.90 A	11.00 A	10.80 A	13.20 A	14.80 A	15.00 A	16.60 A
Cooling Power Input (min-max) (kW)	0.45 (0.22-0.80) kW	0.58 (0.20-1.20) kW	0.82 (0.21-1.29) kW	1.18 (0.22-1.64) kW	1.51 (0.24-2.10) kW	1.31 (0.23-2.00) kW	1.67 (0.44-2.40) kW	2.06 (0.45-2.90) kW	2.39 (0.46-3.03) kW	2.84 (0.50-3.50) kW
Heating Power Input (min-max) (kW)	0.60 (0.19-1.10) kW	0.73 (0.19-1.29) kW	0.87 (0.19-1.65) kW	1.30 (0.20-2.04) kW	1.72 (0.26-2.50) kW	1.42 (0.22-2.25) kW	1.83 (0.40-3.00) kW	2.09 (0.40-3.30) kW	2.34 (0.43-3.42) kW	2.78 (0.44-3.50) kW
Cooling AEER/EER	4.47 W/W / 4.56 W/W	4.28 W/W / 4.31 W/W	4.22 W/W / 4.27 W/W	3.53 W/W / 3.56 W/W	3.29 W/W / 3.31 W/W	3.79 W/W / 3.82 W/W	3.57 W/W / 3.59 W/W	3.43 W/W / 3.45 W/W	3.43 W/W / 3.35 W/W	3.33 W/W / 3.35 W/W
Heating ACOP/COP	4.60 W/W / 4.67 W/W	4.33 W/W / 4.38 W/W	4.55 W/W / 4.60 W/W	3.82 W/W / 3.85 W/W	3.47 W/W / 3.49 W/W	4.20 W/W / 4.23 W/W	3.92 W/W / 3.93 W/W	3.81 W/W / 3.83 W/W	3.83 W/W / 3.85 W/W	3.69 W/W / 3.71 W/W
Star Rating Residential/Commercial - Cooling (Hot Climate)	4.5/5.5 TCSPF	4.5/5.5 TCSPF	4.5/5.5 TCSPF	3.5/4.5 TCSPF	3.5/4.5 TCSPF	4.5/5.5 TCSPF	3.5/4.0 TCSPF	3.5/4.5 TCSPF	3.5/4.5 TCSPF	3.5/4.0 TCSPF
Star Rating Residential/Commercial - Cooling (Average Climate)	3.5/5.5 TCSPF	4.0/6.0 TCSPF	4.5/6.5 TCSPF	3.5/5.0 TCSPF	3.5/6.0 TCSPF	4.0/6.5 TCSPF	3.5/5.0 TCSPF	3.5/5.0 TCSPF	3.5/5.0 TCSPF	3.0/4.5 TCSPF
Star Rating Residential/Commercial - Cooling (Cold Climate)	3.5/6.5 TCSPF	4.0/7.0 TCSPF	4.5/8.0 TCSPF	3.5/6.0 TCSPF	3.5/8.0 TCSPF	4.5/8.0 TCSPF	3.5/6.0 TCSPF	3.5/6.0 TCSPF	3.5/6.0 TCSPF	3.5/5.5 TCSPF
Star Rating Residential/Commercial - Heating (Hot Climate)	3.5/3.5 HSPF	3.5/3.5 HSPF	3.5/3.5 HSPF	3.5/3.5 HSPF	3.0/3.0 HSPF	3.5/3.5 HSPF	3.5/3.5 HSPF	3.5/3.5 HSPF	3.5/3.5 HSPF	3.0/3.5 HSPF
Star Rating Residential/Commercial - Heating (Average Climate)	3.0/3.0 HSPF	3.0/3.0 HSPF	3.0/3.5 HSPF	2.5/3.0 HSPF	2.5/2.5 HSPF	3.0/3.0 HSPF	2.5/3.0 HSPF	2.5/3.0 HSPF	2.5/3.0 HSPF	2.5/3.0 HSPF
Star Rating Residential/Commercial - Heating (Cold Climate)	2.5/2.5 HSPF	2.5/2.5 HSPF	2.5/3.0 HSPF	2.0/2.5 HSPF	2.0/2.0 HSPF	2.5/2.5 HSPF	2.0/2.5 HSPF	2.0/2.5 HSPF	2.0/2.5 HSPF	2.0/2.5 HSPF
Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo)	38/24/19 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	40/25/19 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	44/26/19 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	44/31/28 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	44/34/28 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	47/34/31 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	48/36/33 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	49/37/34 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	51/38/35 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	53/40/38 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.
Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo)	39/25/21 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	40/27/21 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	44/29/22 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	44/32/28 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	44/33/29 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	47/33/29 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	48/35/32 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	49/37/34 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	50/38/35 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	52/40/35 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.
Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo)	54/40/35 dB(A)	56/41/35 dB(A)	60/42/35 dB(A)	60/47/44 dB(A)	60/50/44 dB(A)	63/50/47 dB(A)	64/52/49 dB(A)	65/53/50 dB(A)	67/54/51 dB(A)	69/56/54 dB(A)
Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo)	55/41/37 dB(A)	56/43/37 dB(A)	60/45/38 dB(A)	60/48/44 dB(A)	60/49/45 dB(A)	63/49/45 dB(A)	64/51/48 dB(A)	65/53/50 dB(A)	66/54/51 dB(A)	68/56/51 dB(A)
Indoor Unit Dimensions (H x W x D)	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm	309 mm x 1,212 mm x 269 mm
Indoor Unit Net Weight	8 kg	8 kg	8 kg	8 kg	8 kg	12 kg	13 kg	13 kg	13 kg	17 kg
Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo)	46/41 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	48/43 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	48/43 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	48/43 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	53/48 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	54/49 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	55/50 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	55/50 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.
Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo)	47/42 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	50/45 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	51/46 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	53/48 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	54/49 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	55/50 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.	55/50 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.
Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo)	61/56 dB(A)	63/58 dB(A)	64/59 dB(A)	64/59 dB(A)	63/58 dB(A)	63/58 dB(A)	67/62 dB(A)	68/63 dB(A)	69/64 dB(A)	69/64 dB(A)
Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo)	62/57 dB(A)	64/59 dB(A)	65/60 dB(A)	66/61 dB(A)	64/59 dB(A)	64/59 dB(A)	67/62 dB(A)	68/63 dB(A)	69/64 dB(A)	69/64 dB(A)
Outdoor Unit Dimensions (H x W x D)	542 mm x 780 mm x 289 mm	542 mm x 780 mm x 289 mm	542 mm x 780 mm x 289 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm	695 mm x 875 mm x 320 mm	695 mm x 875 mm x 320 mm	795 mm x 875 mm x 320 mm	795 mm x 875 mm x 320 mm
Outdoor Unit Net Weight	25 kg	25 kg	31 kg	31 kg	35 kg	35 kg	45 kg	45 kg	51 kg	55 kg
Refrigerant Type	R32	R32	R32	R32	R32	R32	R32	R32	R32	R32
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)	ø 15.88 mm (5/8 inch)	ø 15.88 mm (5/8 inch)	ø 15.88 mm (5/8 inch)
Pipe Extension Length (min-max)	3 m ~ 20 m	3 m ~ 20 m	3 m ~ 20 m	3 m ~ 20 m	3 m ~ 30 m	3 m ~ 30 m	3 m ~ 30 m	3 m ~ 30 m	3 m ~ 30 m	3 m ~ 30 m
Maximum Elevation Length	15 m	15 m	15 m	15 m	15 m	15 m	20 m	20 m	20 m	20 m
Pipe Length for Additional Refrigerant Gas	7.5 m	7.5 m	7.50 m	7.50 m	10 m	10 m	10 m	10 m	10 m	10 m
Additional Gas Amount	10 g/m	10 g/m	10 g/m	10 g/m	15 g/m	15 g/m	15 g/m	25 g/m	25 g/m	25 g/m
Power Supply	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
Outdoor Unit Operating Range (Cooling)	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C
Outdoor Unit Operating Range (Heating)	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C
iAUTO-X	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
ECO Mode with A.I.	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Inverter Control	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Fan Mode	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Hot Start Control	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Auto Changeover (Inverter)	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Personal Airflow Creation	No	No	No	No	No	Yes	Yes	Yes	Yes	Yes
Manual Horizontal Airflow Direction Control	Yes	Yes	Yes	Yes	Yes	No	No	No	No	No
Airflow Direction Control (Up & Down)	Yes	Yes	Yes	Yes	Yes	No	No	No	No	No
nanoe™ X	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)
Odour Removing Function	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Removable Washable Panel	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Demand Response Enabling Device (DRED)	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Wi-Fi	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)
Wired Remote Control	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Long Piping (max.)	20 m	20 m	20 m	20 m	20 m	30 m	30 m	30 m	30 m	30 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Note	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
