R32 Inverter NX Series Low Profile Mini Cassette

Compact 4-way airflow system with a new IoT remote controller

R32 Inverter NX Series Low Profile Mini Cassette are compact and particularly suitable for small offices and hospital rooms. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series Low Profile Mini Cassette

Features

Rated Capacity (kW) *in case of single connection	Cooling	2.5	3.6	5.0	6.0
Rated Capacity (kW) *in case of single connection	Heating	3.2	3.6	5.0	6.0
Indoor Unit		S-25PY3E	S-36PY3E	S-50PY3E	S-60PY3E
Outdoor Unit (Single Split)		U-25PZ3R5	U-36PZ3R5	U-50PZ3R5	U-60PZ3R5
Outdoor Unit (Multi Split)		Multi Split Air Conditioning System

More Efficient Air Protection with nanoe X Generator Mark2

24-hour nanoe™ X Air Purification

Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

LEARN MORE

Effective at Eliminating Odours in Half the Time

The nanoe X Generator Mark2 reduces odours by as much as 1.8 levels* in just half the time of the conventional nanoe X Generator Mark1.

*A 1.8 level decrease in odour intensity is equivalent to a reduction of 95% or more. [Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour

**Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark1 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 120 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01)

Effective at Eliminating Odours in Half the Time

Inside Cleaning Function to Suppress Mould Growth

After cooling/drying operation, the inside of the indoor unit is automatically dried.* nanoe™ X is activated to suppress mould growth.

*If you wish to set the inside cleaning function off, use the wireless remote controller to turn the function off. Please consult an authorized dealer for setting.
Note: The product image shown is for illustration purposes only and may not be an exact representation of the product.

Inside Cleaning Function to Suppress Mould Growth

Smart Power Saving with IoT

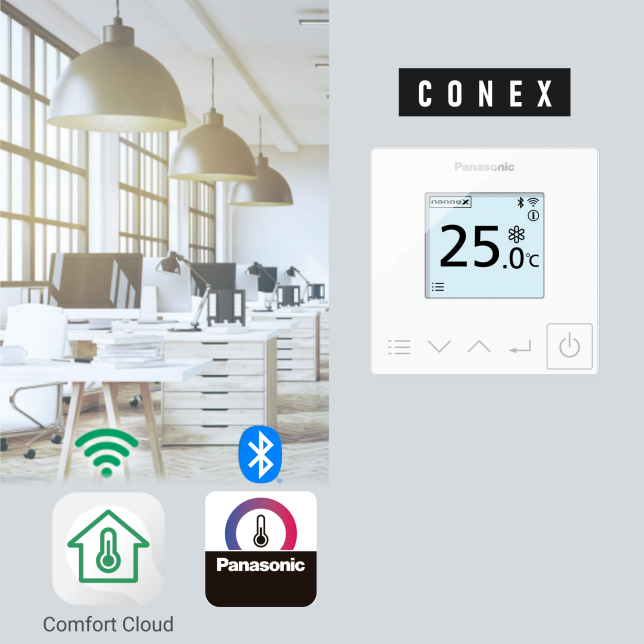

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.

Note: A wireless remote controller is provided with the product.

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

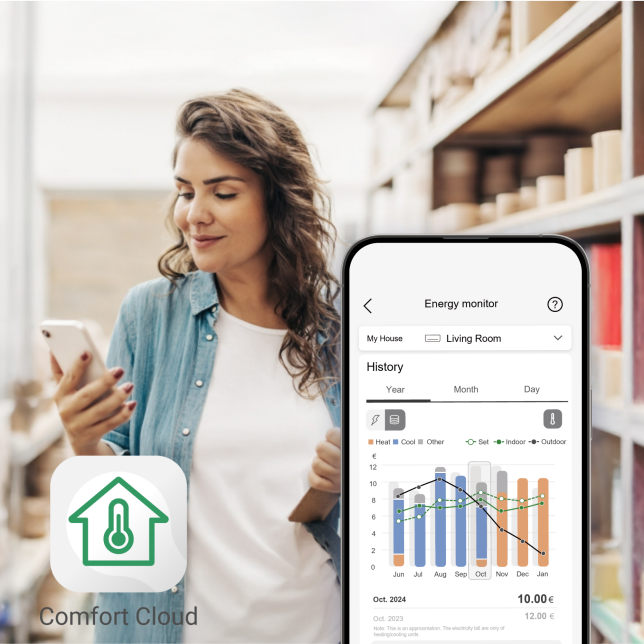

Smart Management of Power Consumption

Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.

Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6WBLW/6BLW are required per unit.

LEARN MORE

Pleasant Airflow

Cools All Areas Quickly

Powerful airflow delivered from all four sides of the unit instantly transforms all areas of spaces into a comfortable and cool environment.

Note: This table shows values for the airflow rate in high mode.

Individual Flap Control Allows You to Cool the Environment as You Like

Better control of the airflow with four motors, providing individual flap control. 4-way and auto swing louvers offer uniform airflow to all corners of the room. The louvers can be angled individually to deliver the optimal amount of cool air to all areas. You can cool spaces in a way that suits you.

Flat Horizontal Design That Conditions the Interior

Panasonic believes that one of the most important elements of design is that it doesn’t interfere with the overall room interior. The flat horizontal design of the 4-Way Mini Cassette achieves an elegant yet simple form. This design allows it to protrude only 30 mm from the ceiling, to blend naturally into a variety of interiors, including offices and restaurants.

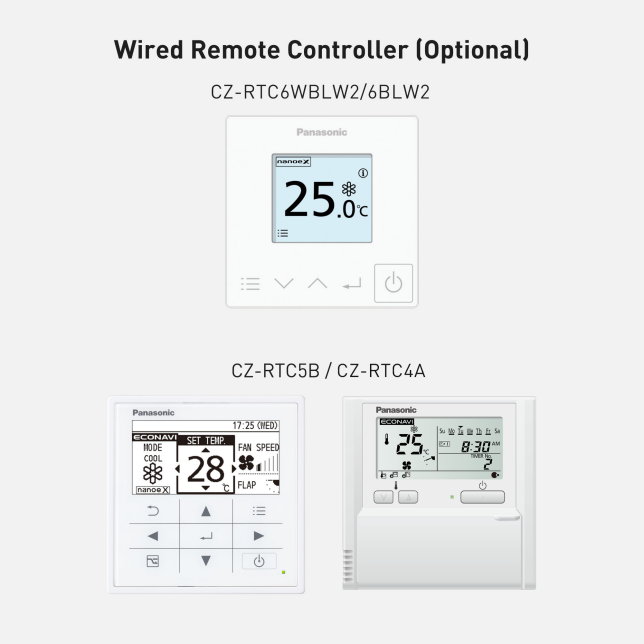

Wired Remote Controller

Besides Smart Control CONEX, conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.

LEARN MORE

Flexible Installation

Thanks to advanced Panasonic design, the panel is a compact 625 x 625 mm, offering elegant, unobtrusive installation even where space is limited.

With a low body height of 230 mm, it can easily fit in limited spaces and tight spots. (Required 243 mm from bottom of the panel to top of the unit)

Lighter and Slimmer, Easier Installation

The internal pump allows the drain pipe to be elevated up to 850 mm from the lower surface of the body. Long horizontal piping is also possible.

A Drain Height of Up to 850 mm from the Ceiling Surface

Specs

S-25PY3E

S-36PY3E

S-50PY3E

S-60PY3E

nanoe™ X
Comfort Cloud App
CONEX
Inverter

nanoe™ X patented air purification technology

nanoe™ X effectiveness proven in large space by 3rd party

CONEX: A next-generation remote control

Mini cassette fits into a 60 x 60 cm ceiling grid

Powerful drain pump gives 850 mm lift

DC fan motor with variable speed and a new heat exchanger ensures efficient power consumption

	S-25PY3E	S-36PY3E	S-50PY3E	S-60PY3E
Air Volume (Cooling) (H/M/L)	141 Ls	158 Ls	200 Ls	233 Ls
Air Volume (Heating) (H/M/L)	141 Ls	158 Ls	200 Ls	233 Ls
Sound Pressure Level (Cooling) (H/M/L)	31/28/25 dB (A)	34/30/25 dB (A)	39/34/27 dB (A)	43/37/31 dB (A)
Sound Pressure Level (Heating) (H/M/L)	31/28/25 dB (A)	34/30/25 dB (A)	39/34/27 dB (A)	43/37/31 dB (A)
Sound Power Level (Cooling) (H/M/L)	46/43/40 dB	49/45/40 dB	54/49/42 dB	58/52/46 dB
Sound Power Level (Heating) (H/M/L)	46/43/40 dB	49/45/40 dB	54/49/42 dB	58/52/46 dB
Current (Cooling)	2.55/2.45 A	4.05/3.85 A	6.35/6.10 A	8.10/7.75 A
Current (Heating)	3.25/3.10 A	3.75/3.60 A	5.70/5.45 A	7.35/7.05 A
Dimension	H243 x W575 x D575 mm	H243 x W575 x D575 mm	H243 x W575 x D575 mm	H243 x W575 x D575 mm
Net Weight	15 kg	15 kg	15 kg	15 kg

Documents

PAC Full Line-up Catalog 2023 AU (PDF - 20.1 MB)

NX Series Inverter Mini Cassette R32 Spec AU (PDF - 706 KB)

NX Series Inverter Mini Cassette R32 Dimension AU (PDF - 376 KB)

Combination

R32 Inverter NX Series Compact Model

R32 Inverter NX Series Compact Model delivers energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units ensure powerful operation.
