SUNVOLT ENERGY STORAGE SOLUTION

0.0 out of 5 stars.

Add to WishlistRemove from Wishlist

The next evolution in solar energy use

Add to WishlistRemove from Wishlist

SUNVOLT ENERGY STORAGE SOLUTION

Features

The next generation of solar energy

Panasonic brings a strong heritage in Lithium-ion battery technology, with experience spanning more than 80 years focusing on industry-leading reliability, quality and safety. Explore the benefits of solar Lithium-ion battery technology with a Sunvolt Energy Storage Solution for your home.

Delivering uninterrupted clean energy

By storing solar energy within the Sunvolt Energy Storage Solution, clean energy can be used around the clock to reduce your electricity bill and provide hours of backup power during outages.

Delivering Value to Consumers and Small Businesses

Australian consumers and small businesses want to invest in sustainable energy sources, but they are dependent on energy being available on demand. The Sunvolt Energy Storage Solution can shift clean solar energy for use during the evening peak period, reducing overall energy costs.

Monitoring

Panasonic ARIES is a web based application designed for customers to control and monitor Energy Storage Systems. They can view system information over the course of a day, week, month or year, without interfering with how the system is being operated.

Early Intelligent Device Failure
Detection for Zero Downtime

Data Analytics for Performance
Improvement and Diagnosis

Easy Management with Real Time
Alerts and Reports

Specs

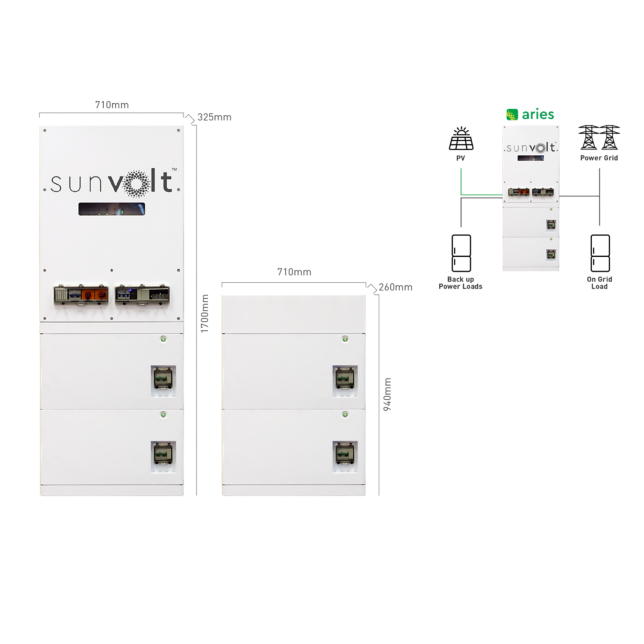

Photo of SUNVOLT ENERGY STORAGE SOLUTION

SV-LV ESS G3 5.4-1 (5.37kWh)

PV String Input Data
- Max. Input Power (W)*¹
  - 7500
- Max. Input Voltage (V)
  - 600
- MPPT Operating Voltage Range(V)
  - 60~550
- MPPT Voltage Range at Nominal Power (V)
  - 200~500
- Start-up Voltage (V)
  - 58
- Nominal Input Voltage (V)
  - 360
- Max. Input Current per MPPT (A)
  - 16
- Max. Short Circuit Current per MPPT (A)
  - 23
- Max. Backfeed Current to The Array (A)
  - 0
- Number of MPP Trackers
  - 2
- Number of Strings per MPPT
  - 1
Battery Input Data
- Battery Parameters
  - 1×Battery System
- Rated Energy (kWh)
  - 5.37
- Usable Energy (kWh)*²
  - 4.83
- Cell Type
  - LFP (LiFePO4)
- Cell Configuration
  - 16S1P
- Rated Voltage (V)
  - 51.2
- Operating Voltage Range (V)
  - 47.5~57.6
- Nominal Dis-/Charge Current (A)
  - 50A
- Max. Dis-/Charge Current (A)*³
  - 50A(100A@15min)
- Max. Discharge Power(kW)*³
  - 5.3
- Communication
  - CAN&RS485
- Battery Weight (kg)
  - 53 (1 pack)
- Battery Dimensions (W×H×D) (mm)
  - 650×390×260
- Operating Temperature(°C)
  - Charge: 0~+50; Discharge: -10~+50
- Storage temperature (°C)
  - -20~+40 (≤One Month) ; 0~+35 (≤One Year)
- Relative Humidity
  - 0~95%
- Max. Operating Altitude (m)
  - 2000
- Protection Degree
  - IP55 (Outdoor / Indoor，Battery stack)
- Standard and Certification
  - Safety，EMC ，UN38.3
AC Output Data (On-grid)
- Nominal Apparent Power Output to Utility Grid (VA)
  - 5,000
- Max. Apparent Power Output to Utility Grid (VA)
  - 5,000
- Nominal Apparent Power from Utility Grid (VA)
  - 5000
- Nominal Output Voltage (V)
  - 220/230/240
- Output Voltage Range (V)
  - 170~280
- Nominal AC Grid Frequency (Hz)
  - 50/60
- AC Grid Frequency Range (Hz)
  - 45~55 / 55~65
- Max. AC Current Output to Utility Grid (A)
  - 22.7
- Max. AC Current From Utility Grid (A)
  - 43.5
- Nominal AC Current From Utility Grid (A)
  - 21.7
- Max. Output Fault Current (Peak and Duration) (A)
  - 96A@3μs
- Inrush Current (Peak and Duration) (A)
  - 96A@3μs
- Nominal Output Current (A)
  - 21.7
- Power Factor
  - ~1 (Adjustable from 0.8 leading to 0.8 lagging)
- Max. Total Harmonic Distortion
  - <3%
- Maximum Output Overcurrent Protection (A)
  - 80
- Type of Voltage (a.c. or d.c.)
  - a.c.
AC Output Data (Back-up)
- Back-up Nominal Apparent Power (VA)
  - 5000
- Nominal Output Current (A)
  - 21.7
- Max. Output Current (A)
  - 22.7
- Max. Output Fault Current (Peak and Duration) (A)
  - 96A@3μs
- Inrush Current (Peak and Duration) (A)
  - 96A@3μs
- Maximum Output Overcurrent Protection (A)
  - 80
- Nominal Output Voltage (V)
  - 220/230/240
- Nominal Output Frequency (Hz)
  - 50/60
- Output THDv (@Linear Load)
  - <3%
Efficiency
- Max. Efficiency
  - 97.60%
- European Efficiency
  - 96.70%
- CEC Efficiency
  - 96.90%
- Max. Battery to AC Efficiency
  - 95.50%
- MPPT Efficiency
  - 99.90%
Protection
- PV String Current Monitoring
  - Integrated
- PV Insulation Resistance Detection
  - Integrated
- Residual Current Monitoring
  - Integrated
- PV Reverse Polarity Protection
  - Integrated
- Anti-islanding Protection
  - Integrated
- AC Overcurrent Protection
  - Integrated
- AC Short Circuit Protection
  - Integrated
- AC Overvoltage Protection
  - Integrated
- DC Switch
  - Integrated
- DC Surge Protection
  - Type II
- AC Surge Protection
  - Type III
- AFCI
  - Optional
- Remote Shutdown
  - Integrated
General Data
- Operating Temperature Range (°C)*⁴
  - -25~50
- Relative Humidity
  - 0~95%
- Max. Operating Altitude(m)
  - 2000
- Cooling Method
  - Natural Convection
- User Interface
  - LED,WLAN+APP
- Communication with BMS
  - CAN
- Communication with Meter
  - RS485
- Communication with Portal
  - WiFi / WiFi+LAN / 4G
- Weight (kg)
  - 115.5
- Dimension (W×H×D mm)
  - 710×1360×325
- Topology
  - Non-isolated
- Ingress Protection Rating
  - Decorated Enclosure: IP43, Electrical Enclosure:IP65,Battery Enclosure:IP55
- Environmental Category
  - 4K4H
- Pollution Degree
  - III
- Overvoltage Category
  - DC II / AC III
- Protective Class
  - I
- Storage Temperature (°C)
  - Battery： -20~+40(≤One Month) ; 0~+35(≤One Year)
    Inverter：-40~+85
- The Decisive Voltage Class(DVC)
  - Battery: A
    PV: C
    AC: C
    Com: A
- Installation Location
  - Wall Mounted & Grounded
- Type of Electrical Supply System
  - single phase
- Active Anti-islanding Method*⁵
  - AFDPF + AQDPF *⁵
- Country of Manufacture
  - China
Note
- *1 The max power is the actual power of PV.
  *2 Usable Energy (kWh)* : Test conditions, 90% DOD, 0.5C charge & discharge at +25±2 °C for battery system at beginning life. System Usable Energy may vary with different Inverter.
  *3 Max. Continuous Discharge Current*/Power*：Max. Continuous Charge/Discharge and power derating will occur related to Temperature and SOC.
  *4 Operating Temperature Range (℃)*: When the temperature is lower than 0 °C, the battery will stop charging. When the temperature is lower than -10 °C, the battery will stop discharging. The PV and AC are running properly.
  *5 AFDPF: Active Frequency Drift with Positive Feedback, AQDPF: Active Q Drift with Positive Feedback.

SV-LV ESS G3 10.8-1 (10.74kWh)

PV String Input Data
- Max. Input Power (W)*¹
  - 7500
- Max. Input Voltage (V)
  - 600
- MPPT Operating Voltage Range(V)
  - 60~550
- MPPT Voltage Range at Nominal Power (V)
  - 200~500
- Start-up Voltage (V)
  - 58
- Nominal Input Voltage (V)
  - 360
- Max. Input Current per MPPT (A)
  - 16
- Max. Short Circuit Current per MPPT (A)
  - 23
- Max. Backfeed Current to The Array (A)
  - 0
- Number of MPP Trackers
  - 2
- Number of Strings per MPPT
  - 1
Battery Input Data
- Battery Parameters
  - 2×Battery System
- Rated Energy (kWh)
  - 10.74
- Usable Energy (kWh)*²
  - 9.66
- Cell Type
  - LFP (LiFePO4)
- Cell Configuration
  - 16S2P
- Rated Voltage (V)
  - 51.2
- Operating Voltage Range (V)
  - 47.5~57.6
- Nominal Dis-/Charge Current (A)
  - 50A
- Max. Dis-/Charge Current (A)*³
  - 100A
- Max. Discharge Power(kW)*³
  - 5.3
- Communication
  - CAN&RS485
- Battery Weight (kg)
  - 106 (2 packs)
- Battery Dimensions (W×H×D) (mm)
  - 650×390×260 ×2(Non-stack size)
- Operating Temperature(°C)
  - Charge: 0~+50; Discharge: -10~+50
- Storage temperature (°C)
  - -20~+40 (≤One Month) ; 0~+35 (≤One Year)
- Relative Humidity
  - 0~95%
- Max. Operating Altitude (m)
  - 2000
- Protection Degree
  - IP55 (Outdoor / Indoor，Battery stack)
- Standard and Certification
  - Safety，EMC ，UN38.3
AC Output Data (On-grid)
- Nominal Apparent Power Output to Utility Grid (VA)
  - 5,000
- Max. Apparent Power Output to Utility Grid (VA)
  - 5,000
- Nominal Apparent Power from Utility Grid (VA)
  - 5000
- Nominal Output Voltage (V)
  - 220/230/240
- Output Voltage Range (V)
  - 170~280
- Nominal AC Grid Frequency (Hz)
  - 50/60
- AC Grid Frequency Range (Hz)
  - 45~55 / 55~65
- Max. AC Current Output to Utility Grid (A)
  - 22.7
- Max. AC Current From Utility Grid (A)
  - 43.5
- Nominal AC Current From Utility Grid (A)
  - 21.7
- Max. Output Fault Current (Peak and Duration) (A)
  - 96A@3μs
- Inrush Current (Peak and Duration) (A)
  - 96A@3μs
- Nominal Output Current (A)
  - 21.7
- Power Factor
  - ~1 (Adjustable from 0.8 leading to 0.8 lagging)
- Max. Total Harmonic Distortion
  - <3%
- Maximum Output Overcurrent Protection (A)
  - 80
- Type of Voltage (a.c. or d.c.)
  - a.c.
AC Output Data (Back-up)
- Back-up Nominal Apparent Power (VA)
  - 5000
- Nominal Output Current (A)
  - 21.7
- Max. Output Current (A)
  - 22.7
- Max. Output Fault Current (Peak and Duration) (A)
  - 96A@3μs
- Inrush Current (Peak and Duration) (A)
  - 96A@3μs
- Maximum Output Overcurrent Protection (A)
  - 80
- Nominal Output Voltage (V)
  - 220/230/240
- Nominal Output Frequency (Hz)
  - 50/60
- Output THDv (@Linear Load)
  - <3%
Efficiency
- Max. Efficiency
  - 97.60%
- European Efficiency
  - 96.70%
- CEC Efficiency
  - 96.90%
- Max. Battery to AC Efficiency
  - 95.50%
- MPPT Efficiency
  - 99.90%
Protection
- PV String Current Monitoring
  - Integrated
- PV Insulation Resistance Detection
  - Integrated
- Residual Current Monitoring
  - Integrated
- PV Reverse Polarity Protection
  - Integrated
- Anti-islanding Protection
  - Integrated
- AC Overcurrent Protection
  - Integrated
- AC Short Circuit Protection
  - Integrated
- AC Overvoltage Protection
  - Integrated
- DC Switch
  - Integrated
- DC Surge Protection
  - Type II
- AC Surge Protection
  - Type III
- AFCI
  - Optional
- Remote Shutdown
  - Integrated
General Data
- Operating Temperature Range (°C)*⁴
  - -25~50
- Relative Humidity
  - 0~95%
- Max. Operating Altitude(m)
  - 2000
- Cooling Method
  - Natural Convection
- User Interface
  - LED,WLAN+APP
- Communication with BMS
  - CAN
- Communication with Meter
  - RS485
- Communication with Portal
  - WiFi / WiFi+LAN / 4G
- Weight (kg)
  - 168.5
- Dimension (W×H×D mm)
  - 710×1700×325
- Topology
  - Non-isolated
- Ingress Protection Rating
  - Decorated Enclosure: IP43, Electrical Enclosure:IP65,Battery Enclosure:IP55
- Environmental Category
  - 4K4H
- Pollution Degree
  - III
- Overvoltage Category
  - DC II / AC III
- Protective Class
  - I
- Storage Temperature (°C)
  - Battery： -20~+40(≤One Month) ; 0~+35(≤One Year)
    Inverter：-40~+85
- The Decisive Voltage Class(DVC)
  - Battery: A
    PV: C
    AC: C
    Com: A
- Installation Location
  - Wall Mounted & Grounded
- Type of Electrical Supply System
  - single phase
- Active Anti-islanding Method*⁵
  - AFDPF + AQDPF *⁵
- Country of Manufacture
  - China
Note
- *1 The max power is the actual power of PV.
  *2 Usable Energy (kWh)* : Test conditions, 90% DOD, 0.5C charge & discharge at +25±2 °C for battery system at beginning life. System Usable Energy may vary with different Inverter.
  *3 Max. Continuous Discharge Current*/Power*：Max. Continuous Charge/Discharge and power derating will occur related to Temperature and SOC.
  *4 Operating Temperature Range (℃)*: When the temperature is lower than 0 °C, the battery will stop charging. When the temperature is lower than -10 °C, the battery will stop discharging. The PV and AC are running properly.
  *5 AFDPF: Active Frequency Drift with Positive Feedback, AQDPF: Active Q Drift with Positive Feedback.

SV-LV ESS G3 16.2-1 (16.11kWh)

PV String Input Data
- Max. Input Power (W)*¹
  - 7500
- Max. Input Voltage (V)
  - 600
- MPPT Operating Voltage Range(V)
  - 60~550
- MPPT Voltage Range at Nominal Power (V)
  - 200~500
- Start-up Voltage (V)
  - 58
- Nominal Input Voltage (V)
  - 360
- Max. Input Current per MPPT (A)
  - 16
- Max. Short Circuit Current per MPPT (A)
  - 23
- Max. Backfeed Current to The Array (A)
  - 0
- Number of MPP Trackers
  - 2
- Number of Strings per MPPT
  - 1
Battery Input Data
- Battery Parameters
  - 3×Battery System
- Rated Energy (kWh)
  - 16.11
- Usable Energy (kWh)*²
  - 14.49
- Cell Type
  - LFP (LiFePO4)
- Cell Configuration
  - 16S3P
- Rated Voltage (V)
  - 51.2
- Operating Voltage Range (V)
  - 47.5~57.6
- Nominal Dis-/Charge Current (A)
  - 50A
- Max. Dis-/Charge Current (A)*³
  - 100A
- Max. Discharge Power(kW)*³
  - 5.3
- Communication
  - CAN&RS485
- Battery Weight (kg)
  - 159 (3 packs)
- Battery Dimensions (W×H×D) (mm)
  - 650×390×260 ×3(Non-stack size)
- Operating Temperature(°C)
  - Charge: 0~+50; Discharge: -10~+50
- Storage temperature (°C)
  - -20~+40 (≤One Month) ; 0~+35 (≤One Year)
- Relative Humidity
  - 0~95%
- Max. Operating Altitude (m)
  - 2000
- Protection Degree
  - IP55 (Outdoor / Indoor，Battery stack)
- Standard and Certification
  - Safety，EMC ，UN38.3
AC Output Data (On-grid)
- Nominal Apparent Power Output to Utility Grid (VA)
  - 5,000
- Max. Apparent Power Output to Utility Grid (VA)
  - 5,000
- Nominal Apparent Power from Utility Grid (VA)
  - 5000
- Nominal Output Voltage (V)
  - 220/230/240
- Output Voltage Range (V)
  - 170~280
- Nominal AC Grid Frequency (Hz)
  - 50/60
- AC Grid Frequency Range (Hz)
  - 45~55 / 55~65
- Max. AC Current Output to Utility Grid (A)
  - 22.7
- Max. AC Current From Utility Grid (A)
  - 43.5
- Nominal AC Current From Utility Grid (A)
  - 21.7
- Max. Output Fault Current (Peak and Duration) (A)
  - 96A@3μs
- Inrush Current (Peak and Duration) (A)
  - 96A@3μs
- Nominal Output Current (A)
  - 21.7
- Power Factor
  - ~1 (Adjustable from 0.8 leading to 0.8 lagging)
- Max. Total Harmonic Distortion
  - <3%
- Maximum Output Overcurrent Protection (A)
  - 80
- Type of Voltage (a.c. or d.c.)
  - a.c.
AC Output Data (Back-up)
- Back-up Nominal Apparent Power (VA)
  - 5000
- Nominal Output Current (A)
  - 21.7
- Max. Output Current (A)
  - 22.7
- Max. Output Fault Current (Peak and Duration) (A)
  - 96A@3μs
- Inrush Current (Peak and Duration) (A)
  - 96A@3μs
- Maximum Output Overcurrent Protection (A)
  - 80
- Nominal Output Voltage (V)
  - 220/230/240
- Nominal Output Frequency (Hz)
  - 50/60
- Output THDv (@Linear Load)
  - <3%
Efficiency
- Max. Efficiency
  - 97.60%
- European Efficiency
  - 96.70%
- CEC Efficiency
  - 96.90%
- Max. Battery to AC Efficiency
  - 95.50%
- MPPT Efficiency
  - 99.90%
Protection
- PV String Current Monitoring
  - Integrated
- PV Insulation Resistance Detection
  - Integrated
- Residual Current Monitoring
  - Integrated
- PV Reverse Polarity Protection
  - Integrated
- Anti-islanding Protection
  - Integrated
- AC Overcurrent Protection
  - Integrated
- AC Short Circuit Protection
  - Integrated
- AC Overvoltage Protection
  - Integrated
- DC Switch
  - Integrated
- DC Surge Protection
  - Type II
- AC Surge Protection
  - Type III
- AFCI
  - Optional
- Remote Shutdown
  - Integrated
General Data
- Operating Temperature Range (°C)*⁴
  - -25~50
- Relative Humidity
  - 0~95%
- Max. Operating Altitude(m)
  - 2000
- Cooling Method
  - Natural Convection
- User Interface
  - LED,WLAN+APP
- Communication with BMS
  - CAN
- Communication with Meter
  - RS485
- Communication with Portal
  - WiFi / WiFi+LAN / 4G
- Weight (kg)
  - Left: 168.5
    Right: 68
- Dimension (W×H×D mm)
  - Left: 710×1700×325
    Right: 710×600×260
- Topology
  - Non-isolated
- Ingress Protection Rating
  - Decorated Enclosure: IP43, Electrical Enclosure:IP65,Battery Enclosure:IP55
- Environmental Category
  - 4K4H
- Pollution Degree
  - III
- Overvoltage Category
  - DC II / AC III
- Protective Class
  - I
- Storage Temperature (°C)
  - Battery： -20~+40(≤One Month) ; 0~+35(≤One Year)
    Inverter：-40~+85
- The Decisive Voltage Class(DVC)
  - Battery: A
    PV: C
    AC: C
    Com: A
- Installation Location
  - Wall Mounted & Grounded
- Type of Electrical Supply System
  - single phase
- Active Anti-islanding Method*⁵
  - AFDPF + AQDPF *⁵
- Country of Manufacture
  - China
Note
- *1 The max power is the actual power of PV.
  *2 Usable Energy (kWh)* : Test conditions, 90% DOD, 0.5C charge & discharge at +25±2 °C for battery system at beginning life. System Usable Energy may vary with different Inverter.
  *3 Max. Continuous Discharge Current*/Power*：Max. Continuous Charge/Discharge and power derating will occur related to Temperature and SOC.
  *4 Operating Temperature Range (℃)*: When the temperature is lower than 0 °C, the battery will stop charging. When the temperature is lower than -10 °C, the battery will stop discharging. The PV and AC are running properly.
  *5 AFDPF: Active Frequency Drift with Positive Feedback, AQDPF: Active Q Drift with Positive Feedback.

SV-LV ESS G3 21.6-1 (21.48kWh)

PV String Input Data
- Max. Input Power (W)*¹
  - 7500
- Max. Input Voltage (V)
  - 600
- MPPT Operating Voltage Range(V)
  - 60~550
- MPPT Voltage Range at Nominal Power (V)
  - 200~500
- Start-up Voltage (V)
  - 58
- Nominal Input Voltage (V)
  - 360
- Max. Input Current per MPPT (A)
  - 16
- Max. Short Circuit Current per MPPT (A)
  - 23
- Max. Backfeed Current to The Array (A)
  - 0
- Number of MPP Trackers
  - 2
- Number of Strings per MPPT
  - 1
Battery Input Data
- Battery Parameters
  - 4×Battery System
- Rated Energy (kWh)
  - 21.48
- Usable Energy (kWh)*²
  - 19.32
- Cell Type
  - LFP (LiFePO4)
- Cell Configuration
  - 16S4P
- Rated Voltage (V)
  - 51.2
- Operating Voltage Range (V)
  - 47.5~57.6
- Nominal Dis-/Charge Current (A)
  - 50A
- Max. Dis-/Charge Current (A)*³
  - 100A
- Max. Discharge Power(kW)*³
  - 5.3
- Communication
  - CAN&RS485
- Battery Weight (kg)
  - 212 (4 packs)
- Battery Dimensions (W×H×D) (mm)
  - 650×390×260 ×4(Non-stack size)
- Operating Temperature(°C)
  - Charge: 0~+50; Discharge: -10~+50
- Storage temperature (°C)
  - -20~+40 (≤One Month) ; 0~+35 (≤One Year)
- Relative Humidity
  - 0~95%
- Max. Operating Altitude (m)
  - 2000
- Protection Degree
  - IP55 (Outdoor / Indoor，Battery stack)
- Standard and Certification
  - Safety，EMC ，UN38.3
AC Output Data (On-grid)
- Nominal Apparent Power Output to Utility Grid (VA)
  - 5,000
- Max. Apparent Power Output to Utility Grid (VA)
  - 5,000
- Nominal Apparent Power from Utility Grid (VA)
  - 5000
- Nominal Output Voltage (V)
  - 220/230/240
- Output Voltage Range (V)
  - 170~280
- Nominal AC Grid Frequency (Hz)
  - 50/60
- AC Grid Frequency Range (Hz)
  - 45~55 / 55~65
- Max. AC Current Output to Utility Grid (A)
  - 22.7
- Max. AC Current From Utility Grid (A)
  - 43.5
- Nominal AC Current From Utility Grid (A)
  - 21.7
- Max. Output Fault Current (Peak and Duration) (A)
  - 96A@3μs
- Inrush Current (Peak and Duration) (A)
  - 96A@3μs
- Nominal Output Current (A)
  - 21.7
- Power Factor
  - ~1 (Adjustable from 0.8 leading to 0.8 lagging)
- Max. Total Harmonic Distortion
  - <3%
- Maximum Output Overcurrent Protection (A)
  - 80
- Type of Voltage (a.c. or d.c.)
  - a.c.
AC Output Data (Back-up)
- Back-up Nominal Apparent Power (VA)
  - 5000
- Nominal Output Current (A)
  - 21.7
- Max. Output Current (A)
  - 22.7
- Max. Output Fault Current (Peak and Duration) (A)
  - 96A@3μs
- Inrush Current (Peak and Duration) (A)
  - 96A@3μs
- Maximum Output Overcurrent Protection (A)
  - 80
- Nominal Output Voltage (V)
  - 220/230/240
- Nominal Output Frequency (Hz)
  - 50/60
- Output THDv (@Linear Load)
  - <3%
Efficiency
- Max. Efficiency
  - 97.60%
- European Efficiency
  - 96.70%
- CEC Efficiency
  - 96.90%
- Max. Battery to AC Efficiency
  - 95.50%
- MPPT Efficiency
  - 99.90%
Protection
- PV String Current Monitoring
  - Integrated
- PV Insulation Resistance Detection
  - Integrated
- Residual Current Monitoring
  - Integrated
- PV Reverse Polarity Protection
  - Integrated
- Anti-islanding Protection
  - Integrated
- AC Overcurrent Protection
  - Integrated
- AC Short Circuit Protection
  - Integrated
- AC Overvoltage Protection
  - Integrated
- DC Switch
  - Integrated
- DC Surge Protection
  - Type II
- AC Surge Protection
  - Type III
- AFCI
  - Optional
- Remote Shutdown
  - Integrated
General Data
- Operating Temperature Range (°C)*⁴
  - -25~50
- Relative Humidity
  - 0~95%
- Max. Operating Altitude(m)
  - 2000
- Cooling Method
  - Natural Convection
- User Interface
  - LED,WLAN+APP
- Communication with BMS
  - CAN
- Communication with Meter
  - RS485
- Communication with Portal
  - WiFi / WiFi+LAN / 4G
- Weight (kg)
  - Left: 168.5
    Right: 121
- Dimension (W×H×D mm)
  - Left: 710×1700×325
    Right: 710×940×260
- Topology
  - Non-isolated
- Ingress Protection Rating
  - Decorated Enclosure: IP43, Electrical Enclosure:IP65,Battery Enclosure:IP55
- Environmental Category
  - 4K4H
- Pollution Degree
  - III
- Overvoltage Category
  - DC II / AC III
- Protective Class
  - I
- Storage Temperature (°C)
  - Battery： -20~+40(≤One Month) ; 0~+35(≤One Year)
    Inverter：-40~+85
- The Decisive Voltage Class(DVC)
  - Battery: A
    PV: C
    AC: C
    Com: A
- Installation Location
  - Wall Mounted & Grounded
- Type of Electrical Supply System
  - single phase
- Active Anti-islanding Method*⁵
  - AFDPF + AQDPF *⁵
- Country of Manufacture
  - China
Note
- *1 The max power is the actual power of PV.
  *2 Usable Energy (kWh)* : Test conditions, 90% DOD, 0.5C charge & discharge at +25±2 °C for battery system at beginning life. System Usable Energy may vary with different Inverter.
  *3 Max. Continuous Discharge Current*/Power*：Max. Continuous Charge/Discharge and power derating will occur related to Temperature and SOC.
  *4 Operating Temperature Range (℃)*: When the temperature is lower than 0 °C, the battery will stop charging. When the temperature is lower than -10 °C, the battery will stop discharging. The PV and AC are running properly.
  *5 AFDPF: Active Frequency Drift with Positive Feedback, AQDPF: Active Q Drift with Positive Feedback.
