24-Hour, Efficient Ventilation for Large Spaces

24-hour continuous ventilation enables the constant circulation of fresh air. Energy Recovery Ventilator is efficient and energy-saving. Suitable for large spaces.

ERV DC Series

Features

Energy-Efficient Ventilation Method Minimises the Energy Lost in Air Conditioning

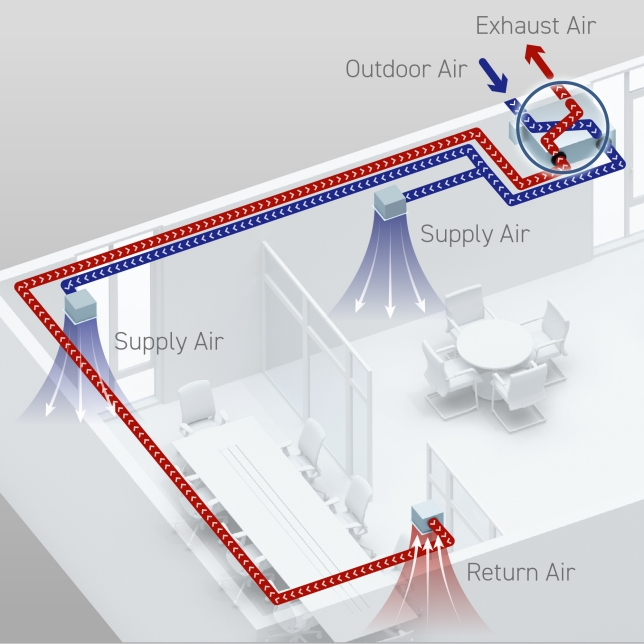

By using ERV, ventilates while reusing (heat recovery) the coolness in the room that is wasted during ventilation. Approximately 75% of the heat energy can be recovered, reducing the air conditioning load and saving energy.

*Depending on model and conditions

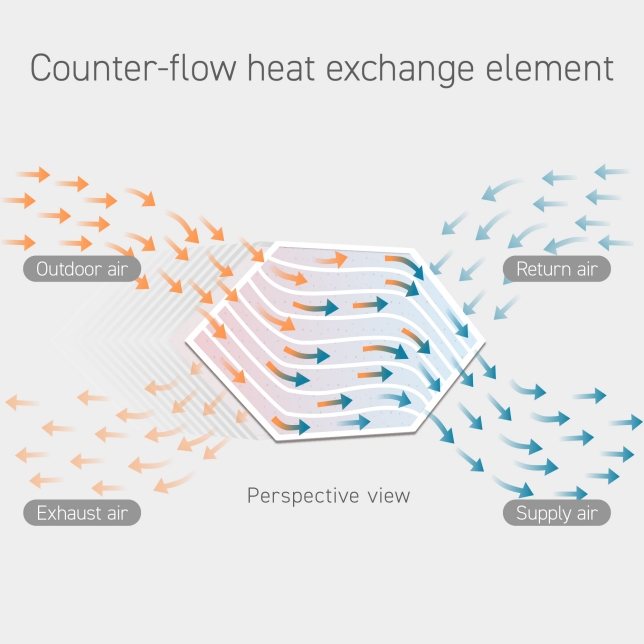

By exchanging heat between indoor air and outdoor air, deprive of heat.

Energy Efficient

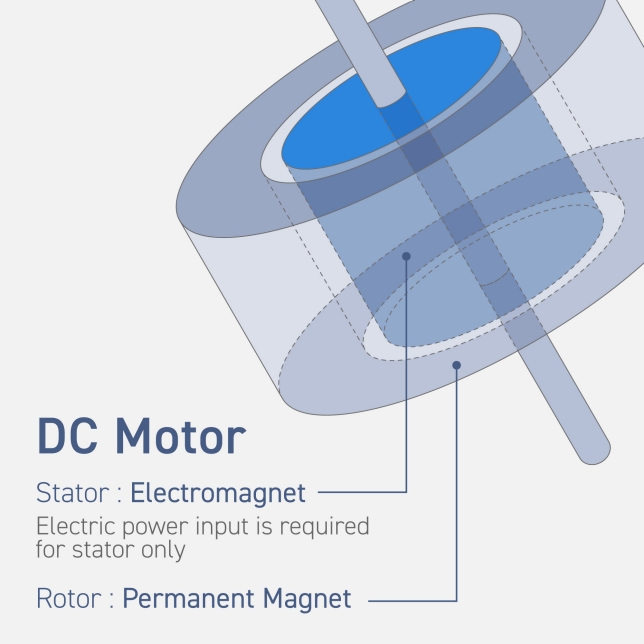

The fan adopted with DC (Direct Current) motor to reduce power consumption for energy saving. Temperature rise of DC motor is lower than AC (Alternating Current) motor that the retime of DC motor is comparatively longer.

Energy Saving by Reduce Air Conditioner Lord

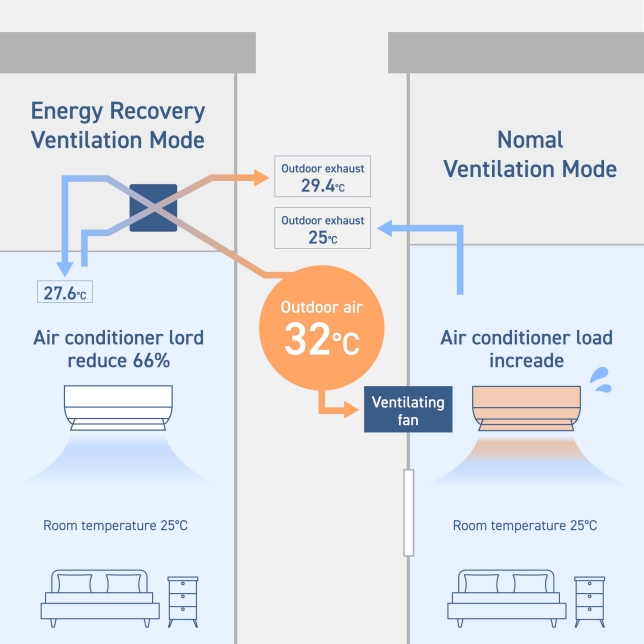

Highly efficient energy recovery reduces energy loss during ventilation, saving energy.
(Example: FY-E15DZ1)

Filters Remove Dust and Pollen, Bringing Only Clean Air into the Room

People spend 90% of their lives indoors and take in approximately 18 kg of air per day. In this context, what is required is IAQ for healthier and more comfortable living.

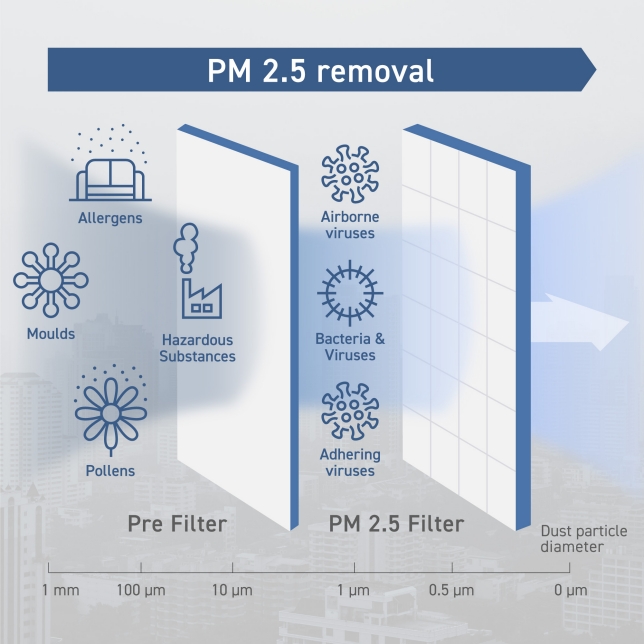

Ventilation with open windows allows pollen and dust to enter the room together with the outside air. With ERV ventilation, pollen and dust in the outdoor air can be filtered out while the air is being supplied.

Unified Control with Commercial Air Conditioners

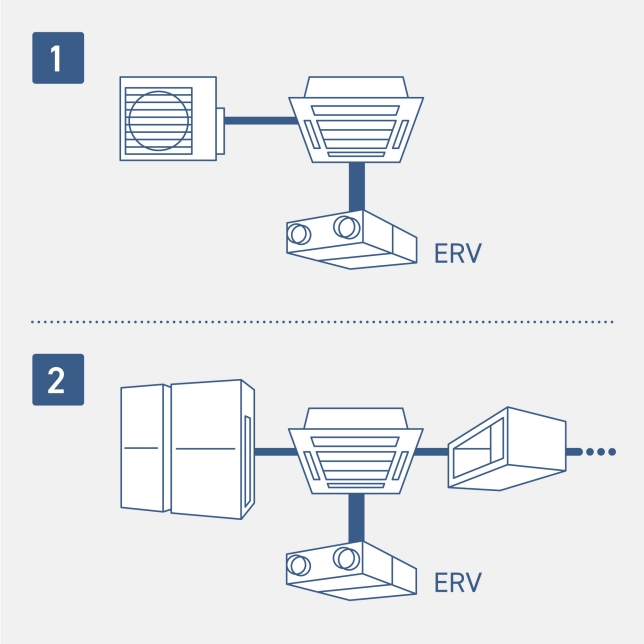

ERV can connect with commercial air conditioner and operates together, prevents forgetting to turn off the power.

*Method of connection depends on the models.

Unified Control with Commercial Air Conditioners

Highly Secure Fuse

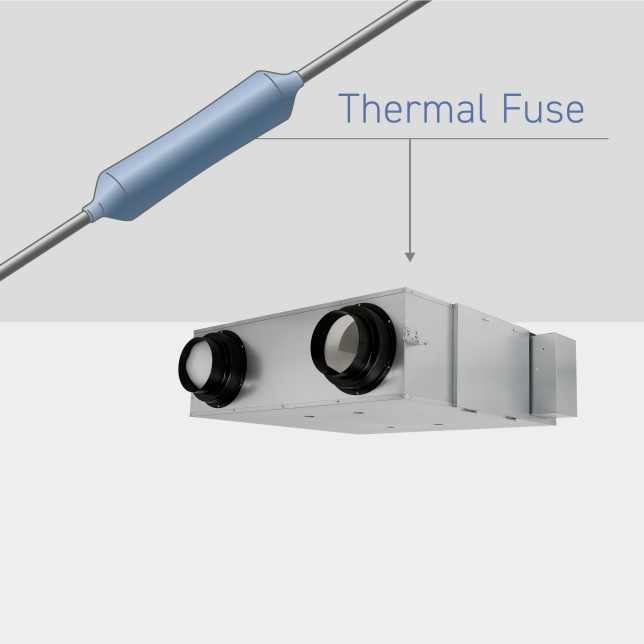

A thermal safety fuse ensures that no accidents occur, even when there is a spike in current.

Adjustable Airflow as Required

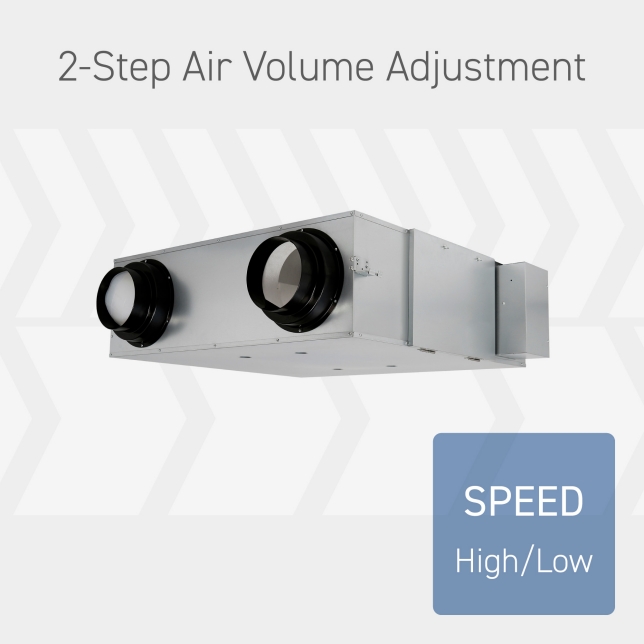

The air speed can be adjusted to HIGH or LOW according to the conditions of use.

*1-4 among High and 1-4 among Low can be selected at the time of construction according to the building’s ventilation requirements.

Specs

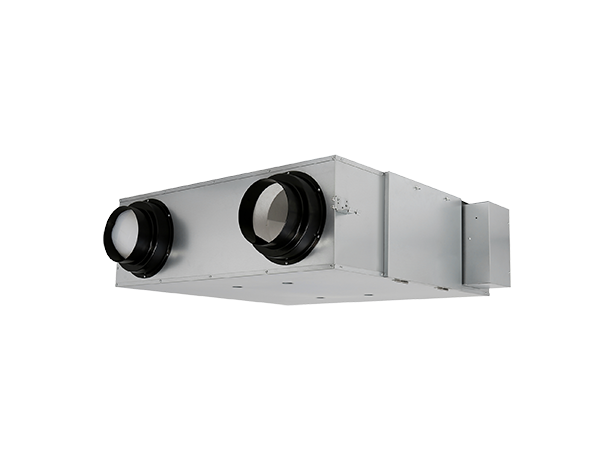

FV-15ZY1

All maintenance can be performed through a single inspection hole

Straight air supply/exhaust system used for easier installation

			FV-15ZY1	FV-35ZY1	FV-50ZY1	FV-65ZY1	FV-1KZY1
Air Volume (CMH)	High		150	350	500	650	1000
Air Volume (CMH)	Low		90	210	300	390	600
Static Pressure (Pa)	High		100	140	130	150	150
Static Pressure (Pa)	Low		36	50.5	47	54	54
Temperature exchange efficiency (%)	High	Cooling	68	71	65	64	65
	High	Heating	83	83	81	82	82
	Low	Cooling	75	76	74	68	73
	Low	Heating	84	84	82	84	85
Enthalpy exchange efficiency (%)	High	Cooling	66	67	62.5	62.5	63
	High	Heating	76	75	73	66	74
	Low	Cooling	69	69	68	72	69
	Low	Heating	76	76	76	75	76
Power Consumption (W)	High		76	141	180	420	550
Power Consumption (W)	Low		30	58	76	180	235
Noise Level (dB[A])	High		37	39	43	45	46
Noise Level (dB[A])	Low		29	33	32	34	36
Applicable Duct Diameter (mm)			φ100	φ150	φ200	φ200	φ250
Weight (kg)			23	37	40	48	64
Note			Note1: The value in Specification table are representative characteristics value at 220V, 50Hz. Note2: The input power and exchange efficiency are the values measured under the standard air volume. Note3: The above specification are the values measured under the factory set. Note4: The power indicated on the name plate is the maximum value under the static pressure of 0Pa. Note5: The noise is measured 1.5m directly below the center of the energy recovery ventilator. The noise value of the product is measured in a full anechoic chamber. Under actual conditions, due the impact of ambient sound, the noise value will be greater than the target value. The noise rises by about 1 dB(A) under reverse installation. Note6: The air volume in normal ventilation mode is basically the same as the air volume in energy recovery mode. Note7: The energy recovery efficiency test should be performed according to the method specified in Appendix 4 of JIS B 8628 (2003). The test environmental conditions should be subject to the winter and summer conditions specified in Table1 and Table2 of JIS B 8628 (2017). Other test methods should be subject to JIS B 8628 (2003).	Note1: The value in Specification table are representative characteristics value at 220V, 50Hz. Note2: The input power and exchange efficiency are the values measured under the standard air volume. Note3: The above specification are the values measured under the factory set. Note4: The power indicated on the name plate is the maximum value under the static pressure of 0Pa. Note5: The noise is measured 1.5m directly below the center of the energy recovery ventilator. The noise value of the product is measured in a full anechoic chamber. Under actual conditions, due the impact of ambient sound, the noise value will be greater than the target value. The noise rises by about 1 dB(A) under reverse installation. Note6: The air volume in normal ventilation mode is basically the same as the air volume in energy recovery mode. Note7: The energy recovery efficiency test should be performed according to the method specified in Appendix 4 of JIS B 8628 (2003). The test environmental conditions should be subject to the winter and summer conditions specified in Table1 and Table2 of JIS B 8628 (2017). Other test methods should be subject to JIS B 8628 (2003).	Note1: The value in Specification table are representative characteristics value at 220V, 50Hz. Note2: The input power and exchange efficiency are the values measured under the standard air volume. Note3: The above specification are the values measured under the factory set. Note4: The power indicated on the name plate is the maximum value under the static pressure of 0Pa. Note5: The noise is measured 1.5m directly below the center of the energy recovery ventilator. The noise value of the product is measured in a full anechoic chamber. Under actual conditions, due the impact of ambient sound, the noise value will be greater than the target value. The noise rises by about 1 dB(A) under reverse installation. Note6: The air volume in normal ventilation mode is basically the same as the air volume in energy recovery mode. Note7: The energy recovery efficiency test should be performed according to the method specified in Appendix 4 of JIS B 8628 (2003). The test environmental conditions should be subject to the winter and summer conditions specified in Table1 and Table2 of JIS B 8628 (2017). Other test methods should be subject to JIS B 8628 (2003).	Note1: The value in Specification table are representative characteristics value at 220V, 50Hz. Note2: The input power and exchange efficiency are the values measured under the standard air volume. Note3: The above specification are the values measured under the factory set. Note4: The power indicated on the name plate is the maximum value under the static pressure of 0Pa. Note5: The noise is measured 1.5m directly below the center of the energy recovery ventilator. The noise value of the product is measured in a full anechoic chamber. Under actual conditions, due the impact of ambient sound, the noise value will be greater than the target value. The noise rises by about 1 dB(A) under reverse installation. Note6: The air volume in normal ventilation mode is basically the same as the air volume in energy recovery mode. Note7: The energy recovery efficiency test should be performed according to the method specified in Appendix 4 of JIS B 8628 (2003). The test environmental conditions should be subject to the winter and summer conditions specified in Table1 and Table2 of JIS B 8628 (2017). Other test methods should be subject to JIS B 8628 (2003).	Note1: The value in Specification table are representative characteristics value at 220V, 50Hz. Note2: The input power and exchange efficiency are the values measured under the standard air volume. Note3: The above specification are the values measured under the factory set. Note4: The power indicated on the name plate is the maximum value under the static pressure of 0Pa. Note5: The noise is measured 1.5m directly below the center of the energy recovery ventilator. The noise value of the product is measured in a full anechoic chamber. Under actual conditions, due the impact of ambient sound, the noise value will be greater than the target value. The noise rises by about 1 dB(A) under reverse installation. Note6: The air volume in normal ventilation mode is basically the same as the air volume in energy recovery mode. Note7: The energy recovery efficiency test should be performed according to the method specified in Appendix 4 of JIS B 8628 (2003). The test environmental conditions should be subject to the winter and summer conditions specified in Table1 and Table2 of JIS B 8628 (2017). Other test methods should be subject to JIS B 8628 (2003).
