CZ-64ESMC3
Optimised Control for Compact HVAC Systems
Efficient management with centralised control of up to 64 units (64 groups, 64 indoor units). This solution includes four energy-saving functions, demand control, and timer functions, all designed to improve overall management efficiency.
CZ-64ESMC3
Features
Fully Centralised HVAC Control
• Control up to 64 units (64 groups, 64 indoor units) centrally.
• Control of 64 indoor units divided into 4 zones. (One zone can have up to 16 groups, and one group can have up to 8 units.)
• Panasonic ERV and ERV with a microcontroller can be controlled*¹ via a communication adaptor CZ-CAPC3.
• Control of 64 indoor units divided into 4 zones. (One zone can have up to 16 groups, and one group can have up to 8 units.)
• Panasonic ERV and ERV with a microcontroller can be controlled*¹ via a communication adaptor CZ-CAPC3.
*1: Please contact an authorised Panasonic dealer for details due to restrictions on available functions and operation screens. *2: The system configuration diagram is for reference purposes only. See technical documentation for details. *3: Adaptor CZ-CAPRA1 is required for Single split wall mounted and Multi split air conditioners. *4: Adaptor CZ-CAPR1 and CZ-CCERA1 are required for some Single split packaged air conditioners.
1) Signal input x 4/ Signal output x 2.
1) Signal input x 4/ Signal output x 2.
Tailored Energy-Saving Functions
Four Energy-Saving Features
• Set Temperature Auto Return
• Unattended auto shutoff
• Repeat Off Timer
• Set Temperature Range limit
• Unattended auto shutoff
• Repeat Off Timer
• Set Temperature Range limit

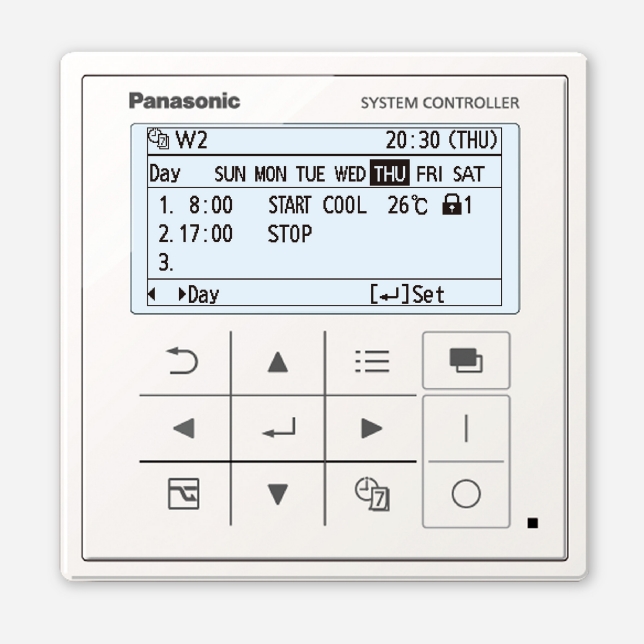

Efficient Weekly AC Timer
Pre-programme up to 56 settings for the week.
Up to 8 settings per day: ON/OFF, mode, room temperature, and remote controller local operation prohibition.
Up to 8 settings per day: ON/OFF, mode, room temperature, and remote controller local operation prohibition.

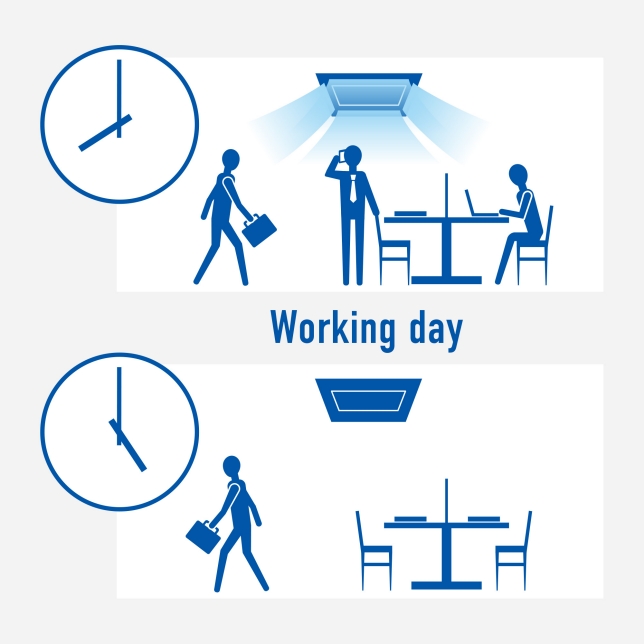

By setting the air conditioner according to the operating hours of offices and other facilities, employees can prevent forgetting to turn off the air conditioner, and by running the air conditioner according to the start of the working day, comfort and energy savings can be achieved.

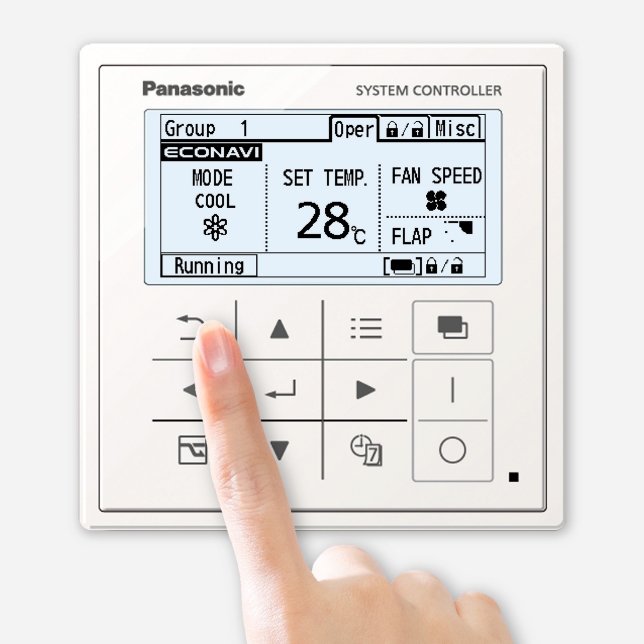

Simple, Easy-to-Use Operation
Easy operations with touch keys.
Large, full-dot LCD with user-friendly display.
Large, full-dot LCD with user-friendly display.
Specs
CZ-64ESMC3
Control up to 64 units (64 groups, 64 indoor units) centrally.
Control of 64 indoor units divided into 4 zones. (One zone can have up to 16 groups, and one group can have up to 8 units.)
Four energy-saving features.

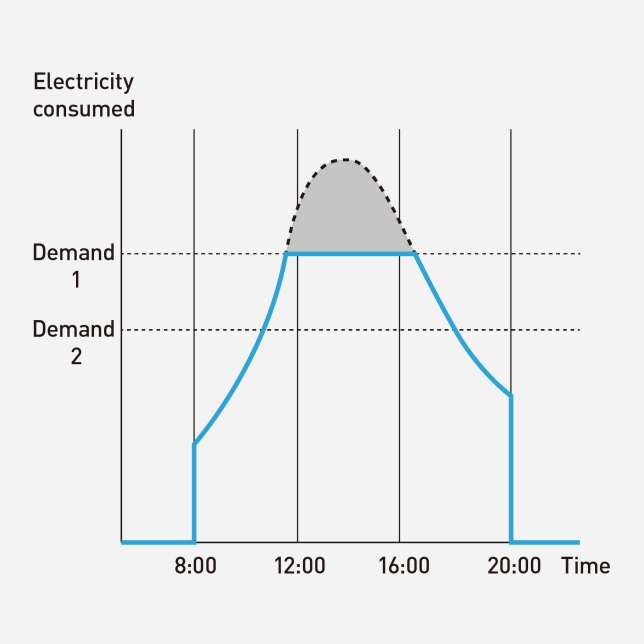

Dual demand functions.
Efficient weekly AC timer (Pre-set up to 56 settings per week)
Simple, easy-to-use operation.
