CS-RZ60AKRW

SHOP NOW

CS-RZ60AKRW

Comfort Cooling/Heating All Year Round

Panasonic Developer RZ Series (AKR) air conditioner features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.
  • ANTI-BACTERIAL FILTER
  • Panasonic Comfort Cloud App
  • AEROWINGS
  • POWERFUL Mode
Zoom In
Zoom Out
Close
CS-RZ60AKRW
SHOP NOW

Features

Stay comfortable all year round

Stay comfortable all year round
Panasonic Developer RZ Series (AKR) air conditioner offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone's comfortable all year round.

Filters Bacteria and Viruses for Clean, Healthy Air

Filters Bacteria and Viruses for Clean, Healthy Air
The filter combines anti-bacterial¹, anti-virus², anti-allergen³ and anti-mould⁴ protection, ensuring that clean air is delivered to the room. It effectively deactivates up to 99% filter-captured bacteria, allergens and viruses, while also inhibiting mould growth.
¹ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 100424591 and 100424592 •Bacteria: Staphylococcus aureus NBRC 12732 and Escherichia coli NBRC 3972
² Test Organisation: Osaka Prefectural Institute of Public Health •Test Report No: 313360397 •Virus: Influenza A (H3N2) Hong Kong
³ Test Organisation: Shinshu University •Allergen: Cedar Pollen Allergen Cry j1
⁴ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 0003663 •Mould: Aspergillus niger ATCC 6275

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

Advanced Smart Control with Voice Assistant Compatibility

Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.
Advanced Smart Control with Voice Assistant Compatibility

Intelligently Balances Energy Savings and Comfort

Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

LEARN MORE
*Comparison of ECO mode & normal mode by using 3.5kW Inverter Model. Not applicable for multi-split systems.

Comfort Cooling Environment for Your Needs

Faster and Further Airflow with AEROWINGS

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
Faster and Further Airflow with AEROWINGS

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.
LEARN MORE
Instant Powerful Cooling with a Push of a Button

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.
Calm and Peaceful Environment with Quiet Mode

Sleep Better at Night

A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.
Sleep Better at Night

Superior Quality & Reliability

Panasonic is uncompromising in product quality, durability, reliability and safety. We lead the market in many of the most extreme climates in the world for a good reason. Our products are engineered to provide uninterrupted cooling or heating when you need it most.
Superior Quality & Reliability

Robust Design and Long Term Endurance

1 Corrosion-Resistant Blue Fin Condenser

All Panasonic outdoor units feature Blue Fin coating, which protects the condenser from corrosion caused by air, water, and other corrosive elements.
Corrosion-Resistant Blue Fin Condenser

2 Better Heat Transfer with Copper Tube Condenser

Panasonic outdoor units feature copper tube condensers, offering higher cooling capacity for efficient heat transfer.
Better Heat Transfer with Copper Tube Condenser

3 Corrosion-Resistant Outdoor Coating

Durable outdoor unit with a multi-layered, corrosion-resistant coating shrugs off rain and salty water for long-lasting performance.
Corrosion-Resistant Outdoor Coating

4 Water-Resistant PCB

Contact sections on the PCB feature a special resin coating, protecting them from damage caused by water droplets.
Water-Resistant PCB

Specs

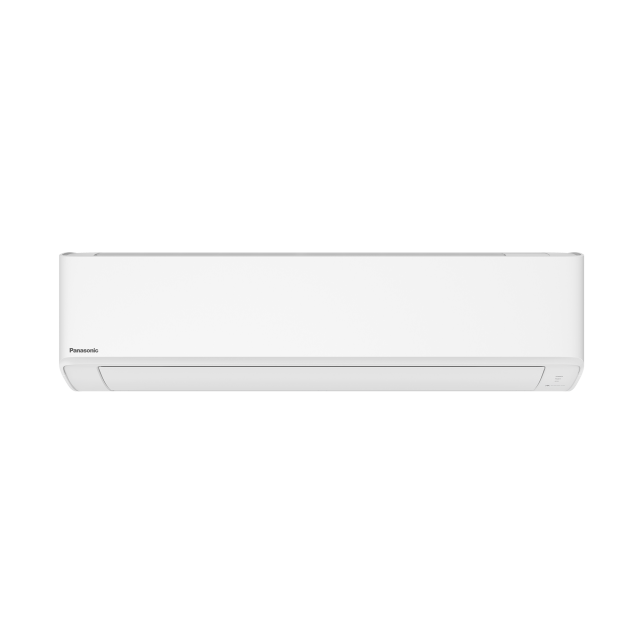

Photo of CS-RZ60AKRW

Size and Weight

Height
295mm
Width
1,040mm
Depth
244mm
Weight
12kg

*Please check the minimum space requirements for installation.

  • ANTI-BACTERIAL FILTERANTI-BACTERIAL FILTER
  • AEROWINGSAEROWINGS
  • POWERFUL ModePOWERFUL Mode
  • ECO Mode with A.I. ControlECO Mode with A.I. Control
  • InverterInverter
  • R32 RefrigerantR32 Refrigerant
  • Quiet ModeQuiet Mode
  • Sleep ModeSleep Mode
  • DRED readyDRED ready

Anti-bacterial filter delivers quality indoor air to your spaces

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

AEROWINGS concentrates cool air for further and faster airflow across the room

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

ECO Mode with A.I. control intelligently balances energy savings and comfort

Energy efficiency with Inverter technology and R32 refrigerant

Model

  • Indoor (230V / 1 Phase / 50 Hz)

    • CS-RZ60AKRW

  • Outdoor

    • CU-RZ60AKR

Cooling Basic Specification

  • Cooling Capacity (min-max)

    • 6.00 kW (1.25 kW - 6.90 kW)
      20,500 Btu/h (4,260 Btu/h - 23,500 Btu/h)

  • Air Flow (Indoor)

    • 328 L/s

  • Dehumid

    • 3.3 L/h

  • Electrical Data

    • Running Current
      • 7.9 A
    • Maximum Current
      • 11.6 A
    • Power Input (min-max)
      • 1.85 kW (0.35 kW - 2.20 kW)

  • AEER

    • 3.23 W/W

  • EER

    • 3.24 W/W

  • Star Rating Residential

    • Hot Climate
      • 3.5 TCSPF
    • Average Climate
      • 3.5 TCSPF
    • Cold Climate
      • 3.5 TCSPF

  • Star Rating Commercial

    • Hot Climate
      • 4.5 TCSPF
    • Average Climate
      • 5.5 TCSPF
    • Cold Climate
      • 7.0 TCSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High
      • 47 dB (A)
    • Low
      • 36 dB (A)
    • Q-Low
      • 33 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High
      • 49 dB (A)
    • Q-Low
      • 44 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High
      • 63 dB (A)
    • Low
      • 52 dB (A)
    • Q-Low
      • 49 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High
      • 64 dB (A)
    • Q-Low
      • 59 dB (A)

  • Outdoor Unit Operating Range

    • -10 °C ~ +46 °C

Heating Basic Specification

  • Heating Capacity (min-max)

    • 6.50 kW (0.98 kW - 8.20 kW)
      22,200 Btu/h (3,340 Btu/h - 28,000 Btu/h)

  • Air Flow (Indoor)

    • 339 L/s

  • Electrical Data

    • Running Current
      • 8.0 A
    • Power Input (min-max)
      • 1.89 kW (0.26 kW - 2.64 kW)

  • ACOP

    • 3.42 W/W

  • COP

    • 3.44 W/W

  • Star Rating Residential

    • Hot Climate
      • 3.5 HSPF
    • Average Climate
      • 3.0 HSPF
    • Cold Climate
      • 2.0 HSPF

  • Star Rating Commercial

    • Hot Climate
      • 3.5 HSPF
    • Average Climate
      • 3.0 HSPF
    • Cold Climate
      • 2.5 HSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High
      • 48 dB (A)
    • Low
      • 36 dB (A)
    • Q-Low
      • 33 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High
      • 51 dB (A)
    • Q-Low
      • 46 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High
      • 64 dB (A)
    • Low
      • 52 dB (A)
    • Q-Low
      • 49 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High
      • 66 dB (A)
    • Q-Low
      • 61 dB (A)

  • Outdoor Unit Operating Range

    • -15 °C ~ +24 °C

Other Specification

  • Net Weight

    • Indoor
      • 12 kg
    • Outdoor
      • 35 kg

  • Indoor Unit Dimensions

    • Height
      • 295 mm
    • Width
      • 1,040 mm
    • Depth
      • 244 mm

  • Outdoor Unit Dimensions

    • Height
      • 619 mm
    • Width
      • 824 mm
    • Depth
      • 299 mm

  • Refrigerant Pipe Diameter

    • Liquid Side
      • ø 6.35 mm (1/4 inch)
    • Gas Side
      • ø 12.70 mm (1/2 inch)

  • Piping

    • Pipe Extension Length (min-max)
      • 3 m ~ 30 m
    • Maximum Elevation Length
      • 15 m
    • Pipe Length For Additional Refrigerant Gas
      • 10 m
    • Additional Refrigerant Gas
      • 15 g/m

  • Power Supply

    • Outdoor

  • Refrigerant Type

    • R32

Comfort Features

  • Powerful Mode

    • Yes

  • ECO Mode With A.I.

    • Yes

  • Inverter Control

    • Yes

  • Sleep Mode

    • Yes

  • Quiet Mode

    • Yes

  • Fan Mode

    • Yes

  • Soft Dry Operation Mode

    • Yes

  • Hot Start Control

    • Yes

  • Auto Changeover (Inverter)

    • Yes

  • Personal Airflow Creation

    • Yes

Cleaner Air Features

  • Anti-Bacterial Filter

    • Yes

  • Odour Removing Function

    • Yes

  • Removable Washable Panel

    • Yes

Convenience Features

  • 24-Hour Dual ON & OFF Real Setting Timer

    • Yes

  • Demand Response Enabling Device (DRED)

    • Yes

  • LCD Wireless Remote Control

    • Yes

  • Wi-Fi

    • Optional (Network adaptor required)

  • Wired Remote Control

    • Optional

Reliability Features

  • Random Auto Restart

    • Yes (32 Restart Patterns)

  • Blue Fin Condenser

    • Yes

  • Long Piping (max.)

    • 30 m

  • Top Panel Maintenance Access

    • Yes

  • Self-Diagnostic Function

    • Yes

Note

  • Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
