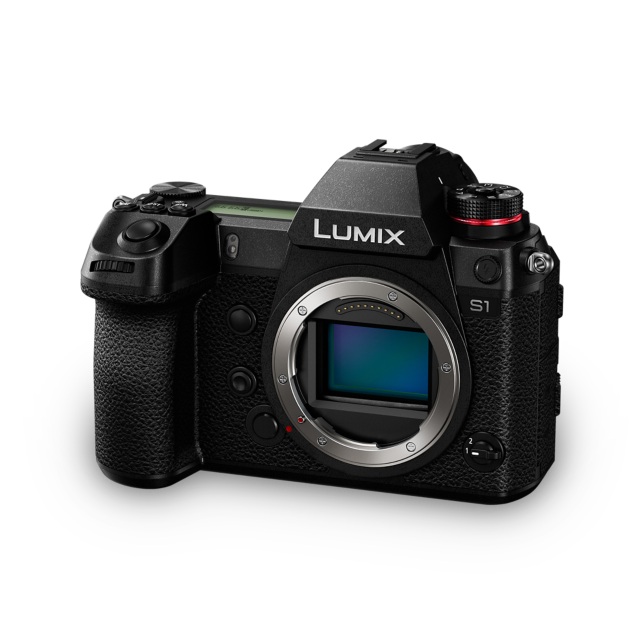

LUMIX S Camera DC-S1

DC-S1

Ultimate Hybrid. Fuel the Passion for Stills and Video.

A new 24.2MP CMOS sensor that delivers incredibly realistic detail. C4K/4K video recording with no time limit complements professional-level video performance.* Going beyond the boundaries of still and video, this full-frame mirrorless camera inspires passionate image creation.

* Maximum recording time of 29 min 59 sec in C4K/4K 60p/50p.

Firmware Version 1.7

Add to WishlistRemove from Wishlist

DC-S1

SHOP NOW

Features

24.2MP CMOS Sensor with Dual Native ISO Technology

The 24.2MP CMOS Sensor delivers high sensitivity and top image quality in both still photos and videos. Dual Native ISO technology* further enhances video performance.

* Please update the firmware to version 2.0 or later.

24.2MP CMOS Sensor with Dual Native ISO Technology

Venus Engine Beauty

The CMOS sensor and the Venus Engine reproduce extraordinary colour detail and natural texture expression. Multipixel Luminance Generation and Intelligent Detail Processing render intense brightness and contrast. The Three-Dimensional Colour Control zings with rich colours from dark to bright shades, and high-precision Multi Process NR makes your images pop even at high sensitivity settings.

5-axis Dual I.S. 2

Combining the Body I.S. (5-axis) in the camera and the O.I.S. (Optical Image Stabiliser, 2-axis) in the LUMIX S Series lens,* the 5-axis Dual I.S. 2 compensates for blurring even powerfully, allowing the use of a 7-stop slower shutter speed. ** The astonishing power of the 5-axis Body I.S. with 5.5-stop compensation power*** corrects shake for all lenses, even those not equipped with O.I.S.

* 5-axis Dual I.S.2 can be used with the lens S-R24105, S-E70200, S-R70200 and S-R70300 as of February 18th, 2021. ** Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used). *** Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used).

4K 60p/50p Smooth Video

In combination, Panasonic’s 4K technology, CMOS sensor, and Venus Engine deliver spectacular 4K 60p/50p video in a full-frame format.* The outstanding heat dissipation allows offer both 4K 30p/25p/24p and FHD recording with no time limit.**

* Maximum recording time of 29 minutes 59 seconds in 4K 60p/50p. ** Excludes high-speed video recording. When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

4:2:2 10-bit Internal Recording / V-Log Recording (Optional)

The Upgrade Software Key DMW-SFU2 (sold separately)* and LUMIX S1 firmware version 1.2 enable best-in-class 14+ stops V-Log recording. The firmware version 2.0 enables C4K/4K 60p/50p 4:2:0 10-bit, C4K 30p/25p/24p 4:2:2 10-bit, 6K/24p (3:2) 4:2:0 10-bit and Anamorphic 4K recording.**

* Please refer to the bundled instruction manual for the activation procedure. ** Users who already have DMW-SFU2 do not need to purchase extra DMW-SFU2. There is no need of upgrading the camera with DMW-SFU2 if upgrading with DMW-SFU2 was once done before.

4:2:2 10-bit Internal Recording / V-Log Recording (Optional)

RAW Video Data Output (Optional)

The Upgrade Software Key DMW-SFU2 (sold separately)* and LUMIX S1 firmware update enable the output of maximum 29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) and Anamorphic 3.5K (3536x2656, 4:3) 12-bit RAW video data over HDMI to save it as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder.** The Blackmagic RAW can also be recorded on Video Assist 12G HDR.***

* Users who already have DMW-SFU2 do not need to purchase extra DMW-SFU2. There is no need of upgrading the camera with DMW-SFU2 if upgrading with DMW-SFU2 was once done before.
** Please update the firmware to version 2.0 or later. [Apple ProRes RAW] ･Selectable recording mode depends on the firmware version of Atomos Ninja V. ･Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V. ･Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･All functions may not be available depending on the situation.
*** Please update the firmware to version 2.1 or later. [Blackmagic RAW] ･Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR. ･Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. ･DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160. ･All functions may not be available depending on the situation.

Advanced Recognition Technology

Super-fast sensor-lens communication of 480 fps and Panasonic’s DFD (Depth From Defocus) technology help make high-speed, high-precision autofocus of approximately 0.08 seconds a reality.* Advanced AI technology can recognize not only the human body but such animals as canidae, felidae, and birds, while the high-performance tracking system helps keep the subject in focus at all times. In addition, the low-light autofocus performs at an impressive -6EV.**

* 11EV, at wide-end with S-R24105 (CIPA) in LVF120 fps setting. ** At ISO100, F1.4, AFS. 100% contrast target.

5,760k-dot Real View Finder

Boasting the world’s highest resolution of 5,760k dots, the Real View Finder is the largest in its class.* Outstanding clarity make it feel as though you’re looking at the subject with your own eye and help you concentrate while shooting.

* Among full-frame digital single-lens mirrorless cameras as of February 1, 2019.

Tough Body for a Wide Range of Weather Conditions

The magnesium alloy full die-cast frame is highly durable, while sealing helps protect every seam, dial, and button. The camera as a whole is dust- and splash-resistant* and designed for use at temperatures as low as -10 °C.

* Dust- and splash-resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

Tough Body for a Wide Range of Weather Conditions

Other Special Features

Combining expressive power with outstanding usability, full-frame mirrorless cameras LUMIX S1 inspire passionate photography.

Learn More

Specs

Size and Weight

Height: 110mm

Width: 148.9mm

Depth: 96.7mm

Weight: 1017g

All values are approximate. Weight with SD card and battery (Weight with XQD card and battery is 1,021g). Lens is excluded. Dimensions exclude protrusions.

L-Mount
24.2 Megapixels
4K Video Recording Capability
6K PHOTO
5-Axis Dual I.S. 2 (Image Stabilizer)
5760k-dot OLED Live View Finder
2,100k-dot Triaxial Tilt Monitor
Status LCD
Splash, Dust and Freeze-resistant
Wi-Fi
Bluetooth

24.2MP full-frame CMOS sensor

C4K/4K 30p/25p/24p video with no limitation of recording time, C4K/4K 60p/50p video and 6K 24p video

4:2:2 10-bit internal recording and 14+ stops of V Log/V-Gamut (optional)

High-speed, high-precision AF thanks to super-fast sensor-lens communication of 480 fps and Panasonic’s DFD technology

TYPE

Type
- Digital Single Lens Mirrorless camera
Recording media
- XQD Memory Card, SD Memory Card / SDHC Memory Card* / SDXC Memory Card*, CFexpress Card (CFexpress Ver2.0 Type B) (*7)
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
- 24.20 megapixels / 25.28 megapixels
Aspect ratio / Colour filter
- 3:2 / Primary color filter
Dust reduction system
- Supersonic wave filter

LATITUDE

LATITUDE
- 14+ stops (V-Log) (*5) (*6)

STILL IMAGE

Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard
Colour Space
- sRGB, AdobeRGB
Recording file format
- Still image
  - JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
- 6K PHOTO** / 4K PHOTO**
  - 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
    4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
    Extracted still images: JPEG (DCF, Exif 2.31)
Aspect ratio
- Aspect ratio
  - 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size(Pixels)
- When using full-frame lenses / 3:2
  - 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* *High Resolution Mode. RAW file.
    5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 4:3
  - 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* *High Resolution Mode. RAW file.
    4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 16:9
  - 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* *High Resolution Mode. RAW file.
    3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 1:1
  - 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* *High Resolution Mode. RAW file.
    2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 65:24
  - 6000x2208(L)
- When using full-frame lenses / 2:1
  - 6000x3000(L)
- When using APS-C lenses / 3:2
  - 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
- When using APS-C lenses / 4:3
  - 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
- When using APS-C lenses / 16:9
  - 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
- When using APS-C lenses / 1:1
  - 2656x2656(L) / 1920x1920(M) / 1376x1376(S)

MOTION PICTURE

MOV(*2) (*5) [6K] 5952x3968 (3:2) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
MOV(*2) (*5) [5.4K] 5376x3584 (3:2) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
MOV(*2) (*5) [5.9K] 5888x3312 High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
MOV(*2) (*5) [C4K] 4096x2160 High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9)
  50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9)
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
MOV(*2) (*5) [4K] 3840x2160 High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*6)
  50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*6)
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*6) *HLG is selectable.
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*6) *HLG is selectable.
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*6) *HLG is selectable.
MOV(*2) (*5) [Anamorphic 4K] 3328x2496 (4:3) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9)
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 5,760k dots
Field of view / Magnification
- Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps
Display time lag
- Approx. 0.005sec

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Triaxial tilt, 3.2-inch (8.0cm), 3:2 aspect
Pixels
- Approx. 2,100k dots
Field of view
- Approx. 100%

STATUS LCD

STATUS LCD
- Yes

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
  (Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF. (*8)
AF detective range
- EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lamp
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking
- Yes / Yes
Others
- AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode

EXPOSURE CONTROL

Dual Native ISO (*9)
- Auto / Low / High

IMAGE STABILISATION SYSTEM

IMAGE STABILISATION SYSTEM
- Image sensor shift type (5-axis)
  6.0-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]

  Dual I.S. (Dual I.S. 2 compatible)
  6.5-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=105mm, when S-R24105 is used.] Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-R70200 is used.]
  7.0-stop* * Firmware must be updated to version 1.3 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-E70200 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Colour temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
  Motion picture: 1/16,000 - 1/25
Shutter life
- Approx. 400,000 images
Self timer
- 10sec, 3 images / 2sec / 10sec
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture Bracket
- 3, 5 or all positions in 1 EV step
Focus Bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Number of recordable images - When using XQD memory card
- RAW: More than 90 images
  RAW+JPEG: More than 70 images
  JPEG: More than 999 images
  *Using a Sony Corporation XQD G Series Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.

6K PHOTO / 4K PHOTO

Burst speed
- 6K PHOTO: 30 frames/sec
  4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information
- Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

Flash type
- TTL External Flash (sold separately)
Flash Mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/320 second *The guide number decreases at 1/320 second. Only when set to M mode or S mode.
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket
- Yes

EXTRA TELE CONVERSION

EXTRA TELE CONVERSION
- 2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
- Standard / Vivid / Natural / L. Classic Neo (Firmware version 2.1)* / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S (Firmware version 2.1)* / Cinelike D / Cinelike V / Like709 / V-Log (Firmware version 1.2 or later)* (*5) / Standard (HLG) / Monochrome (HLG) / Like2100 / My Photo Style 1-10 *Firmware must be updated.
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise* / Sharpness / Noise Reduction / ISO / WB (Adjustable settings vary depending on the Photo Style mode.) *Firmware must be updated to version 2.1.

FILTER

FILTER
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
  *For photos only.

MOTION PICTURE FUNCTION

Vertical Position Information (*9)
- ON / Off
Anamorphic desqueeze display (*9)
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Time code (*5) (*9)
- Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC is selected.)
SS/Gain operation(*8)
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

FUNCTION BUTTON

REC
- Exposure Comp. / Dual Native ISO Setting (*9) / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode/MF / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift (*6) / AF-ON: Far Shift (*6) / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Time Code Display (*5) (*9) / Sound Rec Level Disp. / Sound Rec Level Adj. / XLR Mic Adaptor Setting (*5) (*9) / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect (*7) / Constant Preview / Level Gauge / Histogram / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor) (*5) (*6) / LUT View Assist (HDMI) (*5) (*6) / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM (*5) (*6) / Anamorphic Desqueeze Display (*5) (*9) / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Off (Disable Press and Hold) (*7) / Restore to Default
PLAY
- Magnify from AF Point / HLG View Assist(Monitor) / Anamorphic Desqueeze Display (*5) (*9) / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / HLG View Assist (HDMI) / LUT View Assist (HDMI) (*5) (*6) / HLG View Assist (HDMI) (*5) (*6) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) (*7) / Restore to Default

Fn LEVER

Fn LEVER
- AF Mode / Photo Style / Picture Quality / Long Exposure NR / Focus Peaking / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / 6K/4K PHOTO (Pre-Burst) / Focus Ring Lock / Touch Screen / Touch Pad AF / Auto Review (Photo) / Live View Boost / Night Mode / Sheer Overlay / Front/Rear/Control Dial Lock / No Setting / Restore to Default

LEVEL GAUGE

LEVEL GAUGE
- Yes

OSD LANGUAGE

OSD LANGUAGE
- Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified)

PRINT

PRINT
- PictBridge compatible

INTERFACE

USB
- SuperSpeed USB 3.1 Gen1 Type-C
HDMI*** Monitor-through
- MP4: 4:2:2 8bit (Except for [4K/60p]/[4K/50p]) / 4:2:0 8bit
  MOV: 4:2:2 10bit (*5) (*6) (When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the memory card in the camera unit.)
HDMI*** Playback
- HDMI TypeA / VIERA Link
  Video: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
  Audio: Stereo
Audio video output
- No
Remote input
- φ2.5mm
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
Headphone output
- φ3.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
Speaker
- Monaural
Card slot
- Slot 1: XQD Memory Card, CFexpress Card (CFexpress Ver2.0 Type B) (*7)
  Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

WIRELESS

Wi-Fi
- 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
  5GHz bands (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
  Please refer to "Wi-Fi" Sheet
Bluetooth
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT

DUST AND SPLASH RESISTANT*
- Yes.
  *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
  USB power supply, USB power charging
Battery life (CIPA standard)/ When using CFexpress Card
- Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
  Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R2060
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using XQD memory card
- Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
  Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R2060
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using SD memory card
- Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
  Approx. 420 images (rear monitor), 400 images (LVF), 1,200 images (Power Save LVF mode*) with S-R2060
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery grip
- DMW-BGS1 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions)
Weight
- Approx. 1,021g / 2.25 lb (XQD Memory Card x 1, Battery, Body)
  Approx. 1,017g / 2.24 lb (SD Memory Card x 1, Battery, Body)
  Approx. 899g / 1.98 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature****
- -10oC to 40oC (14oF to 104oF)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software- Recording
- LUMIX Tether
  ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording,
  and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Software- Playback / Editing
- ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
  https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
  ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
  http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-S1 Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead, USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder
  ・ The DC-S1 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

NOTE
- (*2) About motion picture recording / 6K PHOTO/4K PHOTO recording
  - 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
  - Use an SD memory card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [AVCHD].
  - Use an XQD or SD memory card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4(under 28Mbps)].
  - Use an XQD or SD memory card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K] [High Speed Video], [MOV] or [6K PHOTO/4K PHOTO].
  (SD speed class is the speed standard regarding continuous writing.)
  - Recording stops when the continuous recording time exceeds 10 minutes with [6K PHOTO].
  - Recording stops when the continuous recording time exceeds 15 minutes with [6K], [5.9K], [5.4K], [High Speed Video] or [4K PHOTO].
  - Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds with [C4K/60p], [C4K/50p], [4K/60p], [4K/50p] or [4K-A 50p].
  - Motion pictures with [MP4] in [4K] or [MOV]:
  - When using an XQD memory card of 32 GB or less, or an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  - When using an XQD memory card over 32 GB, or an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - Motion pictures with [MP4] in [FHD]:
  - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
  - XQD is a registered trademark of Sony Corporation.

  (*3) For [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".

  (*4) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

  (*5) Upgrade Software Key (DMW-SFU2) is required.

  (*6) Firmware must be updated to version 1.2 or later.

  (*7) Firmware must be updated to version 1.3 or later.

  (*8) Firmware must be updated to version 1.5 or later.

  (*9) Firmware must be updated to version 1.6 or later.

  (*10) Firmware must be updated to version 2.0 or later.

HDMI RAW DATA OUTPUT (*5)

Compatible external devices
- ATOMOS Ninja V 4K HDR Monitor-Recorder (AtomosOS 10.63 or higher) *Firmware must be updated to version 2.0 or later.
  Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (version 3.43 or higher)* *Firmware must be updated to version 2.1.
  *This does not guarantee all of the capabilities that the compatible external recorder may have.
Rec quality
- NTSC (59.94Hz)[5.9K] 5888x3312
  - 29.97p, 12-bit (LPCM, High-Res Audio)
    23.98p, 12-bit (LPCM, High-Res Audio)
- NTSC (59.94Hz)[4K] 4128x2176 (17:9)
  - 59.94p, 12-bit (LPCM, High-Res Audio)
    29.97p, 12-bit (LPCM, High-Res Audio)
    23.98p, 12-bit (LPCM, High-Res Audio)
- NTSC (59.94Hz)[Anamorphic 3.5K] 3536x2656 (4:3)
  - 29.97p, 12-bit (LPCM, High-Res Audio)
    23.98p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz)[5.9K] 5888x3312
  - 25.00p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz)[4K] 4128x2176 (17:9)
  - 50.00p, 12-bit (LPCM, High-Res Audio)
    25.00p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz)[Anamorphic 3.5K] 3536x2656 (4:3)
  - 50.00p, 12-bit (LPCM, High-Res Audio)
    25.00p, 12-bit (LPCM, High-Res Audio)
Audio format
- LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).

Open a new page for printing

Reviews

USER REVIEWS

4.8 out of 5 stars. 5 reviews

Summary of Customer Ratings & Reviews

READ AND WRITE USER REVIEWS

Accessories

Lenses

S-R70200

LUMIX S PRO 70-200mm F4 O.I.S.

S-R2060

LUMIX S 20-60mm F3.5-5.6

S-R24105

LUMIX S 24-105mm F4 MACRO O.I.S.

S-S85

L-Mount 85mm Fixed Focal Length Lens

S-R1635

LUMIX S PRO 16-35mm F4

S-E2470

LUMIX S PRO 24-70mm F2.8

S-X50

LUMIX S PRO 50mm F1.4

S-E70200

LUMIX S PRO 70-200mm F2.8 O.I.S.
