4K Professional Camcorder HC-X1600GN

0.0 out of 5 stars.

SHOP NOW

HC-X1600GN

Versatile 4K 60p Camcorder

A compact body with a wide-angle 25mm* lens, optical 24x zoom, live streaming capabilities, and other features to support all types of video production.

* 35mm camera equivalent.

Add to WishlistRemove from Wishlist

HC-X1600GN

SHOP NOW

Features

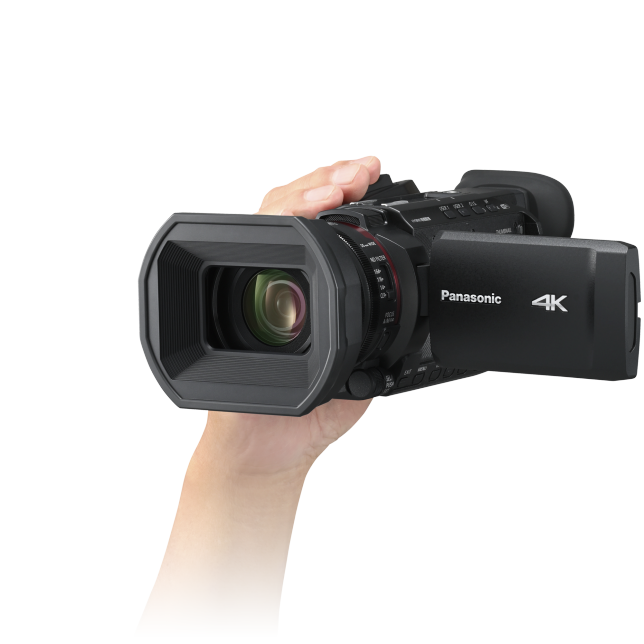

Compact 4K 60p Camcorder, Built for Directors

While excelling in mobility and portability, the included high-capacity battery provides 6 hours and 10 minutes of shooting (60 Hz), and the compact body considers the weight balance of the advanced functions when shooting.

Remarkable Optical Performance for Precise Shooting

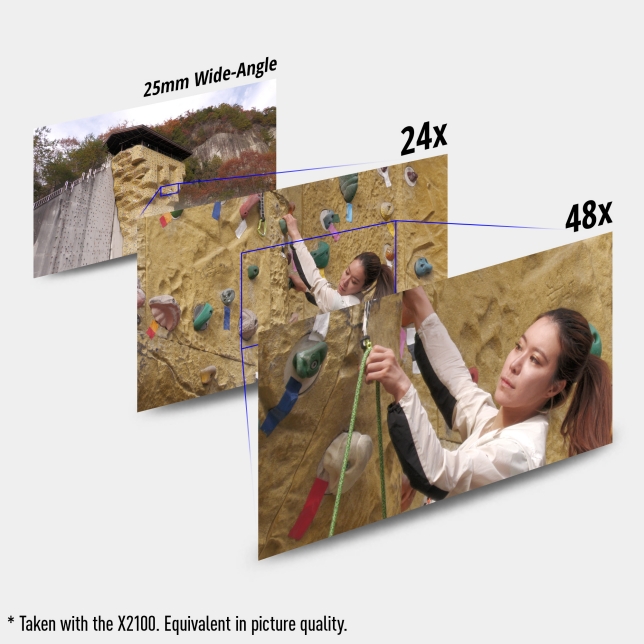

Wide 25mm* and Optical 24x Zoom Lens

The lens covers the range from 25mm* wide-angle to 600mm* tele with a 24x zoom. i.ZOOM achieves 32x zoom with 4K mode, and 48x zoom with FHD mode.

* 35mm camera equivalent.

4K High-Precision AF

Face Detection precisely captures subjects on-site free from out of focus problems and insufficient exposure. Also, by adding colour recognition, tracking subjects is improved, without interruption, when the face moves to either side.

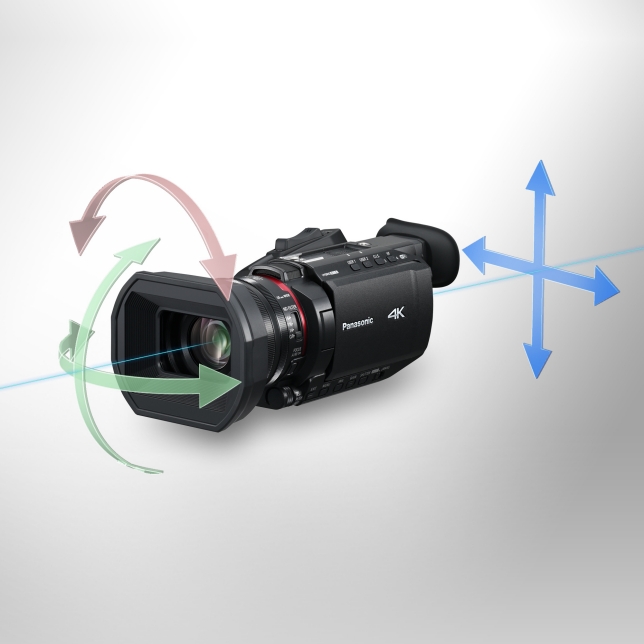

HYBRID O.I.S.

In addition to Optical Image Stabilisation, Electronic Image Stabilisation detects and corrects handshake in the 5-axis direction. The Ball O.I.S. System reduces friction in the drive section, especially improving the correction of small-amplitude blurring.

Versatile Recording Mode

Supports a high bit rate of 200 Mbps for 4K 59.94p/50p video recording with HEVC (LongGOP/10 bit 4:2:0/MOV) codec, and 120/100fps* Super Slow-motion with 10-bit recording in FHD.

*59.94Hz: 120fps, 50Hz: 100fps

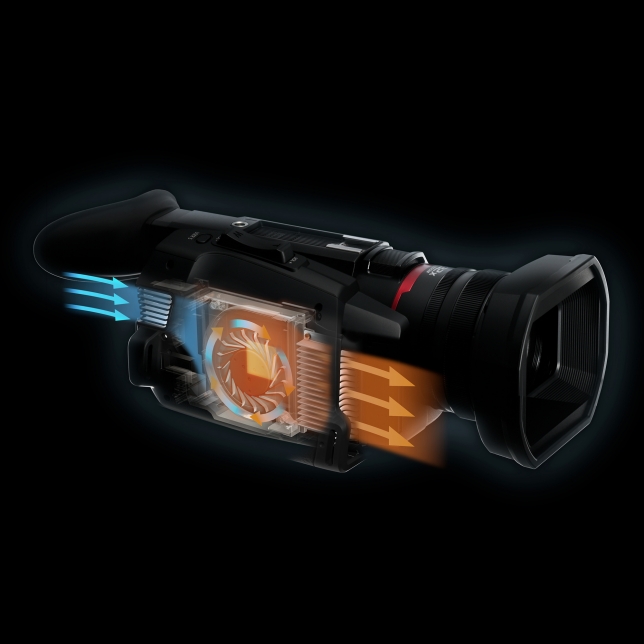

Heat-Dispersing Design

The heat dispersion structure equipped with an ultrathin fan enables a compact, lightweight body to be combined with ultra high definition 4K 60p recording.

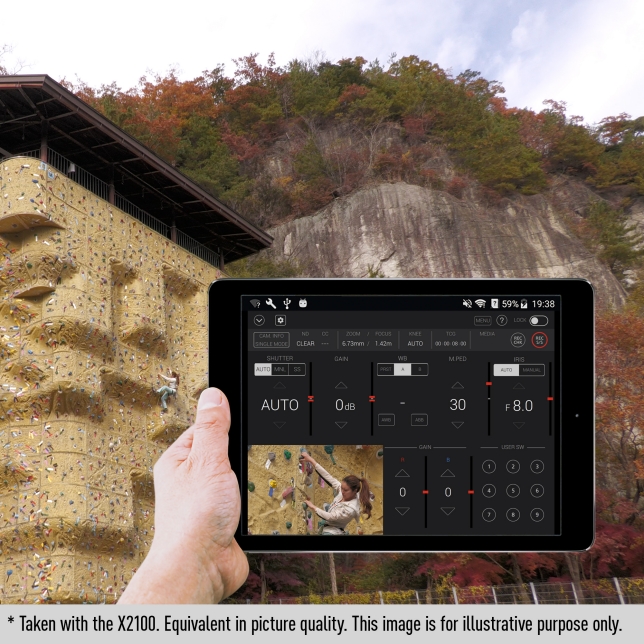

Wireless Control from a Tablet or Smartphone

The built-in 5-GHz/2.4-GHz Wi-Fi module enables you to connect just the body to Wi-Fi. Using a tablet or smartphone app HC ROP, wireless camera operations are also possible with live view image.

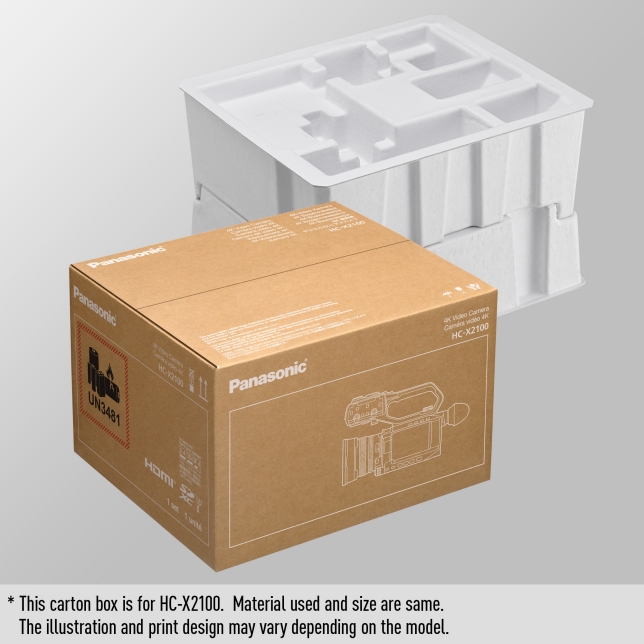

Environmental Care and Initiatives

Recycled materials are used for the packaging boxes and molded pulp, and white ink is used for recyclability. It is also compatible with the versatile USB-PD standard to reduce environmental impact.

Versatile Functions Expand User's Workflow

Records a 4:2:2 10-bit colour profile of up to LongGOP UHD 29.97p/25p (150 Mbps), or FHD 59.94p/50p (100 Mbps) with SD cards. Outputs 10-bit UHD 59.94p/50p images via HDMI.

Functions and Designs that Support Professional Camera Work

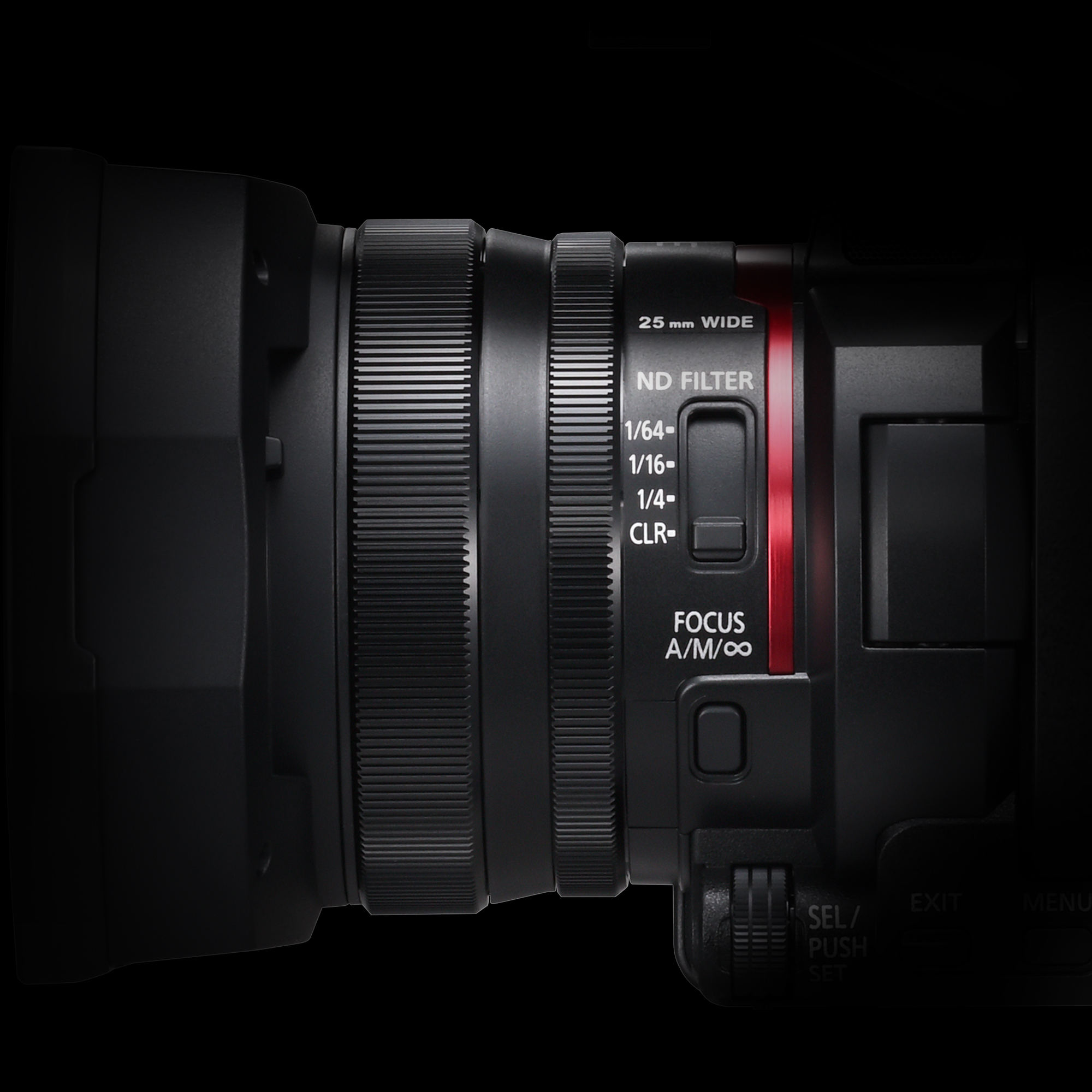

1 Two Manual Rings

Two Manual Rings are provided, one for focusing and the other for zoom or iris operation. The use of the Manual Rings is improved by using different-sized rings in the front and rear, so they can be distinguished by the fingers.

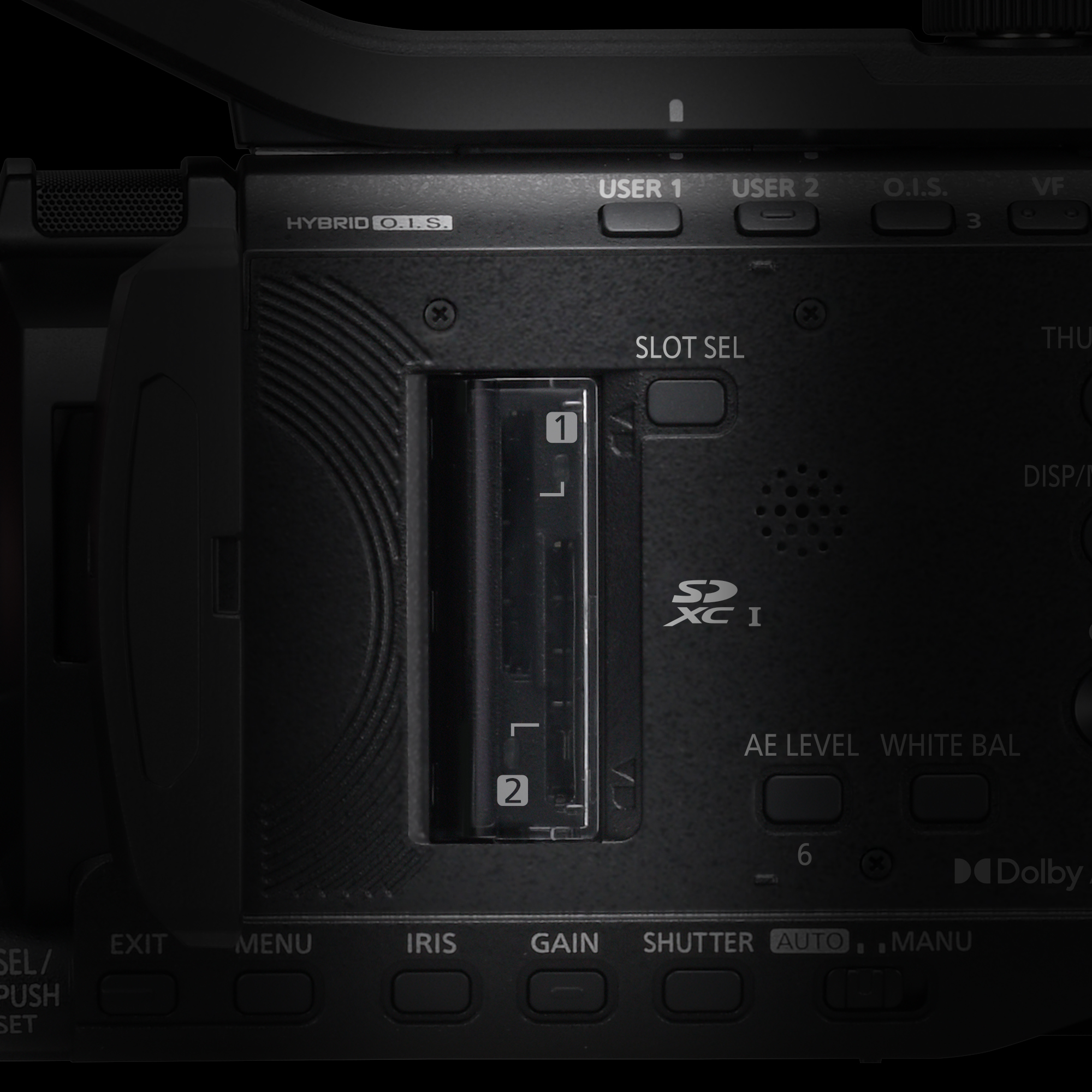

3 Double SD Card Slot

This enables unlimited* relay recording by simply changing SD cards, and also allows simultaneous recording and background recording** for high recording reliability.

* If the relay recording time reaches 10 hours, shooting will temporarily stop, and then automatically restart a few seconds later.
** Only MOV/MP4 FHD format is supported.

3 Double SD Card Slot

This enables unlimited* relay recording by simply changing SD cards, and also allows simultaneous recording and background recording** for high recording reliability.

* If the relay recording time reaches 10 hours, shooting will temporarily stop, and then automatically restart a few seconds later.
** Only MOV/MP4 FHD format is supported.

Get Inspired

Specs

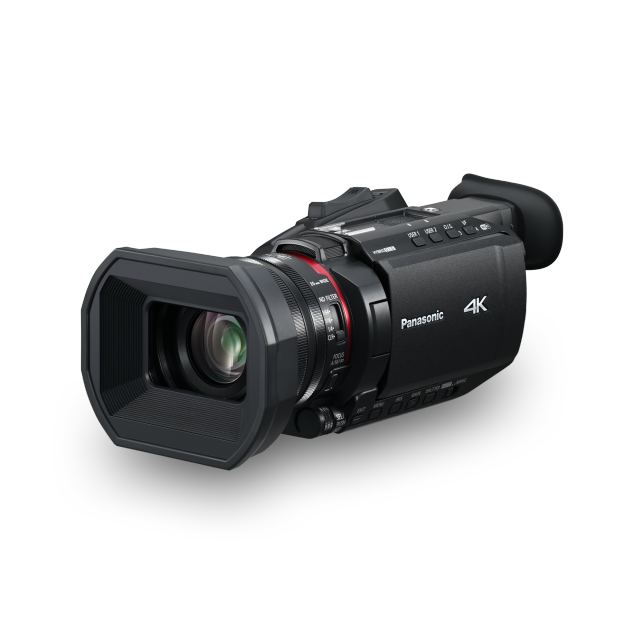

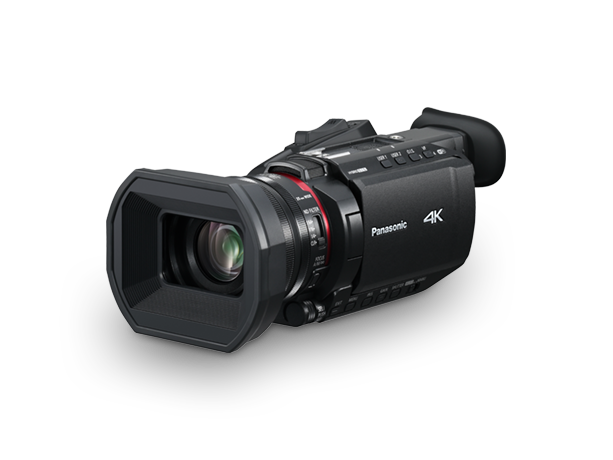

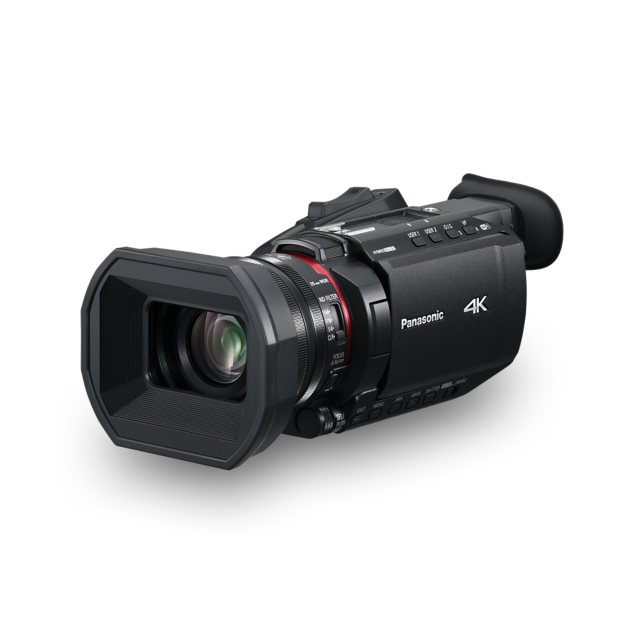

Photo of 4K Professional Camcorder HC-X1600GN

Size and Weight

Height: 93mm

Width: 129mm

Depth: 267mm

Weight: 850g

All values are approximate. The lens hood and eye cup are included in the dimensions.
The weight is for the body only and excludes the lens hood, battery and eye cup.

4K Recording
Optical 24x Zoom
25mm Wide-Angle
4K High Precision AF
5-Axis HYBRID O.I.S.+
Built-in Wi-Fi

4K 10-bit 60p Recording

Wide-Angle 25mm

Optical 24x, Face Detection AF/AE

HEVC 10bit Recording

Long Life Battery

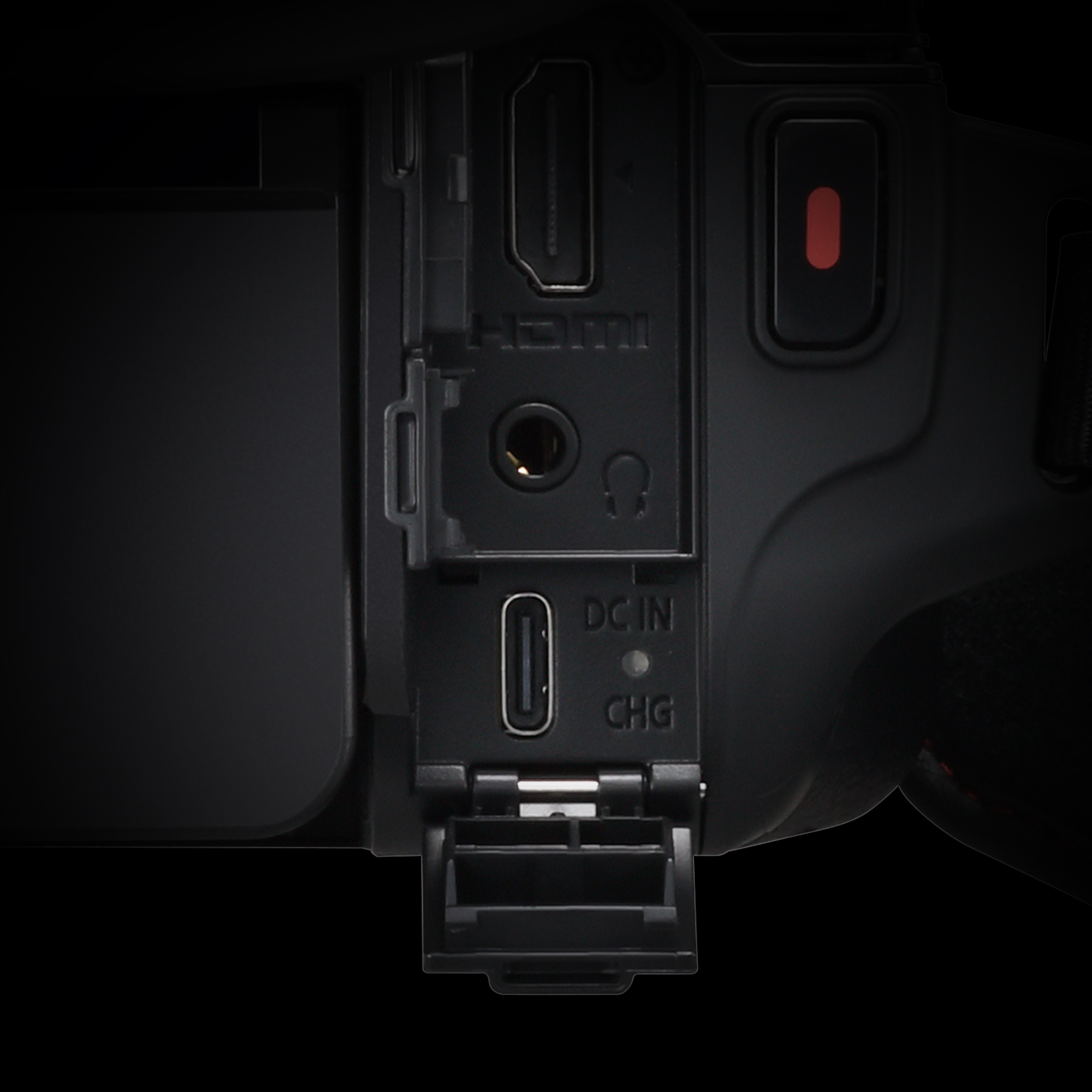

2 Manual Rings, Live Streaming, USB PD

SENSOR SECTION

Image Sensor
- 1/2.5-type (inch) MOS Sensor
Effective Pixels
- 8.29 megapixels

LENS SECTION

F Value
- F1.8 ― 4.0
Optical Zoom
- 24x
Focal Length
- 4.12 ― 98.9 mm
35 mm Film Camera Equivalent
- 25.0 ― 600.0 mm
Filter Diameter
- 62 mm
Lens Brand
- Panasonic Lens

CAMERA SECTION

Minimum Illumination
- 1.5 lx (F1.8, Super Gain +, Shutter Speed 1/30 sec)
Focus
- Auto / Manual
Zoom
- i.Zoom OFF
  - 24x
- i.Zoom ON
  - Max. 48x (UHD 32x)
- Digital Zoom
  - 2x / 5x / 10x

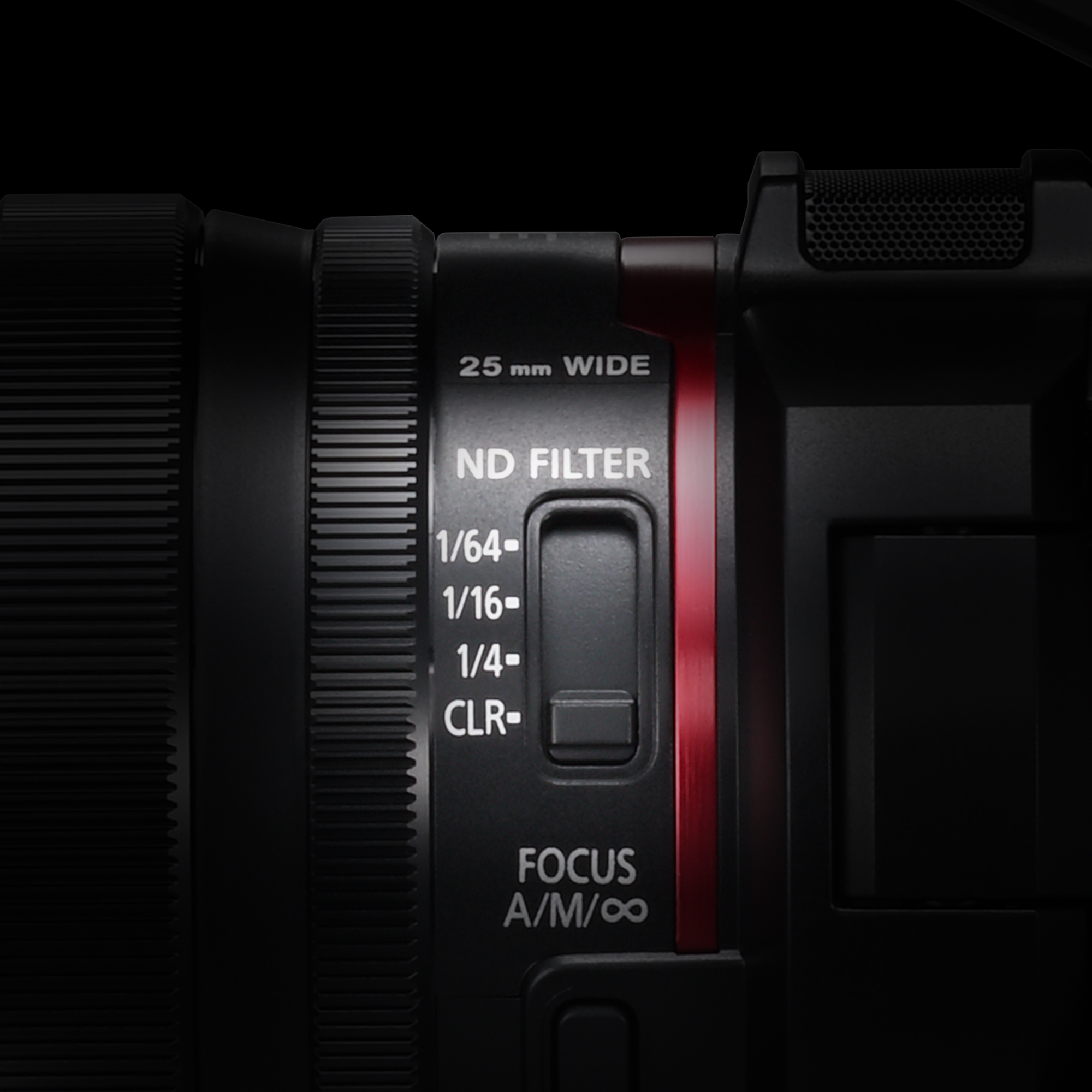

ND Filter
- Clear, 1/4, 1/16, 1/64
IR Filter
- Incorporates the ON/OFF control function
White Balance
- Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed
Shutter Speed
- 59.94 Hz mode
  - 60i/60p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
    30p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
    24p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
- 50.00 Hz mode
  - 50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
    25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
Slow Shutter Speed
- 59.94 Hz mode
  - 59.94i/59.94p: 1/8, 1/15, 1/30 sec
    29.97p: 1/8, 1/15 sec
    23.98p: 1/6, 1/12 sec
- 50.00 Hz mode
  - 50i/50p: 1/6, 1/12, 1/25 sec
    25p: 1/6, 1/12 sec
Super Slow Recording Frame Rate
- 59.94 Hz mode
  - FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p)
- 50.00 Hz mode
  - FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
Iris
- Auto / Manual
Image Stabiliser
- Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD)

RECORDING SECTION

Recording Media
- SDHC/SDXC Memory Card (Up to 512GB), UHS-I compatible
Recording Format
- MOV, MP4, AVCHD
Video Compression Method
- MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-4 HEVC Main10 Profile
  AVCHD: H.264/MPEG-4 AVC High Profile
Audio Compression Method
- MOV: LPCM, 48kHz/24bit, 2ch
  MP4: AAC, 48kHz/16bit, 2ch
  AVCHD: Dolby Audio, 48kHz/16bit, 2ch
2-slot Function
- Relay recording, simultaneous recording, background recording (MOV/MP4 FHD only)
System Frequency
- 59.94Hz / 50.00Hz
Recording / Playback Mode
- MOV (HEVC)
  - [4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 200M: Average 200Mbps (VBR)
    UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
    UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 150M: Average 150Mbps (VBR)
- MOV
  - [4:2:0 8bit] UHD 3840x2160 59.94p/50.00p 420 LongGOP 150M: Average 150Mbps (VBR)
    UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 100M: Average 100Mbps (VBR)
    [4:2:2 10bit] UHD 3840x2160 29.97p/25.00p/23.98p 422 LongGOP 150M: Average 150Mbps (VBR)
    FHD 1920x1080 59.94p/50.00p ALL-I 200M: Average 200Mbps (VBR)
    FHD 1920x1080 59.94i/50.00i ALL-I 100M: Average 100Mbps (VBR)
    FHD 1920x1080 29.97p/25.00p/23.98p ALL-I 100M: Average 100Mbps (VBR)
    FHD 1920x1080 59.94p/50.00p 422 LongGOP100M: Average 100Mbps (VBR)
    FHD 1920x1080 59.94i/50.00i/29.97p/25.00p/23.98p 422 LongGOP 50M: Average 50Mbps (VBR)
- MP4 (HEVC)
  - [4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
    UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR)
- MP4
  - [4:2:0 8bit] UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 72M: Average 72Mbps (VBR)
    FHD 1920x1080 59.94p/50.00p/23.98p/59.94i*/50.00i* 420 LongGOP 50M: Average 50Mbps (VBR)
    FHD 1920x1080 59.94p*/50.00p* LongGOP 28M: Average 28Mbps (VBR)
    FHD 1920x1080 23.98p* LongGOP 24M: Average 24Mbps (VBR)
    FHD 1920x1080 29.97p*/25.00p* LongGOP 20M: Average 20Mbps (VBR)
    *To be added by firmware update.
- AVCHD
  - [4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR)
    PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR)
    HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR)
    PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR)
- P2
  - —
- P2 Proxy
  - —

DUAL CODEC SECTION *To be added by firmware update.

Recording Format
- —
Video Compression Method
- —
Audio Compression Method
- —
Recording format
- FHD 50Mbps
  - —
- FHD 8Mbps
  - —

LIVE STREAMING

Video Compression Format
- H.264/MPEG-4 AVC Main Profile, High Profile
- —
Video Resolution
- 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180
- —
Streaming Method
- Unicast, Multicast
- —
Frame Rate
- System frequency = 59.94 Hz: 60 fps, 30 fps, 24fps
  System frequency = 50.00 Hz: 50 fps, 25 fps
- —
Bit Rate
- 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps
- —
Audio Compression Format
- AAC-LC: 48 kHz/16 bit 2ch
- —
Network Protocol
- RTSP/RTP/RTMP/RTMPS

NDI

STILL IMAGE SECTION

Recording Format
- JPEG (DCF/Exif2.2)
Recording Image Size
- Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9)
  * Only images cut from video in video playback mode are supported.

GENERAL SECTION

Power Supply
- 7.28V (Battery) / 9.0V (DC IN)
Power Consumption
- Recording: 12.3W, Charging: 15.5W
Dimensions (W x H x D)
- Approx. 129 x 93 x 267 mm (5.1 x 3.7 x 10.5 inch) (including lens hood and eye cup)
Weight
- Body: approx. 0.85kg (1.88 lb) (body only, excluding lens hood, battery, and eye cup)
  Shooting: approx. 1.2kg (2.65 lb) (including lens hood, battery, and eye cup)

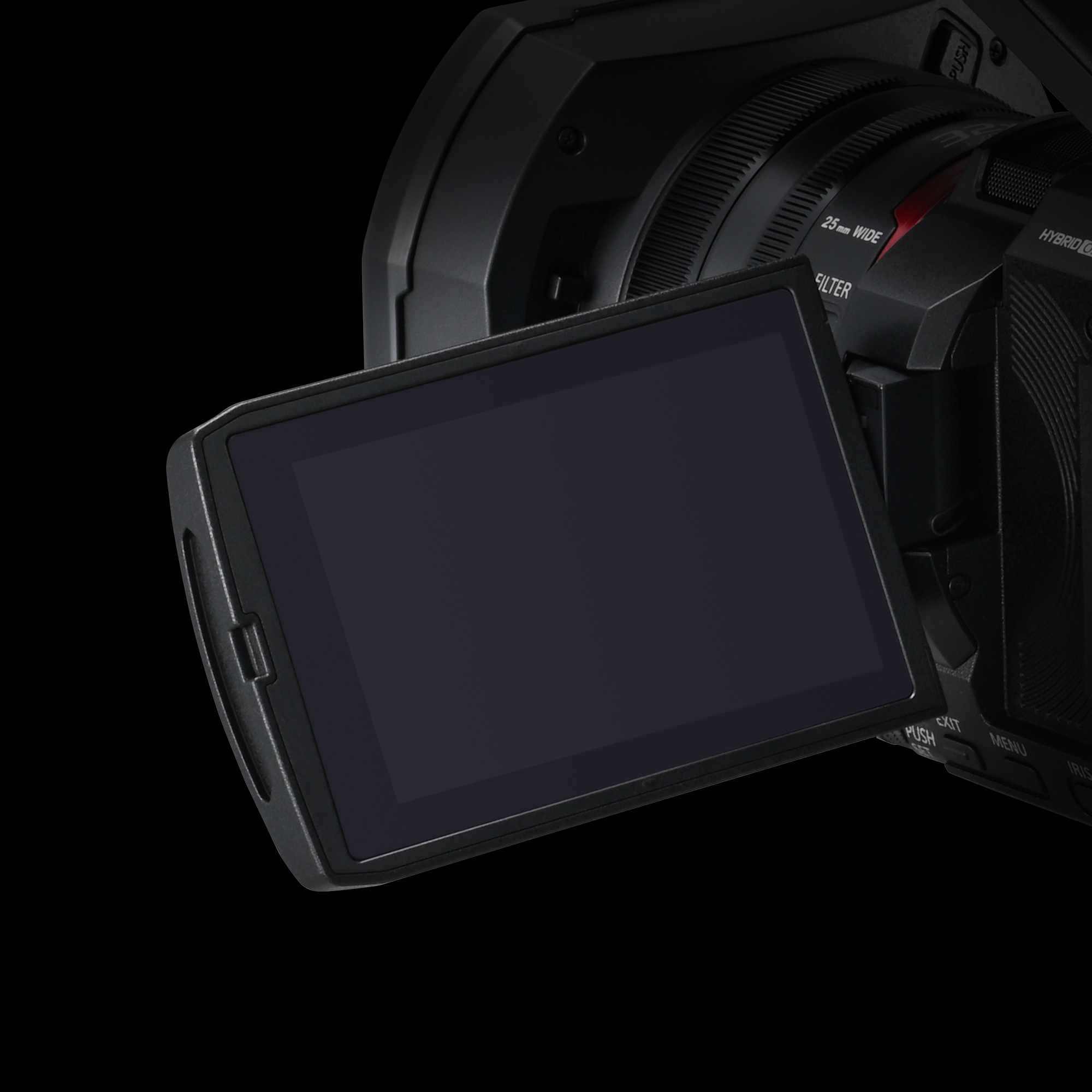

LCD Monitor (Electrostatic Touch Panel)
- 3.5-inch Wide LCD monitor (About 2,760,000 dots)

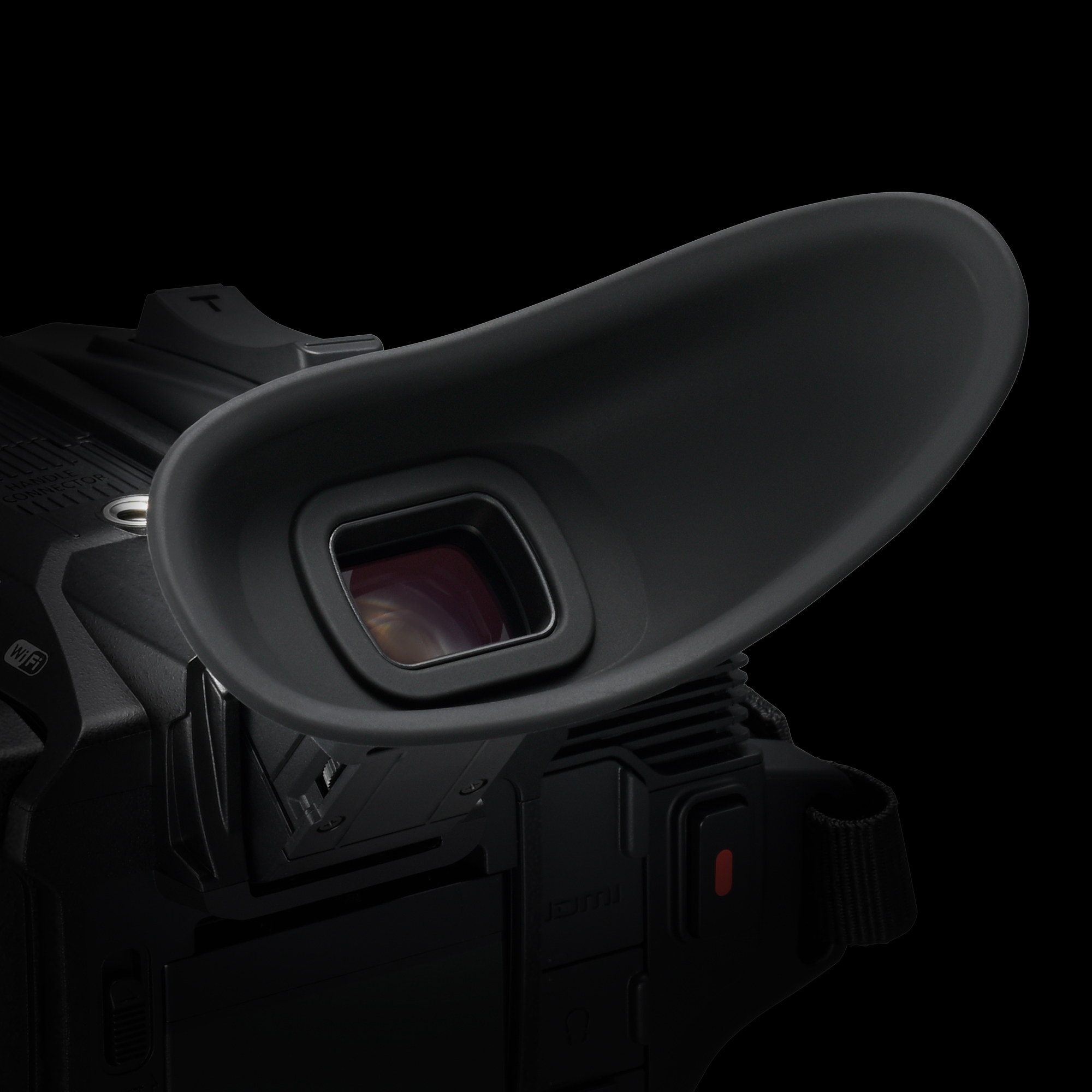

Viewfinder
- 0.39-inch Wide OLED EVF (About 2,360,000 dots), video display area: About 1,770,000 dots
Manual Ring
- Focus / Zoom or Iris
Accessory Shoe
- Yes
LED Video Light
- Average Illumination
  - —
- Irradiation Angle
  - —
- Colour Temperature
  - —

INTERFACE SECTION

Video
- SDI OUT
  - —
- HDMI
  - Type A x 1 (VIERA Link not supported), supports time code output and remote recording control
    Output format: 4:2:2 10bit:
    3840x2160/59.94p, 50.00p, 29.97p, 25.00p, 23.98p
    1920x1080/59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p
    1280x720/59.94p, 50.00p, 720x480/59.94p, 720x576/50.00p
Audio Input
- Built-in Microphone
  - Stereo microphone
- Microphone Input
  - 3.5mm stereo mini jack x 1
- XLR Input
  - XLR (3 pins) x 2 * When using a separately sold Handle Unit.
    Input high impedance, LINE/MIC/MIC+48 V (switchable SW)
    LINE：+4dBu/0dBu (switchable menu)
    MIC: –40dBu/–50dBu/–60dBu (switchable menu)
Audio Output
- SDI OUT
  - —
- HDMI
  - 2 ch (LPCM)
- Headphone
  - 3.5 mm diameter stereo mini jack x 1
- Speaker
  - 15 mm diameter, round x 1
Other Input/Output
- Camera Remote
  - 2.5mm diameter super mini jack x 1
- USB
  - Type-C x 1, High-speed USB (USB2.0), Mass storage function (read only)
- DC IN
  - 9V/3A, USB Type-C x 1, USB-PD supported

Wi-Fi

Standard
- IEEE 802.11a/b/g/n/ac
Frequency
- 2.4GHz/5GHz band

STANDARD ACCESSORY

AC Adaptor
- —
AC Cable
- —
Rechargeable Battery Pack
- Yes (5,900mAh)
Handle Unit
- —
Battery Charger
- —
IR Remote
- —
HDMI Cable
- —
USB Cable (C-C)
- —
Microphone Holder
- —
Microphone Holder Screws
- —
Input Terminal Cap
- —
Eye Cup
- Yes
Lens Hood
- Yes
Editing Software
- —
