LUMIX S5IIX Full-Frame Mirrorless Camera DC-S5M2X

Price †$ 2,999.99

DC-S5M2X

Master Your Creative Universe.

Advanced features like PDAF and I.S. (Image stabilization) make using the LUMIX S5IIX a truly rewarding experience. Capture high-quality photos and video with unlimited recording and enjoy enhanced mobility with this compact full-frame mirrorless camera.

DC-S5M2X

Price †2,999.99

SHOP NOW

Features

Design Philosophy

Under the design philosophy "Shaping Emotions", LUMIX S5IIX was built with an exceptional matte black design like no other.
LUMIX DESIGN aspires to create tools that respond to the passion of the creator. Form and function give shape to the heart’s emotions; every part feels right and precisely where it needs to be. Hands sure of what to do enable eyes to stay fixed on the subject. In forming the ideal tool, our aim is to create a camera you can use instinctively with precision control for maximum shooting pleasure.

LUMIX S5IIX's 7 Advanced Features

1 Phase Hybrid AF

Phase Hybrid AF dramatically improves subject tracking and recognition performance. Check out the video to see what it can do!

LUMIX Design philosophy: shaping emotions

The new all-black design of the LUMIX S5IIX is made to encourage the creator to becomes immersed in capturing the subject, oblivious to the tools in use. It’s designed to harmonize with the shooting environment and prevent reflections on the iris or recording media supporting artistic creativity.

A higher grade of visual expression

RAW video data output

The LUMIX S5IIX enables the output of RAW video data over HDMI to save it as ProRes RAW on ATOMOS NINJA V+, NINJA V and Shogun CONNECT HDR monitor-recorders.* The Blackmagic RAW can also be recorded on Video Assist 12G HDR.**

*[ProRes RAW] ･Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT. ･Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･All functions may not be available depending on the situation. **[Blackmagic RAW] ･Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. ･DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160. ･All functions may not be available depending on the situation.

FIND OUT MORE

External USB SSD recording

With the LUMIX S5IIX, recording and playback is supported using an external SSD via USB. In addition, the ability to record ProRes 422 HQ (maximum 1.9Gbps) and 4:2:2 10-bit All-Intra directly to SSDs, which combine portability and high capacity has improved efficiency in data backup and post-processing.

FIND OUT MORE

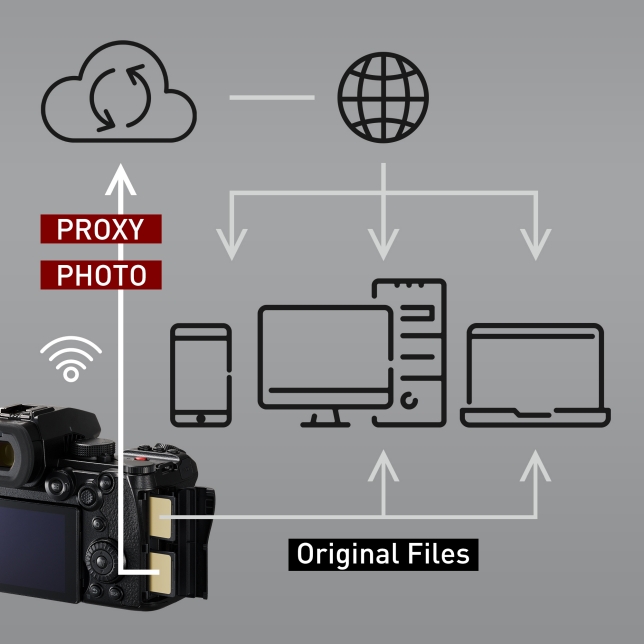

Go live anytime, anywhere

Choose your favorite streaming approach to share your latest in real time! For outdoor use, wireless live streaming (RTMP/RTMPS) is easy to set up with the LUMIX Sync app. For indoor use, highly stable wired live streaming (RTP/RTSP) is also available.

･Live streaming to the platforms that comply with RTMP/RTMPS is basically possible (Compatibility with all the platforms is not guaranteed.) There may be the cases where the live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform. ･Since the transmission speed of live streaming varies depending on the Internet environment, smartphone performance, etc., we recommend that you conduct a transmission test in advance. ･A commercially available USB ethernet adaptor is required to convert the DC-S5IIX's USB Type C terminal to a LAN terminal. Compatibilities of USB ethernet adapter: https://panasonic.jp/support/global/cs/dsc/connect/ethernet_adp/index.html

FIND OUT MORE

Ready for the most ambitious shoots

Phase Hybrid AF for aggressive shooting

The most important thing in autofocus is to be dependable. The new Phase Hybrid AF delivers speed and accuracy to help you capture the target subject even in the most challenging scenes where multiple subjects are involved, and even in backlit or low-light environments.

FIND OUT MORE

Great for shooting as you walk: Active I.S. Technology

New Active I.S. lets you walk and shoot at the same time. By determining the status of camera shake and optimizing correction ratios, Active I.S. can compensate for even significant camera shake, approximately 200%* more than conventional systems.

*Compared with LUMIX S5. Focal length 20mm, when using S-R2060.

FIND OUT MORE

Great for shooting as you walk: Active I.S. Technology

Heat management for unlimited recording time

4:2:2 10-bit C4K/4K 60p/50p unlimited recording time.* With a compact body equivalent to the S5, the LUMIX S5IIX’s new optimized heat dissipation structure enables extended recording even when shooting at heavy loads (e.g. high-resolution video over 4K, HFR video).

*The camera may stop recording when used in a temperature that is lower or higher than the recommended operating temperature (0 to 40 degrees).
Recording stops when the continuous recording time exceeds 30 minutes with the following settings; [MOV] in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] or [ProRes] in [5.8K/29.97p] [5.8K/25.00p] [C4K/59.94p] [C4K/50.00p] when Thermal Management mode is set to Standard.

FIND OUT MORE

Heat management for unlimited recording time

LUMIX color science technology

The LUMIX commitment to superior image quality

The new engine delivers more true-to-life colors, finer resolution, and a natural three-dimensional effect and, combined with Dual Native ISO technology, effectively suppresses noise even when shooting at ultra-high sensitivities, beautifully rendering even dark areas..

FIND OUT MORE

The LUMIX commitment to superior image quality

Easy color grading with REAL TIME LUT

LUT-applied photos and videos can be recorded internally without any special software. Even if you don’t have specialized editing skills, the camera helps you expand your range of expression as much as you want.

DOWNLOAD CREATOR'S LUTS

Related products

Lenses that enable high-quality photographic and video expression

The LUMIX S series delivers superior optical performance, mobility, and operability without compromise. Even when you change lenses, all your images show a consistent rendering, for high-quality works of art.

FIND OUT MORE ABOUT LUMIX S Lenses

Lenses that enable high-quality photographic and video expression

The LUMIX S5 Series Lineup

Now you can choose from the LUMIX S5IIX, which delivers even better visual quality, and the LUMIX S5II, made for a wider range of photo and video creators.

FIND OUT MORE ABOUT LUMIX S5II

Flow State — Shot by LUMIX S5IIX

A content creation project that challenges three content creators to push their creative boundaries with LUMIX S5IIX.

DISCOVER THEIR STORIES

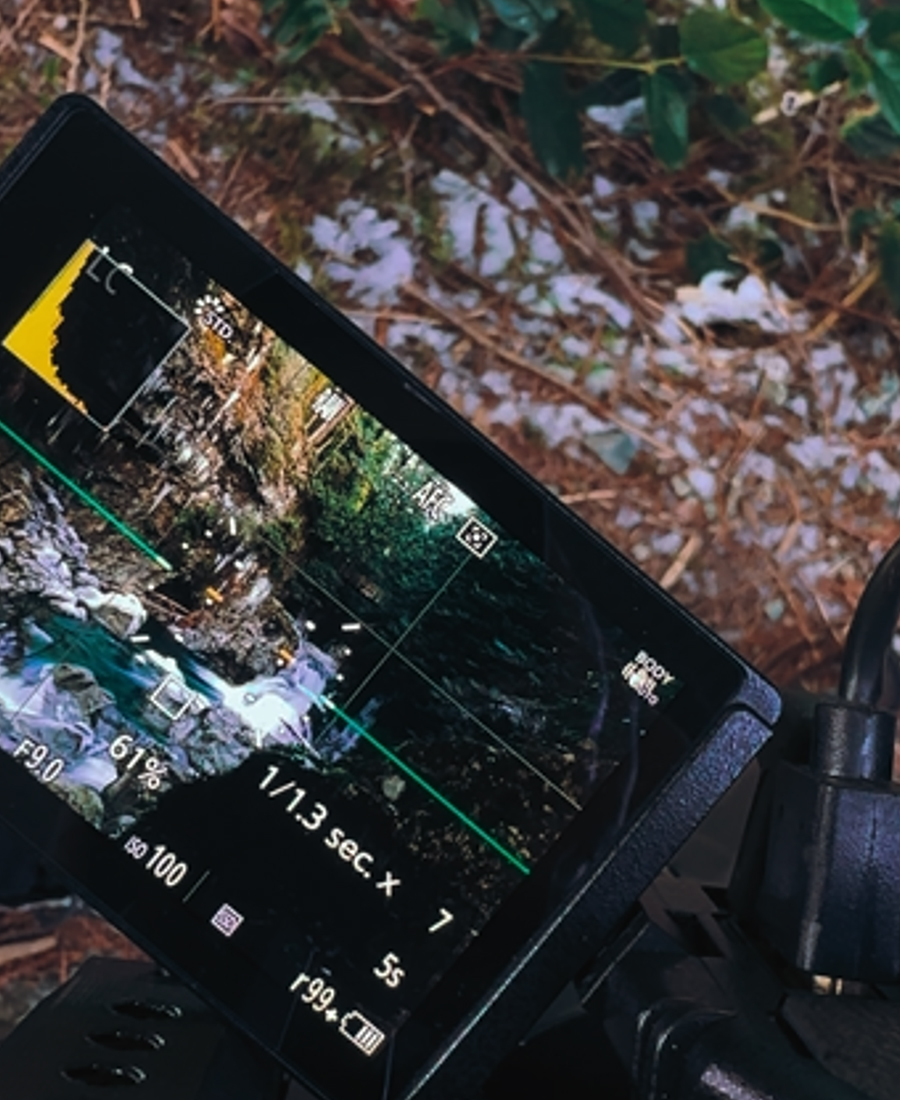

Get Inspired

Specs

Photo of LUMIX S5IIX Full-Frame Mirrorless Camera DC-S5M2X

Size and Weight

Height: 102.3mm

Width: 134.3mm

Depth: 90.1mm

Weight: 740g

All values are approximate. Weight with SD card and battery. Lens is excluded. Body only 657g. Dimensions exclude protrusions.

L-Mount
24.2 Megapixels
Phase Hybrid AF
Active I.S. Technology
C4K/4K 4:2:2 10-bit 60p/50p video
HFR/VFR 10-bit Video
V-Log
RAW Video Data Output
Live Streaming
1840k-dot Free-angle Monitor
3680k-dot OLED Live View Finder
Splash and Dust-resistant

New 24.2MP sensor with Dual Native ISO technology and a new generation engine

Phase Detection AF and Active I.S. Technology

C4K/4K 60p/50p 4:2:2 10-bit unlimited recording

RAW video data output, ProRes video, All-Intra video, and external USB-SSD recording

TYPE

Type
- Digital Single Lens Mirrorless camera
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
- 24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- Image sensor shift type

LATITUDE

14+ stops (V-Log)

STILL IMAGE

Recording file format
- JPEG (DCF, Exif 2.31), RAW
Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (pixels) when using full-frame lenses
- 3:2
  - 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode.
- 4:3
  - 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode.
- 16:9
  - 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode.
- 1:1
  - 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode.
- 65:24
  - 6000x2208(L)
- 2:1
  - 6000x3000(L)
File size (pixels) when using APS-C/Super 35mm lenses
- 3:2
  - 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
- 4:3
  - 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
- 16:9
  - 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
- 1:1
  - 2656x2656(L) / 1920x1920(M) / 1376x1376(S)
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
  MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format
- MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  MP4: AAC (2ch 48kHz/16-bit)
  *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
Image area of video
- Full / APS-C / PIXEL/PIXEL
MOV / 59.94Hz / FULL (*HLG is selectable.) (*¹) (*²)
- [6K] 5952x3968 (3:2)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6K] 5952x3136 (17:9)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160
  - 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 59.94Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
- [C4K] 4096x2160
  - 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Image Area of Video is set to APS-C.
MOV / 50.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
- [6K] 5952x3968 (3:2)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6K] 5952x3136 (17:9)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160
  - 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 50.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
- [C4K] 4096x2160
  - 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Image Area of Video is set to APS-C.
MOV / 24.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
- [6K] 5952x3968 (3:2)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6K] 5952x3136 (17:9)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 24.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
- [C4K] 4096x2160
  - 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
ProRes / 59.94Hz / FULL (*¹) (*²)
- [5.8K] 5776x3056 (17:9)
  - 29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    23.98p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [C4K] 4096x2160
  - 29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 59.94Hz / APS-C / PIXEL/PIXEL (*¹) (*²)
- [C4K] 4096x2160
  - 59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 29.97p, 913Mbps (ProRes 422 HQ) / 609Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    23.98p, 730Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 50.00Hz / FULL (*¹) (*²)
- [5.8K] 5776x3056 (17:9)
  - 25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [C4K] 4096x2160
  - 25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 50.00Hz / APS-C / PIXEL/PIXEL (*¹) (*²)
- [C4K] 4096x2160
  - 50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 50.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    25.00p, 761Mbps (ProRes 422 HQ) / 508Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 24.00Hz / FULL (*¹) (*²)
- [5.8K] 5776x3056 (17:9)
  - 24.00p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [C4K] 4096x2160
  - 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 240.00Hz / APS-C / PIXEL/PIXEL (*¹) (*²)
- [C4K] 4096x2160
  - 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 24.00p, 731Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
MP4 / 59.94Hz / FULL (*¹)
- [4K] 3840x2160
  - 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 59.94Hz / APS-C / PIXEL/PIXEL (*¹)
- [4K] 3840x2160
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 50.00Hz / FULL (*¹)
- [4K] 3840x2160
  - 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 50.00Hz / APS-C / PIXEL/PIXEL (*¹)
- [4K] 3840x2160
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 24.00Hz / FULL
- -
MP4 / 24.00Hz / APS-C / PIXEL/PIXEL
- -

SLOW & QUICK

MOV / 59.94Hz / FULL (*¹)
- [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 59.94Hz / APS-C (*¹)
- [C4K] 4096x2160
  - 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 50.00Hz / FULL (*¹)
- [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 50.00Hz / APS-C (*¹)
- [C4K] 4096x2160
  - 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 24.00Hz / FULL (*¹)
- [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 24.00Hz / APS-C (*¹)
- [C4K] 4096x2160
  - 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.

EXTERNAL USB-SSD RECORDING

Yes (ON / OFF)

HDMI RAW DATA OUTPUT

Compatible external devices
- ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V" / "Shogun CONNECT"
  *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT.
  *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
  https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
  *All functions may not be available depending on the situation.

  Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
  *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
  *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
  *All functions may not be available depending on the situation.
Rec quality / 59.94Hz / FULL
- [5.9K] 5888x3312 (16:9)
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
Rec quality / 59.94Hz / APS-C
- [4.1K] 4128x2176 (17:9)
  - 59.94p, 12-bit (LPCM)
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- [3.5K] 3536x2656 (4:3)
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
Rec quality / 50.00Hz / FULL
- [5.9K] 5888x3312 (16:9)
  - 25.00p, 12-bit (LPCM)
Rec quality / 50.00Hz / APS-C
- [4.1K] 4128x2176 (17:9)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
- [3.5K] 3536x2656 (4:3)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
Audio format
- LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

STREAMING

Wi-Fi / Protocol
- RTMP / RTMPS
Wi-Fi / 59.94Hz
- [FHD] 1920x1080
  - 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    29.97p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
Wi-Fi / 50.00Hz
- [FHD] 1920x1080
  - 50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    25.00p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
USB Tethering / Protocol
- RTMP / RTMPS
USB Tethering / 59.94Hz
- [4K] 3840x2160
  - 29.97p, 12.5Mbps (H.264)
- [FHD] 1920x1080
  - 59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
USB Tethering / 50.00Hz
- [4K] 3840x2160
  - 25.00, 12.5Mbps (H.264)
- [FHD] 1920x1080
  - 50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
Wired LAN / Protocol
- RTP / RTSP
Wired LAN / 59.94Hz
- [4K] 3840x2160
  - 59.94p, 50Mbps / 25Mbps (H.265)*
    59.94p, 50Mbps / 25Mbps (H.264)*
    29.97p, 25Mbps / 12.5Mbps (H.265)
    29.97p, 25Mbps / 12.5Mbps (H.264)
    *When Image Area of Video is set to APS-C or PIXEL/PIXEL.
- [FHD] 1920x1080
  - 59.94p, 20Mbps / 16Mbps (H.265)
    59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 12Mbps / 6Mbps (H.265)
    29.97p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
Wired LAN / 50.00Hz
- [4K] 3840x2160
  - 50.00p, 50Mbps / 25Mbps (H.265)*
    50.00p, 50Mbps / 25Mbps (H.264)*
    25.00p, 25Mbps / 12.5Mbps (H.265)
    25.00p, 25Mbps / 12.5Mbps (H.264)
    *When Image Area of Video is set to APS-C or PIXEL/PIXEL.
- [FHD] 1920x1080
  - 50.00p, 20Mbps / 16Mbps (H.265)
    50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 12Mbps / 6Mbps (H.265)
    25.00p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 3.68 million dots
Field of view / Magnification
- Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels
- Approx. 1.84 million dots
Field of view
- Approx. 100%

STATUS LCD

FOCUS (*³)

Type
- Phase Detection AF system / Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
  *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
AF detective range
- EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Focus ring control
- Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
Others
- AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial
- Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
  *The same exposure operations as P/A/S/M mode is available.
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)
- [Normal]
  Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO

  [V-Log]
  Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO

  [HLG]
  Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
Dual Native ISO
- [Normal]
  Native ISO: 100, 640
  Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 50* / 100-800 *Extended ISO
  High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

  [V-Log]
  Native ISO: 640, 4000
  Auto: Auto / 320* / 640-51200 *Extended ISO
  Low: Auto / 320* / 640-5000 *Extended ISO
  High: Auto / 2000* / 4000-51200 *Extended ISO

  [HLG]
  Native ISO: 400, 2500
  Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 400-3200
  High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

  [Cinelike D2 / Cinelike V2]
  Native ISO: 200, 1250
  Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
  Low: Auto /100* / 200-1600 *Extended ISO
  High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
  Motion picture: 1/16,000 - 1/25
  Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer
- 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions
Focus bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter / Electronic front curtain shutter
  - H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
    M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
- Electronic shutter
  - SH30: 30 frames/sec (AFS/AFC/MF)
    H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
    M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable images
- H/M/L*
  RAW+JPEG: More than 200 images
  RAW: More than 200 images
  JPEG: More than 300 images
  *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
  *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

  SH
  RAW / RAW+JPEG / JPEG: 200 images

FLASH

Flash type
- TTL External Flash (sold separately)
Synchronization speed
- Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION

2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.

COLOR SETTINGS

Photo Style
- Photo Style
  - Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
    *Set to ON from Show/Hide Photo Style to select.
- Picture adjustment
  - Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
    *Adjustable settings vary depending on the Photo Style mode.
Filter
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT Library
- Vlog_709 / Set 1-10
  *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.

MOTION PICTURE FUNCTION

Time lapse shot
- Yes
Stop motion animation
- Yes
Live cropping
- Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0-1023 / 64-940 / 64-1023
Synchro scan
- Yes
Master pedestal level
- 31 steps
Color bars / 1kHz test tone
- Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist
- Supported file types: .vlt, .cube
  Monitor / HDMI
HLG view assist
- Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Wave form monitor / Vectorscope
- Selectable
Knee control
- Yes (in Like709 mode)
Red REC frame indicator
- ON / OFF

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)

LEVEL GAUGE

FUNCTION BUTTON

REC
- Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

INTERFACE

USB
- USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
HDMI (*⁴)
- HDMI
  - HDMI TypeA
    Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
    4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
- Playback
  - 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
    50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
    24.00Hz: C4K/24p / 4K/24p / 1080p
    *Only for playback.
Remote input
- φ2.5mm
Audio
- Build-in microphone
  - Stereo
    Wind Noise Canceller: OFF / Standard / High
- External microphone / External audio device input
  - φ3.5mm for external microphone / external audio device
    MIC (Plug-in Power) / MIC / LINE
    Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
    Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
- XLR microphone
  - Yes with DMW-XLR1 (sold separately)
- 4ch mic input
  - Yes with DMW-XLR1 (sold separately)
- Speaker
  - Monaural
- Headphone output
  - φ3.5mm
SD card slot
- Slot 1, Slot 2
  SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

Count up
- Rec Run / Free Run
Time code mode
- Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output
- ON / OFF

FAN

Auto1 / Auto2 / Fast / Normal / Slow* / OFF**
*Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p.
**OFF can be set when in iA/P/A/S/M mode.

WIRELESS

Wi-Fi
- 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
  5GHz bands (STA) (IEEE 802.11a/n/ac)
  Security: WPA/WPA2/WPA3
Bluetooth
- Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
- When using SD memory card
  - Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060
    Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50
    *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
- When using external USB-SSD
  - Approx. 300 images with S-R2060
    Approx. 300 images with S-S50
Continuous recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Actual recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Battery grip
- DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)
  Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions)
  Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)
Weight
- Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
  Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT

Operating temperature
- 0℃ to 40℃ (32℉ to 104℉)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- Recording
  - LUMIX Tether
    ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
    http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

    LUMIX Sync
    ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
    https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
- Playback / Editing
  - ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
    http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-S5M2X Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C)

  DC-S5M2XK Kit / DC-S5M2XC Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap, Lens Hood, Lens Rear Cap

  DC-S5M2XW Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap x 2, Lens Hood x 2, Lens Rear Cap x 2

  ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

(*1) About motion picture recording

- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: External USB-SSD, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: External USB-SSD, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: External USB-SSD, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: External USB-SSD, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more or ProRes: External USB-SSD

- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes

- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.7K]: 640GB

- If the resolution is higher than C4K, the frame rate is higher than 60p or set to ProRes, the camera may stop the recording to protect itself. Wait until the camera cools down.
- Recording stops when the continuous recording time exceeds 30 minutes with the following settings.
[MOV] in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
[ProRes] in [5.8K/29.97p] [5.8K/25.00p] [C4K/59.94p] [C4K/50.00p] when Thermal Management mode is set to Standard.

(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).

(*3) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

(*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).

Open a new page for printing

Different Size Products

DC-S1H

Full-frame DSLM (Digital Single Lens Mirrorless) Camera featuring V-Log/V-Gamut with wide dynamic range of 14+ stops, 6K full-frame capture, and 10-bit Cinema 4K/4K 60p/50p recording.

Price †$ 5,599.99

DC-S9N

Create captivating content straight from the new LUMIX S9 full-frame camera, with no editing skills needed — perfect for instant social media sharing. 18-40mm lens kit

DC-S5M2W

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More. 20-60mm lens and 50mm lens kit

DC-S5M2XW

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., High Grade Video Mode, C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More. 20-60mm lens and 50mm lens kit

DC-S9

Create captivating content straight from the new LUMIX S9 full-frame camera, with no editing skills needed — perfect for instant social media sharing.

DC-S9K

Create captivating content straight from the new LUMIX S9 full-frame camera, with no editing skills needed — perfect for instant social media sharing. 20-60mm lens kit

DC-S5M2

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More.

Price †$ 2,699.99

DC-S5M2K

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More. 20-60mm lens kit

Price †$ 3,149.99

DC-S5M2XK

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., High Grade Video Mode, C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More. 20-60mm lens kit

Price †$ 3,399.99

DC-S1H

Full-frame DSLM (Digital Single Lens Mirrorless) Camera featuring V-Log/V-Gamut with wide dynamic range of 14+ stops, 6K full-frame capture, and 10-bit Cinema 4K/4K 60p/50p recording.

Price †$ 5,599.99

DC-S9N

Create captivating content straight from the new LUMIX S9 full-frame camera, with no editing skills needed — perfect for instant social media sharing. 18-40mm lens kit

DC-S5M2W

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More. 20-60mm lens and 50mm lens kit

DC-S5M2XW

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., High Grade Video Mode, C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More. 20-60mm lens and 50mm lens kit

DC-S9

Create captivating content straight from the new LUMIX S9 full-frame camera, with no editing skills needed — perfect for instant social media sharing.

DC-S9K

Create captivating content straight from the new LUMIX S9 full-frame camera, with no editing skills needed — perfect for instant social media sharing. 20-60mm lens kit

DC-S5M2

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More.

Price †$ 2,699.99

DC-S5M2K

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More. 20-60mm lens kit

Price †$ 3,149.99

DC-S5M2XK

Full-Frame Mirrorless Camera featuring Phase Hybrid AF, Active I.S., High Grade Video Mode, C4K/4K 60p/50p 4:2:2 10-bit Unlimited Recording and More. 20-60mm lens kit

Price †$ 3,399.99

DC-S1H

Full-frame DSLM (Digital Single Lens Mirrorless) Camera featuring V-Log/V-Gamut with wide dynamic range of 14+ stops, 6K full-frame capture, and 10-bit Cinema 4K/4K 60p/50p recording.

Price †$ 5,599.99

Where to Buy

Panasonic eStore

Buy hassle free direct from Panasonic and enjoy free shipping on orders $19.95+ (excluding scheduled deliveries).

Dealer Locator

Experience our products in store at a dealer near you.

Support Centre

Need help? Find solutions to popular support inquiries.

Club Panasonic

Join Club Panasonic to receive exclusive discounts and additional membership benefits.

Accessories

Lenses

S-R1635

LUMIX S PRO 16-35mm F4

S-E2470

LUMIX S PRO 24-70mm F2.8

S-E70200

LUMIX S PRO 70-200mm F2.8 O.I.S.

S-R70200

LUMIX S PRO 70-200mm F4 O.I.S.

S-X50

LUMIX S PRO 50mm F1.4

S-R1428

L-Mount 14-28mm Wide Zoom Lens

S-R2060

LUMIX S 20-60mm F3.5-5.6

S-R24105

LUMIX S 24-105mm F4 MACRO O.I.S.

S-R70300

L-Mount 70-300 mm Telephoto Zoom Lens

S-S18

L-Mount 18mm Fixed Focal Length Lens

S-S24

L-Mount 24mm Fixed Focal Length Lens

S-S35

L-Mount 35mm Fixed Focal Length Lens

S-R1635

LUMIX S PRO 16-35mm F4

S-E2470

LUMIX S PRO 24-70mm F2.8

S-E70200

LUMIX S PRO 70-200mm F2.8 O.I.S.

S-R70200

LUMIX S PRO 70-200mm F4 O.I.S.

S-X50

LUMIX S PRO 50mm F1.4

S-R1428

L-Mount 14-28mm Wide Zoom Lens

S-R2060

LUMIX S 20-60mm F3.5-5.6

S-R24105

LUMIX S 24-105mm F4 MACRO O.I.S.

S-R70300

L-Mount 70-300 mm Telephoto Zoom Lens

S-S18

L-Mount 18mm Fixed Focal Length Lens

S-S24

L-Mount 24mm Fixed Focal Length Lens

S-S35

L-Mount 35mm Fixed Focal Length Lens

Battery / Battery Grip

DMW-BGS5

Battery Grip

DMW-BLK22

Battery

DMW-BTC15

Battery Charger

DMW-DCC17

DC Coupler

DMW-BGS5

Battery Grip

DMW-BLK22

Battery

DMW-BTC15

Battery Charger

DMW-DCC17

DC Coupler

Shutter Remote Control / Tripod Grip

DMW-RS2

Shutter Remote Control

DMW-SHGR1

Tripod Grip

Flashes

DMW-FL580L

External Flash

DMW-FL360L

External Flash

DMW-FL200L

External Flash

VW-LED1

LED Video Light

XLR Microphone Adaptor / Microphones

DMW-XLR1

XLR Microphone Adaptor

DMW-MS2

Microphone

DMW-VMS10

Microphone

Shoulder Strap

DMW-SSTG9

Shoulder Strap

See All Accessories

Learn More About The Product

LUMIX S5IIX Special Features

Learn About The Category

Full Frame

Get Support

for model DC-S5M2X

Visit the support page for this product

† Price shown is the suggested retail price applicable to ALL PROVINCES EXCEPT FOR QUEBEC.
Quebec consumers should refer to prices advertised by their local retailer or to prices advertised on the Panasonic eStore.
