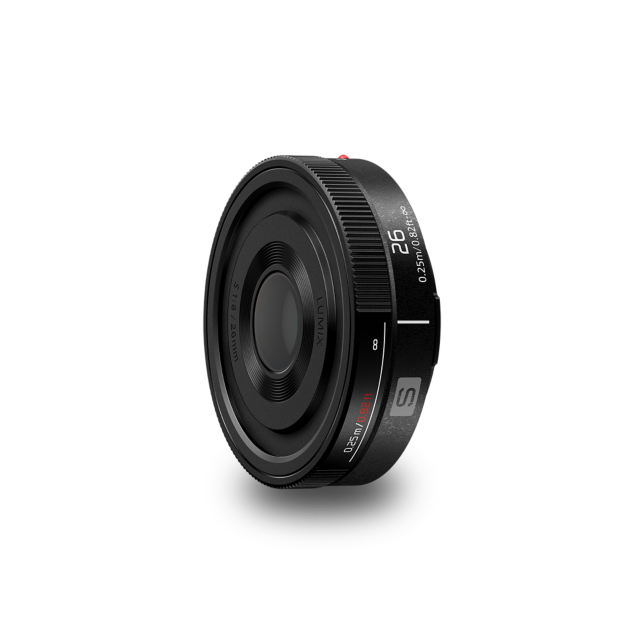

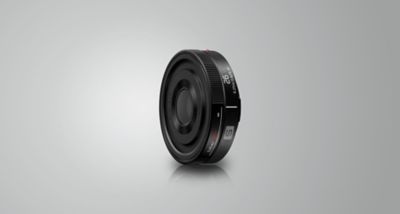

LUMIX S 26mm F8 (S-R26) L-Mount Lens
S-R26
LUMIX S 26mm F8
The fixed focal length pancake lens suitable for carry around. This portable thin and lightweight lens is ideal for snapshots with an overall length of 18.1mm and a weight of 58g (approximately).
Features
Designed to fit and to carry around
Perfect for capturing spontaneous moments. The thin and lightweight design allows the lens to be attached like a lens cap and quickly taken out for casual snaps.
･This lens is for manual focus only, fixed at F8. The camera's AF setting and some MF assist functions cannot be used.
Enjoy expressing yourself in your own way
It offers a wide variety of shooting styles, from moderate pan-focusing to taking advantage of natural bokeh effects. The unique specifications include a focal length of 26mm, an F8 fixed aperture, and manual focus only. This allows you to create your own unique expression through creative composition and exposure.
S-R26 lens construction
The optimized configuration has 5 elements in 5 groups, including 1 UED lens to minimize aberrations and ensure superb resolution.

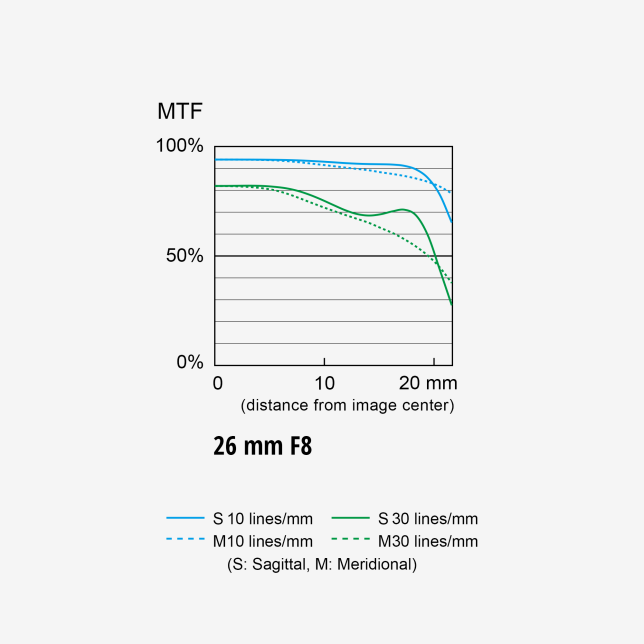

S-R26 MTF chart
Offering sharpness and resolution from the center to the edges of the frame, this is an ideal lens for the LUMIX full-frame system.
･For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the center of the corrected image.
Specs
Size and Weight
- Height
- 67.1mm
- Width
- 67.1mm
- Depth
- 18.1mm
- Weight
- 58g
Approximately. Weight excluding lens rear cap. Length from the tip of the lens to the base side of the lens mount.
L-Mount
Overall length of 18.1mm and weight of 58g (approximately)
26mm wide-angle lens
F8 fixed aperture and manual focus
Lens Construction
-
5 elements in 5 groups (1 UED lens) (excluding 1 protection element)
Mount
-
L-Mount
Optical Image Stabilizer
-
-
Focal Length
-
f=26mm
Aperture Type
-
(The aperture is fixed at F8)
Maximum Aperture
-
F8
Minimum Aperture
-
F8
Focus Type
-
Manual Focus
Closest Focusing Distance
-
0.25m/0.82ft
Maximum Magnification
-
0.14x
Diagonal Angle of View
-
80°
Dust and Splash Resistant
-
-
Recommended Operating Temperature
-
0℃ to 40℃ (32℉ to 104℉)
Filter Size
-
(Filters and lens caps cannot be attached with this lens)
Max. Diameter
-
φ67.1mm / 2.64inch
Overall Length
-
Approx. 18.1mm / 0.71inch (from the tip of the lens to the base side of the lens mount)
Weight
-
Approx. 58g / 0.13lb (excluding lens rear cap)
Standard Accessories
-
Lens rear cap
