S-R1635

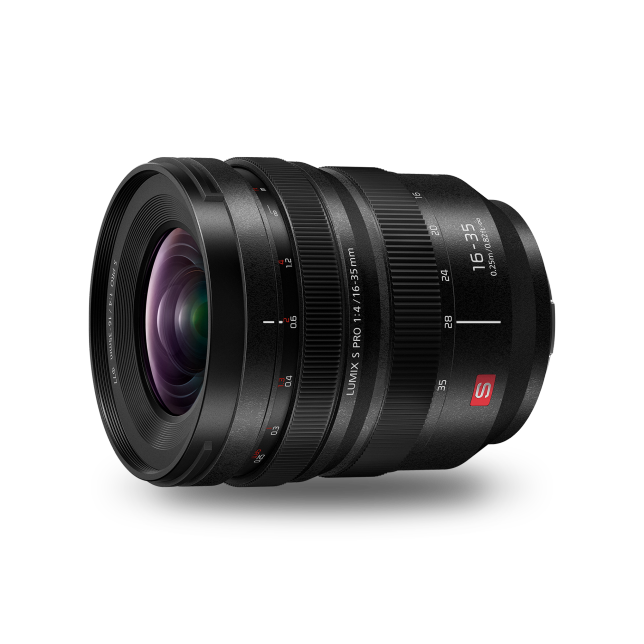

LUMIX S PRO 16-35 mm F4
L-Mount 16-35 mm Wide Zoom Lens
Features
LUMIX S PRO Lens
To satisfy even the most expressive photographer, exceptionally strict standards were applied to produce the LUMIX S PRO lens from start to finish – planning, design, development and production. Absolutely no compromise was made to total excellence in rendering, bokeh, or depth. The resulting high performance and superb quality pass every stringent evaluation standard used in a Leica lens.
* Leica is a registered trademark of Leica Microsystems IR GmbH.
Capturing Nature in Detail
This wide-angle zoom lens combines top-level resolution with a lightweight, compact design. Its resolution performance excels throughout the zoom range and in every pixel of the image. In addition, the focus actuator with double magnet linear motor helps deliver 480 fps AF control for high-speed, high-accuracy AF performance. To support outstanding video recording, the lens is designed to minimize focus breathing and make smooth exposure changes. In both still photography and video, the LUMIX S PRO 16-35 mm F4 delivers uncompromising quality and expressive power.

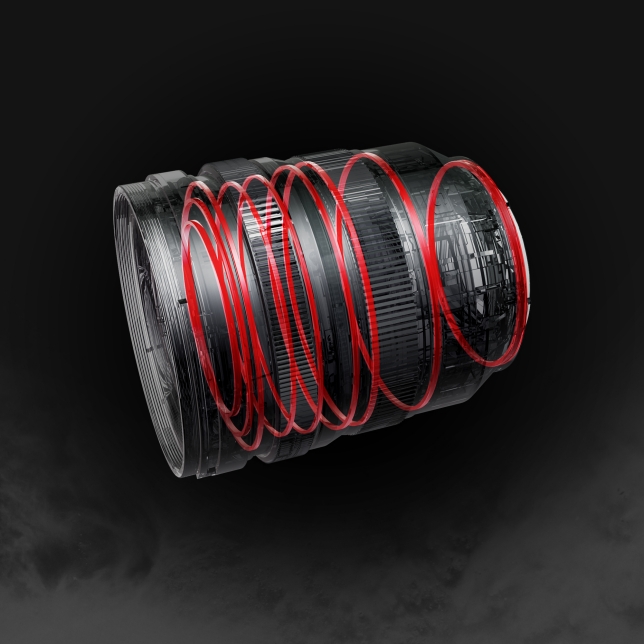

Dust, Splash and Freeze-resistant Design
The LUMIX S PRO 16-35 mm F4 is designed to keep shooting in the toughest conditions thanks to its dust- and splash-resistant construction and allowing you to shoot in temperatures as low as -10 °C.
* Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Ideal for Video Recording
The lens offers fast, accurate autofocus and smooth aperture changes, critical for the modern content creator, allowing you to record beautiful 4K video and stills without disturbing your subject.
S-R1635 Lens Construction
The optimized configuration has 12 elements in 9 groups, including 3 ASPH, 1 ED and 1 UHR lenses to minimize aberrations and ensure superb resolution.
S-R1635 MTF Chart
Offering outstanding sharpness and resolution throughout the entire zoom range, this is an ideal lens for the LUMIX full-frame system, and provides creative opportunities without compromise.
* For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the center of the corrected image.
Get Inspired
Specs
Size and Weight
- Height
- 85mm
- Width
- 85mm
- Depth
- 99.6mm
- Weight
- 500g
Approximately. Weight excluding lens cap, lens rear cap and lens hood. Length from the tip of the lens to the base side of the lens mount.
L-Mount- Dust / Splash / Freeze Resistant
16-35 mm
Focal Length
Outstanding resolution and attractive bokeh effects.
φ77 mm
Filter Size
Features
-
Lens Construction
-
12 elements in 9 groups (3 aspherical lenses, 1 ED lenses, 1 UHR lens)
-
-
Mount
-
L-Mount
-
-
Optical Image Stabilizer
-
No
-
-
Focal Length
-
f=16-35mm
-
-
Aperture Type
-
9 diaphragm blades / Circular aperture diaphragm
-
-
Maximum Aperture
-
F4
-
-
Minimum Aperture
-
F22
-
-
Closest Focusing Distance
-
0.25 m / 0.82ft
-
-
Maximum Magnification
-
Approx.0.23x
-
General
-
Diagonal Angle of View
-
107゜Wide) - 63゜(Tele)
-
-
Dust and Splash Resistant
-
Yes*
-
-
Recommended Operating Temperature
-
-10 °C to 40 °C (14 °F to 104 °F)
-
-
Filter Size
-
φ77 mm
-
-
Max. Diameter
-
φ85 mm / 3.34 in
-
-
Overall Length
-
99.6 mm / 3.92 in (from the tip of the lens to the base side of the lens mount)
-
-
Weight
-
Approx.500 g /17.63 oz (excluding lens cap, lens rear cap and lens hood)
-
-
Standard Accessories
-
Lens cap, Lens rear cap, Lens hood, Lens storage bag
-
NOTE
-
*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
