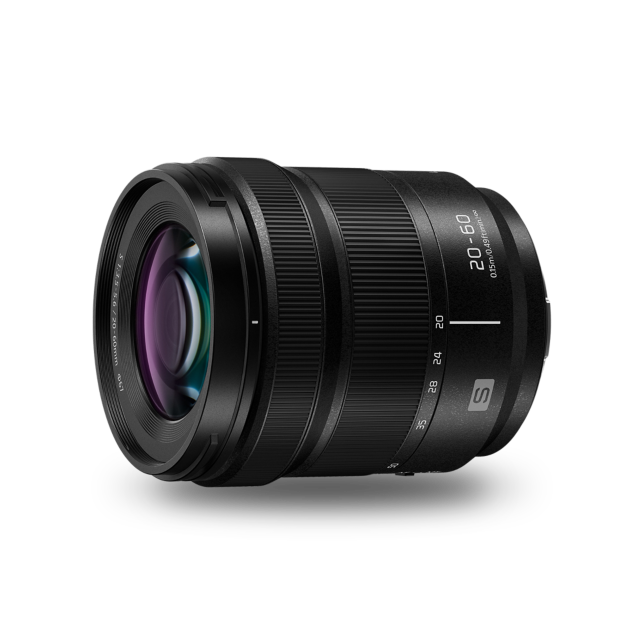

S-R2060
LUMIX S 20-60 mm F3.5-5.6
L-Mount 20-60 mm Standard Zoom Lens
Features
Convenience and Versatility Condensed Into One
This compact, lightweight standard zoom lens features an ultrawide 20 mm, useful for photos and videos. It enables approaches such as landscapes, indoors, and snaps.
Excellent Close-up Performance
Utilizes a maximum magnification of 0.43 x* and a closest focusing distance of 0.15 m**, for excellent close-ups of flowers to table settings.
* At 0.15 m with focal length 26 mm. ** Closest focusing distance 0.15 m (at 20-26 mm) / 0.4 m (at 60 mm).
Dust, Splash and Freeze-resistant Design
The LUMIX S 20-60 mm F3.5-5.6 is designed to keep shooting in the toughest conditions thanks to its dust- and splash-resistant construction and allowing you to shoot in temperatures as low as -10 °C.
* Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Ideal for Video Recording
The lens offers fast, accurate autofocus and smooth aperture changes, critical for the modern content creator, allowing you to record beautiful 4K video and stills without disturbing your subject.
S-R2060 Lens Construction
The optimized configuration has 11 elements in 9 groups, including 2 ASPH, 3 ED, and 1 UHR lenses to minimize aberrations and ensure superb resolution.
S-R2060 MTF Chart
Offering outstanding sharpness and resolution throughout the entire zoom range, this is an ideal lens for the LUMIX full-frame system, and provides creative opportunities without compromise.
* For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the center of the corrected image.
Get Inspired
Specs
Size and Weight
- Height
- 77.4mm
- Width
- 77.4mm
- Depth
- 87.2mm
- Weight
- 350g
Approximately. Weight excluding lens cap, lens rear cap and lens hood. Length from the tip of the lens to the base side of the lens mount.
L-Mount- Dust / Splash / Freeze Resistant
20-60 mm
Distance focale
Excellent close-up performance with a closest focusing distance of 0.15 m (at 20-26 mm) / 0.4 m (at 60 mm) and a maximum magnification of 0.43x (at 26 mm).mm
φ67 mm
Taille du filtre
Name
-
Lens Construction
-
11 elements in 9 groups (2 aspherical lenses, 3 ED lenses, 1 UHR lens)
-
-
Mount
-
L-Mount
-
-
Optical Image Stabilizer
-
No
-
-
Focal Length
-
f=20-60 mm
-
-
Aperture Type
-
9 diaphragm blades / Circular aperture diaphragm
-
-
Maximum Aperture
-
F3.5 (Wide) - F5.6 (Tele)
-
-
Minimum Aperture
-
F22
-
-
Closest Focusing Distance
-
0.15 m/0.49ft (at focal length 20-26 mm) / 0.4 m/1.31ft (at focal length 60 mm)
-
-
Maximum Magnification
-
0.43x
-
General
-
Diagonal Angle of View
-
94°(Wide) - 40°(Tele)
-
-
Dust and Splash Resistant
-
Yes*
-
-
Recommended Operating Temperature
-
-10˚C to 40˚C (14˚F to 104˚F)
-
-
Filter Size
-
φ67 mm
-
-
Max. Diameter
-
φ77.4 mm / 3.05 inch
-
-
Overall Length
-
Approx. 87.2 mm / 3.43 inch (from the tip of the lens to the base side of the lens mount)
-
-
Weight
-
Approx. 350 g / 12.35 oz (excluding lens cap, lens rear cap and lens hood)
-
-
Standard Accessories
-
Lens cap, Lens rear cap, Lens hood
-
NOTE
-
*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
