CU-XU9XKZ
24-Hour Quality Air

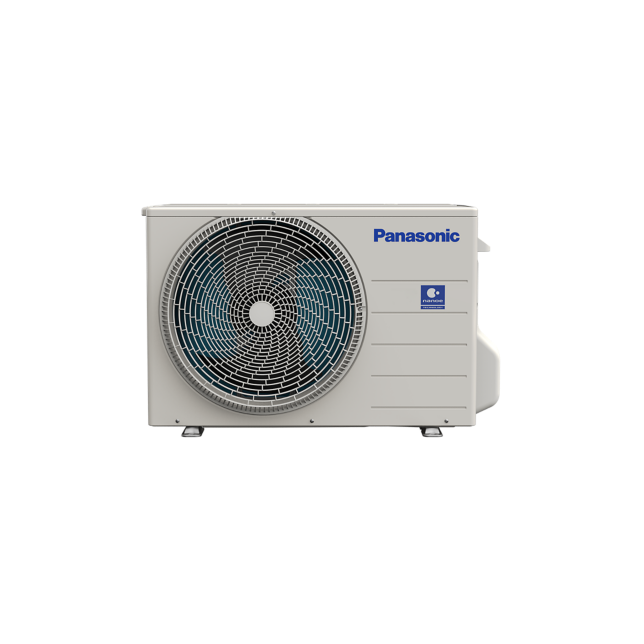

Panasonic outdoor unit CU-XU9XKZ delivers exceptional performance with its highest 5-tick energy efficiency rating, Inverter technology, and eco-friendly R32 refrigerant. Rigorously tested to withstand extreme conditions, it ensures durability and reliable operation. Connectable with indoor unit CS-XU9XKZW, which offers advanced air purification with nanoe™X technology and convenient remote control via the built-in Wi-Fi. Experience enhanced comfort with features like AEROWINGS, iAUTO-X, and Humidity Sensor, while optimising energy efficiency with ECO mode and A.I. control.
Features
5-Tick Energy Efficiency Rating
Panasonic CU-XU9XKZ has excellent energy rating*. This means less energy is used to cool the room, translating to reduced electricity bills. Stay cool and comfortable with exceptional energy saving performance.
*Tested in accordance with ISO 5151. Based on 27¢/kWh electricity cost, 8 hours daily usage and 16 hours standby energy consumption. Actual annual energy consumption and cost may vary. For more information and to compare models, visit www.nea.gov.sg MELS-PAN-AC210011
Energy Saving with Inverter
Panasonic’s Inverter technology uses a Panasonic-made microcomputer and compressor to precisely control temperature, which provides a balanced comfort level in the environment while saving energy.
Eco-friendly R32 Refrigerant
Panasonic air conditioners have been increasingly adopting the eco-friendly R32 refrigerant. An excellent heat transfer medium for energy efficiency and cost savings. It also has low global warming potential, making it friendlier to the environment.
nanoe™ X Air Protection All-Day Long
nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify your living space, providing a cleaner and comfortable space for you and your loved ones and making your home a safe heaven 24/7.
*Energy consumption may vary depending on models.
Effective in Removing 99% of Dust Particles
Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.
*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).
Convenient Centralised Control
With the built-in network adaptor and Panasonic Comfort Cloud App, connect up to 20 air conditioning units at 1 location (up to 10 locations), remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.
Humidity Sensor Optimises An Ideal Sleeping Environment
Panasonic’s new iAUTO-X with Humidity Sensor constantly monitors and adjusts relative humidity levels to below 60% for an optimal sleeping environment, so you can enjoy better sleep with comfortable cooling.
Up to 15 meters Long Air Distance with The Improved New AEROWINGS
The improved new AEROWINGS gives long air distance as far as 15 meters by incorporating two independently controlled flaps. The bigger cross flow fan (105mm) and bigger outer flap (103mm) cool the room in the shortest time possible, increasing the airflow by 10%* and air speed by 20%*. So, you can feel comfortable even if you are across the room.
*Compared to previous PREMIUM model (1.5HP).
Faster Cooling with iAUTO-X
iAUTO-X provides 25%* faster cooling through the use of Panasonic Thermal Enhancement Technology (P-TECh) which enables the compressor to achieve maximum frequency quickly from start-up, allowing you to relish the cooling comfort instantly, even on a scorching hot day. This feature can also be reactivated whenever the room is getting warmer due to the increase of occupants in it, keeping your guests comfortable at all times.
*Comparison of iAUTO-X Mode & normal COOL mode by using 1.5HP X-PREMIUM INVERTER Model.
Intelligently Balances Comfort and Energy Savings
ECO Mode with A.I Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.
Specs
Size and Weight
- Height
- 542mm
- Width
- 780mm
- Depth
- 289mm
- Weight
- 27kg
*Please check the minimum space requirements for installation.
Connectable with Indoor Unit CS-XU9XKZW only
5-tick energy efficiency rating
Environmentally friendly R32 refrigerant
Energy savings and precise temperature control with Inverter
Durable under harsh conditions
Compact design fits every building type
Basic Specification
-
Model
-
Indoor (50 Hz)
-
CS-XU9XKZW
-
-
Outdoor
-
CU-XU9XKZ
-
-
-
Cooling Capacity (min-max)
-
2.70 (0.98-3.60) kW
9,210 (3,340-12,300) Btu/h
-
-
COP (min-max)
-
5.19 (5.30-4.00) W/W
-
-
EER (min-max)
-
17.71 (18.05-13.67) Btu/hW
-
-
Weighted COP
-
5.8 W/W
-
-
Electrical Data
-
Current
-
220-240 V
-
-
Power Input (min-max)
-
2.6-2.4 A
-
-
-
Moisture Removal
-
520 (185-900) W
-
-
Air Circulation
-
Indoor
-
1.6 L/h
3.4 Pt/h
-
-
Outdoor
-
11.8 m³/min (415 ft³/min)
-
-
-
Noise Level (220V-2240V)
-
Indoor (H / L / Q-Lo)
-
32.0 m³/min (1,130 ft³/min)
-
-
Outdoor (H)
-
42/26/19 dB(A)
-
-
-
Dimensions (Indoor)
-
Height
-
47 dB(A)
-
-
Width
-
295 mm (11-5/8 inch)
-
-
Depth
-
870 mm (34-9/32 inch)
-
-
-
Dimensions (Outdoor)
-
Height
-
229 mm (9-1/32 inch)
-
-
Width
-
780 mm (30-23/32 inch)
-
-
Depth
-
289 mm (11-13/32 inch)
-
-
-
Net Weight
-
Indoor
-
10 kg (22 lb)
-
-
Outdoor
-
27 kg (60 lb)
-
-
-
Refrigerant Pipe Diameter
-
Liquid Side
-
ø 6.35 mm (1/4 inch)
-
-
Gas Side
-
ø 9.52 mm (3/8 inch)
-
-
-
Pipe Extension
-
Chargeless Pipe Length
-
7.5 m
-
-
Maximum Pipe Length
-
20 m
-
-
Maximum Elevation Length
-
15 m
-
-
Additional Refrigerant Gas*
-
10 g/m
-
-
-
Power Supply
-
Outdoor
-
Indoor Unit Comfort Features
-
iAUTO-X
-
Yes
-
-
Humidity Sensor
-
Yes
-
-
ECO Mode with A.I.
-
Yes
-
-
Inverter Control
-
Yes
-
-
Sleep Mode
-
Yes
-
-
Quiet Mode
-
Yes
-
-
Soft Dry Operation Mode
-
Yes
-
Indoor Unit Cleaner Air Features
-
nanoe™ X
-
Yes
-
-
nanoe-G
-
Yes
-
-
Odour-Removing Function
-
Yes
-
-
Removable, Washable Panel
-
Yes
-
Indoor Unit Convenience Features
-
24-Hour Dual ON & OFF Real Setting Timer
-
Yes
-
-
LCD Wireless Remote Control
-
Yes
-
-
Wireless LAN Remote Control For Internet Connection
-
Yes
-
-
Wired Remote Control
-
Yes (Built-In)
-
Reliability Features
-
Random Auto Restart
-
Yes (32 Restart Patterns)
-
-
Blue Fin Condenser
-
Yes
-
-
Long Piping (max.)
-
20 m
-
-
Top Panel Maintenance Access
-
Yes
-
-
Self-Diagnostic Function
-
Yes
-
Note
-
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
