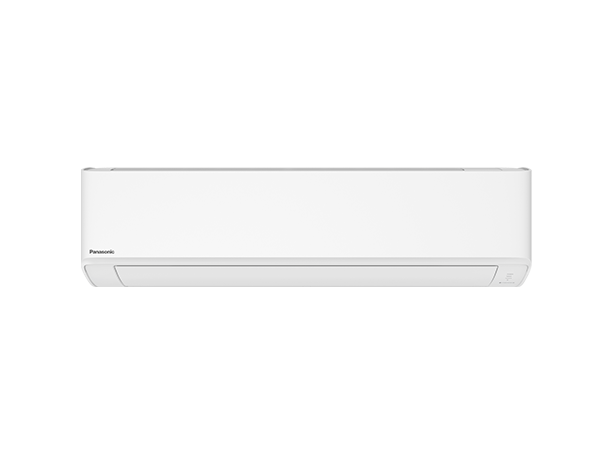

CS/CU-Z80XKR
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS/CU-Z80XKR
295 x 1,040 x 244mm
Features
Specs
Model
-
CS-Z80XKRW
Cooling Capacity (kW)
-
8.00 (2.30-9.00)
Heating Capacity (kW)
-
9.00 (2.20-11.60)
Air Flow (L/s)
-
367/377
Dehumid (L/h)
-
4.70
Running Current (A)
-
11.30/11.40
Power Input (kW)
-
2.44 (0.46-3.10)/2.46(0.44-3.60)
AEER/EER (W/W)
-
3.26/3.28
ACOP/COP (W/W)
-
3.64/3.66
Star Rating
-
3.5/5.0
Inside Sound Pressure Level (dB) (Hi/Lo/S-Lo)
-
51/38/35
Outside Sound Pressure Level (dB) (Hi/S-Lo)
-
55/50
Sound Power Level (db) (Hi/S-Lo)
-
69/64
Net Weight – Indoor (Outdoor)
-
13 (60)
Dimensions – Indoor (Outdoor) (h x w x d)
-
295 x 1040 x 244
Refrigerant Pipe Diameter – Liquid Side (mm/(in))
-
6.35 (1/4)
Refrigerant Pipe Diameter – Gas Side (mm/(in))
-
15.88 (5/8)
Pipe Extension Length Min-Max (m)
-
3~30
Pipe Length for Additional Gas (m)
-
10
Additional Gas Amount (g/m)
-
25
Power Supply
-
Outdoor
Operating Range (Outdoor) – Cooling (C)
-
-10 ~ +46
Operating Range (Outdoor) – Heating (C)
-
-15 ~ +24
Refrigerant Type
-
R32
