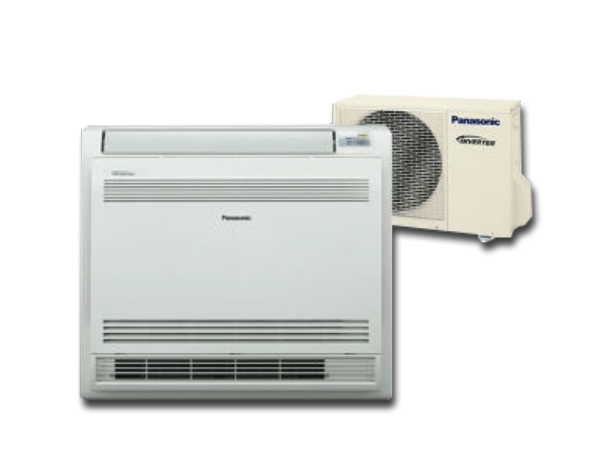

Photo of CS/CU-E9GFR

CS/CU-E9GFR

Cooling Energy Star Rating 3.5
kW rated 2.5
kW range (0.80 - 3.00)
Btu/h rated 8500
Btu/h range (2,700 - 10,200)
w/w 4.39
Running Current (A) 2.65
Power Input (kW) rated 0.57
Power Input (kW) range (0.175 - 0.78)
Heating Energy Star Rating 3
kW rated 3.6
kW range (0.80 - 5.00)
Btu/h rated 12300
Btu/h range (2,700 - 17,100)
w/w 4.16
Running Current (A) 3.9
Power Input (kW) rated 0.865
Power Input (kW) range (0.165 - 1.36)
Moisture Removal L/h 1.4
Air Circulation (indoor/Hi) Cooling L/s 155
Air Circulation (indoor/Hi) Heating L/s 160
Sound Pressure Level dB (A) (Cooling) Inside (Hi/Lo/S-Lo) 38/27/23
Outside (Hi/S-Lo) 46/-
Sound Pressure Level dB (A) (Heating) Inside (Hi/Lo/S-Lo) 38/27/23
Outside (Hi/S-Lo) 47/-
Sound Power Level dB (Cooling) Outside (Hi/S-Lo) 59/-
Sound Power Level dB (Heating) Outside (Hi/S-Lo) 60/-
Indoor Unit Height 600
Width 700
Depth 210
Net Weight 14
Outdoor Unit Height 540
Width 780
Depth 289
Net Weight 34
Refigerant Pipe Diameter Liquid Side 6.35
Gas Side 9.52
Pipe Length Min 3
Max 15
Add Gas Amount g/m 20
Outdoor Operation Range (deg C) Cooling 16 ~ 43
Heating -15 ~ 24
