GENERAL |
Type of Split System Air Conditioner |
Ducted |

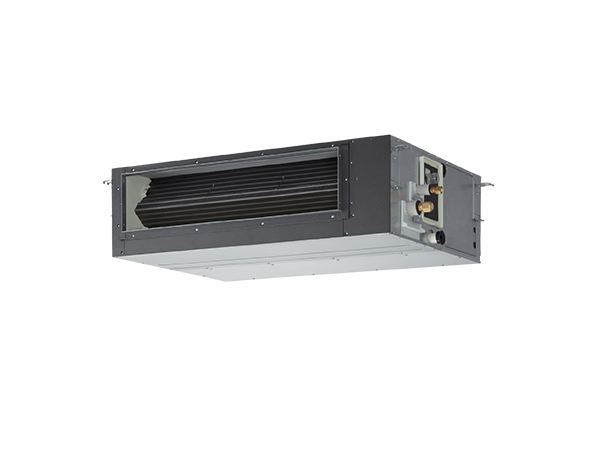

Indoor Unit |
S-60PF1R5A |
Outdoor Unit |
U-60PE1R5A |
Inverter Equipped |
Yes |
Function |
Cooling + Heating |
PERFORMANCE |
Electrical Voltage (V) |
240 |
Phase |
1 |
Cooling Capacity (kW) |
6.0 |
Cooling Capacity Range - Min ~ Max (kW) |
2.5 ~ 7.1 |
Heating Capacity (kW) |
7.0 |
Heating Capacity Range - Min ~ Max (kW) |
2.0 ~ 8.0 |
EER (w/w) |
3.90 |
COP (w/w) |
3.87 |
Total Power Input - Cooling / Heating (kW) |
1.54 / 1.81 |
Cooling Operating Temperature Range (˚C) |
-15 ~ 46 |
Heating Operating Temperature Range (˚C) |
-20 ~ 24 |
Compressor Type |
Inverter |
Refrigerant Type |
R410A |
SPECIFICATIONS |
No. of Indoor Units |
1 |
Indoor Unit Dimensions W x H x D (mm) |
1000 x 290 x 700 |
Outdoor Unit Dimensions W x H x D (mm) |
940 x 996 x 340 |
Net Weight - Indoor Unit (kg) |
33 |
Net Weight - Outdoor Unit (kg) |
68 |
Air Volume - Indoor - Cooling (L/s) |
350 |
Air Volume - Indoor - Heating (L/s) |
350 |
Air Volume - Outdoor - Cool / Heat (L/s) |
1000 / 1000 |
External Static Pressure (Pa) |
70 (10 ~ 150) |
Sound Pressure Level - Indoor - Cooling- H / M / L (dB(A)) |
35 / 32 / 26 |
Sound Pressure Level - Indoor - Heating- H / M / L (dB(A)) |
35 / 32 / 26 |
Sound Power Level - Indoor - Cooling - H / M / L (dB(A)) |
58 / 55 / 49 |
Sound Power Level - Indoor - Heating - H / M / L (dB(A)) |
58 / 55 / 49 |
Sound Pressure Level - Outdoor - Cooling / Heating (dB(A)) |
48 / 50 |
Sound Power Level - Outdoor - Cooling / Heating (dB(A)) |
65 / 67 |
Pipe Length - min. ~ max. (m) |
5 ~ 50 |
Elevation Difference - Outdoor Located Lower, Outdoor Located Higher (m) |
15 , 30 |
Maximum Chargeless Length (m) |
30 |
Piping Connections - Liquid / Gas (mm) |
Ø9.52 / Ø15.88 |
Warranty |
5 Years Manufacturer's Warranty |
FEATURES |
Drain Piping (mm) |
Up to 702 |
Remote Control |
Wired / Wireless Optional |
Programmable Timer |
Yes |
