Wireless Remote Receiver

Convenient with Handy Control

Six different receiver types available for each type of indoor unit.

Wireless Remote Receiver

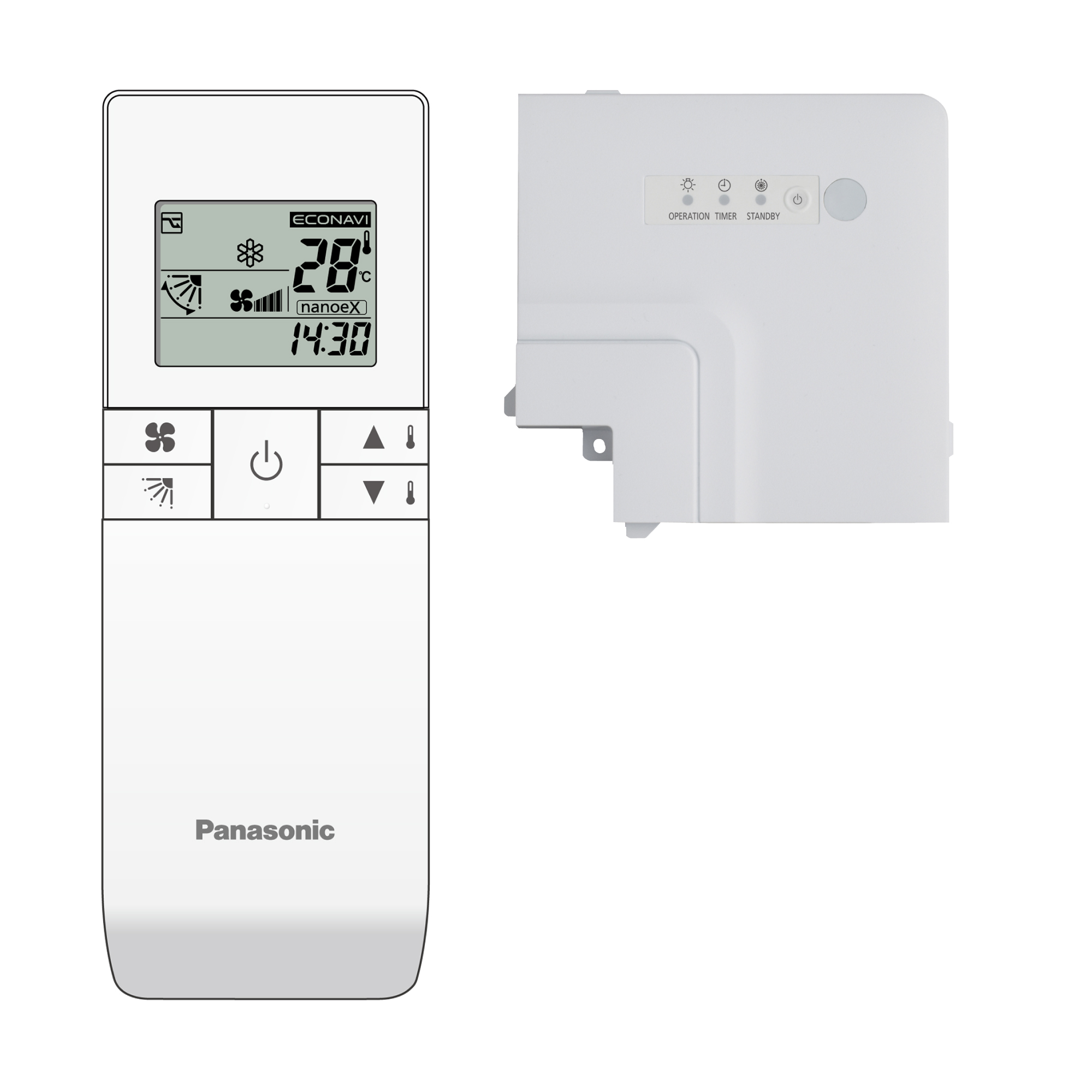

CZ-RWS3 and CZ-RWRU3

CZ-RWS3 and CZ-RWRY3

CZ-RWS3 and CZ-RWRL3

CZ-RWS3 and CZ-RWRD3

CZ-RWS3 and CZ-RWRT3

CZ-RWS3 and CZ-RWRC3

CZ-RWS3

For 4-Way Cassette: CZ-RWRU3

For Mini Cassette (Y3 Type): CZ-RWRY3

For 2-Way Cassette: CZ-RWRL3

For 1-Way Cassette: CZ-RWRD3

For Ceiling Mounted: CZ-RWRT3

For All indoor units: CZ-RWRC3

	CZ-RWRU3	CZ-RWRY3	CZ-RWRL3	CZ-RWRD3	CZ-RWRT3	CZ-RWRC3
Dimensions (mm)	H 29.7 × W 211.8 × D 211.8	H 125 × W 125 × D 29	Receiver: H 37 × W 70 × D 22 Operation panel: H 55 × W 120 × D 16	H 65 × W 130 × D 22	H 65 × W 141 × D 22.5	H 120 × W 70 × D 20
Weight	160g	100g	Receiver: 15g Operation panel: 75g	82g	85g	75g
Temperature / Humidity Range	0 to 40°C / 20 to 80% (No condensation) *Indoor use only.	0 to 40°C / 20 to 80% (No condensation) *Indoor use only.	0 to 40°C / 20% to 80% (No condensation) *Indoor use only.	0 to 40ºC / 20 to 80% (No condensation) *Indoor use only.	0 to 40ºC / 20 to 80% (No condensation) *Indoor use only.	0 to 40°C / 20 to 80% (No condensation) *Indoor use only.
Power Source	DC 16V (Supplied from indoor unit)	DC 16V (Supplied from indoor unit)	DC 16V (Supplied from indoor unit)	DC 16V (Supplied from indoor unit)	DC 16V (Supplied from indoor unit)	DC 16V (Supplied from indoor unit)
