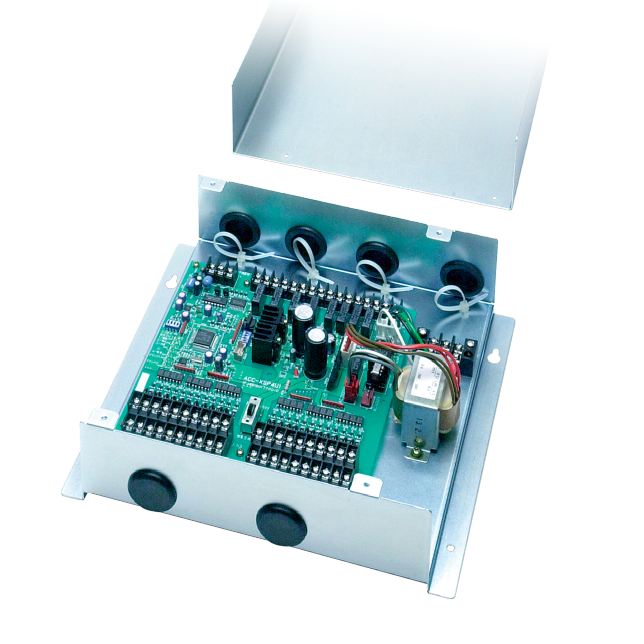

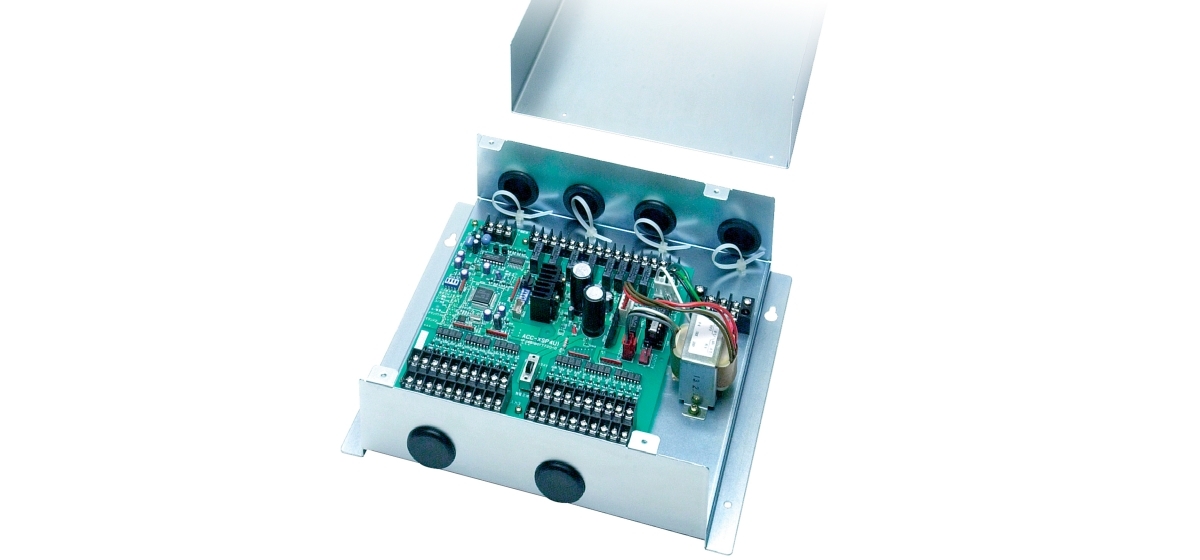

CZ-CAPDC2
Demand Control and Forced Stop for VRF Outdoor Units
Effortlessly control up to 4 outdoor units using the central control device. Perform mode changes, batch operations, and batch stops, all essential for demand control purposes.
CZ-CAPDC2
Features

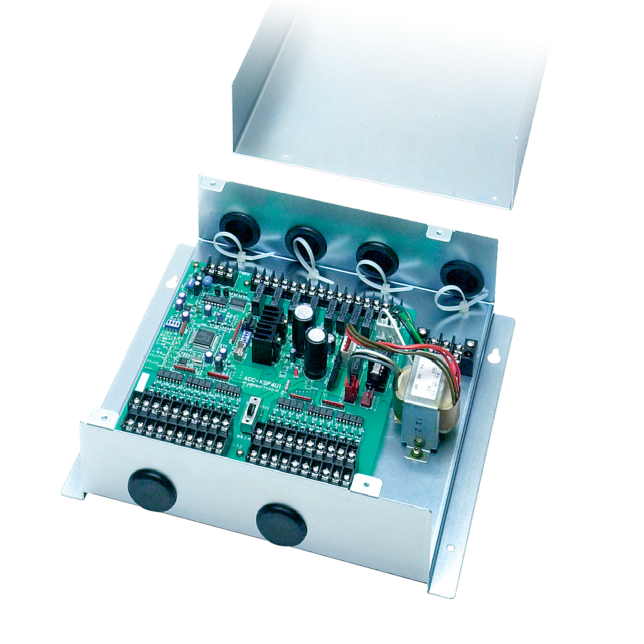

Seri-Para I/O Unit for Outdoor Unit
Input: Batch operation/batch stop (non-voltage contact/24V DC, pulse signal). Cooling/heating (non-voltage contact/static signal). Demand 1/2 (non-voltage contact/static signal) (local stop by switching). Output: Operation output (non-voltage contact). Alarm output (non-voltage contact).

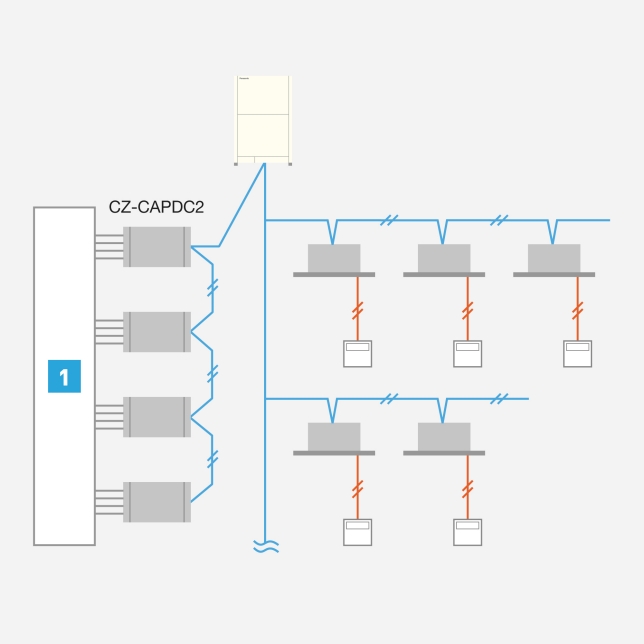

1) Central Control Device
* Wiring length: Indoor/outdoor operation lines: Total length 1km. Digital signal: 100m or shorter.
* Wiring length: Indoor/outdoor operation lines: Total length 1km. Digital signal: 100m or shorter.
Specs
CZ-CAPDC2
Control up to 4 outdoor units.
Mode change and batch ON/OFF are possible from the central control device.
Required for demand control.
