CZ-CAPC3

Interface Adapter for ERV or 3rd Party Control

Control and status monitoring of individual indoor units, as well as external electrical devices up to 250V AC, 10A, is achievable through contact signals.
Zoom In
Zoom Out
Close

Features

Interface Adaptor

Control and status monitoring is possible for each individual indoor unit (or any external electrical device up to 250 V AC, 10 A) by contact signal.
1) ON/OFF controller, CZ-ANC3
Interface Adaptor

Specs

CZ-CAPC3

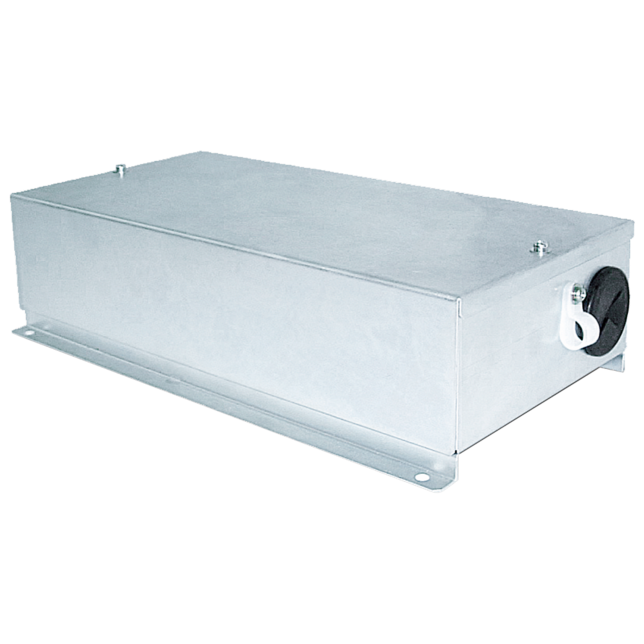

Photo of CZ-CAPC3

The contact signal controls and monitors the status of individual indoor units.

The contact signal enables the control and status monitoring for external electrical devices up to 250 V AC, 10A.

CZ-CAPC3
Dimensions (mm) H 140 × W 280 × D 60
Weight 950g
Temperature / Humidity Range 0 to 40°C / 20 to 80% (Indoor use only)
Rated Voltage / Rated Frequency Single phase 100 – 240V / 50 – 60Hz
Power Consumption Max. 3.0W
