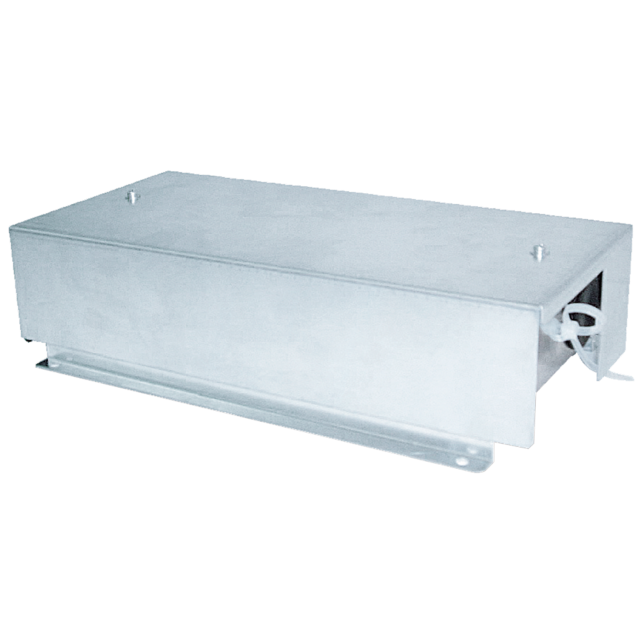

Mini Seri-Para I/O Unit 0 -10 V
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CZ-CAPBC2
Seri-Para I/O Unit for Each Indoor Unit
Each individual indoor unit, or any external electrical device up to 250V AC, 10 A, can be controlled and monitored for status via contact signal.
CZ-CAPBC2
Features
Seri-Para I/O Unit for Each Indoor Unit
Control and status-monitoring for each individual indoor unit (1 group). Digitally control ON/OFF and changes to airflow speed and operation modes. The central controller can adjust temperature settings and measure indoor inlet temperatures. Analog input for temperature setting is 0 to 10 V, or 0 to 140 Ohm.
• Power supplied from the T10 terminal of the indoor units
1) Central control panel 2) Remote station
1) Central control panel 2) Remote station
Specs
CZ-CAPBC2
Control and status-monitoring of individual indoor units (1 group).
In addition to ON/OFF, air speed and operation mode can be controlled digitally.
Central monitoring detects temperature settings and intake temperatures.
Analog input for temperature setting is 0 to 10 V, or 0 to 140 Ohm.
Power is supplied from the T10 terminal of the indoor units.
Can be used with a separate power supply (in the case of detection of intake temperatures).
