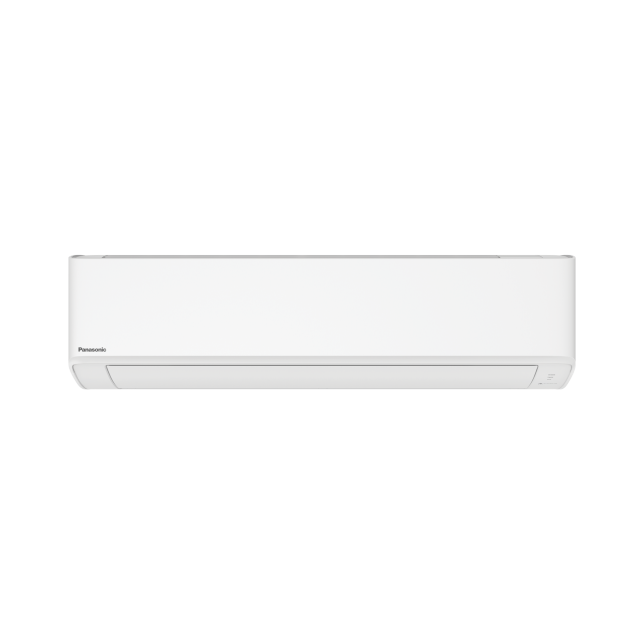

CS-RZ80YKR

Comfort Cooling/Heating All Year Round

Panasonic Developer RZ Series CS-RZ80YKR air conditioner features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.

CS-RZ80YKR

SHOP NOW

Features

Stay comfortable all year round

Panasonic Developer RZ Series CS-RZ80YKR air conditioner offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone's comfortable all year round.

Filters Bacteria and Viruses for Clean, Healthy Air

The filter combines anti-bacterial¹, anti-virus², anti-allergen³ and anti-mould⁴ protection, ensuring that clean air is delivered to the room. It effectively deactivates up to 99% filter-captured bacteria, allergens and viruses, while also inhibiting mould growth.

¹ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 100424591 and 100424592 •Bacteria: Staphylococcus aureus NBRC 12732 and Escherichia coli NBRC 3972
² Test Organisation: Osaka Prefectural Institute of Public Health •Test Report No: 313360397 •Virus: Influenza A (H3N2) Hong Kong
³ Test Organisation: Shinshu University •Allergen: Cedar Pollen Allergen Cry j1
⁴ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 0003663 •Mould: Aspergillus niger ATCC 6275

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

Advanced Smart Control with Voice Assistant Compatibility

Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

LEARN MORE

*Comparison of ECO mode & normal mode by using 3.5kW Inverter Model.

Comfort Cooling Environment for Your Needs

Faster and Further Airflow with AEROWINGS

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.

LEARN MORE

Instant Powerful Cooling with a Push of a Button

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night

A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Superior Quality & Reliability

Panasonic is uncompromising in product quality, durability, reliability and safety. We lead the market in many of the most extreme climates in the world for a good reason. Our products are engineered to provide uninterrupted cooling or heating when you need it most.

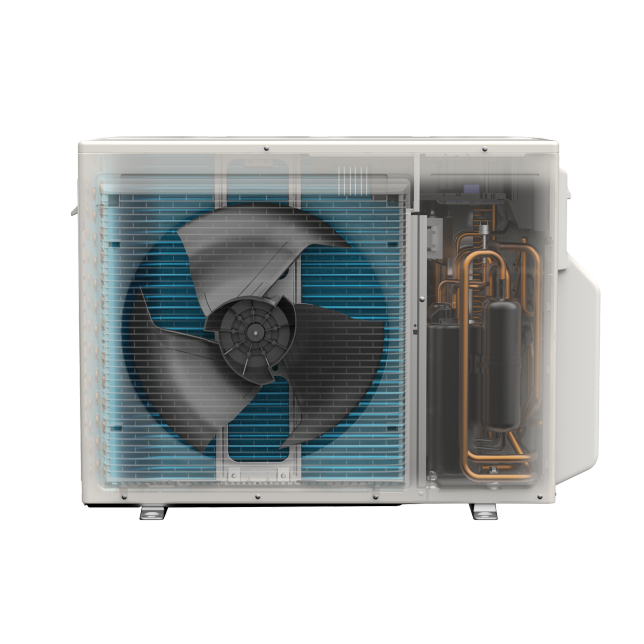

Robust Design and Long Term Endurance

1 Corrosion-Resistant Blue Fin Condenser

All Panasonic outdoor units feature Blue Fin coating, which protects the condenser from corrosion caused by air, water, and other corrosive elements.

2 Better Heat Transfer with Copper Tube Condenser

Panasonic outdoor units feature copper tube condensers, offering higher cooling capacity for efficient heat transfer.

3 Corrosion-Resistant Outdoor Coating

Durable outdoor unit with a multi-layered, corrosion-resistant coating shrugs off rain and salty water for long-lasting performance.

4 Water-Resistant PCB

Contact sections on the PCB feature a special resin coating, protecting them from damage caused by water droplets.

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller

The optional wired remote controller provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Cooling Capacity	2.5 kW	3.5 kW	4.2 kW	5.0 kW	6.0 kW	7.1 kW	8.0 kW	9.5 kW
Cooling Capacity	8,530 Btu/h	11,900 Btu/h	14,300 Btu/h	17,100 Btu/h	20,500 Btu/h	24,200 Btu/h	27,300 Btu/h	32,400 Btu/h
Heating Capacity	3.0 kW	4.0 kW	5.0 kW	6.0 kW	6.5 kW	8.0 kW	9.0 kW	10.3 kW
Heating Capacity	10,200 Btu/h	13,600 Btu/h	17,100 Btu/h	20,500 Btu/h	22,200 Btu/h	27,300 Btu/h	30,700 Btu/h	35,100 Btu/h
Indoor Unit	CS-RZ25AKRW	CS-RZ35AKRW	CS-RZ42AKRW	CS-RZ50AKRW	CS-RZ60AKRW	CS-RZ71AKRW	CS-RZ80YKR	CS-RZ95AKR
Outdoor Unit	CU-RZ25AKR	CU-RZ35AKR	CU-RZ42AKR	CU-RZ50AKR	CU-RZ60AKR	CU-RZ71AKR	CU-RZ80YKR	CU-RZ95AKR
Detailed Page	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE	SEE MORE

Specs

CS-RZ80YKR

ANTI-BACTERIAL FILTER
AEROWINGS
POWERFUL Mode
ECO Mode with A.I. Control
Inverter
R32 Refrigerant
Quiet Mode
Sleep Mode
DRED ready

Anti-bacterial filter delivers quality indoor air to your spaces

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

AEROWINGS concentrates cool air for further and faster airflow across the room

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

ECO Mode with A.I. control intelligently balances energy savings and comfort

Energy efficiency with Inverter technology and R32 refrigerant

	CS-RZ80YKR
Indoor Unit	CS-RZ80YKR
Outdoor Unit	CU-RZ80YKR
Cooling Capacity (min-max) (kW)	8.00 (2.30-9.00) kW
Heating Capacity (min-max) (kW)	9.00 (2.20-11.60) kW
Cooling Capacity (min-max) (Btu/h)	27,300 (7,840-30,700) Btu/h
Heating Capacity (min-max) (Btu/h)	30,700 (7,500-39,600) Btu/h
Cooling Indoor Air Flow (L/s)	367 L/s
Heating Indoor Air Flow (L/s)	377 L/s
Dehumid (L/h)	4.70 L/h
Cooling Running Current (A)	10.10 A
Heating Running Current (A)	9.80 A
Max Current (A)	15.00 A
Cooling Power Input (min-max) (kW)	2.39 (0.46-3.03) kW
Heating Power Input (min-max) (kW)	2.34 (0.43-3.42) kW
Cooling AEER/EER	3.34 W/W / 3.35 W/W
Heating ACOP/COP	3.83 W/W / 3.85 W/W
Star Rating Residential/Commercial - Cooling (Hot Climate)	3.5/4.5 TCSPF
Star Rating Residential/Commercial - Cooling (Average Climate)	3.5/5.0 TCSPF
Star Rating Residential/Commercial - Cooling (Cold Climate)	3.5/6.0 TCSPF
Star Rating Residential/Commercial - Heating (Hot Climate)	3.5/3.5 HSPF
Star Rating Residential/Commercial - Heating (Average Climate)	2.5/3.0 HSPF
Star Rating Residential/Commercial - Heating (Cold Climate)	2.0/2.5 HSPF
Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo)	51/38/35 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.
Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo)	50/38/35 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.
Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo)	67/54/51 dB(A)
Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo)	66/54/51 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	295 mm x 1,040 mm x 244 mm
Indoor Unit Net Weight	13 kg
Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo)	55/50 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.
Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo)	55/50 dB(A) *Sound pressure level specification is measured accroding to JIS C9612.
Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo)	69/64 dB(A)
Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo)	69/64 dB(A)
Outdoor Unit Dimensions (H x W x D)	795 mm x 875 mm x 320 mm
Outdoor Unit Net Weight	51 kg
Refrigerant Type	R32
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 15.88 mm (5/8 inch)
Pipe Extension Length (min-max)	3 m ~ 30 m
Maximum Elevation Length	20 m
Pipe Length for Additional Refrigerant Gas	10 m
*Pipe Extension (Additional Refrigerant Gas)**	25 g/m
Power Supply	Outdoor
Outdoor Unit Operating Range (Cooling)	-10°C ~ +46°C
Outdoor Unit Operating Range (Heating)	-15°C ~ +24°C
POWERFUL Mode	Yes
ECO Mode with A.I.	Yes
Inverter Control	Yes
Sleep Mode	Yes
Quiet Mode	Yes
Fan Mode	Yes
Soft Dry Operation Mode	Yes
Hot Start Control	Yes
Auto Changeover (Inverter)	Yes
Personal Airflow Creation	Yes
Manual Horizontal Airflow Direction Control	No
Airflow Direction Control (Up & Down)	No
Anti-Bacterial Filter	Yes
Odour Removing Function	Yes
Removable Washable Panel	Yes
24-Hour Dual ON & OFF Real Setting Timer	Yes
Demand Response Enabling Device (DRED)	Yes
LCD Wireless Remote Control	Yes
Wi-Fi	Optional (Network adaptor required)
Wired Remote Control	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (max.)	30 m
Top Panel Maintenance Access	Yes
Self-Diagnostic Function	Yes
Note	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
