CS-RZ80YKR
Comfort Cooling/Heating All Year Round
Panasonic Developer RZ Series (AKR) air conditioner features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.
Features
Stay comfortable all year round
Panasonic Developer RZ Series CS-RZ60AKRW air conditioner offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone's comfortable all year round.
Filters Bacteria and Viruses for Clean, Healthy Air
The filter combines anti-bacterial¹, anti-virus², anti-allergen³ and anti-mould⁴ protection, ensuring that clean air is delivered to the room. It effectively deactivates up to 99% filter-captured bacteria, allergens and viruses, while also inhibiting mould growth.
¹ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 100424591 and 100424592 •Bacteria: Staphylococcus aureus NBRC 12732 and Escherichia coli NBRC 3972
² Test Organisation: Osaka Prefectural Institute of Public Health •Test Report No: 313360397 •Virus: Influenza A (H3N2) Hong Kong
³ Test Organisation: Shinshu University •Allergen: Cedar Pollen Allergen Cry j1
⁴ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 0003663 •Mould: Aspergillus niger ATCC 6275
² Test Organisation: Osaka Prefectural Institute of Public Health •Test Report No: 313360397 •Virus: Influenza A (H3N2) Hong Kong
³ Test Organisation: Shinshu University •Allergen: Cedar Pollen Allergen Cry j1
⁴ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 0003663 •Mould: Aspergillus niger ATCC 6275
Connect & Control Your Air Conditioners Anywhere, Anytime
Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.
LEARN MORE
Advanced Smart Control with Voice Assistant Compatibility
Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.
Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
LEARN MORE
*Comparison of ECO mode & normal mode by using 3.5kW Inverter Model. Not applicable for multi-split systems.
Comfort Cooling Environment for Your Needs

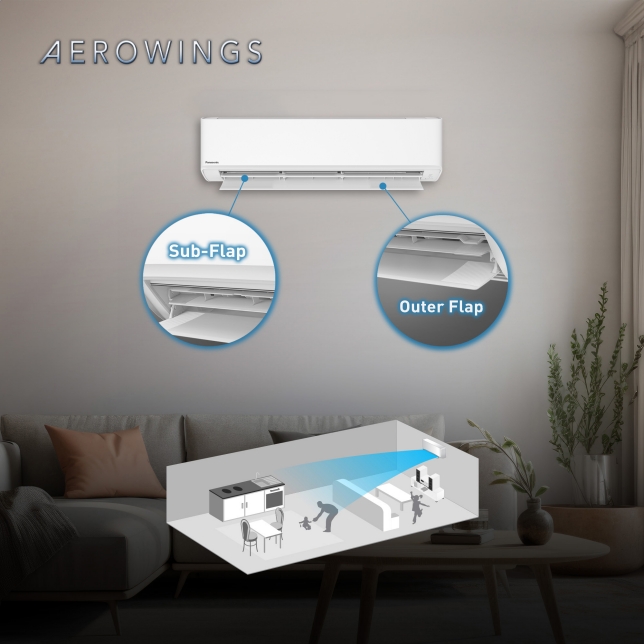

Faster and Further Airflow with AEROWINGS
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
Instant Powerful Cooling with a Push of a Button
POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.
Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.
Superior Quality & Reliability
Panasonic is uncompromising in product quality, durability, reliability and safety. We lead the market in many of the most extreme climates in the world for a good reason. Our products are engineered to provide uninterrupted cooling or heating when you need it most.
Robust Design and Long Term Endurance
1 Corrosion-Resistant Blue Fin Condenser
All Panasonic outdoor units feature Blue Fin coating, which protects the condenser from corrosion caused by air, water, and other corrosive elements.
2 Better Heat Transfer with Copper Tube Condenser
Panasonic outdoor units feature copper tube condensers, offering higher cooling capacity for efficient heat transfer.
3 Corrosion-Resistant Outdoor Coating
Durable outdoor unit with a multi-layered, corrosion-resistant coating shrugs off rain and salty water for long-lasting performance.
4 Water-Resistant PCB
Contact sections on the PCB feature a special resin coating, protecting them from damage caused by water droplets.
Specs
Size and Weight
- Height
- 295mm
- Width
- 1,040mm
- Depth
- 244mm
- Weight
- 13kg
*Please check the minimum space requirements for installation.
ANTI-BACTERIAL FILTER- AEROWINGS
- POWERFUL Mode
- ECO Mode with A.I. Control
- Inverter
- R32 Refrigerant
- Quiet Mode
- Sleep Mode
- DRED ready
Anti-bacterial filter delivers quality indoor air to your spaces
Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)
AEROWINGS concentrates cool air for further and faster airflow across the room
POWERFUL Mode lets you enjoy instant powerful cooling during start-up
ECO Mode with A.I. control intelligently balances energy savings and comfort
Energy efficiency with Inverter technology and R32 refrigerant
Model
-
Indoor (230V / 1 Phase / 50 Hz)
-
CS-RZ80YKR
-
-
Outdoor
-
CU-RZ80YKR
-
Cooling Basic Specification
-
Cooling Capacity (min-max)
-
8.00 kW (2.30 kW - 9.00 kW)
27,300 Btu/h (7,840 Btu/h - 30,700 Btu/h)
-
-
Air Flow (Indoor)
-
367 L/s
-
-
Dehumid
-
4.7 L/h
-
-
Electrical Data
-
Running Current
-
10.1 A
-
-
Maximum Current
-
15.0 A
-
-
Power Input (min-max)
-
2.39 kW (0.46 kW - 3.03 kW)
-
-
-
AEER
-
3.34 W/W
-
-
EER
-
3.35 W/W
-
-
Star Rating Residential
-
Hot Climate
-
3.5 TCSPF
-
-
Average Climate
-
3.5 TCSPF
-
-
Cold Climate
-
3.5 TCSPF
-
-
-
Star Rating Commercial
-
Hot Climate
-
4.5 TCSPF
-
-
Average Climate
-
5.0 TCSPF
-
-
Cold Climate
-
6.0 TCSPF
-
-
-
Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)
-
High
-
51 dB (A)
-
-
Low
-
38 dB (A)
-
-
Q-Low
-
35 dB (A)
-
-
-
Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)
-
High
-
55 dB (A)
-
-
Q-Low
-
50 dB (A)
-
-
-
Indoor Unit Sound Power Noise Level
-
High
-
67 dB (A)
-
-
Low
-
54 dB (A)
-
-
Q-Low
-
51 dB (A)
-
-
-
Outdoor Unit Sound Power Noise Level
-
High
-
69 dB (A)
-
-
Q-Low
-
64 dB (A)
-
-
-
Outdoor Unit Operating Range
-
-10 °C ~ +46 °C
-
Heating Basic Specification
-
Heating Capacity (min-max)
-
9.00 kW (2.20 kW - 11.60 kW)
30,700 Btu/h (7,500 Btu/h - 39,600 Btu/h)
-
-
Air Flow (Indoor)
-
377 L/s
-
-
Electrical Data
-
Running Current
-
9.8 A
-
-
Power Input (min-max)
-
2.34 kW (0.43 kW - 3.42 kW)
-
-
-
ACOP
-
3.83 W/W
-
-
COP
-
3.85 W/W
-
-
Star Rating Residential
-
Hot Climate
-
3.5 HSPF
-
-
Average Climate
-
2.5 HSPF
-
-
Cold Climate
-
2.0 HSPF
-
-
-
Star Rating Commercial
-
Hot Climate
-
3.5 HSPF
-
-
Average Climate
-
3.0 HSPF
-
-
Cold Climate
-
2.5 HSPF
-
-
-
Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)
-
High
-
50 dB (A)
-
-
Low
-
38 dB (A)
-
-
Q-Low
-
35 dB (A)
-
-
-
Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)
-
High
-
55 dB (A)
-
-
Q-Low
-
50 dB (A)
-
-
-
Indoor Unit Sound Power Noise Level
-
High
-
66 dB (A)
-
-
Low
-
54 dB (A)
-
-
Q-Low
-
51 dB (A)
-
-
-
Outdoor Unit Sound Power Noise Level
-
High
-
69 dB (A)
-
-
Q-Low
-
64 dB (A)
-
-
-
Outdoor Unit Operating Range
-
-15 °C ~ +24 °C
-
Other Specification
-
Net Weight
-
Indoor
-
13 kg
-
-
Outdoor
-
51 kg
-
-
-
Indoor Unit Dimensions
-
Height
-
295 mm
-
-
Width
-
1,040 mm
-
-
Depth
-
244 mm
-
-
-
Outdoor Unit Dimensions
-
Height
-
795 mm
-
-
Width
-
875 mm
-
-
Depth
-
320 mm
-
-
-
Refrigerant Pipe Diameter
-
Liquid Side
-
ø 6.35 mm (1/4 inch)
-
-
Gas Side
-
ø 15.88 mm (5/8 inch)
-
-
-
Piping
-
Pipe Extension Length (min-max)
-
3 m ~ 30 m
-
-
Maximum Elevation Length
-
20 m
-
-
Pipe Length For Additional Refrigerant Gas
-
10 m
-
-
Additional Refrigerant Gas
-
25 g/m
-
-
-
Power Supply
-
Outdoor
-
-
Refrigerant Type
-
R32
-
Comfort Features
-
Powerful Mode
-
Yes
-
-
ECO Mode With A.I.
-
Yes
-
-
Inverter Control
-
Yes
-
-
Sleep Mode
-
Yes
-
-
Quiet Mode
-
Yes
-
-
Fan Mode
-
Yes
-
-
Soft Dry Operation Mode
-
Yes
-
-
Hot Start Control
-
Yes
-
-
Auto Changeover (Inverter)
-
Yes
-
-
Personal Airflow Creation
-
Yes
-
Cleaner Air Features
-
Anti-Bacterial Filter
-
Yes
-
-
Odour Removing Function
-
Yes
-
-
Removable Washable Panel
-
Yes
-
Convenience Features
-
24-Hour Dual ON & OFF Real Setting Timer
-
Yes
-
-
Demand Response Enabling Device (DRED)
-
Yes
-
-
LCD Wireless Remote Control
-
Yes
-
-
Wi-Fi
-
Optional (Network adaptor required)
-
-
Wired Remote Control
-
Optional
-
Reliability Features
-
Random Auto Restart
-
Yes (32 Restart Patterns)
-
-
Blue Fin Condenser
-
Yes
-
-
Long Piping (max.)
-
30 m
-
-
Top Panel Maintenance Access
-
Yes
-
-
Self-Diagnostic Function
-
Yes
-
Note
-
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
