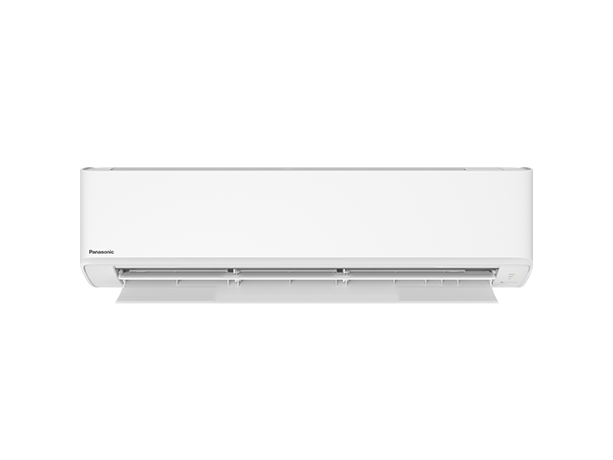

CS/CU-RZ71XKR
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS/CU-RZ71XKR
295 x 1040 x 244mm
Specs
Model
-
CS-RZ71XKRW
Cooling Capacity (kW)
-
7.10 (1.70-8.50)
Heating Capacity (kW)
-
8.00 (1.70-10.60)
Air Flow (L/s)
-
352/367
Dehumid (L/h)
-
4.10
Running Current (A)
-
8.80/8.90
Power Input (kW)
-
2.06 (0.45-2.90)/2.09 (0.40-3.30)
AEER/EER (W/W)
-
3.43/3.45
ACOP/COP (W/W)
-
3.81/3.83
Star Rating
-
3.5/5.0
Inside Sound Pressure Level (dB) (Hi/Lo/S-Lo)
-
49/37/34
Outside Sound Pressure Level (dB) (Hi/S-Lo)
-
54/49
Sound Power Level (db) (Hi/S-Lo)
-
68/63
Net Weight – Indoor (Outdoor)
-
13 (45)
Dimensions – Indoor (Outdoor) (h x w x d)
-
295 x 1040 x 244mm/695 x 875 x 320mm
Refrigerant Pipe Diameter – Liquid Side (mm/(in))
-
6.35 (1/4)
Refrigerant Pipe Diameter – Gas Side (mm/(in))
-
15.88 (5/8)
Pipe Extension Length Min-Max (m)
-
3~30
Pipe Length for Additional Gas (m)
-
10
Additional Gas Amount (g/m)
-
25
Power Supply
-
Outdoor
Operating Range (Outdoor) – Cooling (C)
-
-10 ~ +46
Operating Range (Outdoor) – Heating (C)
-
-15 ~ +24
Refrigerant Type
-
R32
