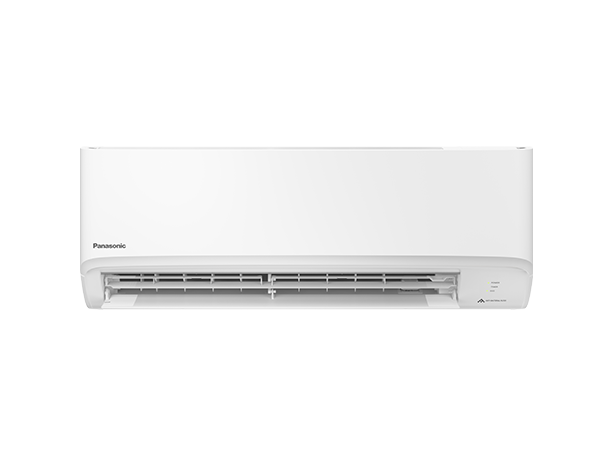

CS/CU-RZ42XKR
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS/CU-RZ42XKR
290 x 779 x 209mm
Specs
Model
-
CS-RZ42XKRW
Cooling Capacity (kW)
-
4.20 (1.15-5.10)
Heating Capacity (kW)
-
5.10 (0.90-6.80)
Air Flow (L/s)
-
193/202
Dehumid (L/h)
-
2.4
Running Current (A)
-
5.00/5.70
Power Input (kW)
-
1.18 (0.24-1.64)/1.36 (0.20-2.04)
AEER/EER (W/W)
-
3.53/3.56
ACOP/COP (W/W)
-
3.73/3.75
Star Rating
-
3.5/5.0
Inside Sound Pressure Level (dB) (Hi/Lo/S-Lo)
-
44/31/28
Outside Sound Pressure Level (dB) (Hi/S-Lo)
-
49/44
Sound Power Level (db) (Hi/S-Lo)
-
64/59
Net Weight – Indoor (Outdoor)
-
8 (31)
Dimensions – Indoor (Outdoor) (h x w x d)
-
290 x 779 x 209mm/619 x 824 x 299mm
Refrigerant Pipe Diameter – Liquid Side (mm/(in))
-
6.35 (1/4)
Refrigerant Pipe Diameter – Gas Side (mm/(in))
-
12.70 (1/2)
Pipe Extension Length Min-Max (m)
-
3~20
Pipe Length for Additional Gas (m)
-
7.5
Additional Gas Amount (g/m)
-
10
Power Supply
-
Outdoor
Operating Range (Outdoor) – Cooling (C)
-
-10 ~ +46
Operating Range (Outdoor) – Heating (C)
-
-15 ~ +24
Refrigerant Type
-
R32
