CS-Z50AKRW

See product page

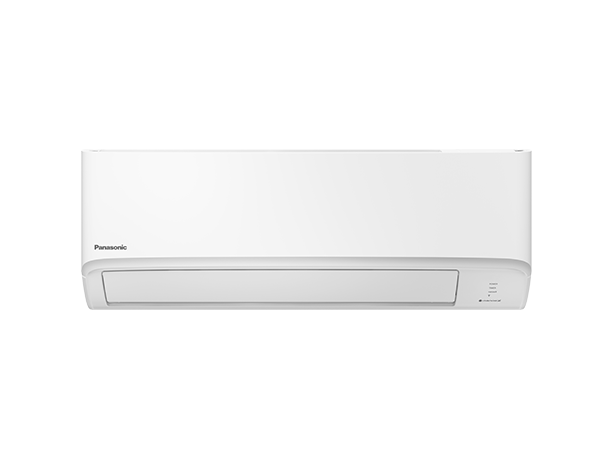

Photo of CS-Z50AKRW

Model

  • Indoor (230V / 1 Phase / 50 Hz)

    • CS-Z50AKRW

  • Outdoor

    • CU-Z50AKR

Cooling Basic Specification

  • Cooling Capacity (min-max)

    • 5.00 kW (1.15 kW - 6.10 kW)
      17,100 Btu/h (3,920 Btu/h - 20,800 Btu/h)

  • Air Flow (Indoor)

    • 208 L/s

  • Dehumid

    • 2.8 L/h

  • Electrical Data

    • Running Current

      • 6.5 A

    • Maximum Current

      • 11.0 A

    • Power Input (min-max)

      • 1.51 kW (0.24 kW - 2.10 kW)

  • AEER

    • 3.29 W/W

  • EER

    • 3.31 W/W

  • Star Rating Residential

    • Hot Climate

      • 3.5 TCSPF

    • Average Climate

      • 3.5 TCSPF

    • Cold Climate

      • 3.5 TCSPF

  • Star Rating Commercial

    • Hot Climate

      • 4.5 TCSPF

    • Average Climate

      • 6.0 TCSPF

    • Cold Climate

      • 8.0 TCSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 44 dB (A)

    • Low

      • 34 dB (A)

    • Q-Low

      • 28 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 48 dB (A)

    • Q-Low

      • 43 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High

      • 60 dB (A)

    • Low

      • 50 dB (A)

    • Q-Low

      • 44 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High

      • 63 dB (A)

    • Q-Low

      • 58 dB (A)

  • Outdoor Unit Operating Range

    • -10 °C ~ +46 °C

Heating Basic Specification

  • Heating Capacity (min-max)

    • 6.00 kW (0.98 kW - 7.70 kW)
      20,500 Btu/h (3,340 Btu/h - 26,300 Btu/h)

  • Air Flow (Indoor)

    • 228 L/s

  • Electrical Data

    • Running Current

      • 7.3 A

    • Power Input (min-max)

      • 1.72 kW (0.26 kW - 2.50 kW)

  • ACOP

    • 3.47 W/W

  • COP

    • 3.49 W/W

  • Star Rating Residential

    • Hot Climate

      • 3.0 HSPF

    • Average Climate

      • 2.5 HSPF

    • Cold Climate

      • 2.0 HSPF

  • Star Rating Commercial

    • Hot Climate

      • 3.0 HSPF

    • Average Climate

      • 2.5 HSPF

    • Cold Climate

      • 2.0 HSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 44 dB (A)

    • Low

      • 33 dB (A)

    • Q-Low

      • 29 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 49 dB (A)

    • Q-Low

      • 44 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High

      • 60 dB (A)

    • Low

      • 49 dB (A)

    • Q-Low

      • 45 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High

      • 64 dB (A)

    • Q-Low

      • 59 dB (A)

  • Outdoor Unit Operating Range

    • -15 °C ~ +24 °C

Other Specification

  • Net Weight

    • Indoor

      • 8 kg

    • Outdoor

      • 35 kg

  • Indoor Unit Dimensions

    • Height

      • 290 mm

    • Width

      • 779 mm

    • Depth

      • 209 mm

  • Outdoor Unit Dimensions

    • Height

      • 619 mm

    • Width

      • 824 mm

    • Depth

      • 299 mm

  • Refrigerant Pipe Diameter

    • Liquid Side

      • ø 6.35 mm (1/4 inch)

    • Gas Side

      • ø 12.70 mm (1/2 inch)

  • Piping

    • Pipe Extension Length (min-max)

      • 3 m ~ 30 m

    • Maximum Elevation Length

      • 15 m

    • Pipe Length For Additional Refrigerant Gas

      • 10 m

    • Additional Refrigerant Gas

      • 15 g/m

  • Power Supply

    • Outdoor

  • Refrigerant Type

    • R32

Comfort Features

  • iAUTO-X

    • Yes

  • ECO Mode With A.I.

    • Yes

  • Inverter Control

    • Yes

  • Sleep Mode

    • Yes

  • Quiet Mode

    • Yes

  • Fan Mode

    • Yes

  • Soft Dry Operation Mode

    • Yes

  • Hot Start Control

    • Yes

  • Auto Changeover (Inverter)

    • Yes

  • Airflow Direction Control (Up & Down)

    • Yes

  • Manual Horizontal Airflow Direction Control

    • Yes

Cleaner Air Features

  • nanoe™ X

    • Yes (Generator Mark 1)

  • Odour Removing Function

    • Yes

  • Removable Washable Panel

    • Yes

Convenience Features

  • 24-Hour Dual ON & OFF Real Setting Timer

    • Yes

  • Demand Response Enabling Device (DRED)

    • Yes

  • LCD Wireless Remote Control

    • Yes

  • Wi-Fi

    • Yes (Built-in)

  • Wired Remote Control

    • Optional

Reliability Features

  • Random Auto Restart

    • Yes (32 Restart Patterns)

  • Blue Fin Condenser

    • Yes

  • Long Piping (max.)

    • 30 m

  • Top Panel Maintenance Access

    • Yes

  • Self-Diagnostic Function

    • Yes

Note

  • Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
