R32 Inverter NX Series Adaptive Ducted

SHOP NOW

R32 Inverter NX Series Adaptive Ducted

Delivers superior air purification and convenience with a new IoT remote controller

R32 Inverter NX Series Adaptive Ducted units provide a new level of air quality thanks to the nanoe X Generator Mark2, extra convenience with a new IoT remote controller, and flexibility with the ability to be installed vertically in addition to horizontally.
  • nanoe X Generator Mark2
  • Comfort Cloud App
  • CONEX
  • Inverter
Zoom In
Zoom Out
Close
R32 Inverter NX Series Adaptive Ducted

Features

Btu/h (rated)

17,100

20,500

24,200

27,600

34,100

42,700

47,000/47,800

42,700

47,000/47,800

Phase

1Ø Phase

1Ø Phase

1Ø Phase

3Ø Phase

Indoor Unit

S-1821PF3H

S-2430PF3H

S-3448PF3H

S-3448PF3H

Outdoor Units (Deluxe)

U-18PRH1H5-1

U-21PRH1H5-1

U-24PRH1H5-1

-

U-34PRH1H5-1

U-43PRH1H5-1

U-48PRH1H5-1

U-43PRH1H8-1

U-48PRH1H8-1

Outdoor Units (Standard)

U-18PR1H5-1

U-21PR1H5-1

U-24PR1H5-1

U-30PR1H5-1

U-34PR1H5-1

U-43PR1H5-1

U-48PR1H5-1

U-43PR1H8-1

U-48PR1H8-1

More Efficient Air Protection with nanoe X Generator Mark2

24-hour nanoe™ X Air Protection

Get 24 hours of quality air for you and your loved ones by turning nanoe™ X on using Panasonic Comfort Cloud anywhere, anytime. nanoe™ X functions in the cooling mode and is maintenance-free, helping you enjoy cleaner air while keeping your costs down.
24-hour nanoe™ X Air Protection

nanoe™ X Effectiveness Proven in Large Space

The new nanoe™ X fan mode reduced adhered odour by 0.7 levels compared to natural reduction after 2 hours of exposure.
Note: (1) Testing method: Verified using the six-level odour intensity scale method in an approximately 378 m³ sized test room (2) Inhibition method: nanoe X Generator Mark2 released (3) Test substance: Surface-attached cigarette smoke odour (4) Test result: Odour intensity reduced by 0.7 levels in 2 hours (KT-19-015089-1)
nanoe™ X Effectiveness Proven in Large Space

Provides nanoe™ X Effect over Long Distances

Combined with the strong static pressure this model ensures pristine nanoe™ X air travels unaffected even through multiple duct shapes at lengths of 10 m, as well as making them ideal for use in larger spaces.
Provides nanoe™ X Effect over Long Distances

Flexible Installation Adaptive Ducted

An Industry-Leading Vertical Installation

The new NX Series Adaptive Ducted units can be mounted not only horizontally but also vertically without the need for alterations. Our groundbreaking drain pan design delivers a new level of flexibility in an industry-leading vertical installation.
An Industry-Leading Vertical Installation

Compact Body with Powerful 150 Pa ESP

The indoor units have also been completely renewed, offering a 40 mm height reduction to only 250 mm** and a weight reduction of up to 10%, all while maintaining the same powerful 150 Pa.
**Compared to the conventional model range.
Compact Body with Powerful 150 Pa ESP

Selectable Air Inlet Position

The air inlet position is adjustable via a movable panel to allow both rear or bottom entry, depending on the duct installation.
Selectable Air Inlet Position

Precise Control, Easy Comfort

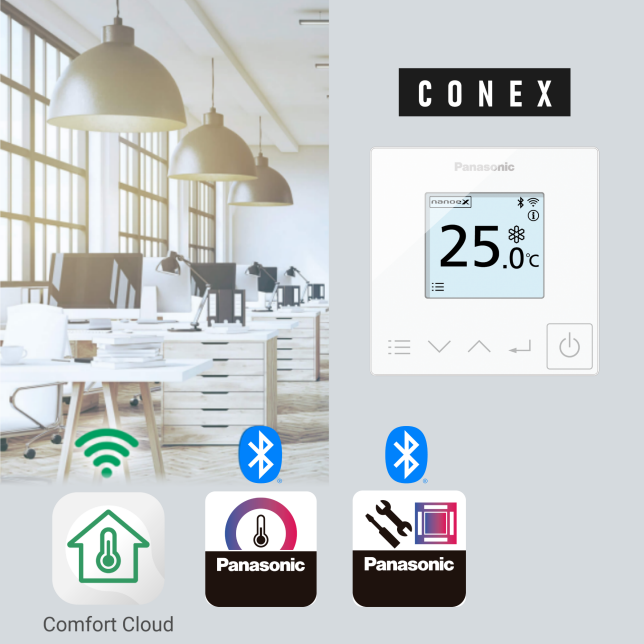

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6BLW are required per unit.
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

Convenient Centralised Control

With the built-in network adaptor and Panasonic Comfort Cloud app, connected up to 20 air conditioning units at 1 location (up to 10 locations), remotely access all air conditioning features, track and monitor the usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.
Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6BLW are required per unit.
Convenient Centralised Control

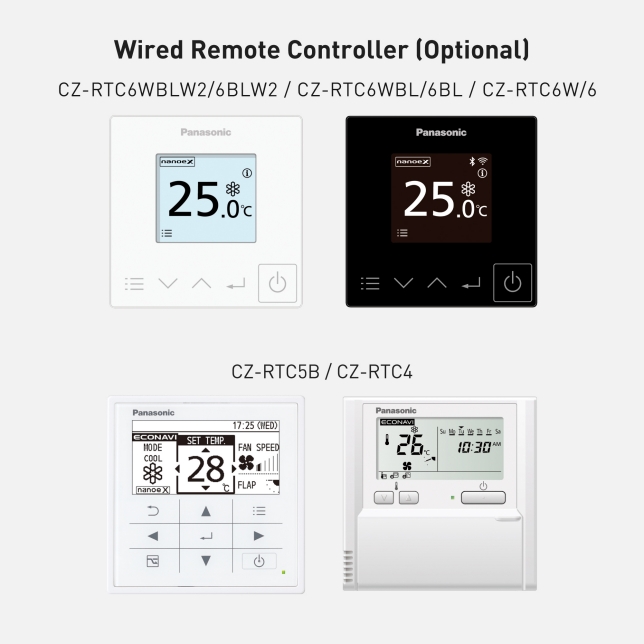

Other Control Options

Besides Smart Control CONEX, wireless remote controllers* and conventional wired remote controllers RTC5B and RTC4 are also available.
*Wireless remote controller is included in the same box with IDU.
Other Control Options

Economy Mode

Saves up to 20%* energy. The air conditioner determines the stable condition and moderately shifts the set temperature in 0.5-degree steps to regulate the energy-saving operation (maximum 2 degrees).
*When operating in cooling mode at 25°C or lower.
Economy Mode

Specs

S-1821PF3H

Photo of S-1821PF3H

S-2430PF3H

Photo of S-2430PF3H

S-3448PF3H

Photo of S-3448PF3H
  • nanoe X Generator Mark2nanoe X Generator Mark2
  • Comfort Cloud AppComfort Cloud App
  • CONEXCONEX
  • InverterInverter

nanoe™ X patented air purification technology

nanoe™ X effectiveness proven in large space by 3rd party

CONEX: A next-generation remote control

Air intake from rear as standard. Industry-leading horizontal and vertical design

Powerful 150 Pa ESP and space-saving 250 mm height

Leading-class low sound levels from 20 dB(A)

S-1821PF3H S-2430PF3H S-3448PF3H
Air Volume 16.0 m³/min, 565 cfm 21.0 m³/min, 740 cfm 36.0 m³/min, 1,270 cfm
External Static Pressure 30 (10-150) Pa 30 (10-150) Pa 50 (10-150) Pa
Sound Pressure Level (Hi/Lo) 35/29 dB (A) 35/29 dB (A) 40/30 dB (A)
Sound Power Level (Hi/Lo) 58/52 dB 58/52 dB 63/53 dB
Dimension H250 x W800 x D730 mm H250 x W1,000 x D730 mm H250 x W1,400 x D730 mm
Net Weight 25 kg 30 kg 39 kg
