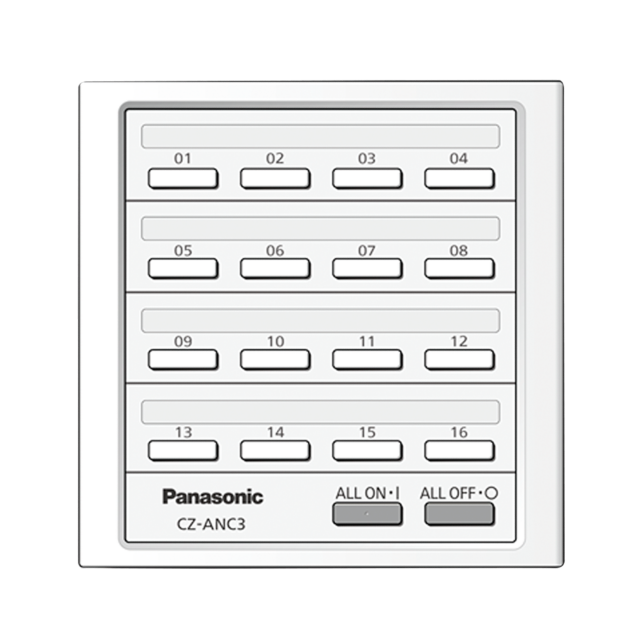

CZ-ANC3
Simple Centralised ON/OFF Control
Enable simple, centralised control of up to 64 units (16 groups, 64 indoor units). This system specialises in ON/OFF control for easy and efficient management.
Please Select Your User Type
CZ-ANC3
Specs
CZ-ANC3
Control up to 64 units (16 groups, 64 indoor units) centrally.
Centralised ON/OFF control (individual or collective).
Up to 8 ON/OFF controllers (4 main, 4 sub) can be installed in one link system.
Documents
Case Studies
Features
Fully Centralised ON/OFF HVAC Control
• Control up to 64 units (16 groups, 64 indoor units) centrally.
• Centralised ON/OFF control (individual or collective)
• Up to 8 ON/OFF controllers (4 main, 4 sub) can be installed in one link system.
• Panasonic ERV and ERV with a microcontroller can be controlled*¹ via a communication adaptor CZ-CAPC3.
• Centralised ON/OFF control (individual or collective)
• Up to 8 ON/OFF controllers (4 main, 4 sub) can be installed in one link system.
• Panasonic ERV and ERV with a microcontroller can be controlled*¹ via a communication adaptor CZ-CAPC3.
*1: Please contact an authorised Panasonic dealer for details due to restrictions on available functions and operation screens. *2: The system configuration diagram is for reference purposes only. See technical documentation for details. *3: Adaptor CZ-CAPRA1 is required for Single split wall mounted and Multi split air conditioners. *4: Adaptor CZ-CAPR1 and CZ-CCERA1 are required for some Single split packaged air conditioners.
1) Signal input x 2/ Signal output x 2.
1) Signal input x 2/ Signal output x 2.
