13.5kg Smart & Convenient
Top Load Washing Machine NA-FD135Z3BQ
NA-FD135Z3BQ
Smarter Wash,
Ideal Detergent Dose
Simplify your laundry routine with smart technologies that deliver optimal wash performance and optimised consumptions, including fabric care. Conveniently control your laundry even when you are away.
Specs

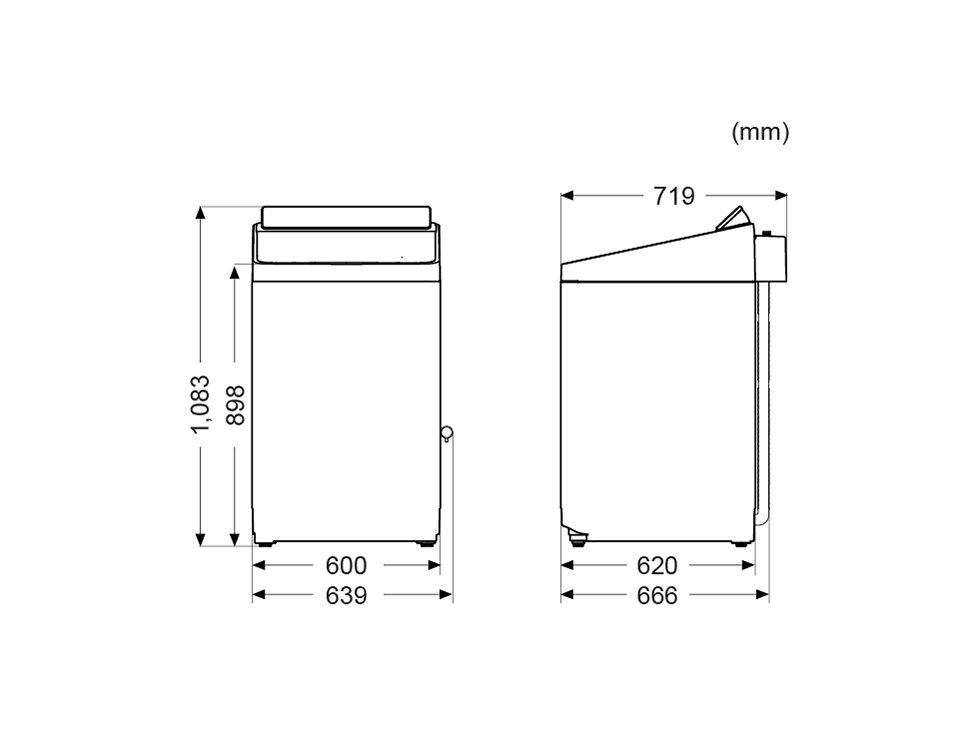

Size and Weight
- Height
- 1,083mm
- Width
- 600mm
- Depth
- 719mm
- Weight
- 40kg
*Please check the minimum space requirements for installation.
Smart Wash- Precise Dosage
- IoT
- Sauce Removal
- Mud Removal
- Odour Removal
- Powerful Wash
- Easy Stain Lifting
- Washing Made Easy
- Tub Cleaning
Wash Capacity: 13.5kg
AI Smart Wash with AI ECONAVI intelligent sensing technology automatically optimises wash performance
AutoDose smartly dispenses ideal amount of liquid detergent and softener
Smart & Convenient Control with Pansonic SmartApp+ Smart
StainMaster with Odour/Aroma+ removes intensive stain & enhances aroma
ActiveFoam lifts stains away with fine foam
MODEL NO.
-
NA-FD135Z3BQ
LOADING CAPACITY
-
13.5 kg
BASIC SPECIFICATION
-
Dimensions (W x D x H) mm
-
600 x 719 x 1,083 mm
-
-
Weight (Net)
-
40 kg
-
-
Voltage / Frequency
-
220-240V / 50Hz
-
-
Pulsator
-
Active Wave Pulsator (Plastic)
-
-
LED color
-
Amber
-
-
Inverter
-
TD Inverter with BLDC motor
-
-
Hot Wash 40ºC / 60º
-
-
-
-
Color (Body)
-
Black Silver
-
WASH FEATURES
-
ActiveFoam System
-
Yes
-
-
StainMaster
-
Yes
-
-
ECONAVI
-
Yes
-
-
AutoDose
-
Yes
-
-
IoT
-
Yes
-
-
Water Bazooka
-
Yes
-
CONVENIENT FEATURES
-
Soft Closing
-
Yes
-
-
Tempered Glass Lid
-
Yes
-
-
Child Lock (with LED)
-
Yes
-
-
Auto Restart
-
Yes
-
-
Auto Power Off
-
Yes
-
-
Auto Tub Clean
-
Yes
-
-
Remaining Time Indication
-
Yes
-
MAIN PROGRAMS
-
Number of Programs
-
10 (Direct Button)
-
-
Normal
-
Yes
-
-
Speedy (or Energy save)
-
Yes
-
-
Baby Care
-
Yes
-
-
Delicate
-
Yes
-
-
Water Save
-
Yes
-
-
Blanket
-
Yes
-
-
Tub Hygiene
-
Yes
-
-
Soak
-
Yes
-
-
Air Dry (90 min.)
-
Yes
-
-
Tangle Care
-
Yes
-
MANUAL SETTING
-
Process setting button
-
Yes
-
-
Soaking time
-
-
-
-
Washing Time
-
Yes (3/6/9/12min.)
-
-
No. of Rinse
-
Yes (1/2/3/Refill)
-
-
Spinning Time
-
Yes (1/3/5/7min.)
-
-
Water Level setting
-
Yes (10 levels)
-
-
Temp. Control
-
-
-
-
Auto Dosing selection (Detergent/Softnener)
-
Yes
-
OTHER FUNCTIONS
-
SAZANAMI Drum
-
Yes
-
-
Big Lint Filter
-
Yes (Big cassette 1)
-
NOTES
-
* Dimensions are without hose
*¹ Panasonic R&D Internal Testing/TEST CONDITION: Normal wash. Comparison between AI ECONAVI-enabled operation (amount of laundry: 2.0kg, water temperature: above 35°C) and AI ECONAVI-disabled operation (amount of laundry: 10.5kg (rated capacity), water temperature: below 15°C).The test was conducted based on IEC60456 except for water temperature.
*² AutoDose is available for all programmes except Tub Hygiene and Air Dry. Wash up to 1 month with an average of 4-5 loads a week. Results may vary depending on the wash load and settings.
*³ 36% more energy saving compared to a full load washed by the Panasonic NA-F110A6 in an internal testing.
