High-Spec Remote Controller
CZ-RTC5B
Deluxe Wired Controller with Energy-Saving Functions
User-friendly, sleek, clear design with energy-saving functions and convenient extra features. These distinctive characteristics set this remote control apart.
Please Select Your User Type
CZ-RTC5B
Features
Energy and Electricity Savings
Five Simple Energy-Saving Features for Instant Efficiency
• Set temperature auto return
• Unattended auto shutoff
• Repeat off timer
• Set temperature range limit
• Energy saving timer
• Unattended auto shutoff
• Repeat off timer
• Set temperature range limit
• Energy saving timer

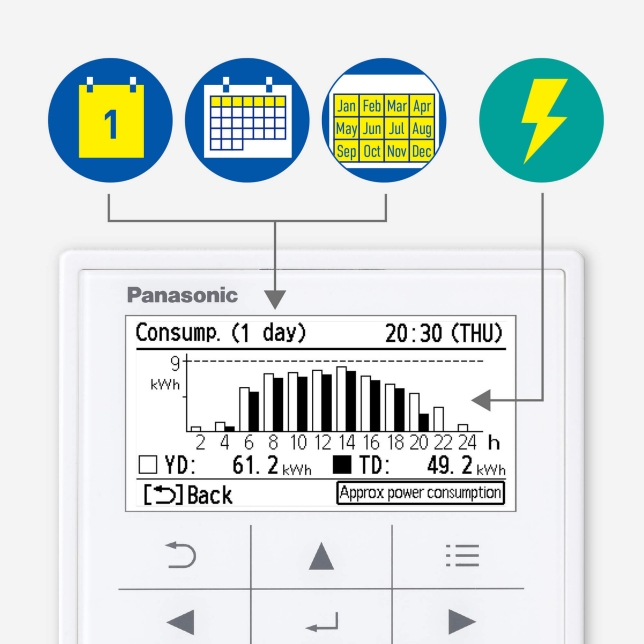

Prevent Overuse with Visible Energy Consumption
Energy consumption can be displayed for one day, one week or one year to prevent overuse.
* The energy consumption shows an approximate calculation result, which may differ from the measurement result calculated by a power meter.

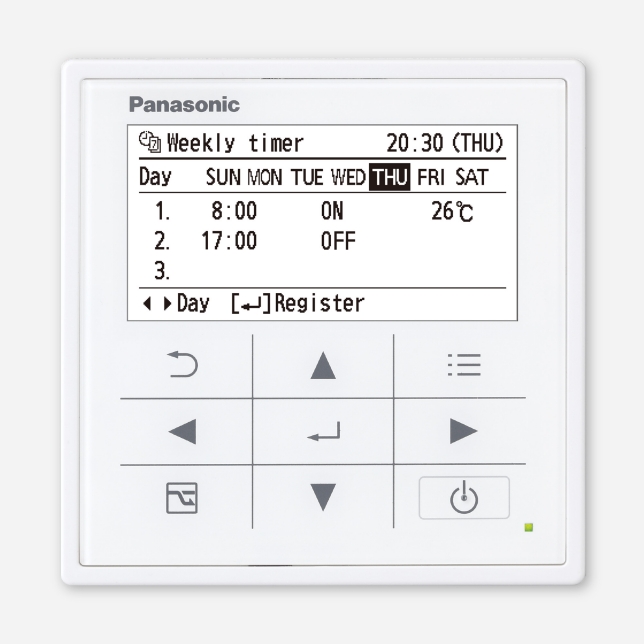

Weekly Timers for Efficient AC
Set up to 8 temperature and ON/OFF settings per day, by date or time. Total of 56 configurations are possible per week.
By setting the air conditioner to match the operating hours of offices and shops, it prevents employees from forgetting to turn off the air conditioner, and by running the air conditioner at the start of the working day, it ensures comfort and saves energy.
Activate for All-Day Space Purification
Panasonic air purification function “nanoe™ X” can be turned ON or OFF with just the touch of a remote control button.
Rotation & Backup for Longevity

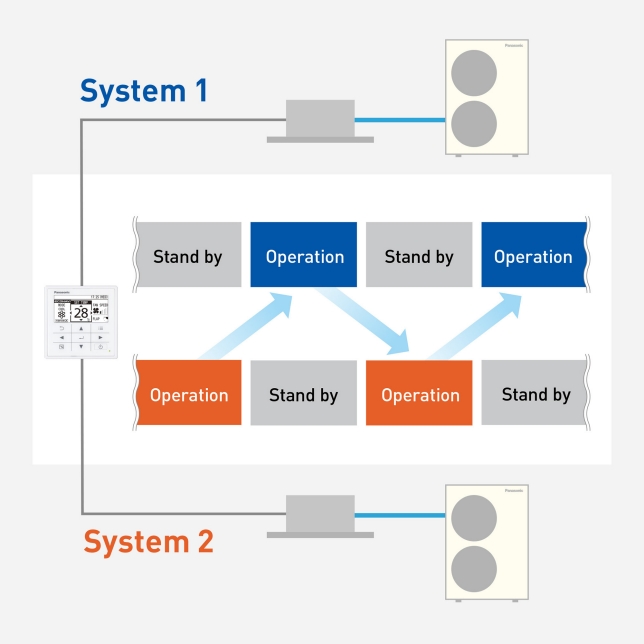

Rotation operation
Rotation operation is possible, whereby one system is rested in turn to ensure that the operating time is not unevenly distributed between machines.

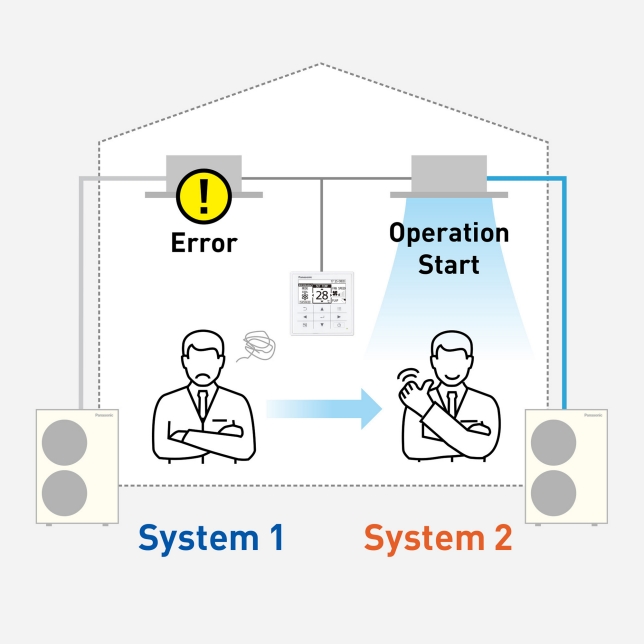

Backup operation
In the unlikely event of a problem with one system, the remaining stopped system automatically starts Backup operation. This is ideal for places where 24-hour air-conditioning is required.
Large LCD and Flat-Touch Keys for Seamless Control
The elegant face design with large touch keys enables an intuitive operation. Icons and characters are clearly displayed on Large LCD (3.5 inch). White LED backlight for users’ convenience even during the night.
Specs
CZ-RTC5B
Basic function: ON/OFF, mode setting, fan speed setting, temperature setting, air flow direction.
Number of indoor units which can be connected: 1 group, 8 units.
Limitation: Up to 2 controllers/1 group. (When using ECONAVI, only one remote controller is possible to connect at indoor unit)
Energy saving: 5 simple energy and power saving functions, ECONAVI, energy consumption monitoring.
Maintenance: Alarm history, alarm display, service contact registration, filter sign, auto-address, test run.
Others: Weekly timer, Panasonic clean air technology nanoe™ X ON/OFF, rotation/backup operation, key lock.
