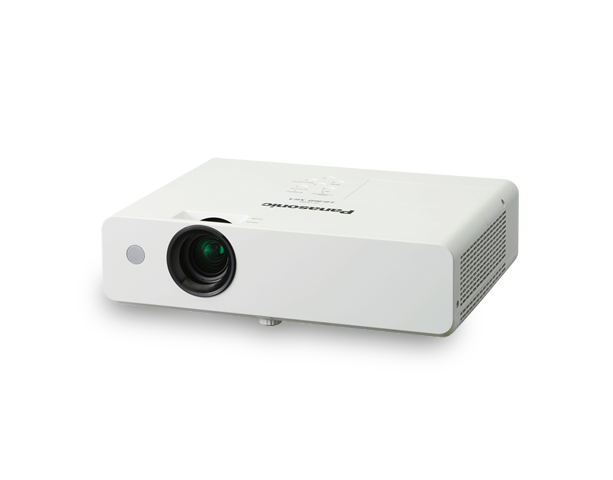

PT-LB360
| Main Unit | Power supply | AC100–240 V 50 Hz/60 Hz | |
|---|---|---|---|
| Power consumption | 300 W, 6 W when Standby mode set to Normal, 0.5 W when Standby mode set to Eco*1 | ||
| LCD Panel | Panel size | 16.0 mm (0.63 inches) diagonal (4:3 aspect ratio) | |
| Display method | Transparent LCD panel (x 3, R/G/B) | ||
| Drive method | Active matrix method | ||
| Pixels | 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels | ||
| Pixel configuration | Stripe | ||
| Lens | Manual zoom (1.2x), manual focus F 1.6– 1.76, f 19.16– 23.02 mm | ||
| Throw ratio | 1.48– 1.78:1 | ||
| Lamp | 230 W UHM lamp | ||
| Screen size | 0.76–7.62 m (30–300 inches) diagonally, 4:3 aspect ratio | ||
| Colors | Full color (16,777,216 colors) | ||
| Brightness*2 | 3,700 lumens (LAMP POWER: NORMAL) | ||
| Center-to-corner uniformity*2 | 80% | ||
| Contrast*2 | 10,000:1 (full on/full off, Iris ON) | ||
| Resolution | 1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) | ||
| Optical axis shift | 6:1 (fixed) | ||
| Keystone correction range | Vertical: ±30°, horizontal: ±15° | ||
| Installation | Ceiling/floor, front/rear (menu selection) | ||
| Built-in speaker | Output power | 10 W (monaural) | |
| Terminals | HDMI IN | HDMI 19-pin x 1, HDCP and Deep color compatible 480i (525i)*3, 576i (625i)*3, 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p VGA (640 × 480)–WUXGA*4 (1,920 × 1,200) Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) | |
| COMPUTER (RGB) 1 IN | D-sub HD 15-pin (female) × 1 | ||
| R, G, B | R,G,B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: high impedance, TTL (positive/negative automatic) | ||
| Y, PB (CB), PR (CR) | Y: 1.0 Vp-p (including sync signal), 75 ohms PB (CB), PR (CR): 0.7 Vp-p, 75 ohms | ||
| S-VIDEO | Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms NOTE: D-Sub -S video conversion cable (ET-ADSV) is required. | ||
| COMPUTER (RGB) 2 IN / 1 OUT | D-sub HD 15-pin (female) × 1 NOTE: Input/output is selected using the menu. When output is selected, signals from COMPUTER (RGB) 1 IN are output. | ||
| R, G, B | R,G,B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: TTL (positive/negative automatic) | ||
| VIDEO IN | Pin jack × 1, 1.0 Vp-p, 75 ohms | ||
| AUDIO IN 1 | M3 (L, R) × 1, 0.5 Vrms | ||
| AUDIO IN 2 | Pinjack × 2(L,Rx1), 0.5 Vrms | ||
| AUDIO OUT | M3 (L, R) × 1 (monitor out: 0–2.0 Vrms, variable) | ||
| SERIAL IN | D-sub 9-pin (female) × 1, for external control (RS-232C compliant) | ||
| LAN | RJ-45 × 1, for network connection, compliant with PJLink™, 100Base-TX/10Base-T | ||
| USB | USB A (type A) connector × 1, for Memory Viewer (Out put 5 V MAX 500 mA) USB B (type B) connector × 1, for USB Display | ||
| Power cord length | 1.8 m (5 ft 11 in) | ||
| Cabinet materials | Molded plastic | ||
| Dimensions (W×H×D) | 335×96*5 ×252 mm | ||
| Weight*6 | Approx. 2.8 kg (6.2 lbs) | ||
| Operation noise*2 | 37 dB (Lamp power: Normal), 33 dB (Lamp power: Eco1) 28 dB (Lamp power: Eco2) | ||
| Operating temperature | 5°C–40°C (41°F–104°F) [at less than 1,400 m (4,500 ft.) above sea level] 5°C–35°C (41°F–95°F) [at 1,400 m to 2,700 m (4,500 ft. to 8,800 ft.) above sea level] | ||
| Operating humidity | 20%–80% (no condensation) | ||
| Storage temperature | -20°C–60°C | ||
| Storage humidity | 10%–80% | ||
| Remote control unit | Power supply | 3 V DC (R03/LR03/AAA type battery × 2) | |
| Operation range*7 | Approx. 5 m (16 ft) when operated from directly in front of the signal receptor | ||
| Dimensions (W × H × D) | 44 × 105 × 20.5 mm (1-23/32 × 4-1/8 × 13/16 inches) | ||
| Weight | Approx. 63 g (2.22 oz) (including batteries) | ||
| Supplied accessories | Power cord (× 1) Wireless remote control unit (× 1) Batteries for remote control (R03/LR03/AAA type × 2) Computer signal cable 1.5 m (4 ft 11 in), VGA cable (× 1) Software CD-ROM (Instruction Manual, Multi Projector Monitoring and Control Software) (× 1) | ||
| NOTE | Weights and dimensions shown are approximate. Specifications subject to change without notice. *1 When the Standby mode is set to Eco, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for external control using the serial terminal. *2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *3 Only compatible with dot clock frequency of 27MHz (pixel repetition signal) *4 WUXGA resolution is supported only when the signals are compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking). *5 With legs at shortest position. *6 Average value. May differ depending on models. *7 Operation range differs depending on environments. | ||
