CS-RZ71AKRW

See product page

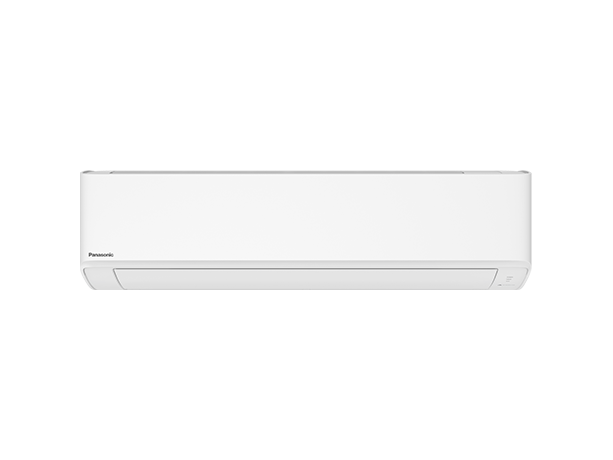

Photo of CS-RZ71AKRW

Model

  • Indoor (230V / 1 Phase / 50 Hz)

    • CS-RZ71AKRW

  • Outdoor

    • CU-RZ71AKR

Cooling Basic Specification

  • Cooling Capacity (min-max)

    • 7.10 kW (1.70 kW - 8.50 kW)
      24,200 Btu/h (5,800 Btu/h - 29,000 Btu/h)

  • Air Flow (Indoor)

    • 352 L/s

  • Dehumid

    • 4.1 L/h

  • Electrical Data

    • Running Current

      • 8.8 A

    • Maximum Current

      • 14.8 A

    • Power Input (min-max)

      • 2.06 kW (0.45 kW - 2.90 kW)

  • AEER

    • 3.43 W/W

  • EER

    • 3.45 W/W

  • Star Rating Residential

    • Hot Climate

      • 3.5 TCSPF

    • Average Climate

      • 3.5 TCSPF

    • Cold Climate

      • 3.5 TCSPF

  • Star Rating Commercial

    • Hot Climate

      • 4.5 TCSPF

    • Average Climate

      • 5.0 TCSPF

    • Cold Climate

      • 6.0 TCSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 49 dB (A)

    • Low

      • 37 dB (A)

    • Q-Low

      • 34 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 54 dB (A)

    • Q-Low

      • 49 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High

      • 65 dB (A)

    • Low

      • 53 dB (A)

    • Q-Low

      • 50 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High

      • 68 dB (A)

    • Q-Low

      • 63 dB (A)

  • Outdoor Unit Operating Range

    • -10 °C ~ +46 °C

Heating Basic Specification

  • Heating Capacity (min-max)

    • 8.00 kW (1.70 kW - 10.60 kW)
      27,300 Btu/h (5,800 Btu/h - 36,100 Btu/h)

  • Air Flow (Indoor)

    • 367 L/s

  • Electrical Data

    • Running Current

      • 8.9 A

    • Power Input (min-max)

      • 2.09 kW (0.40 kW - 3.30 kW)

  • ACOP

    • 3.81 W/W

  • COP

    • 3.83 W/W

  • Star Rating Residential

    • Hot Climate

      • 3.5 HSPF

    • Average Climate

      • 2.5 HSPF

    • Cold Climate

      • 2.0 HSPF

  • Star Rating Commercial

    • Hot Climate

      • 3.5 HSPF

    • Average Climate

      • 3.0 HSPF

    • Cold Climate

      • 2.5 HSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 49 dB (A)

    • Low

      • 37 dB (A)

    • Q-Low

      • 34 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 54 dB (A)

    • Q-Low

      • 49 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High

      • 65 dB (A)

    • Low

      • 53 dB (A)

    • Q-Low

      • 50 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High

      • 68 dB (A)

    • Q-Low

      • 63 dB (A)

  • Outdoor Unit Operating Range

    • -15 °C ~ +24 °C

Other Specification

  • Net Weight

    • Indoor

      • 13 kg

    • Outdoor

      • 45 kg

  • Indoor Unit Dimensions

    • Height

      • 295 mm

    • Width

      • 1,040 mm

    • Depth

      • 244 mm

  • Outdoor Unit Dimensions

    • Height

      • 695 mm

    • Width

      • 875 mm

    • Depth

      • 320 mm

  • Refrigerant Pipe Diameter

    • Liquid Side

      • ø 6.35 mm (1/4 inch)

    • Gas Side

      • ø 15.88 mm (5/8 inch)

  • Piping

    • Pipe Extension Length (min-max)

      • 3 m ~ 30 m

    • Maximum Elevation Length

      • 20 m

    • Pipe Length For Additional Refrigerant Gas

      • 10 m

    • Additional Refrigerant Gas

      • 25 g/m

  • Power Supply

    • Outdoor

  • Refrigerant Type

    • R32

Comfort Features

  • Powerful Mode

    • Yes

  • ECO Mode With A.I.

    • Yes

  • Inverter Control

    • Yes

  • Sleep Mode

    • Yes

  • Quiet Mode

    • Yes

  • Fan Mode

    • Yes

  • Soft Dry Operation Mode

    • Yes

  • Hot Start Control

    • Yes

  • Auto Changeover (Inverter)

    • Yes

  • Personal Airflow Creation

    • Yes

Cleaner Air Features

  • Anti-Bacterial Filter

    • Yes

  • Odour Removing Function

    • Yes

  • Removable Washable Panel

    • Yes

Convenience Features

  • 24-Hour Dual ON & OFF Real Setting Timer

    • Yes

  • Demand Response Enabling Device (DRED)

    • Yes

  • LCD Wireless Remote Control

    • Yes

  • Wi-Fi

    • Optional (Network adaptor required)

  • Wired Remote Control

    • Optional

Reliability Features

  • Random Auto Restart

    • Yes (32 Restart Patterns)

  • Blue Fin Condenser

    • Yes

  • Long Piping (max.)

    • 30 m

  • Top Panel Maintenance Access

    • Yes

  • Self-Diagnostic Function

    • Yes

Note

  • Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
