CS/CU-RZ80YKR

See product page

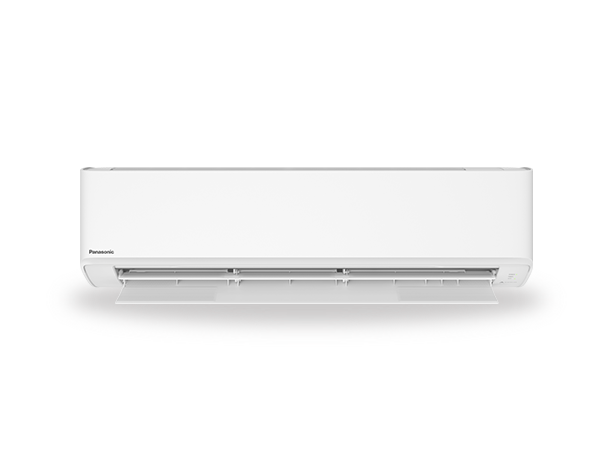

Photo of CS/CU-RZ80YKR

Model

  • CS/CU-RZ80YKR

Cooling Capacity (kW)

  • 8.00 (2.30-9.00)

Heating Capacity (kW)

  • 9.00 (2.20-11.60)

Air Flow (L/s)

  • 367/377

Dehumid (L/h)

  • 4.7

Running Current (A)

  • 10.10/9.80

Power Input (kW)

  • 2.39 (0.46-3.03)/2.34 (0.43-3.42)

AEER/EER (W/W)

  • 3.34/3.35

ACOP/COP (W/W)

  • 3.83/3.85

Star Rating

  • 3.5/5.0

Inside Sound Pressure Level (dB) (Hi/Lo/S-Lo)

  • 51/38/35

Outside Sound Pressure Level (dB) (Hi/S-Lo)

  • 55/50

Sound Power Level (db) (Hi/S-Lo)

  • 69/64

Net Weight – Indoor (Outdoor)

  • 13 (51)

Dimensions – Indoor (Outdoor) (h x w x d)

  • 295 x 1040 x 244mm/795 x 875 x 320mm

Refrigerant Pipe Diameter – Liquid Side (mm/(in))

  • 6.35 (1/4)

Refrigerant Pipe Diameter – Gas Side (mm/(in))

  • 15.88 (5/8)

Pipe Extension Length Min-Max (m)

  • 3~30

Pipe Length for Additional Gas (m)

  • 10

Additional Gas Amount (g/m)

  • 25

Power Supply

  • Outdoor

Operating Range (Outdoor) – Cooling (C)

  • -10 ~ +46

Operating Range (Outdoor) – Heating (C)

  • -15 ~ +24

Refrigerant Type

  • R32
