CS-Z25AKRW-1

See product page

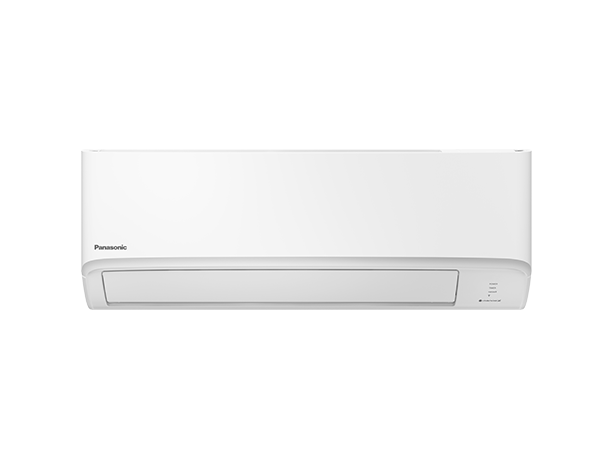

Photo of CS-Z25AKRW-1

Model

  • Indoor (230V / 1 Phase / 50 Hz)

    • CS-Z25AKRW-1

  • Outdoor

    • CU-Z25AKR-1

Cooling Basic Specification

  • Cooling Capacity (min-max)

    • 2.50 kW (0.95 kW - 3.70 kW)
      8,530 Btu/h (3,240 Btu/h - 12,600 Btu/h)

  • Air Flow (Indoor)

    • 188 L/s

  • Dehumid

    • 1.5 L/h

  • Electrical Data

    • Running Current

      • 2.55 A

    • Maximum Current

      • 6.3 A

    • Power Input (min-max)

      • 0.58 kW (0.20 kW - 1.20 kW)

  • AEER

    • 4.28 W/W

  • EER

    • 4.31 W/W

  • Star Rating Residential

    • Hot Climate

      • 4.5 TCSPF

    • Average Climate

      • 4.0 TCSPF

    • Cold Climate

      • 4.0 TCSPF

  • Star Rating Commercial

    • Hot Climate

      • 5.5 TCSPF

    • Average Climate

      • 6.0 TCSPF

    • Cold Climate

      • 7.0 TCSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 40 dB (A)

    • Low

      • 25 dB (A)

    • Q-Low

      • 19 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 48 dB (A)

    • Q-Low

      • 43 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High

      • 56 dB (A)

    • Low

      • 41 dB (A)

    • Q-Low

      • 35 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High

      • 63 dB (A)

    • Q-Low

      • 58 dB (A)

  • Outdoor Unit Operating Range

    • -10 °C ~ +46 °C

Heating Basic Specification

  • Heating Capacity (min-max)

    • 3.20 kW (0.90 kW - 4.40 kW)
      10,900 Btu/h (3,070 Btu/h - 15,000 Btu/h)

  • Air Flow (Indoor)

    • 200 L/s

  • Electrical Data

    • Running Current

      • 3.2 A

    • Power Input (min-max)

      • 0.73 kW (0.19 kW - 1.29 kW)

  • ACOP

    • 4.33 W/W

  • COP

    • 4.38 W/W

  • Star Rating Residential

    • Hot Climate

      • 3.5 HSPF

    • Average Climate

      • 3.0 HSPF

    • Cold Climate

      • 2.5 HSPF

  • Star Rating Commercial

    • Hot Climate

      • 3.5 HSPF

    • Average Climate

      • 3.0 HSPF

    • Cold Climate

      • 2.5 HSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 40 dB (A)

    • Low

      • 27 dB (A)

    • Q-Low

      • 21 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 49 dB (A)

    • Q-Low

      • 44 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High

      • 56 dB (A)

    • Low

      • 43 dB (A)

    • Q-Low

      • 37 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High

      • 64 dB (A)

    • Q-Low

      • 59 dB (A)

  • Outdoor Unit Operating Range

    • -15 °C ~ +24 °C

Other Specification

  • Net Weight

    • Indoor

      • 8 kg

    • Outdoor

      • 25 kg

  • Indoor Unit Dimensions

    • Height

      • 290 mm

    • Width

      • 779 mm

    • Depth

      • 209 mm

  • Outdoor Unit Dimensions

    • Height

      • 542 mm

    • Width

      • 780 mm

    • Depth

      • 289 mm

  • Refrigerant Pipe Diameter

    • Liquid Side

      • ø 6.35 mm (1/4 inch)

    • Gas Side

      • ø 9.52 mm (3/8 inch)

  • Piping

    • Pipe Extension Length (min-max)

      • 3 m ~ 20 m

    • Maximum Elevation Length

      • 15 m

    • Pipe Length For Additional Refrigerant Gas

      • 7.5 m

    • Additional Refrigerant Gas

      • 10 g/m

  • Power Supply

    • Outdoor

  • Refrigerant Type

    • R32

Comfort Features

  • iAUTO-X

    • Yes

  • ECO Mode With A.I.

    • Yes

  • Inverter Control

    • Yes

  • Sleep Mode

    • Yes

  • Quiet Mode

    • Yes

  • Fan Mode

    • Yes

  • Soft Dry Operation Mode

    • Yes

  • Hot Start Control

    • Yes

  • Auto Changeover (Inverter)

    • Yes

  • Airflow Direction Control (Up & Down)

    • Yes

  • Manual Horizontal Airflow Direction Control

    • Yes

Cleaner Air Features

  • nanoe™ X

    • Yes (Generator Mark 1)

  • Odour Removing Function

    • Yes

  • Removable Washable Panel

    • Yes

Convenience Features

  • 24-Hour Dual ON & OFF Real Setting Timer

    • Yes

  • Demand Response Enabling Device (DRED)

    • Yes

  • LCD Wireless Remote Control

    • Yes

  • Wi-Fi

    • Yes (Built-in)

  • Wired Remote Control

    • Optional

Reliability Features

  • Random Auto Restart

    • Yes (32 Restart Patterns)

  • Blue Fin Condenser

    • Yes

  • Long Piping (max.)

    • 20 m

  • Top Panel Maintenance Access

    • Yes

  • Self-Diagnostic Function

    • Yes

Note

  • Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
