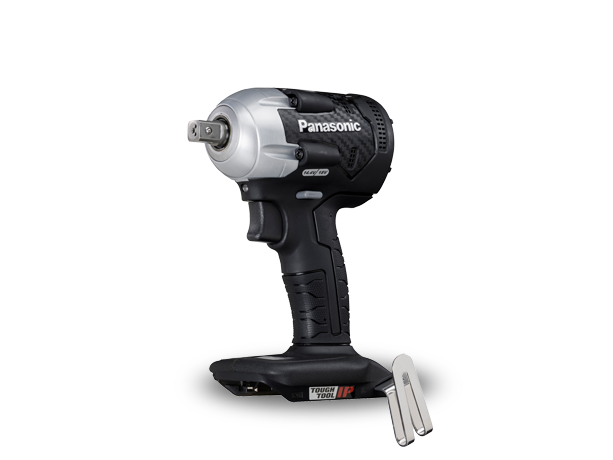

EY75A8X57

Chuck		□12.7 mm Squire drive (ball-detent type)
Max.torque	18V:	280 N-m
Max.torque	14.4V:	230 N-m
Speed at no load	High/Hard Mode:	0-2,500 rpm (18V), 0-2,300 rpm (18V), 0-2,300 prm (14.4V)
	Medium Mode:	0-1,500 rpm
	Low/Soft Mode:	0-1,000 rpm
Impacts per minute	High/Hard Mode:	0-3,600 ipm (18V), 0-2,300 rpm (18V), 0-3,400 ipm (14.4V)
	Medium Mode:	0-2,900 ipm
	Low/Soft Mode:	0-1,900 ipm
Weight - including battery pack [EY9L54]		1.8 kg
Size [LHW] - including battery pack [EY9L54]		143 mm x 249 mm x 73 mm
Bolting	High tensil bolt : M16 x 25mm, Metal thickness = 10mm	EY9L54 (18V 5.0Ah) : 350 pcs EY9L53 (18V 3.0Ah) : 210 pcs EY9L45 (14.4v 4.2Ah) : -
	High tensil bolt : M12 x 25mm, Metal thickness = 10mm	EY9L54 (18V 5.0Ah) : 470 pcs EY9L53 (18V 3.0Ah) : 280 pcs EY9L45 (14.4v 4.2Ah) : 320 pcs
	Standard tensil bolt : M16 x 25mm, Metal thickness = 10mm	EY9L54 (18V 5.0Ah) : 1,900 pcs EY9L53 (18V 3.0Ah) : 1,150 pcs EY9L45 (14.4v 4.2Ah) : 1,000 pcs
