Smart Inverter LU Series (AKH-1)

Retail sales price:from RM 2,200.00

SHOP NOW
SHOP NOW
Contact Us

Energy Labels

Model Number CS-LU9AKH-1_CU-RU9AKH CS-LU12AKH-1_CU-RU12AKH CS-LU18AKH-1_CU-RU18AKH-B CS-LU24AKH-1_CU-RU24AKH
Horsepower 1.0 HP 1.5 HP 2.0 HP 2.5 HP
Energy Efficiency Label

Smart Inverter LU Series (AKH-1)

Smarter Cooling, Sustainable Savings

The Panasonic Smart Inverter LU Series (AKH-1) features built-in Wi-Fi, allowing you to manage your air conditioner from anywhere using the Panasonic Comfort Cloud App on your mobile device. Achieve energy efficiency without compromising comfort with Inverter technology and ECO Mode with A.I. Control. Enjoy powerful cooling instantly with just a push of the POWERFUL mode button. BIG FLAP/AEROWINGS* directs airflow further across the room. Equipped with R32 refrigerant, an environmentally friendly choice.
*BIG FLAP is applicable to CS-LU9AKH-1 and CS-LU12AKH-1. AEROWINGS is applicable to CS-LU18AKH-1 and CS-LU24AKH-1.
  • Panasonic Comfort Cloud App
  • POWERFUL Mode
  • Inverter
  • ECO Mode with A.I. Control

Please Select Your User Type

Zoom In
Zoom Out
Close
Smart Inverter LU Series (AKH-1)
Retail sales price:from RM 2,200.00
Contact Us

Specs

CS-LU9AKH-1_CU-RU9AKH

Photo of CS-LU9AKH-1_CU-RU9AKH

CS-LU12AKH-1_CU-RU12AKH

Photo of CS-LU12AKH-1_CU-RU12AKH

CS-LU18AKH-1_CU-RU18AKH-B

Photo of CS-LU18AKH-1_CU-RU18AKH-B

CS-LU24AKH-1_CU-RU24AKH

Photo of CS-LU24AKH-1_CU-RU24AKH
  • Built-In Easy ConnectBuilt-In Easy Connect
  • My HIJAUMy HIJAU
  • POWERFUL ModePOWERFUL Mode
  • InverterInverter
  • ECO Mode with A.I. ControlECO Mode with A.I. Control
  • BIG FLAPBIG FLAP
  • AEROWINGSAEROWINGS
  • R32 RefrigerantR32 Refrigerant
  • Quiet ModeQuiet Mode
  • Sleep ModeSleep Mode

Manage air conditioner using mobile device with Built-in Wi-Fi and Comfort Cloud App

Energy savings with Inverter Technology

POWERFUL mode lets you enjoy instant powerful cooling during start-up

Intelligently balances energy savings and comfort using ECO Mode with A.I. Control

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

CS-LU9AKH-1_CU-RU9AKH CS-LU12AKH-1_CU-RU12AKH CS-LU18AKH-1_CU-RU18AKH-B CS-LU24AKH-1_CU-RU24AKH
Cooling Capacity (min-max) (kW) 2.65 (0.90-3.40) kW 3.52 (1.02-4.10) kW 5.30 (1.10-6.00) kW 6.25 (1.12-7.18) kW
Cooling Capacity (min-max) (Btu/h) 9,040 (3,070-11,600) Btu/h 12,000 (3,480-14,000) Btu/h 18,100 (3,750-20,500) Btu/h 21,300 (3,820-24,500) Btu/h
EER (min-max) (Btu/hW) 12.05 (13.64-11.26) Btu/hW 11.65 (12.65-11.11) Btu/hW 11.24 (12.93-11.20) Btu/hW 11.83 (15.28-11.78) Btu/hW
EER (min-max) (W/W) 3.53 (4.00-3.30) W/W 3.42 (3.71-3.25) W/W 3.29 (3.79-3.28) W/W 3.47 (4.48-3.45) W/W
CSPF (W/W) 5.57 W/W (5★) 5.41 W/W (5★) 5.91 W/W (5★) 5.99 W/W (5★)
Voltage (V) 220-240 V 220-240 V 220-240 V 220-240 V
Current (A) 3.7-3.4 A 4.8-4.4 A 7.4-6.8 A 8.3-7.6 A
Power Input (min-max) (W) 750 (225-1,030) W 1,030 (275-1,260) W 1,610 (290-1,830) W 1,800 (250-2,080) W
Moisture Removal (L/h) 1.6 L/h 2.0 L/h 2.9 L/h 3.5 L/h
Moisture Removal (Pt/h) 3.4 Pt/h 4.2 Pt/h 6.1 Pt/h 7.4 Pt/h
Indoor Unit Air Circulation 10.3 m³/min (365 ft³/min) 11.0 m³/min (390 ft³/min) 19.3 m³/min (680 ft³/min) 19.9 m³/min (700 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo) 38/26/19 dB(A) 40/26/21 dB(A) 44/32/27 dB(A) 45/34/29 dB(A)
Indoor Unit Dimensions (H x W x D) (mm) 290 mm x 765 mm x 214 mm 290 mm x 765 mm x 214 mm 295 mm x 1,060 mm x 249 mm 295 mm x 1,060 mm x 249 mm
Indoor Unit Dimensions (H x W x D) (inch) 11-7/16 inch x 30-1/8 inch x 8-7/16 inch 11-7/16 inch x 30-1/8 inch x 8-7/16 inch 11-5/8 inch x 41-3/4 inch x 9-13/16 inch 11-5/8 inch x 41-3/4 inch x 9-13/16 inch
Indoor Unit Net Weight 8 kg (18 lb) 8 kg (18 lb) 12 kg (26 lb) 12 kg (26 lb)
Indoor Unit Gross Weight 9 kg (20 lb) 9 kg (20 lb) 15 kg (33 lb) 15 kg (33 lb)
Outdoor Unit Air Circulation 26.7 m³/min (940 ft³/min) 30.6 m³/min (1,080 ft³/min) 39.3 m³/min (1,390 ft³/min) 34.9 m³/min (1,230 ft³/min)
Outdoor Unit Noise Level (H) 47 dB(A) 48 dB(A) 50 dB(A) 51 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm) 511 mm x 650 mm x 230 mm 542 mm x 780 mm x 289 mm 619 mm x 824 mm x 299 mm 619 mm x 824 mm x 299 mm
Outdoor Unit Dimensions (H x W x D) (inch) 20-1/8 inch x 25-19/32 inch x 9-1/16 inch 21-11/32 inch x 30-23/32 inch x 11-13/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Net Weight 18 kg (40 lb) 22 kg (49 lb) 29 kg (64 lb) 32 kg (71 lb)
Outdoor Unit Gross Weight 20 kg (44 lb) 25 kg (55 lb) 32 kg (71 lb) 35 kg (77 lb)
Refrigerant Type R32 R32 R32 R32
Refrigerant Amount 410 g 450 g 710 g 35 kg (77 lb)
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch) ø 12.70 mm (1/2 inch) ø 12.70 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length) 7.5 m 7.5 m 10 m 10 m
Pipe Extension (Maximum Pipe Length) 20 m 20 m 30 m 30 m
Pipe Extension (Maximum Elevation Length) 15 m 15 m 20 m 20 m
Pipe Extension (Additional Refrigerant Gas*) 10 g/m 10 g/m 15 g/m 15 g/m
Power Supply Indoor Indoor Indoor Indoor
Odour Removing Function Yes Yes Yes Yes
Removable, Washable Panel Yes Yes Yes Yes
Wi-Fi Built-in (Easy Connect) Built-in (Easy Connect) Built-in (Easy Connect) Built-in (Easy Connect)
24-Hour Dual ON & OFF Real Setting Timer Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes
Wired Remote Control Optional Optional Optional Optional
Powerful Mode Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes
Soft Dry Operation Mode Yes Yes Yes Yes
Airflow Direction Control (Up & Down) Yes Yes Yes Yes
Manual Horizontal Airflow Direction Control Yes Yes Yes Yes
Inverter Control Yes Yes Yes Yes
ECO Mode with A.I. Yes Yes Yes Yes
Random Auto Restart Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns)
Blue Fin Condenser Yes Yes Yes Yes
Long Piping (maximum) 20 m 20 m 30 m 30 m
Top Panel Maintenance Access Yes Yes Yes Yes
Self-Diagnostic Function Yes Yes Yes Yes
Note *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.		 *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.		 *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.		 *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Documents

Case Studies

Features

Cool Efficiency, Energy-Saving with Inverter Technology

Cool Efficiency, Energy-Saving with Inverter Technology

Panasonic air conditioners deliver excellent energy efficiency, harnessing the power of Inverter technology. Panasonic's Inverter technology utilises a micro-computer to control a variable-speed compressor, ensuring precise temperature control and minimising energy consumption while maintaining a balanced comfort level. Choose the smarter, greener option with Inverter techonology, and enjoy both lower bills and a reduced environmental impact.

LEARN MORE

Note: Up to 52% energy savings based on the comparison of the 2.5HP Smart Inverter model with the lowest 2-star model. Actual savings may vary depending on model and usage.

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.
LEARN MORE
Intelligently Balances Energy Savings and Comfort

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect and control multiple air conditioning units from anywhere, at home or away.

LEARN MORE

Connectivity and Control, Simplified

Monitor Energy Consumption

Monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting.
Monitor Energy Consumption

Secured & Easier Setup with Advanced Scan Connectivity*

Scan the QR code to enable easier and faster Wi-Fi connectivity to the air conditioner.
*Complied with internal cybersecurity guidelines based on cybersecurity trends and the regulations of each country.
Note: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic is under license. Other trademarks and trade names are those of their respective owners.
Secured & Easier Setup with Advanced Scan Connectivity*

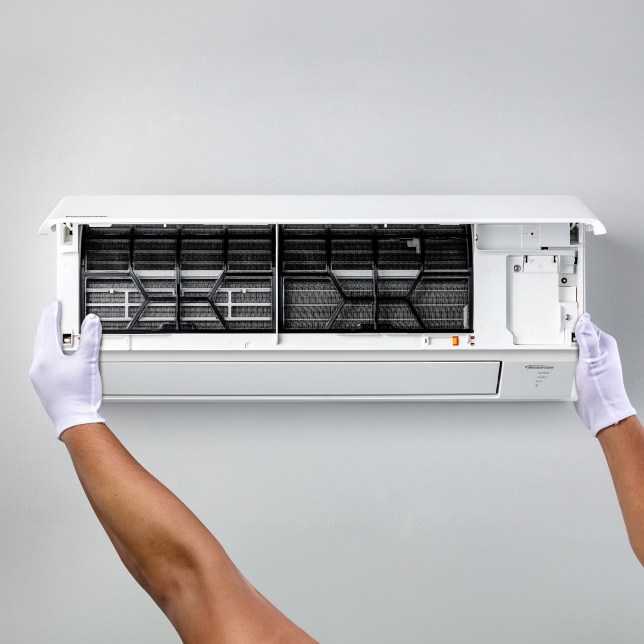

Installation and Servicing Made Easier

Panasonic air conditioners come with many design innovations and improvements. No more struggling to disassemble components, not being able to see what you’re doing, squeeze in pipes or having to juggle tools with one hand. Working with Panasonic air conditioners is now faster, easier and simpler than ever.
Installation and Servicing Made Easier

Instant Powerful Cooling with a Push of a Button

POWERFUL mode cools your room faster by 18%*, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling during start-up.
*Comparison of POWERFUL cool mode & normal cool mode by using 1.5HP Inverter Model.
LEARN MORE
Instant Powerful Cooling with a Push of a Button

Convenient Control at Your Fingertips

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Range

Model

Horsepower

1.0 HP

1.5 HP

2.0 HP

2.5 HP

Cooling Capacity

2.65 kW

3.52 kW

5.30 kW

6.25 kW

9,040 Btu/h

12,000 Btu/h

18,100 Btu/h

21,300 Btu/h

Indoor Unit

CS-LU9AKH-1

CS-LU12AKH-1

CS-LU18AKH-1

CS-LU24AKH-1

Outdoor Unit

CU-RU9AKH

CU-RU12AKH

CU-RU18AKH-B

CU-RU24AKH

Retail Sales Price

RM 2,200.00

RM 2,668.00

RM 4,390.00

RM 4,524.00
