R410A Non-Inverter 4-Way Cassette
Powerful 360° airflow and unique air purification
R410A Non-Inverter 4-Way Cassettes deliver a cleaner environment thanks to nanoe™ X. With their ease of installation and sleek exterior, they are a perfect match for modern interiors.
Please Select Your User Type
R410A Non-Inverter 4-Way Cassette
Specs
S-18PU1H5A-1
S-22PU1H5A-1
S-25PU1H5A-1
S-28PU1H5A-1
S-30PU1H5A-1
S-34PU2H5-1
S-43PU2H5-1
S-48PU2H5-1
24-hour nanoe™ X Air Protection- nanoe X Generator Mark1
- R410A
Compact design
Low sound levels
DC fan motor for increased efficiency
Powerful drain pump gives 850 mm lift
Lightweight design
nanoe™ X (CZ-CNEXU1)
Documents
Combination
Individual Controller
Controller (Connecting Adaptor Required)
Accessory (Connecting Adaptor)
Case Studies
Related Stories
Features
|
Btu/h (rated) |
18,500 |
23,000 |
25,000 |
28,000 |
30,000 |
30,000 |
37,000 |
42,600 |
45,600 |
50,000 |
55,000 |
|
|
Phase |
1Φ Phase |
1Φ Phase |
1Φ Phase |
1Φ Phase |
1Φ Phase |
3Ø Phase |
3Ø Phase |
3Ø Phase |
3Ø Phase |
|||
|
Indoor Unit |
|
S-18PU1H5A-1 |
S-22PU1H5A-1 |
S-25PU1H5A-1 |
S-28PU1H5A-1 |
S-30PU1H5A-1 |
S-30PU1H5A-1 |
S-34PU2H5-1 |
S-43PU2H5-1 |
S-48PU2H5-1 |
||
|
Outdoor Unit |
|
U-18PV1H5-1 |
U-22PV1H5-1 |
U-25PV1H5-1 |
U-28PV1H5-1 |
U-30PV1H5-1 |
U-30PV1H8-1 |
U-35PV1H8-1 |
U-40PV1H8-1 |
U-45PV1H8-1 |
U-50PV1H8-1 |
U-55PV1H8-1 |
Improve the Quality of Your Air with nanoe™ X
24-hour nanoe™ X Air Protection
Get 24 hours of quality air for you and your loved ones by turning nanoe™ X on low energy consumption anywhere, anytime. nanoe™ X functions in the cooling mode and is maintenance-free, helping you enjoy cleaner air while keeping your costs down.
nanoe™ X Effectiveness Proven in Large Space
A third-party certification organization SIRIM Berhad (SIRIM), conducted the performance experiment using a 4-Way Cassette equipped with a nanoe™ X device to inhibit hexadecane, a chemical contained in PM2.5.
*(1) Testing method: Measured the amount of attached organic substances in an approximately 802 m³ sized test room. (2) Inhibition method: nanoe X Generator Mark1 released. (3) Test substance: Hexadecane (4) Test result: Inhibited 92% in 8 hours (ETRC257/16/1402 (R479/19))
Industry-Leading Airflow
Powerful Airflow
The Turbo Fan with Twisted 3D Blades provides a large and powerful airflow to cool every corner of the room.
Wide Flap
A wider main flap and sub flap reduce turbulence and increase airflow. Also, a wider angle jetting port allows airflow to reach as far as five meters.
Note: 4-Way Cassette 43/48PU type.
360° Comfortable Airflow
Air coming out of the centre of the discharge outlets travels farther. Air is discharged across a wide area from the four sides of the unit.
360° Thermograph
The curves on the room temperature distribution graph expand gently out in a circle centred on the indoor unit.
Simulation conditions: 4-Way Cassette 43/48PU type in cooling mode / Floor area of 225 m² / Ceiling height of 3 m
Flat Horizontal Design
Panasonic believes that one of the most important elements of design is that it doesn’t interfere with the overall room interior. The flat horizontal design of the 4-Way Cassette achieves an elegant yet simple form. This design allows it to protrude only 33.5 mm from the ceiling, to blend naturally into a variety of interiors, including offices and restaurants.

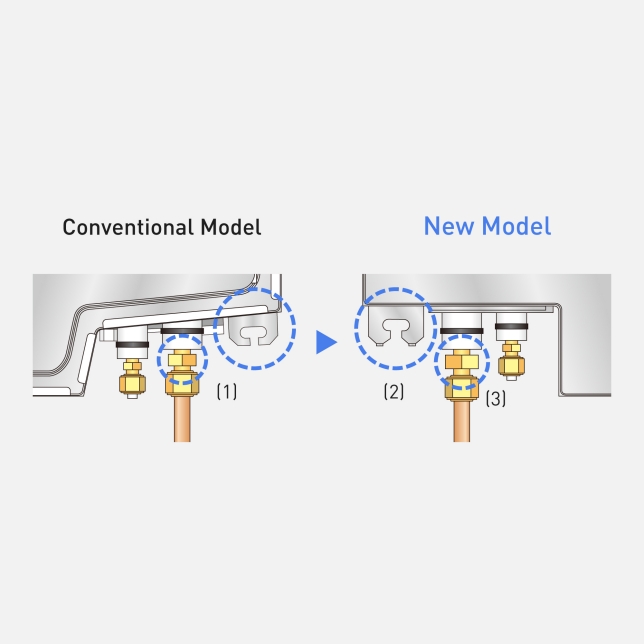

Easy Installation Design
The unit has been redesigned for easier installation. (1) Previously, the eye bolts were hard to attach because of the bracket’s shape. (2) By improving it to a V-shape, it is easier to install. (3) The nut has become larger, so it is easier to hold.

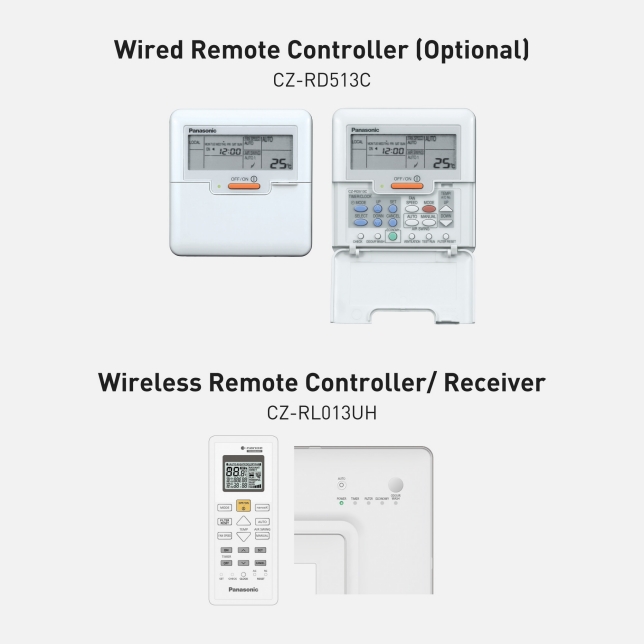

Wireless, Wired Remote Controller
Panasonic Single-split Packaged Air Conditioner remote controllers are designed with user convenience in mind. Multiple settings are available so airflow and air quality can be regulated according to preferences. Users may choose a wireless* or a wired remote controller equipped with a high-performance timer.
*A wireless remote controller and receiver are in the same package with the indoor unit.
Odour Wash
Reduces unpleasant odours caused by the air conditioner’s heat exchanger. When air from the outlet smells musty, moisture in the heat exchanger washes away odours. Can be operated with the wireless remote controller.

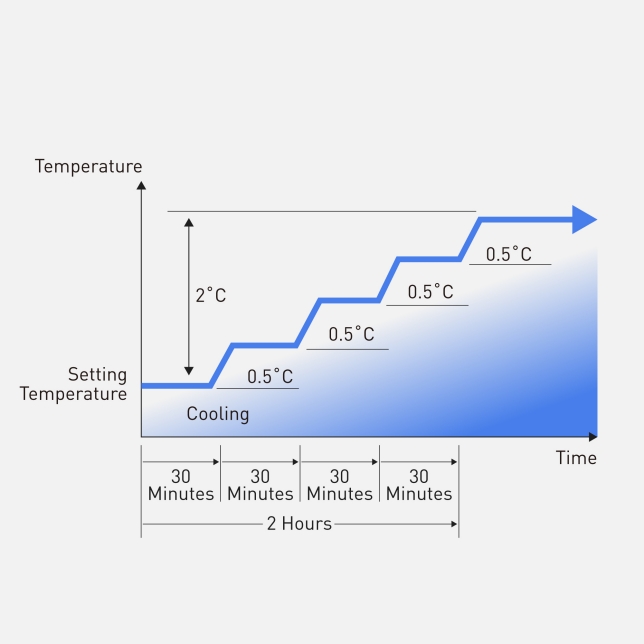

Economy Mode
Saves up to 20%* energy. The air conditioner determines the stable condition and moderately shifts the set temperature in 0.5-degree steps to regulate the energy-saving operation (maximum 2 degrees).
*When operating in cooling mode at 25°C or lower.
