R32 Inverter NX Series Deluxe 4-Way Cassette
Delivers excellent air purification and convenience with a new IoT remote controller
R32 Inverter NX Series Deluxe 4-Way Cassettes are equipped with the latest nanoe X Generator Mark3 to provide the next level of air quality even in large spaces, and feature 360° comfortable airflow. A new IoT remote controller also provides greater accessibility and convenience.
Please Select Your User Type
R32 Inverter NX Series Deluxe 4-Way Cassette
Specs
S-1821PU3HA-1
S-2430PU3HA-1
S-3448PU3HA-1
nanoe X Generator Mark3- Comfort Cloud App
- CONEX
- Inverter
Further advanced air purification technology, nanoe™ X by new Generator Mark3
nanoe™ X effectiveness proven in large space by 3rd party
CONEX: A next-generation remote control
Industry-leading powerful, 360° wide & comfortable airflow
Powerful drain pump gives 850 mm lift
Wireless remote controller included
Documents
Combination
Individual Controller
Centalised Controller
Accessory
Case Studies
Related Stories
Features
|
Btu/h (rated) |
17,100 |
20,500 |
24,200 |
34,100 |
42,700 |
47,800 |
42,700 |
47,800 |
|
|
Phase |
1Ø Phase |
1Ø Phase |
1Ø Phase |
3Ø Phase |
|||||
|
Indoor Unit |
|
S-1821PU3HA-1 |
S-2430PU3HA-1 |
S-3448PU3HA-1 |
S-3448PU3HA-1 |
||||
|
Outdoor Unit |
|
U-18PRH1H5-1 |
U-21PRH1H5-1 |
U-24PRH1H5-1 |
U-34PRH1H5-1 |
U-43PRH1H5-1 |
U-48PRH1H5-1 |
U-43PRH1H8-1 |
U-48PRH1H8-1 |
A New Level of Air Quality with nanoe X Generator Mark3
24-hour nanoe™ X Air Protection
Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
Higher Concentration, Even in Large Space
The amount of hydroxyl radicals generated increased 100 times, compared to the original nanoe™, which achieves greater effectiveness even in large spaces of 112 m².
Conditions of the simulation ･Room size: 112 m² ･Room height: 2.4 m ･Inspection model: 4-Way Cassette ･Position of IDU: Centre
Note: The result is based on the conditions for the simulation and it may differ from the concentration measured in an actual room. nanoe™ particles are extremely tiny in nano-meter size. They cannot be seen, so the concentration image is solely for illustrative purposes.
Effective at Eliminating Odours in Only 30 Minutes
The nanoe X Generator Mark3 reduces odours by as much as 1.8 levels* in just 30 minutes. This is half the time required to achieve the same effect compared to the conventional nanoe X Generator Mark 2.
*A 1.8 level decrease in odour intensity is equivalent to a reduction of 95% or more.
[Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour
**Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P160U6 equivalent tester equipped with a nanoe X Generator Mark3 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 30 minutes (R21HM003-0)
[Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour
**Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P160U6 equivalent tester equipped with a nanoe X Generator Mark3 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 30 minutes (R21HM003-0)
Inside Cleaning Function Prevents Mould
nanoe™ X also keeps the inside of the air conditioner clean. After the cooling/drying operation, the interior of the indoor unit dries itself automatically.* nanoe™ X is activated to suppress mould growth.
*If you wish to set the inside cleaning function off, use the wireless RC to turn the function off. Please consult an authorized dealer for setting.
Note: The product image shown is for illustration purposes only and may not be an exact representation of the product.
Note: The product image shown is for illustration purposes only and may not be an exact representation of the product.
Smart Power Saving with IoT

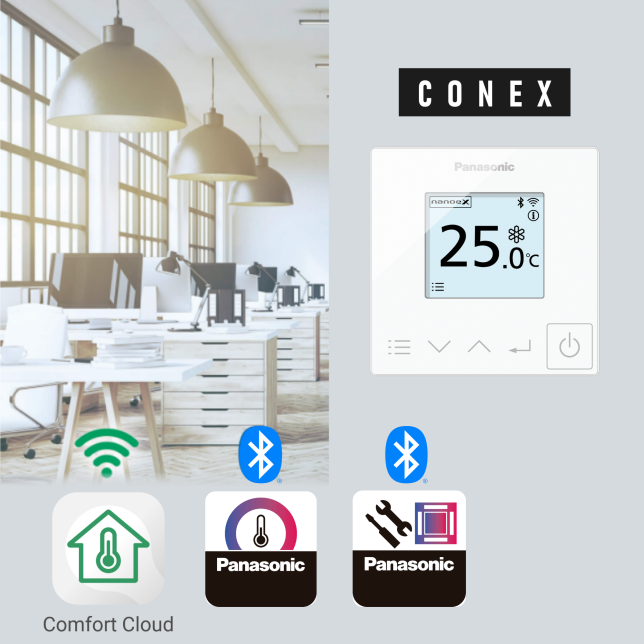

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: A wireless remote controller is provided with the product.

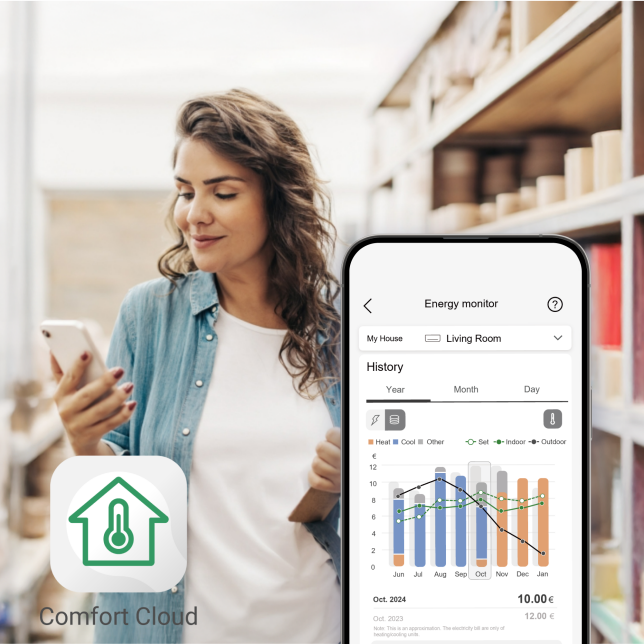

Smart Management of Power Consumption
Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6BLW are required per unit.
Industry-Leading Airflow for Cooling Comfort
Cools the Area Quickly
The Turbo Fan with Twisted 3D Blades delivers big and powerful airflow that instantly makes spaces comfortable and cool.
Note: This table shows values for the airflow rate in high mode.
Delivers Cool Air from High Ceilings
A wider main flap and sub-flap increase airflow, and a wider-angle jetting port creates a longer airflow. Cool air can reach from a maximum height of 5 meters, making even spaces with high ceilings and open spaces comfortable.
Note: 4-Way Cassette 3448PU type
Cools Every Corner of Spaces
The air delivered in four directions from the wide flap creates a 360 degree airflow, spreading cool air to every corner of spacious environments. Thus, the entire room is cooled, ensuring the comfort of your customers and staff.
Double Insulation to Prevent Dew Condensation
The unit prevents water leaks due to condensation. The interior of the indoor unit of the air conditioner is cold, so when it comes into contact with hot air outside, condensation occurs, causing water leaks. Panasonic adopts insulation materials both inside and outside of the unit to guard against condensation and water leaks.
Flat Horizontal Design That Conditions the Interior
Panasonic believes that one of the most important elements of design is that it doesn’t interfere with the overall room interior. The flat horizontal design of the 4-Way Cassette achieves an elegant yet simple form. This design allows it to protrude only 33.5 mm from the ceiling, to blend naturally into a variety of interiors, including offices and restaurants.

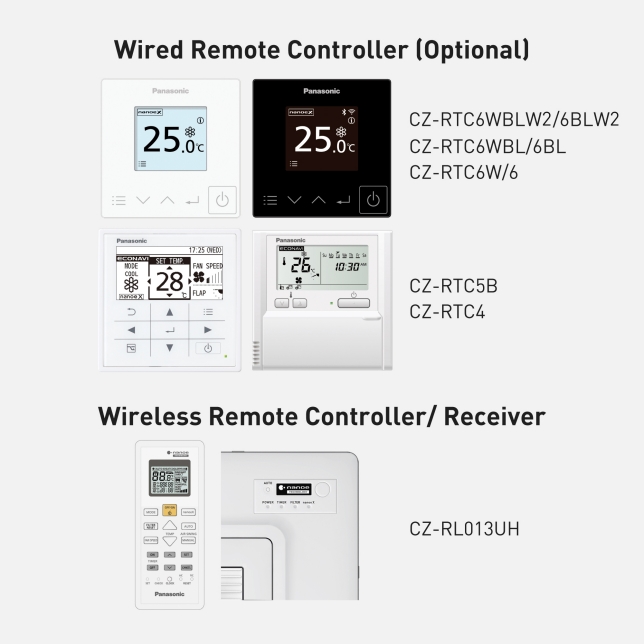

Wireless, Wired Remote Controller
Besides Smart Control CONEX, wireless remote controllers* and conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.
*A wireless remote controller is in the same package with the indoor unit.
Flexible and Easy Installation
The drain pump can pump water up to a height of 850 mm, making the drain pipe layout easy.
The unit has been redesigned for easier installation. (1) Previously, the eye bolts were hard to attach because of the bracket’s shape. (2) By improving it to a V-shape, it is easier to install. (3) The nut has become larger, so it is easier to hold.
