Slim Ducted Inverter R32

Slim Ducted Inverter Series

Compact Yet Powerful Cooling

Panasonic Slim Ducted Inverter Series features slim, compact design and built-in drain pump to provide flexible installation in narrow ceiling spaces. Wide-angle airflow provides optimum cool air distribution across the room. Manage your air conditioners from one mobile device with Panasonic Comfort Cloud App (optional network adaptor CZ-TACG1 is required). Achieve energy efficiency without compromising comfort with Inverter technology and R32 refrigerant.

Please Select Your User Type

Slim Ducted Inverter Series

Features

Wide Cooling Capacity to Suit Your Needs and Preferences

Model
Model	CS-MU9YD3Z	CS-MU12YD3Z	CS-MU18YD3Z	CS-MU24YD3Z
Btu/h	9,550	11,900	17,100	20,500
kW	2.8	3.5	5.0	6.0

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units with Panasonic Comfort Cloud App anywhere, anytime (optional network adaptor CZ-TACG1 is required). Remotely access all air conditioning features such as tracking and monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

200mm Height to Fit Narrow Ceiling Spaces

Slim and compact design with 200mm height, requiring only 240mm ceiling space for installation in narrow ceiling spaces. Fits discreetly into the narrow ceiling cavity, offering a harmonious look while providing a consistent cooling comfort.

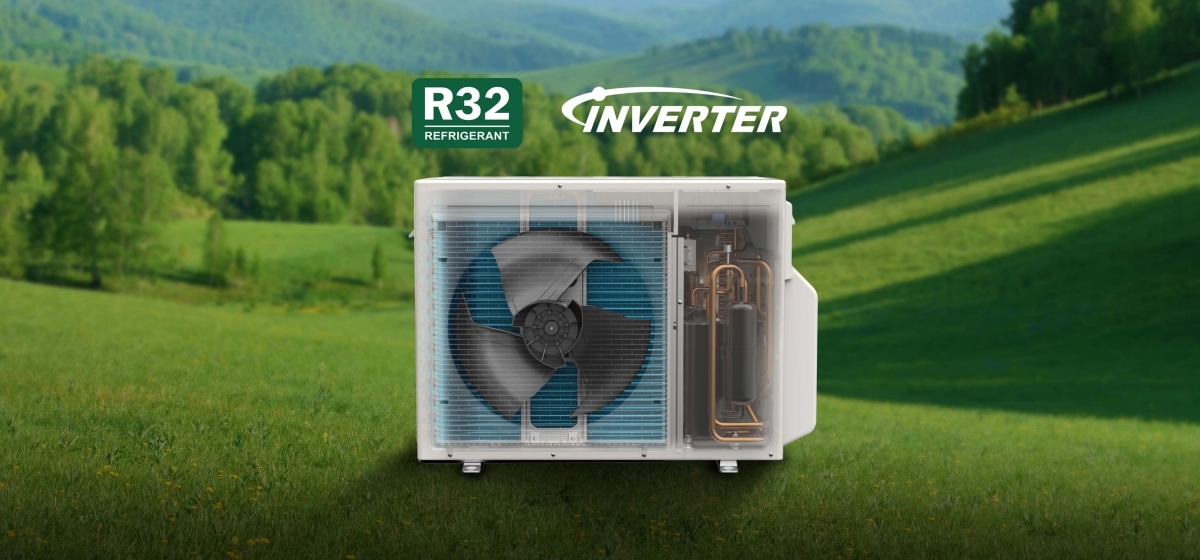

Better Living, Together with Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Comfort Cooling Environment for Your Needs

Cooling Comfort with Wide-Angle Range

Cool airflow is directed towards the ceiling over a wide-angle range for optimum airflow distribution across the room.

POWERFUL Mode for Instant Cooling Comfort

When POWERFUL Mode is switched on, the internal setting temperature will shift lower and increase in fan speed, offering instant powerful cooling when you need to cool the space quickly.

Calm and Peaceful Environment with Quiet Mode

Loud noises can be a bother, no matter the time of the day. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment.

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD52CP-1) provides a large display for improved visibility and a vast range of information to ease operations.

Specs

CS-MU9YD3Z

CS-MU12YD3Z

CS-MU18YD3Z

CS-MU24YD3Z

Panasonic Comfort Cloud App
POWERFUL Mode
Inverter
Quiet Mode
Built-in Drain Pump
Bottom Air Intake
R32 Refrigerant

200mm height to fit in narrow ceiling spaces

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

Air intake from the bottom allows flexible installation

High-lift built-in drain pump

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Energy savings with Inverter and environmentally friendly R32 refrigerant

	CS-MU9YD3Z	CS-MU12YD3Z	CS-MU18YD3Z	CS-MU24YD3Z
Cooling Capacity (kW)	2.8 kW	3.5 kW	5.0 kW	6.0 kW
Cooling Capacity (Btu/h)	9,550 Btu/h	11,900 Btu/h	17,100 Btu/h	20,500 Btu/h
Power Source	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz
Sound Pressure Level (H/L)	35/28 dB(A)	35/28 dB(A)	41/30 dB(A)	41/30 dB(A)
Air Circulation (H)	13.2 m³/min (465 ft³/min)	13.2 m³/min (465 ft³/min)	15.5 m³/min (545 ft³/min)	15.5 m³/min (545 ft³/min)
Dimensions (H x W x D) (mm)	200 mm x 750 mm x 640 mm	200 mm x 750 mm x 640 mm	200 mm x 750 mm x 640 mm	200 mm x 750 mm x 640 mm
Net Weight	19 kg	19 kg	19 kg	19 kg
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm	ø 6.35 mm	ø 6.35 mm	ø 6.35 mm
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm	ø 9.52 mm	ø 9.52 mm	ø 12.70 mm*
Power Supply	Outdoor	Outdoor	Outdoor	Outdoor
Inverter Control	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes
POWERFUL Mode	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes
Odour-Removing Function	Yes	Yes	Yes	Yes
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes
Wireless LAN Remote Control For Internet Connection	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)
Wired Remote Control	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)
Bottom Air Intake	Yes	Yes	Yes	Yes
Built-In Drain Pump	Yes	Yes	Yes	Yes
Random Auto Restart (32 Restart Patterns)	Yes	Yes	Yes	Yes
Blue Fin Condenser	Yes	Yes	Yes	Yes
Top-Panel Maintenance Access	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes
Note				*Pipe size expander CZ-MA2PA is not required when outdoor units CU-4U34YBZ are connected to CS-MU24YD3Z.

Documents

Panasonic R32 Multi-Split Air Conditioning System Leaflet (PDF - 7.4 MB)

Panasonic R32 Multi-Split Air Conditioning System Combination Capacity Table (PDF - 60 KB)

Combination

Multi Split Air Conditioner

R32 Multi-Split Air Conditioning System

Connect Up to 4 Indoor Units, Wide Cooling Capacity Range, Inverter, R32 Refrigerant, Quiet Mode, High Durability, Flexible Installation.

Optional Accessory

CZ-TACG1

The optional Wireless LAN adaptor enables seamless connection of the air conditioner to Panasonic Comfort Cloud Service, empowering you to control and monitor your air conditioner using your mobile devices from anywhere.

Optional Individual Controller

CZ-RD52CP

Wired remote for mini cassettes. It supports basic AC functions and timer control.

Optional Centralised Controller (Connecting Adaptor Required)

CZ-64ESMC3

Efficient management with centralised control of up to 64 units (64 groups, 64 indoor units). This solution includes four energy-saving functions, demand control, and timer functions, all designed to improve overall management efficiency.

CZ-ANC3

Enable simple, centralised control of up to 64 units (16 groups, 64 indoor units). This system specialises in ON/OFF control for easy and efficient management.

CZ-256ESMC3

Control up to 256 indoor units* centrally, promoting comfort and energy efficiency across the building with four energy-saving functions and demand control. The system offers swift AC cost calculations for tenants and enables remote monitoring and control via the internet.

CZ-CFUSCC1

AC Smart Cloud communication adaptor. Control up to 128 groups (128 indoor units) with ease.

CZ-CSWKC2

P-AIMS (Panasonic - Air Conditioning Intelligent Management System) integrates monitoring and control of air conditioners from your PC. By coupling basic software with optional ones, it enables comprehensive monitoring and control of all types of building equipment.

Optional Connecting Adaptor

CZ-CAPRA1

Adaptor to connect Single Split System and Multi Split System to S-Link system for full centralised control.
