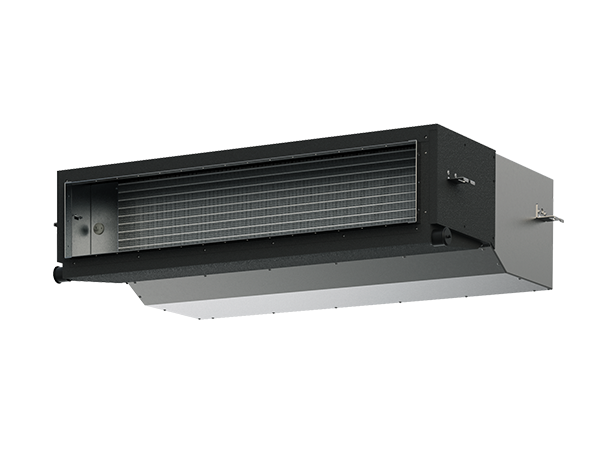

R32 Inverter NX Series High Static Ducted

High static and large airflow ducted for a comfortable living in large homes

R32 Inverter NX Series High Static Ducted offer improved design flexibility for extended duct layouts thanks to their increased external static pressure. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series High Static Ducted

Features

Capacity (kW)	Cooling	6.0	7.1	10.0		12.5		14.0		16.0
Capacity (kW)	Heating	6.0	7.1/8.0	10.0/11.2		12.5/14.0		14.0/16.0		18.0
Phase		1Ø Phase	1Ø Phase	1Ø Phase	3Ø Phase	1Ø Phase	3Ø Phase	1Ø Phase	3Ø Phase	1Ø Phase	3Ø Phase
Indoor Unit		S-60PE3R	S-71PE3R	S-100PE3R		S-125PE3R		S-140PE3R		S-160PE3R
Outdoor Unit (Deluxe)		-	U-71PZH3R5	U-100PZH3R5	U-100PZH3R8	U-125PZH3R5	U-125PZH3R8	U-140PZH3R5	U-140PZH3R8	U-160PZH3R5	U-160PZH3R8
Outdoor Unit (Compact)		U-60PZ3R5	U-71PZ3R5	U-100PZ3R5	U-100PZ3R8	U-125PZ3R5	U-125PZ3R8	U-140PZ3R5	U-140PZ3R8	-	-

Ducted Air Conditioning. Year Round Comfort

Deliver the Comfort Through Entire House

Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.

Heat and Cool Each Room Individually Through Zoning

With individual zones for your home’s ducted air-conditioning system, everyone can enjoy their own airflow. Save on energy and running costs by turning off the airflow when rooms aren’t in use..

LEARN MORE

Heat and Cool Each Room Individually Through Zoning

More Efficient Air Protection with nanoe X Generator Mark2

24-hour nanoe™ X Air Protection

Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

LEARN MORE

nanoe™ X Effectiveness Proven in Large Space

The nanoe™ X fan mode reduced adhered odour by 0.7 levels* compared to natural reduction after 2 hours of exposure.

*A 1 level reduction in odour intensity is equivalent to a reduction of 90%. Note: (1) Testing method: Verified using the six-level odour intensity scale method in an approximately 378 m³ sized test room (2) Inhibition method: nanoe X Generator Mark2 released (3) Test substance: Surface-attached cigarette smoke odour (4) Test result: Odour intensity reduced by 0.7 levels in 2 hours (KT-19-015089-1)

nanoe™ X Effectiveness Proven in Large Space

Benefit from nanoe™ X Even with Long, Curved Ductwork

Combined with the strong static pressure, this model ensures pristine nanoe™ X air travels unaffected, even through multiple duct shapes at lengths of 10 meters, as well as making them ideal for use in larger spaces.

Smart Power Saving with IoT

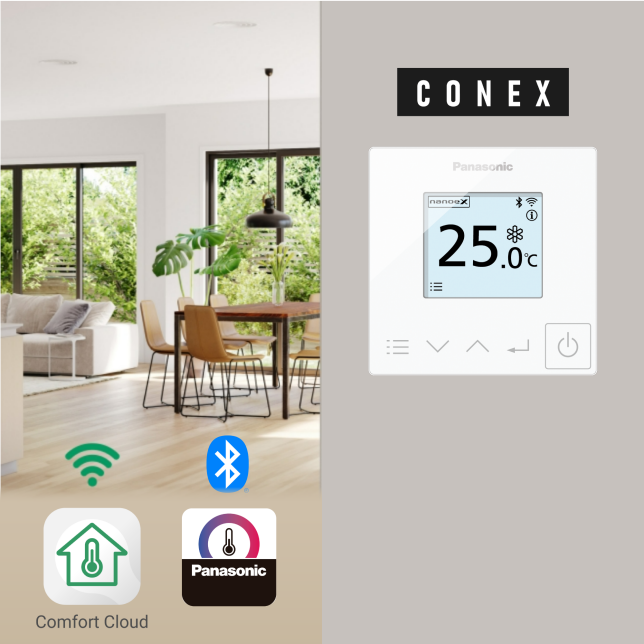

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.

Note: A wireless remote controller is provided with the product.

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

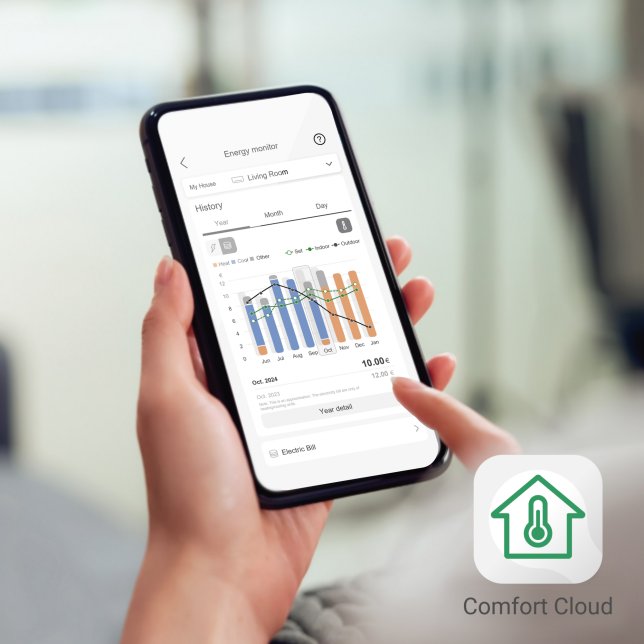

Smart Management of Power Consumption

Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.

Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6WBLW/6BLW are required per unit.

LEARN MORE

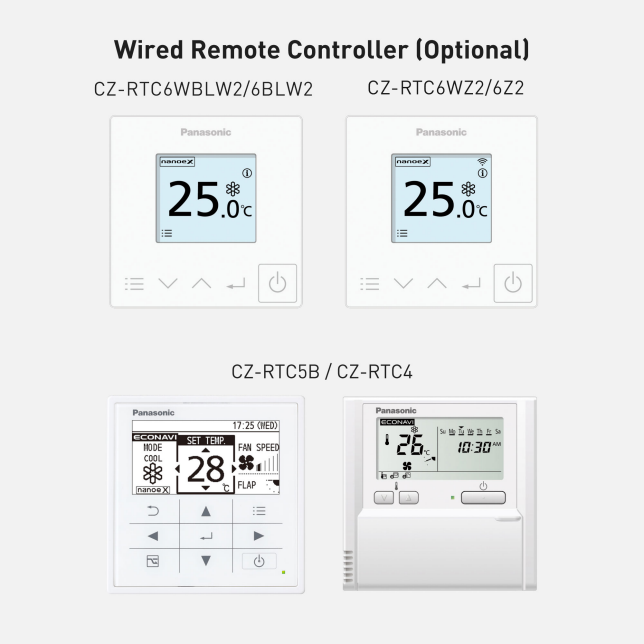

Wired Remote Controller

Besides Smart Control CONEX, conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.

LEARN MORE

Flexible Installation

Optimal airflow set-up is possible depending on ducting design and conditions.

Note: Please refer to technical databook for detail.

Variable External Static Pressure Control (10-150 Pa)

An inspection port (450 x 450 mm or more) is required at the lower side of the indoor unit body (field supply).

Installation of Inspection Port Necessary

Specs

S-60PE3R

S-71PE3R

S-100PE3R

S-125PE3R

S-140PE3R

S-160PE3R

nanoe™ X
Comfort Cloud App
CONEX
Inverter

nanoe™ X patented air purification technology

nanoe™ X effectiveness proven in large space by 3rd party

CONEX: A next-generation remote control

Design flexibility thanks to high static pressure and large air volume

Discharge air temperature control to reduce cold drafts during heating operation

Configurable air temperature control

	S-60PE3R	S-71PE3R	S-100PE3R	S-125PE3R	S-140PE3R	S-160PE3R
Air Volume (Cooling) (H/M/L)	367/334/267 Ls	501/434/367 Ls	668/584/484 Ls	835/768/601 Ls	1,002/835/701 Ls	1,002/835/701 Ls
Air Volume (Heating) (H/M/L)	367/334/267 Ls	501/434/367 Ls	668/584/484 Ls	835/768/601 Ls	1,002/835/701 Ls	1,002/835/701 Ls
External Static Pressure	70 Pa (10-150 Pa)	100 Pa (10-150 Pa)	100 Pa (10-150 Pa)	100 Pa (10-150 Pa)	100 Pa (50-150* Pa)	100 Pa (Max 150 Pa)
Sound Pressure Level (Cooling) (H/M/L)	43/41/40 dB (A)	45/44/43 dB (A)	48/46/44 dB (A)	49/47/45 dB (A)	51/49/47 dB (A)	51/49/47 dB (A)
Sound Pressure Level (Heating) (H/M/L)	43/41/40 dB (A)	45/44/43 dB (A)	48/46/44 dB (A)	49/47/45 dB (A)	51/49/47 dB (A)	51/49/47 dB (A)
Sound Power Level (Cooling) (H/M/L)	60/58/57 dB	62/61/60 dB	70/68/66 dB	71/69/67 dB	73/71/69 dB	73/71/69 dB
Sound Power Level (Heating) (H/M/L)	60/58/57 dB	62/61/60 dB	70/68/66 dB	71/69/67 dB	73/71/69 dB	73/71/69 dB
Current (Cooling) (rated)	-	-	-	-	-	2.41/2.38 A
Current (Heating) (rated)	-	-	-	-	-	2.41/2.38 A
Dimension	H290 x W1,200 x D700 mm	H360 x W1,200 x D700 mm	H360 x W1,200 x D700 mm	H430 x W1,200 x D700 mm	H430 x W1,200 x D700 mm	H430 x W1,200 x D700 mm
Net Weight	31 kg	36 kg	37 kg	41 kg	50 kg	50 kg
Number of Fan Speeds	3	3	3	3	3	3
Drain Piping	VP-25 mm	VP-25 mm	VP-25 mm	VP-25 mm	VP-25 mm	VP-25 mm
Note					*Not adjustable, refer to “Indoor Fan Performance” section of technical data.

Documents

NX Series Inverter High Static Ducted R32 Spec AU (PDF - 111 KB)

NX Series Inverter High Static Ducted R32 Dimension AU (PDF - 309 KB)

Combination

R32 Inverter NX Series Deluxe

R32 Inverter NX Series Deluxe delivers superior energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units guarantee powerful operation even in extremely hot environments.

R32 Inverter NX Series Compact Model

R32 Inverter NX Series Compact Model delivers energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units ensure powerful operation.
