R32 Inverter NX Series Compact Model

Good energy-saving performance, compact, and resistant to high temperatures and rust

R32 Inverter NX Series Compact Model delivers energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units ensure powerful operation.

R32 Inverter NX Series Compact Model

Features

Capacity (kW)

Cooling

2.5

3.4/3.6

4.6/5.0

5.7/6.0

6.8/7.1

9.0/9.5/10.0

12.1/12.5

13.4/14.0

Heating

3.2

3.6

5.0

5.7/6.0

6.8/7.1

9.0/9.5/10.0

12.1/12.5

13.4/14.0

Phase

1Ø Phase

3Ø Phase

1Ø Phase

3Ø Phase

1Ø Phase

3Ø Phase

4-Way Cassette

S-6071PU3E

S-1014PU3E

Low Profile Mini Cassette

S-25PY3E

S-36PY3E

S-50PY3E

S-60PY3E

Adaptive Ducted

S-3650PF3E

S-6071PF3E

S-1014PF3E

High Static Ducted

S-60PE3R

S-71PE3R

S-100PE3R

S-125PE3R

S-140PE3R

Under Ceiling

S-6071PT3E

S-1014PU3E

Wall Mounted

S-100PK3R

Outdoor Unit

U-25PZ3R5

U-36PZ3R5

U-50PZ3R5

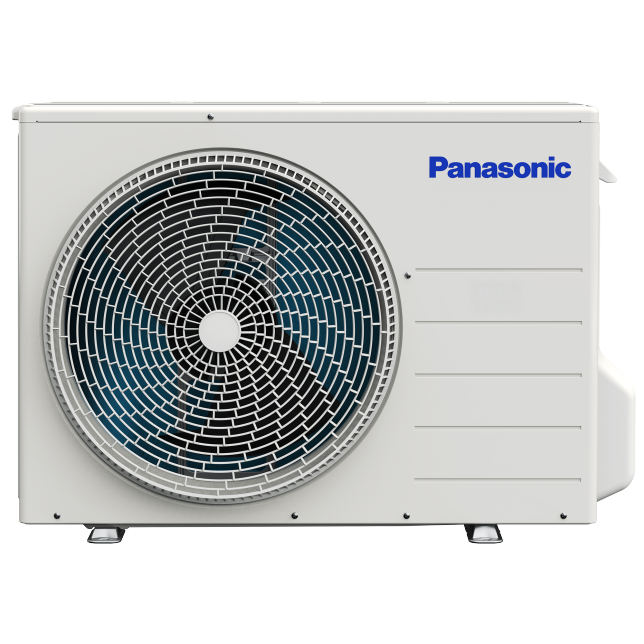

U-60PZ3R5

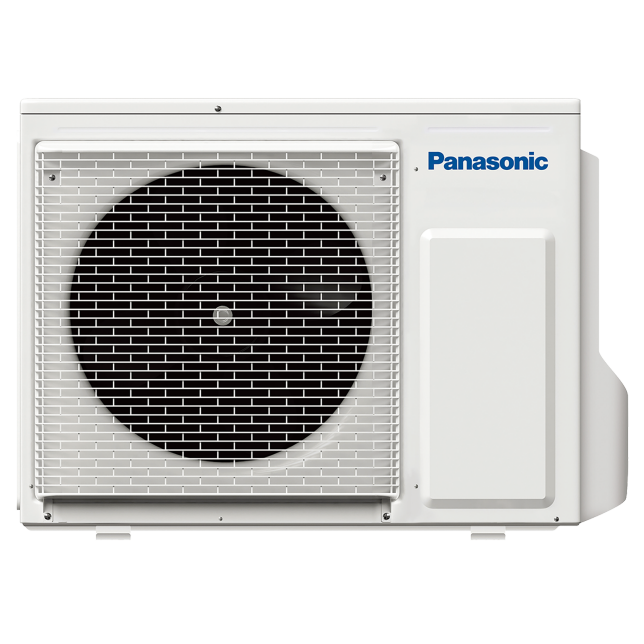

U-71PZ3R5

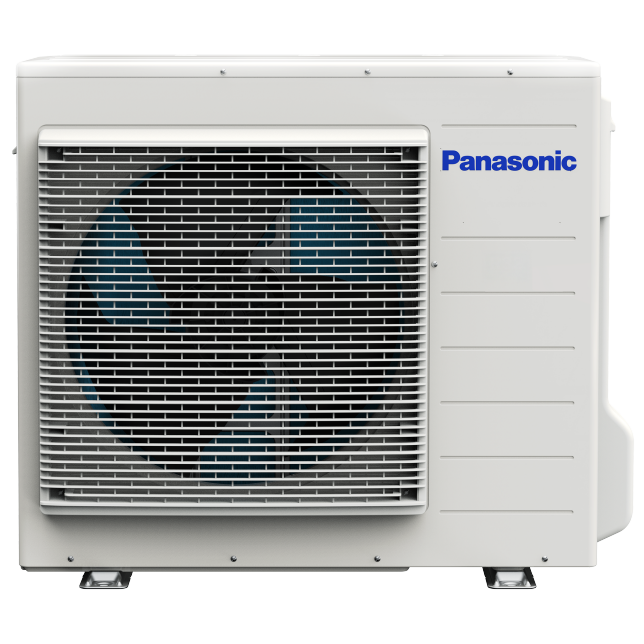

U-100PZ3R5

U-100PZ3R8

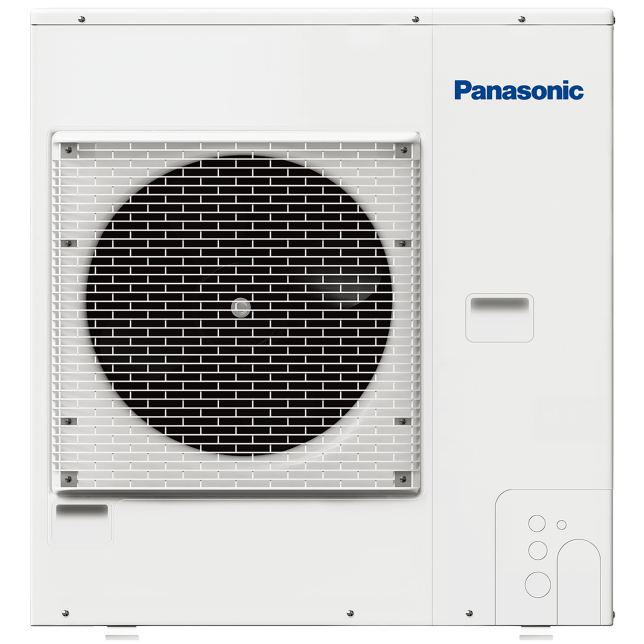

U-125PZ3R5

U-125PZ3R8

U-140PZ3R5

U-140PZ3R8

Eco-Friendly R32 Refrigerant

Panasonic air conditioners are increasingly using the eco-friendly R32 refrigerant, an excellent energy- and cost-efficient heat transfer medium. With lower global warming potential, the R32 refrigerant is much more environmentally friendly.

･ Higher Cooling Capacity
･ Reduce Energy Costs
･ Eco Friendly

High Durable Outdoor Unit

Stable Operation Even in Hot Weather

The operating range has been increased to an outdoor air temperature of up to 46°C. Hot air is discharged from the outdoor unit during cooling operation. Needless to say, if outdoor units are close together, the temperature at the place where the outdoor units have been installed will be higher than the outside temperature. Units in this series continue to operate well even under the high temperature environment of midsummer. As for heating operation, it is possible even when the outdoor temperature is as low as -15°C.

Silicone Coating to Prevent Short-Circuit Faults in the Circuit Board

Geckos can enter outdoor units and trigger an electrical short circuit, which may cause a malfunction. This outdoor unit has a silicon coating on the PCB circuit board, which helps prevent short-circuit faults in such cases.

Note: The coating does not completely eliminate the possibility of short-circuit faults in the circuit board.

Silicone Coating to Prevent Short-Circuit Faults in the Circuit Board

In-House Manufactured Compressor with Outstanding Durability

Compressors are the heart of the air conditioner. Panasonic takes responsibility for the manufacture of all of its own products to ensure their durability.

Rust-resistant and Easy to Maintain

Panasonic heat exchange fins feature Blue Fin technology, which is more rust-resistant than conventional silver fins. They also use copper tube condensers, which are easier to repair and maintain.

Note: Selecting this unit does not completely eliminate the possibility of rust developing. For details concerning unit installation and maintenance, please consult an authorised dealer.

Flexible and Easy Installation

Panasonic outdoor units are designed to be compact enough to fit into any layout.

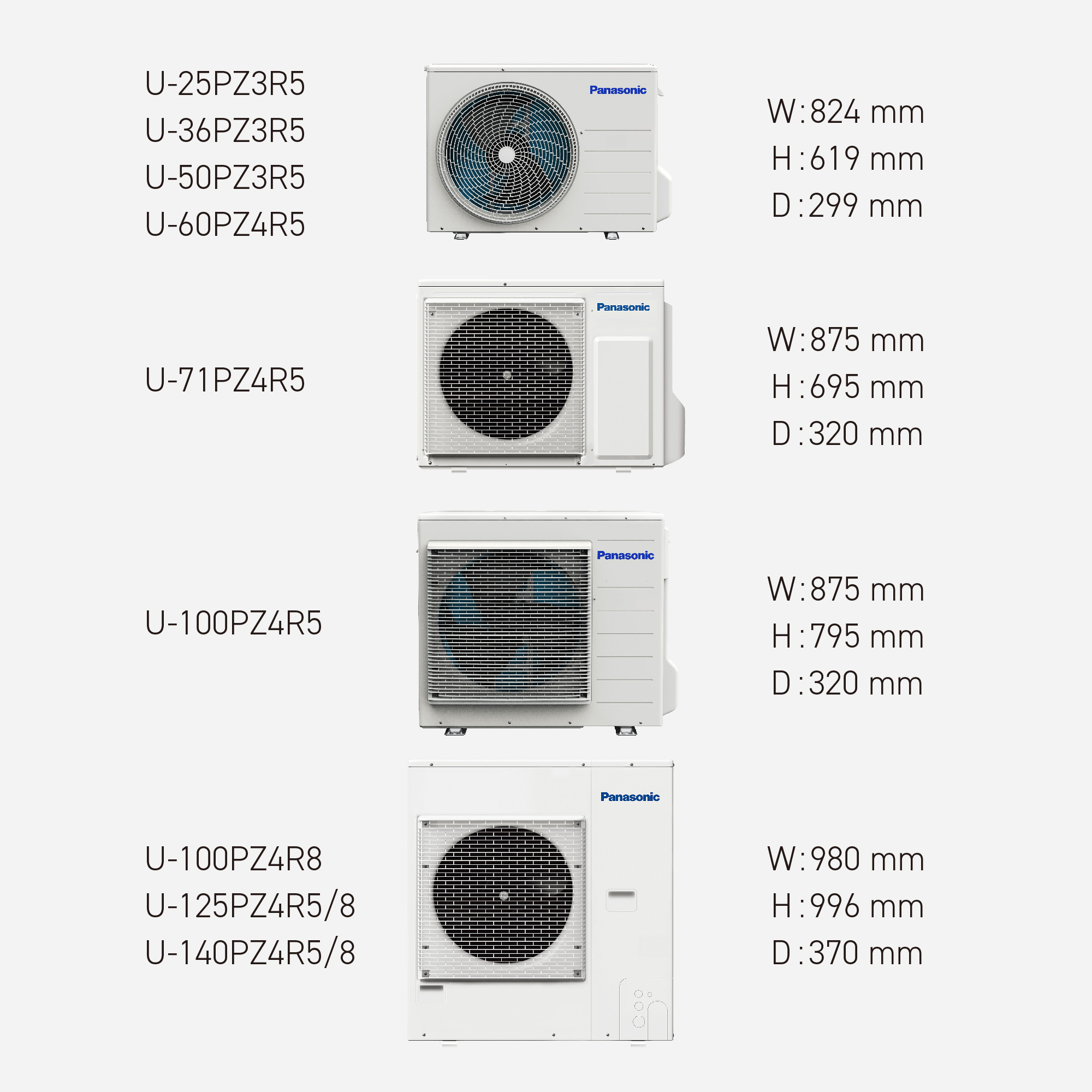

A Compact Outdoor Unit for Places Where Space Is Limited

This series have been developed with 3 wire power and communication. It makes it simple and easy to replace old systems with 3 wire connections, which is prevalent in many systems.

3 Wire Method for Absolute Ease of Refurbishment

Specs

U-25PZ3R5

U-36PZ3R5

U-50PZ3R5

U-60PZ3R5

U-71PZ3R5

U-100PZ3R5

U-100PZ3R8

U-125PZ3R5

U-125PZ3R8

U-140PZ3R5

U-140PZ3R8

Inverter
R32 Refrigerant

Next generation R32 refrigerant

Space-saving outdoor unit

3 wire method

Operating range expanded up to outdoor air temperature of 46 °C

In-house manufactured compressor

Blue fin condenser

	U-25PZ3R5	U-36PZ3R5	U-50PZ3R5	U-60PZ3R5	U-71PZ3R5	U-100PZ3R5	U-100PZ3R8	U-125PZ3R5	U-125PZ3R8	U-140PZ3R5	U-140PZ3R8
Power Source	230/240 V, 1 phase-50 Hz	230/240 V, 1 phase-50 Hz	230/240 V, 1 phase-50 Hz	230/240 V, 1 phase-50 Hz	230/240 V, 1 phase-50 Hz	230/240 V, 1 phase-50 Hz	400/415 V, 3 phase-50 Hz	230/240 V, 1 phase-50 Hz	400/415 V, 3 phase-50 Hz	230/240 V, 1 phase-50 Hz	400/415 V, 3 phase-50 Hz
Air Volume (Cooling) (H/M/L)	-	561 L/s	546 L/s	701 L/s	746 L/s	1,219 L/s	1,219 L/s	1,369 L/s	1,369 L/s	1,402 L/s	1,402 L/s
Air Volume (Heating) (H/M/L)	-	567 L/s	532 L/s	701 L/s	766 L/s	1,219 L/s	1,219 L/s	1,336 L/s	1,336 L/s	1,369 L/s	1,369 L/s
Sound Pressure Level (Silent Mode) (Cooling) (H/M/L)	-	48(46) dB(A)	48(46) dB(A)	48(46) dB(A)	49(47) dB(A)	52(50) dB(A)	52(50) dB(A)	55(53) dB(A)	55(53) dB(A)	56(54) dB(A)	56(54) dB(A)
Sound Pressure Level (Silent Mode) (Heating) (H/M/L)	-	49(47) dB(A)	49(47) dB(A)	49(47) dB(A)	49(47) dB(A)	52(50) dB(A)	52(50) dB(A)	55(53) dB(A)	55(53) dB(A)	56(54) dB(A)	56(54) dB(A)
Sound Power Level (Silent Mode) (Cooling) (H/M/L)	-	66(64) dB	66(64) dB	66(64) dB	67(65) dB	70(68) dB	70(68) dB	73(71) dB	73(71) dB	74(72) dB	74(72) dB
Sound Power Level (Silent Mode) (Heating) (H/M/L)	-	67(65) dB	67(65) dB	67(65) dB	67(65) dB	70(68) dB	70(68) dB	73(71) dB	73(71) dB	74(72) dB	74(72) dB
Current (Cooling) (rated): 4-Way Cassette	-	-	-	7.20/6.90 A	9.65/9.25 A	12.5/12.0 A	4.15/4.00 A	16.1/15.4 A	5.35/5.15 A	20.0/19.2 A	6.65/6.40 A
Current (Cooling) (rated): Low Profile Mini Cassette	-	-	-	-	-	-	-	-	-	-	-
Current (Cooling) (rated): Adaptive Ducted	-	4.00/3.85 A	6.40/6.10 A	7.15/6.85 A	9.50/9.10 A	12.7/12.2 A	4.20/4.05 A	16.5/15.8 A	5.45/5.25 A	19.6/18.8 A	6.50/6.30 A
Current (Cooling) (rated): High Static Ducted	-	-	-	8.50/8.15 A	10.3/9.90 A	13.9/13.4 A	4.45/4.25 A	17.0/16.3 A	5.40/5.20 A	19.7/18.9 A	6.60/6.40 A
Current (Cooling) (rated): Under Ceiling	-	-	-	7.20/6.90 A	9.45/9.05 A	13.1/12.6 A	4.35/4.20 A	17.4/16.7 A	5.75/5.55 A	20.0/19.1 A	6.65/6.40 A
Current (Cooling) (rated): Wall Mounted	-	-	-	-	-	12.4/11.9 A	4.10/3.95 A	-	-	-	-
Current (Heating) (rated): 4-Way Cassette	-	-	-	5.95/5.70 A	7.45/7.15 A	9.70/9.30 A	3.20/3.10 A	13.0/12.5 A	4.35/4.15 A	15.5/14.8 A	5.15/4.95 A
Current (Heating) (rated): Low Profile Mini Cassette	-	-	-	-	-	-	-	-	-	-	-
Current (Heating) (rated): Adaptive Ducted	-	3.80/3.55 A	6.20/5.95 A	6.25/6.00 A	7.55/7.25 A	11.1/10.6 A	3.70/3.55 A	15.7/15.1 A	5.20/5.05 A	16.5/15.8 A	5.45/5.25 A
Current (Heating) (rated): High Static Ducted	-	-	-	6.85/6.60 A	8.00/7.65 A	12.4/11.9 A	3.90/3.70 A	15.0/14.4 A	4.80/4.55 A	17.0/16.3 A	5.70/5.50 A
Current (Heating) (rated): Under Ceiling	-	-	-	6.05/5.80 A	7.15/6.85 A	11.3/10.8 A	3.75/3.60 A	14.8/14.2 A	4.95/4.75 A	17.5/16.8 A	5.80/5.60 A
Current (Heating) (rated): Wall Mounted	-	-	-	-	-	10.9/10.5 A	3.65/3.50 A	-	-	-	-
Dimension	H619 x W824 x D299 mm	H619 x W824 x D299 mm	H619 x W824 x D299 mm	H695 x W875 x D320 mm	H695 x W875 x D320 mm	H996 x W980 x D370 mm	H996 x W980 x D370 mm	H996 x W980 x D370 mm	H996 x W980 x D370 mm	H996 x W980 x D370 mm	H996 x W980 x D370 mm
Net Weight	31 kg	31 kg	35 kg	43 kg	50 kg	83 kg	83 kg	87 kg	87 kg	87 kg	87 kg
Piping Connection (Gas Pipe)	Ø6.35 mm	Ø6.35 mm	Ø6.35 mm	Ø6.35 mm	Ø6.35 mm	Ø9.52 mm	Ø9.52 mm	Ø9.52 mm	Ø9.52 mm	Ø9.52 mm	Ø9.52 mm
Piping Connection (Liquid Pipe)	Ø12.7 mm	Ø12.7 mm	Ø12.7 mm	Ø12.7 mm*	Ø15.88 mm*	Ø15.88 mm	Ø15.88 mm	Ø15.88 mm	Ø15.88 mm	Ø15.88 mm	Ø15.88 mm
Pipe Length (Min-Max)	3-20 m	3-20 m	3-30 m	3-40 m	3-40 m	5-50 m	5-50 m	5-50 m	5-50 m	5-50 m	5-50 m
Elevation Difference (OU Located Lower, OU Located Higher)	15 m (15 m)	15 m (15 m)	15 m (15 m)	15 m (30 m)	15 m (30 m)	15 m (30 m)	15 m (30 m)	15 m (30 m)	15 m (30 m)	15 m (30 m)	15 m (30 m)
Refrigerant at Shipping	R32	R32 870 g	R32 1,140 g	R32 1,130 g	R32 1,320 g	R32 2,400 g	R32 2,400 g	R32 2,800 g	R32 2,800 g	R32 2,800 g	R32 2,800 g
Operation Range, Outdoor (Cooling) (Min-Max)	-10-46 °C	-10-46 °C	-10-46 °C	-10-46 °C	-10-46 °C	-10-46 °C	-10-46 °C	-10-46 °C	-10-46 °C	-10-46 °C	-10-46 °C
Operation Range, Outdoor (Heating) (Min-Max)	-15-24 °C	-15-24 °C	-15-24 °C	-15-24 °C	-15-24 °C	-15-24 °C	-15-24 °C	-15-24 °C	-15-24 °C	-15-24 °C	-15-24 °C
Maximum Chargeless Length (Max)		7.5 m	10 m	30 m	30 m	30 m	30 m	30 m	30 m	30 m	30 m
Additional Gas		10.0 g/m	15 g/m	15 g/m	17 g/m	45 g/m	45 g/m	45 g/m	45 g/m	45 g/m	45 g/m
Note				*For piping connection for 6.0kW unit, connect the gas socket tube (Ø12.7-Ø15.88) to the gas tubing side indoor unit and connect the liquid socket tube (Ø6.35-Ø9.52) to the liquid tubing side indoor unit.	*For piping connection for 7.1kW unit, connect the liquid socket tube (Ø6.35-Ø9.52) to the liquid tubing side indoor unit.
