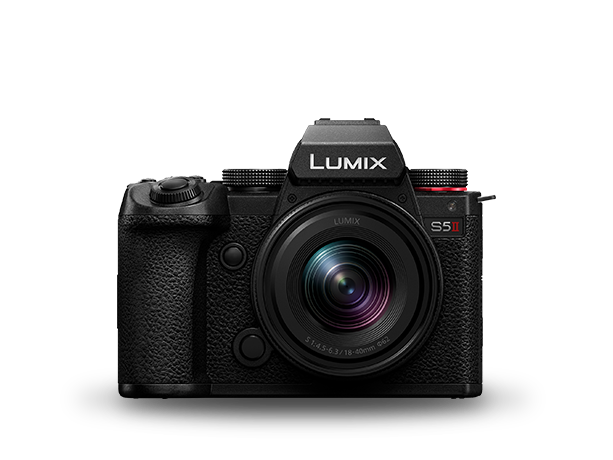

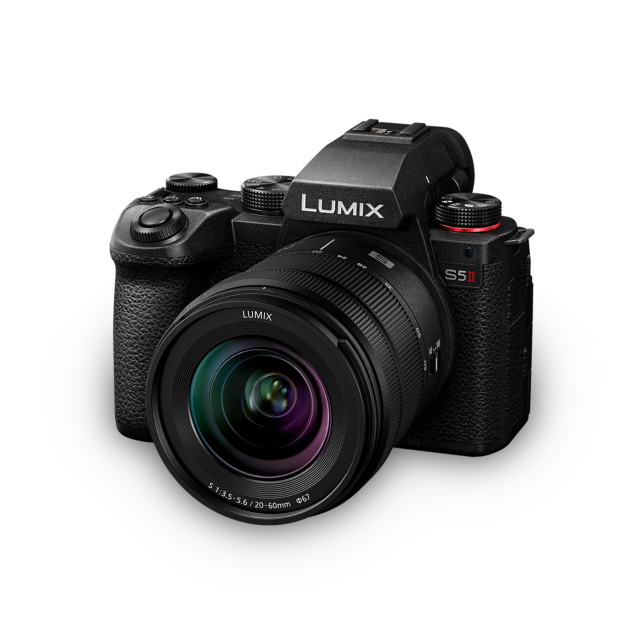

LUMIX S5II Full-Frame Mirrorless Camera DC-S5M2K
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
DC-S5M2K
Explore Your Creative Universe.
Advanced features like PDAF and I.S. (Image stabilization) make using the LUMIX S5II a truly rewarding experience. Capture high-quality photos and video with unlimited recording and enjoy enhanced mobility with this compact full-frame mirrorless camera.
Features
Explore Your Creative Universe.
Meet the LUMIX S5II - beginning of a new phase for LUMIX. With unlimited creative possibilities, these versatile hybrid full-frame mirrorless cameras will help you capture stunning content in any situation.
Firmware 3.0 enhances aggressive shooting styles
Ready for the most ambitious shoots
Phase Hybrid AF lets you shoot continuously with speed and precision, while the LUMIX S5II’s highly advanced AF pushes the envelope on sport, wildlife, and car/motorcycle photography.* In addition, the pre-burst shooting function allows you to go back in time.* Now you’re ready to capture that perfect moment.
*To use Animal Eye/Car/Motorcycle recognition and pre-burst shooting function, please update the firmware to version 3.0.
Great for shooting on the move
The LUMIX S5II also makes it easy to shoot video on the move. Active I.S. determines the status of camera shake and optimises correction ratios to compensate even for significant motion, while advanced E.I.S.* suppresses peripheral distortion that occurs during video shooting. So now you can capture beautiful images, even if you need to move quickly while the camera is rolling.
*Please update the firmware to version 3.0.
Firmware 3.0 introduces LUMIX's first features
Proxy video recording
This new feature records a low bit-rate proxy file when recording video. Simultaneously recording a proxy file that is linked with the original video recording enabling a faster delivery from production to post.
･Please update the firmware to version 3.0.
Native Camera to Cloud Integration with Adobe’s Frame.io
With Frame.io Camera to Cloud, creator’s images and videos are automatically uploaded, backed up, shared, and worked on jointly via the cloud.
･Please update the firmware to version 3.0.
･Not all features of Frame.io Camera to Cloud are guaranteed.
･Frame.io, the Frame.io logo, and Camera to Cloud are either registered trademarks or trademarks of Adobe in the United States and/or other countries.
･Not all features of Frame.io Camera to Cloud are guaranteed.
･Frame.io, the Frame.io logo, and Camera to Cloud are either registered trademarks or trademarks of Adobe in the United States and/or other countries.
Heat management for unlimited recording time
4:2:2 10-bit C4K/4K 60p/50p unlimited recording time.* With a compact body equivalent to the S5, the LUMIX S5II’s new optimised heat dissipation structure enables extended recording even when shooting at heavy loads (e.g. high-resolution video over 4K, HFR video).
*The camera may stop recording when used in a temperature that is lower or higher than the recommended operating temperature (0 to 40 degrees). Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
The LUMIX commitment to superior image quality
The new engine delivers more true-to-life colours, finer resolution, and a natural three-dimensional effect, and combined with Dual Native ISO technology, effectively suppresses noise even when shooting at ultra-high sensitivities, beautifully rendering even dark areas.
Easy colour grading with REAL TIME LUT
LUT-applied photos and videos can be recorded internally without any special software. Even if you don’t have specialised editing skills, the camera helps you expand your range of expression as much as you want.
Tough body for a wide range of weather conditions
The camera can be used in a wide range of weather conditions. The durable magnesium alloy full die-cast frame and sealing of all joints, dials, and buttons make it dust- and splash-resistant*.
*Dust- and splash-resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
Intuitive operation
The intuitive, well-calculated layout and 8-directional joystick allow you to select the focus area intuitively with simple, one-thumb operation for speedy shooting.
Related products
Lenses that enable high-quality photographic and video expression
The LUMIX S series delivers superior optical performance, mobility, and operability without compromise. Even when you change lenses, all your images show a consistent rendering, for high-quality works of art.
A higher grade of visual expression
Enjoy RAW video data output, ProRes recording, All-Intra video, external USB-SSD recording, and wireless/wired live streaming for professional video production.
Get Inspired
Specs
Size and Weight
- Height
- 102.3mm
- Width
- 134.3mm
- Depth
- 90.1mm
- Weight
- 740g
All values are approximate. Weight with SD card and battery. Lens is excluded. Body only 657g. Dimensions exclude protrusions.
L-Mount- 24.2 Megapixels
- Phase Hybrid AF
- Active I.S. Technology
- C4K/4K 4:2:2 10-bit 60p/50p video
- HFR/VFR 10-bit Video
- V-Log
- 1840k-dot Free-angle Monitor
- 3680k-dot OLED Live View Finder
- Splash and Dust-resistant
- Wi-Fi
- Bluetooth
New 24.2MP sensor with Dual Native ISO technology and a new generation engine
Fast, accurate, dependable autofocus system — Phase Detection AF
Active I.S. Technology supports walking shots, to further enhance image stabilization in video recording
C4K/4K 60p/50p 4:2:2 10-bit unlimited recording
TYPE
-
Type
-
Digital Single Lens Mirrorless camera
-
-
Lens mount
-
L-Mount
-
IMAGE SENSOR
-
Type
-
35mm full-frame (35.6mm x 23.8mm) CMOS sensor
-
-
Camera effective pixels / Total pixels
-
24.20 megapixels / 25.28 megapixels
-
-
AR (Anti Reflection) coating
-
Yes
-
-
Aspect ratio / Colour filter
-
3:2 / Primary colour filter
-
-
Dust reduction system
-
Image sensor shift type
-
LATITUDE
-
14+ stops (V-Log)
STILL IMAGE
-
Recording file format
-
JPEG (DCF, Exif 2.31), RAW
-
-
Aspect ratio
-
4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
-
-
File size (pixels) when using full-frame lenses
-
3:2
-
6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode.
-
-
4:3
-
5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode.
-
-
16:9
-
6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode.
-
-
1:1
-
4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode.
-
-
65:24
-
6000x2208(L)
-
-
2:1
-
6000x3000(L)
-
-
-
File size (pixels) when using APS-C/Super 35mm lenses
-
3:2
-
3984x2656(L) / 2880x1920(M) / 2064x1376(S)
-
-
4:3
-
3536x2656(L) / 2560x1920(M) / 1840x1376(S)
-
-
16:9
-
3984x2240(L) / 2880x1624(M) / 1920x1080(S)
-
-
1:1
-
2656x2656(L) / 1920x1920(M) / 1376x1376(S)
-
-
-
Image quality
-
RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
-
-
Colour space
-
sRGB, AdobeRGB
-
MOTION PICTURE
-
Proxy (*⁷)
-
ON / OFF
Proxy Rec Quality: H / M / L
Real Time LUT (Proxy): ON / OFF
*When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, and [HDMI RAW Data Output].
-
SLOW & QUICK
-
MOV / 59.94Hz / FULL (*¹)
-
[FHD] 1920x1080
-
59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
-
MOV / 59.94Hz / APS-C (*¹)
-
[C4K] 4096x2160
-
29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[4K] 3840x2160
-
29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[FHD] 1920x1080
-
59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
-
MOV / 50.00Hz / FULL (*¹)
-
[FHD] 1920x1080
-
50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
-
MOV / 50.00Hz / APS-C (*¹)
-
[C4K] 4096x2160
-
25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[4K] 3840x2160
-
25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[FHD] 1920x1080
-
50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
-
MOV / 24.00Hz / FULL (*¹)
-
[FHD] 1920x1080
-
24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
-
MOV / 24.00Hz / APS-C (*¹)
-
[C4K] 4096x2160
-
24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[4K] 3840x2160
-
24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[FHD] 1920x1080
-
24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
HDMI RAW DATA OUTPUT (*⁵)
-
Compatible external devices
-
ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V" / "Shogun CONNECT"
*Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT.
*Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same colour grading as V-Log/V-Gamut
https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
*All functions may not be available depending on the situation.
Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
*Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
*DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
*All functions may not be available depending on the situation.
-
-
Rec quality / 59.94Hz / FULL
-
[5.9K] 5888x3312 (16:9)
-
29.97p, 12-bit (LPCM)
23.98p, 12-bit (LPCM)
-
-
-
Rec quality / 59.94Hz / APS-C
-
[4.1K] 4128x2176 (17:9)
-
59.94p, 12-bit (LPCM)
29.97p, 12-bit (LPCM)
23.98p, 12-bit (LPCM)
-
-
[3.5K] 3536x2656 (4:3)
-
29.97p, 12-bit (LPCM)
23.98p, 12-bit (LPCM)
-
-
-
Rec quality / 50.00Hz / FULL
-
[5.9K] 5888x3312 (16:9)
-
25.00p, 12-bit (LPCM)
-
-
-
Rec quality / 50.00Hz / APS-C
-
[4.1K] 4128x2176 (17:9)
-
50.00p, 12-bit (LPCM)
25.00p, 12-bit (LPCM)
-
-
[3.5K] 3536x2656 (4:3)
-
50.00p, 12-bit (LPCM)
25.00p, 12-bit (LPCM)
-
-
-
Audio format
-
LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
*When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
-
VIEWFINDER
-
Type
-
OLED Live View Finder
-
-
Pixels
-
Approx. 3.68 million dots
-
-
Field of view / Magnification
-
Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
-
-
Eye point / Diopter adjustment
-
Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
-
-
Eye sensor
-
Yes
-
-
Display speed
-
120fps / 60fps
-
REAR MONITOR
-
Type
-
TFT LCD monitor with static touch control
-
-
Monitor size
-
Free-angle, 3.0-inch (7.6cm), 3:2 aspect
-
-
Pixels
-
Approx. 1.84 million dots
-
-
Field of view
-
Approx. 100%
-
STATUS LCD
-
-
FOCUS (*³)
-
Type
-
Phase Detection AF system / Contrast AF system
-
-
DFD technology
-
Yes
-
-
Focus mode
-
AFS (Single) / AFC (Continuous) / MF
-
-
AF mode
-
Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human / Animal / Car (*⁷) / Motorcycle (*⁷). Except when Pinpoint is set.
-
-
AF detective range
-
EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
-
-
AF custom setting
-
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
-
-
AF assist light
-
Yes
-
-
AF lock
-
Set the Fn button in custom menu to AF lock
-
-
Focus ring control
-
Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
-
-
Others
-
AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope (*⁶), Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume
-
EXPOSURE CONTROL
-
Light metering system
-
1,728-zone multi-pattern sensing system
-
-
Light metering mode
-
Multiple / Centre Weighted / Spot / Highlight Weighted
-
-
Metering range
-
EV0-18 (F2.0 lens, ISO100 equivalent)
-
-
Mode dial
-
Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
*The same exposure operations as P/A/S/M mode is available.
-
-
Exposure compensation
-
1/3 EV step ±5EV (±3EV for motion picture)
-
-
ISO sensitivity (Standard output sensitivity)
-
[Normal]
Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
[V-Log]
Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO
[HLG]
Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
-
-
Dual Native ISO
-
[Normal]
Native ISO: 100, 640
Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 50* / 100-800 *Extended ISO
High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO
[V-Log]
Native ISO: 640, 4000
Auto: Auto / 320* / 640-51200 *Extended ISO
Low: Auto / 320* / 640-5000 *Extended ISO
High: Auto / 2000* / 4000-51200 *Extended ISO
[HLG]
Native ISO: 400, 2500
Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 400-3200
High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO
[Cinelike D2 / Cinelike V2]
Native ISO: 200, 1250
Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
Low: Auto /100* / 200-1600 *Extended ISO
High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
-
-
AE lock
-
Set the Fn button in custom menu to AE lock
-
IMAGE STABILISATION SYSTEM
-
B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]
WHITE BALANCE
-
White balance
-
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4
-
-
White balance adjustment
-
Blue/Amber bias, Magenta/Green bias
-
-
Colour temperature setting
-
2500-10000K in 100K
-
SHUTTER
-
Type
-
Focal-plane shutter
-
-
Shutter speed
-
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
Motion picture: 1/16,000 - 1/25
Creative Video M mode / MF mode: 1/16,000 - 1/2
-
-
Self timer
-
10sec, 3 images / 2sec / 10sec / Custom Time
-
-
Remote control
-
Remote control by DMW-RS2 (sold separately)
-
-
Silent mode / Shutter type
-
Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
-
BRACKET
-
AE bracket
-
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
-
-
Aperture bracket
-
3, 5 or all positions
-
-
Focus bracket
-
1 to 999 images, focus steps can be set in 10 levels
-
-
White balance bracket
-
3 images in blue/amber axis or in magenta/green axis, colour temperature setting
-
BURST SHOOTING
-
Burst speed
-
Mechanical shutter / Electronic front curtain shutter
-
H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)
-
-
Electronic shutter
-
SH30: 30 frames/sec (AFS/AFC/MF)
SH30 PRE: 30 frames/sec (AFS/AFC/MF) (*⁷)
H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)
-
-
-
Number of recordable images
-
H/M/L*
RAW+JPEG: More than 200 images
RAW: More than 200 images
JPEG: More than 300 images
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
*When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".
SH
RAW / RAW+JPEG / JPEG: 200 images
-
FLASH
-
Flash type
-
TTL External Flash (sold separately)
-
-
Synchronization speed
-
Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
-
-
Flash mode
-
Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
-
-
Flash synchronization
-
1st Curtain Sync, 2nd Curtain Sync.
-
-
Flash output adjustment
-
1/3EV step ±3EV
-
-
Wireless control
-
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
-
EXTRA TELE CONVERSION
-
2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.
COLOUR SETTINGS
-
Photo Style
-
Photo Style
-
Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome (*⁸) / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
*Set to ON from Show/Hide Photo Style to select.
-
-
Picture adjustment
-
Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / Filter Effect / Grain Effect / Colour Noise / Sharpness / Noise Reduction / ISO / WB / LUT
*Adjustable settings vary depending on the Photo Style mode.
-
-
-
Filter
-
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
-
-
LUT Library
-
Vlog_709 / Set 1-10
*REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.
-
MOTION PICTURE FUNCTION
-
Time lapse shot
-
Yes
-
-
Stop motion animation
-
Yes
-
-
Live cropping
-
Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
-
-
SS/Gain operation
-
Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
-
-
Luminance level
-
8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023
-
-
Synchro scan
-
Yes
-
-
Master pedestal level
-
31 steps
-
-
Colour bars / 1kHz test tone
-
Yes (SMPTE / EBU / ARIB) / Yes
-
-
LUT view assist
-
Supported file types: .vlt, .cube
Monitor / HDMI
-
-
HLG view assist
-
Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
-
-
Anamorphic desqueeze display
-
2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
-
-
Wave form monitor / Vectorscope
-
Selectable
-
-
Knee control
-
Yes (in Like709 mode)
-
-
Red REC frame indicator
-
ON / OFF
-
VERTICAL POSITION INFORMATION
-
Still image / Motion picture (ON/OFF)
LEVEL GAUGE
-
Yes
FUNCTION BUTTON
-
REC
-
Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Colour Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Colour Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / AF-Point Scope (*⁶) / Proxy Recording (*⁷) / REAL TIME LUT (*⁸) / Restore to Default
-
-
PLAY
-
Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Send Images to Frame.io (*⁷) / Restore to Default
-
INTERFACE
-
USB
-
USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
-
-
HDMI (*⁴)
-
HDMI
-
HDMI TypeA
Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
-
-
Monitor-through
-
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
-
-
Playback
-
59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
24.00Hz: C4K/24p / 4K/24p / 1080p
*Only for playback.
-
-
-
Remote input
-
φ2.5mm
-
-
Audio
-
Build-in microphone
-
Stereo
Wind Noise Canceller: OFF / Standard / High
-
-
External microphone / External audio device input
-
φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
-
-
XLR microphone
-
Yes with DMW-XLR1 (sold separately)
-
-
4ch mic input
-
Yes with DMW-XLR1 (sold separately)
-
-
Speaker
-
Monaural
-
-
Headphone output
-
φ3.5mm
-
-
-
SD card slot
-
Slot 1, Slot 2
SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
-
TC IN/OUT
-
Count up
-
Rec Run / Free Run
-
-
Time code mode
-
Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
-
-
HDMI time code output
-
ON / OFF
-
FAN
-
Auto1 / Auto2 / Fast / Normal / Slow* / OFF**
*Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p.
**OFF can be set when in iA/P/A/S/M mode.
WIRELESS
-
Wi-Fi
-
2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
5GHz bands (STA) (IEEE 802.11a/n/ac)
Security: WPA/WPA2/WPA3
-
-
Bluetooth
-
Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
-
DUST AND SPLASH RESISTANT*
-
Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER
-
Battery
-
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery
-
-
Continuous recordable time (Motion picture) (*¹)
-
MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
-
-
Actual recordable time (Motion picture) (*¹)
-
MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
-
-
Battery grip
-
DMW-BGS5 (sold separately)
-
DIMENSIONS / WEIGHT
-
Dimensions (W x H x D)
-
Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)
Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions)
Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)
-
-
Weight
-
Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)
-
OPERATING ENVIRONMENT
-
Operating temperature
-
0℃ to 40℃ (32℉ to 104℉)
-
-
Operating humidity
-
10%RH to 80％RH
-
STANDARD ACCESSORIES
-
Software
-
LUMIX Tether
･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
LUMIX Sync / LUMIX Lab (*⁸)
･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
-
-
Standard accessories
-
DC-S5M2 Kit
Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C)
DC-S5M2K Kit / DC-S5M2C Kit
Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap, Lens Hood, Lens Rear Cap
DC-S5M2W Kit
Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap x 2, Lens Hood x 2, Lens Rear Cap x 2
･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
-
Note
-
(*1) About motion picture recording
- Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes
- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV]: 192GB
(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
(*3) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.
(*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).
(*5) Firmware must be updated to version 2.0. Upgrade Software Key (DMW-SFU2) is required.
(*6) Firmware must be updated to version 2.2.
(*7) Firmware must be updated to version 3.0.
(*8) Firmware must be updated to version 3.1.
Kit Variations
Reviews
USER REVIEWS
Customer Reviews
Accessories
Lenses
S-R24105
LUMIX S 24-105mm F4 MACRO O.I.S.
S-S85
L-Mount 85mm Fixed Focal Length Lens
Battery / Battery Grip
DMW-AC10E
AC Adapter
Shutter Remote Control / Tripod Grip
Flashes
DMW-FL200L
External Flash
VW-LED1
LED Video Light
.png)
