Standard Non-Inverter PN Series (XKQ)

Recommended price: from ₱ 31,899.00

SHOP NOW
Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

Energy Labels

Model Number CS-PN9XKQ_CU-PN9XKQ CS-PN12XKQ_CU-PN12XKQ CS-PN18XKQ_CU-PN18XKQ CS-PN24XKQ_CU-PN24XKQ
Horsepower 1.0 HP 1.5 HP 2.0 HP 2.5HP
Energy Efficiency Label

Standard Non-Inverter PN Series (XKQ)

Experience Instant Cooling Comfort

Panasonic Standard Non-Inverter PN Series (XKQ) features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room, while Quiet mode reduces the noise level of the indoor units for quiet operation. Features environmentally friendly R32 refrigerant.
*BIG FLAP is applicable to CS-PN9XKQ and CS-PN12XKQ. AEROWINGS is applicable to CS-PN18XKQ and CS-PN24XKQ.
  • POWERFUL Mode
  • R32 Refrigerant
  • BIG FLAP
  • AEROWINGS
Zoom In
Zoom Out
Close
Standard Non-Inverter PN Series (XKQ)
Recommended price: from ₱ 31,899.00

Features

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.
Instant Powerful Cooling with a Push of a Button

Comfort Cooling Environment for Your Needs

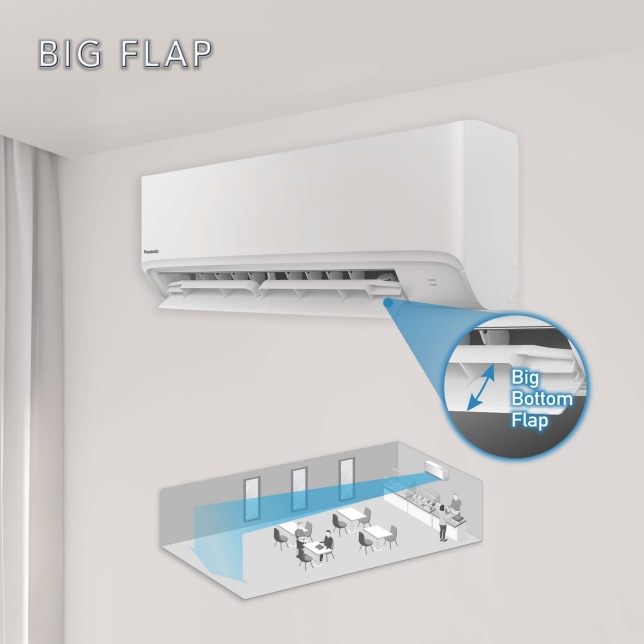

Long Airflow with Big Flap

Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*BIG FLAP is applicable to CS-PN9XKQ and CS-PN18XKQ only.
Long Airflow with Big Flap

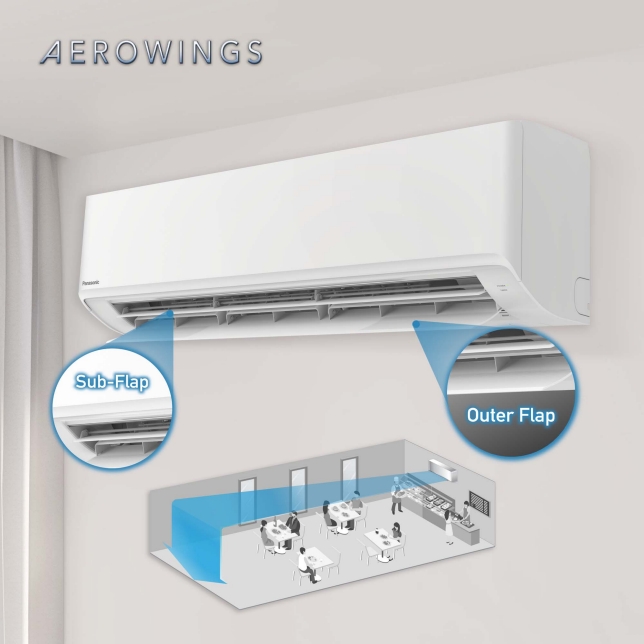

Stay Cool with Faster, Further Airflow

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*AEROWINGS is applicable to CS-PN18XKQ and CS-PN24XKQ only.
Stay Cool with Faster, Further Airflow

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.
Calm and Peaceful Environment with Quiet Mode

Environmentally Friendly R32 Refrigerant

Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.
Environmentally Friendly R32 Refrigerant

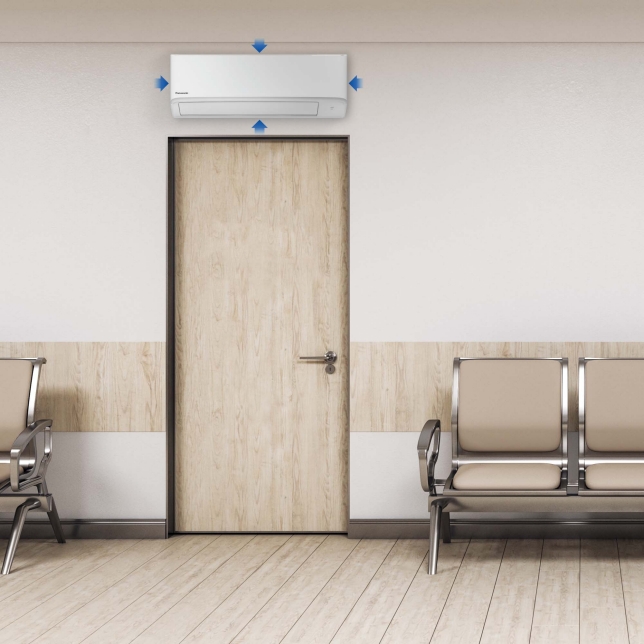

Fits Perfectly Anywhere

Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.
Fits Perfectly Anywhere

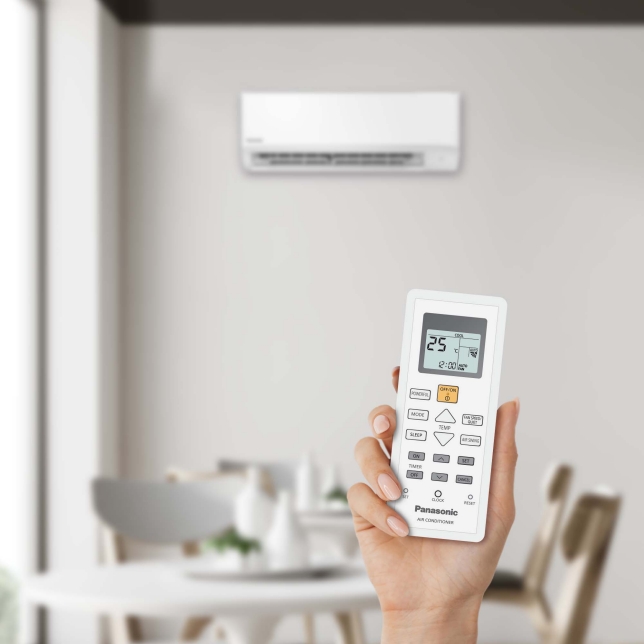

Convenient Control at Your Fingertips

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Convenient Control at Your Fingertips

Range

Model

Horsepower

1.0 HP

1.5 HP

2.0 HP

2.5 HP

Cooling Capacity

kW

2.67

3.55

5.25

6.80

kJ/h

9,610

12,780

18,900

24,480

Indoor Unit

CS-PN9XKQ

CS-PN12XKQ

CS-PN18XKQ

CS-PN24XKQ

Outdoor Unit

CU-PN9XKQ

CU-PN12XKQ

CU-PN18XKQ

CU-PN24XKQ

Recommended price

₱ 31,899.00

₱ 37,299.00

₱ 49,199.00

₱ 58,899.00

Specs

CS-PN9XKQ_CU-PN9XKQ

Photo of CS-PN9XKQ_CU-PN9XKQ

CS-PN12XKQ_CU-PN12XKQ

Photo of CS-PN12XKQ_CU-PN12XKQ

CS-PN18XKQ_CU-PN18XKQ

Photo of CS-PN18XKQ_CU-PN18XKQ

CS-PN24XKQ_CU-PN24XKQ

Photo of CS-PN24XKQ_CU-PN24XKQ
  • POWERFUL ModePOWERFUL Mode
  • R32 RefrigerantR32 Refrigerant
  • BIG FLAPBIG FLAP
  • AEROWINGSAEROWINGS
  • Quiet ModeQuiet Mode
  • Sleep ModeSleep Mode

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Compact design that fits perfectly anywhere

Environmentally friendly R32 refrigerant

CS-PN9XKQ_CU-PN9XKQ CS-PN12XKQ_CU-PN12XKQ CS-PN18XKQ_CU-PN18XKQ CS-PN24XKQ_CU-PN24XKQ
Cooling Capacity (kW) 2.67 kW 3.55 kW 5.25 kW 6.80 kW
Cooling Capacity (kJ/h) 9,610 kJ/h 12,780 kJ/h 18,900 kJ/h 24,480 kJ/h
EER (kJ/hW) 11.2 kJ/hW 11.5 kJ/hW 11.2 kJ/hW 11.4 kJ/hW
CSPF (W/W) 3.30 W/W (1★) 3.40 W/W (2★) 3.30 W/W (2★) 3.37 W/W (2★)
Voltage (V) 230 V 230 V 230 V 230 V
Current (A) 3.8 A 4.9 A 7.0 A 9.6 A
Power Input (W) 860 W 1,110 W 1,690 W 2,140 W
Moisture Removal (L/h) 1.6 L/h 2.1 L/h 2.9 L/h 3.9 L/h
Moisture Removal (Pt/h) 3.4 Pt/h 4.4 Pt/h 6.1 Pt/h 8.2 Pt/h
Indoor Unit Air Circulation 10.4 m³/min (367 ft³/min) 11.5 m³/min (406 ft³/min) 17.9 m³/min (632 ft³/min) 20.5 m³/min (724 ft³/min)
Indoor Unit Noise Level (H / L ) 36/26 dB(A) 40/29 dB(A) 43/39 dB(A) 47/42 dB(A)
Indoor Unit Dimensions (H x W x D) (mm) 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 295 mm x 1,040 mm x 244 mm 295 mm x 1,040 mm x 244 mm
Indoor Unit Dimensions (H x W x D) (inch) 11-7/16 inch x 30-11/16 inch x 8-1/4 inch 11-7/16 inch x 30-11/16 inch x 8-1/4 inch 11-5/8 inch x 40-31/32 inch x 9-5/8 inch 11-5/8 inch x 40-31/32 inch x 9-5/8 inch
Indoor Unit Packaging Dimensions (H x W x D) (mm) 255 mm x 861 mm x 364 mm 255 mm x 861 mm x 364 mm 314 mm x 1,148 mm x 383 mm 314 mm x 1,148 mm x 383 mm
Indoor Unit Packaging Dimensions (H x W x D) (inch) 10-1/16 inch x 33-29/32 inch x 14-11/32 inch 10-1/16 inch x 33-29/32 inch x 14-11/32 inch 12-3/8 inch x 45-7/32 inch x 15-3/32 inch 12-3/8 inch x 45-7/32 inch x 15-3/32 inch
Indoor Unit Net Weight 8 kg (18 lb) 8 kg (18 lb) 12 kg (26 lb) 12 kg (26 lb)
Indoor Unit Gross Weight 9 kg (20 lb) 9 kg (20 lb) 14 kg (31 lb) 14 kg (31 lb)
Outdoor Unit Air Circulation 29.2 m³/min (1,030 ft³/min) 33.6 m³/min (1,190 ft³/min) 36.9 m³/min (1,300 ft³/min) 52.5 m³/min (1,850 ft³/min)
Outdoor Unit Noise Level (H) 49 dB(A) 50 dB(A) 54 dB(A) 55 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm) 511 mm x 650 mm x 230 mm 542 mm x 780 mm x 289 mm 619 mm x 824 mm x 299 mm 695 mm x 875 mm x 320 mm
Outdoor Unit Dimensions (H x W x D) (inch) 20-1/8 inch x 25-19/32 inch x 9-1/16 inch 21-11/32 inch x 30-23/32 inch x 11-13/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch 27-3/8 inch x 34-15/32 inch x 12-5/8 inch
Outdoor Unit Packaging Dimensions (H x W x D) (mm) 578 mm x 784 mm x 347 mm 603 mm x 891 mm x 396 mm 680 mm x 958 mm x 416 mm 761 mm x 1,049 mm x 460 mm
Outdoor Unit Packaging Dimensions (H x W x D) (inch) 22-25/32 inch x 30-7/8 inch x 13-11/16 inch 23-3/4 inch x 35-3/32 inch x 15-19/32 inch 26-25/32 inch x 37-23/32 inch x 16-13/32 inch 29-31/32 inch x 41-5/16 inch x 18-1/8 inch
Outdoor Unit Net Weight 21 kg (46 lb) 28 kg (62 lb) 35 kg (77 lb) 54 kg (119 lb)
Outdoor Unit Gross Weight 23 kg (51 lb) 30 kg (66 lb) 38 kg (84 lb) 58 kg (128 lb)
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm (3/8 inch) ø 12.70 mm (1/2 inch) ø 12.70 mm (1/2 inch) ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length) 7.5 m 7.5 m 7.5 m 7.5 m
Pipe Extension (Maximum Pipe Length) 20 m 20 m 30 m 30 m
Pipe Extension (Maximum Elevation Length) 15 m 15 m 20 m 20 m
Pipe Extension (Additional Refrigerant Gas*) 10 g/m 10 g/m 15 g/m 25 g/m
Power Supply Outdoor Outdoor Outdoor Outdoor
Powerful Mode Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes
Soft Dry Operation Mode Yes Yes Yes Yes
Airflow Direction Control (Up & Down) Yes Yes Yes Yes
Manual Horizontal Airflow Direction Control Yes Yes Yes Yes
Odor Removing Function Yes Yes Yes Yes
Removable Washable Panel Yes Yes Yes Yes
24-Hour ON & OFF Real Setting Timer Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes
Random Auto Restart Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns)
Blue Fin Condenser Yes Yes Yes Yes
Long Piping (max.) 20 m 20 m 30 m 30 m
Top Panel Maintenance Access Yes Yes Yes Yes
Note *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
