| Cooling Capacity (kW) |
2.67 kW |
3.55 kW |
5.25 kW |
6.80 kW |
| Cooling Capacity (kJ/h) |
9,610 kJ/h |
12,780 kJ/h |
18,900 kJ/h |
24,480 kJ/h |
| EER (kJ/hW) |
11.2 kJ/hW |
11.5 kJ/hW |
11.2 kJ/hW |
11.4 kJ/hW |
| CSPF (W/W) |
3.30 W/W (1★) |
3.40 W/W (2★) |
3.30 W/W (2★) |
3.37 W/W (2★) |
| Voltage (V) |
230 V |
230 V |
230 V |
230 V |
| Current (A) |
3.8 A |
4.9 A |
7.0 A |
9.6 A |
| Power Input (W) |
860 W |
1,110 W |
1,690 W |
2,140 W |
| Moisture Removal (L/h) |
1.6 L/h |
2.1 L/h |
2.9 L/h |
3.9 L/h |
| Moisture Removal (Pt/h) |
3.4 Pt/h |
4.4 Pt/h |
6.1 Pt/h |
8.2 Pt/h |
| Indoor Unit Air Circulation |
10.4 m³/min (367 ft³/min) |
11.5 m³/min (406 ft³/min) |
17.9 m³/min (632 ft³/min) |
20.5 m³/min (724 ft³/min) |
| Indoor Unit Noise Level (H / L ) |
36/26 dB(A) |
40/29 dB(A) |
43/39 dB(A) |
47/42 dB(A) |
| Indoor Unit Dimensions (H x W x D) (mm) |
290 mm x 779 mm x 209 mm |
290 mm x 779 mm x 209 mm |
295 mm x 1,040 mm x 244 mm |
295 mm x 1,040 mm x 244 mm |
| Indoor Unit Dimensions (H x W x D) (inch) |
11-7/16 inch x 30-11/16 inch x 8-1/4 inch |
11-7/16 inch x 30-11/16 inch x 8-1/4 inch |
11-5/8 inch x 40-31/32 inch x 9-5/8 inch |
11-5/8 inch x 40-31/32 inch x 9-5/8 inch |
| Indoor Unit Packaging Dimensions (H x W x D) (mm) |
255 mm x 861 mm x 364 mm |
255 mm x 861 mm x 364 mm |
314 mm x 1,148 mm x 383 mm |
314 mm x 1,148 mm x 383 mm |
| Indoor Unit Packaging Dimensions (H x W x D) (inch) |
10-1/16 inch x 33-29/32 inch x 14-11/32 inch |
10-1/16 inch x 33-29/32 inch x 14-11/32 inch |
12-3/8 inch x 45-7/32 inch x 15-3/32 inch |
12-3/8 inch x 45-7/32 inch x 15-3/32 inch |
| Indoor Unit Net Weight |
8 kg (18 lb) |
8 kg (18 lb) |
12 kg (26 lb) |
12 kg (26 lb) |
| Indoor Unit Gross Weight |
9 kg (20 lb) |
9 kg (20 lb) |
14 kg (31 lb) |
14 kg (31 lb) |
| Outdoor Unit Air Circulation |
29.2 m³/min (1,030 ft³/min) |
33.6 m³/min (1,190 ft³/min) |
36.9 m³/min (1,300 ft³/min) |
52.5 m³/min (1,850 ft³/min) |
| Outdoor Unit Noise Level (H) |
49 dB(A) |
50 dB(A) |
54 dB(A) |
55 dB(A) |
| Outdoor Unit Dimensions (H x W x D) (mm) |
511 mm x 650 mm x 230 mm |
542 mm x 780 mm x 289 mm |
619 mm x 824 mm x 299 mm |
695 mm x 875 mm x 320 mm |
| Outdoor Unit Dimensions (H x W x D) (inch) |
20-1/8 inch x 25-19/32 inch x 9-1/16 inch |
21-11/32 inch x 30-23/32 inch x 11-13/32 inch |
24-3/8 inch x 32-15/32 inch x 11-25/32 inch |
27-3/8 inch x 34-15/32 inch x 12-5/8 inch |
| Outdoor Unit Packaging Dimensions (H x W x D) (mm) |
578 mm x 784 mm x 347 mm |
603 mm x 891 mm x 396 mm |
680 mm x 958 mm x 416 mm |
761 mm x 1,049 mm x 460 mm |
| Outdoor Unit Packaging Dimensions (H x W x D) (inch) |
22-25/32 inch x 30-7/8 inch x 13-11/16 inch |
23-3/4 inch x 35-3/32 inch x 15-19/32 inch |
26-25/32 inch x 37-23/32 inch x 16-13/32 inch |
29-31/32 inch x 41-5/16 inch x 18-1/8 inch |
| Outdoor Unit Net Weight |
21 kg (46 lb) |
28 kg (62 lb) |
35 kg (77 lb) |
54 kg (119 lb) |
| Outdoor Unit Gross Weight |
23 kg (51 lb) |
30 kg (66 lb) |
38 kg (84 lb) |
58 kg (128 lb) |
| Refrigerant Pipe Diameter (Liquid Side) |
ø 6.35 mm (1/4 inch) |
ø 6.35 mm (1/4 inch) |
ø 6.35 mm (1/4 inch) |
ø 6.35 mm (1/4 inch) |
| Refrigerant Pipe Diameter (Gas Side) |
ø 9.52 mm (3/8 inch) |
ø 12.70 mm (1/2 inch) |
ø 12.70 mm (1/2 inch) |
ø 15.88 mm (5/8 inch) |
| Pipe Extension (Chargeless Pipe Length) |
7.5 m |
7.5 m |
7.5 m |
7.5 m |
| Pipe Extension (Maximum Pipe Length) |
20 m |
20 m |
30 m |
30 m |
| Pipe Extension (Maximum Elevation Length) |
15 m |
15 m |
20 m |
20 m |
| Pipe Extension (Additional Refrigerant Gas*) |
10 g/m |
10 g/m |
15 g/m |
25 g/m |
| Power Supply |
Outdoor |
Outdoor |
Outdoor |
Outdoor |
| Powerful Mode |
Yes |
Yes |
Yes |
Yes |
| Sleep Mode |
Yes |
Yes |
Yes |
Yes |
| Quiet Mode |
Yes |
Yes |
Yes |
Yes |
| Soft Dry Operation Mode |
Yes |
Yes |
Yes |
Yes |

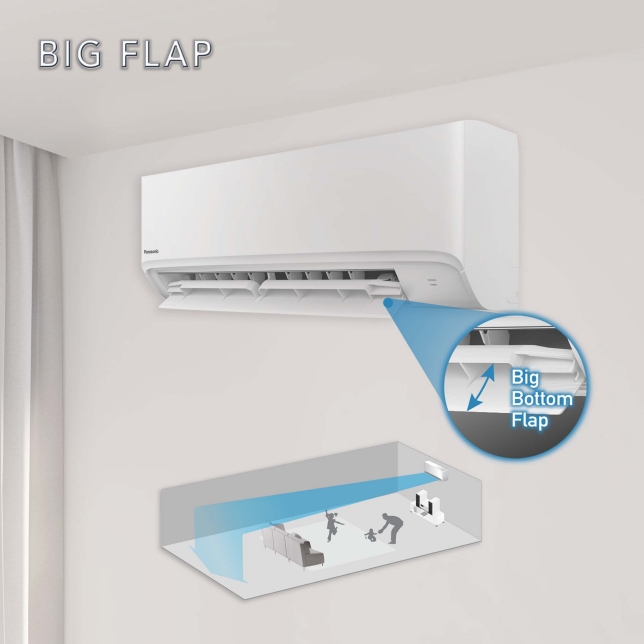

| Airflow Direction Control (Up & Down) |
Yes |
Yes |
Yes |
Yes |

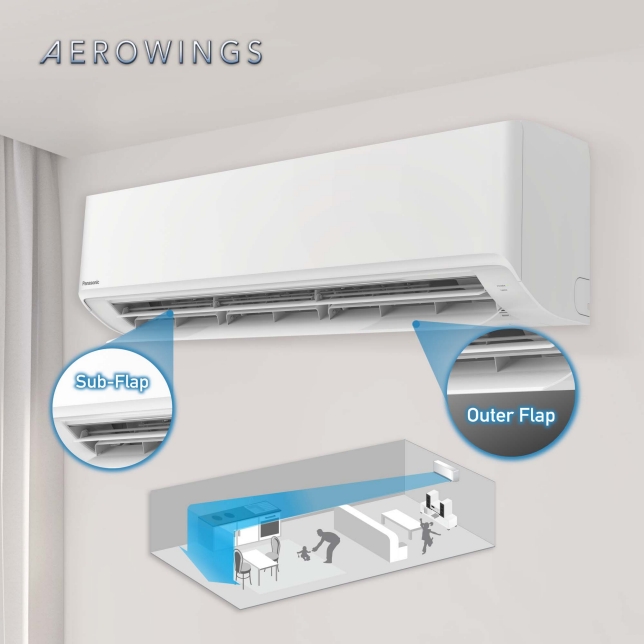

| Manual Horizontal Airflow Direction Control |
Yes |
Yes |
Yes |
Yes |
| Odor Removing Function |
Yes |
Yes |
Yes |
Yes |
| Removable Washable Panel |
Yes |
Yes |
Yes |
Yes |
| 24-Hour ON & OFF Real Setting Timer |
Yes |
Yes |
Yes |
Yes |

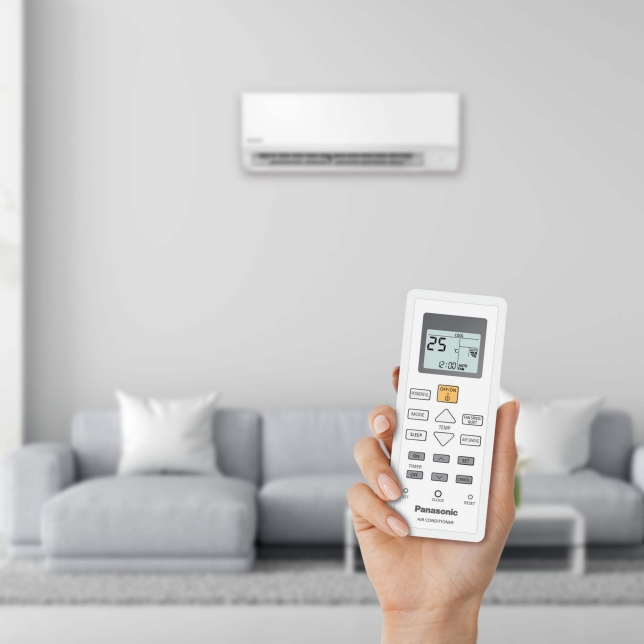

| LCD Wireless Remote Control |
Yes |
Yes |
Yes |
Yes |
| Random Auto Restart |
Yes (32 Restart Patterns) |
Yes (32 Restart Patterns) |
Yes (32 Restart Patterns) |
Yes (32 Restart Patterns) |
| Blue Fin Condenser |
Yes |
Yes |
Yes |
Yes |
| Long Piping (max.) |
20 m |
20 m |
30 m |
30 m |
| Top Panel Maintenance Access |
Yes |
Yes |
Yes |
Yes |
| Note |
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
|
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
|
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
|
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
|
