Standard Inverter QU Series (AKQ)

Recommended price:from ₱ 39,599.00

Where to Buy

Energy Labels

Model Number	CS-QU9AKQ_CU-RU9AKQ	CS-QU12AKQ_CU-RU12AKQ	CS-QU18AKQ_CU-RU18AKQ	CS-QU24AKQ_CU-RU24AKQ
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.5 HP
Energy Efficiency Label

Standard Inverter QU Series (AKQ)

Instantly Cool Spaces On Demand

Panasonic Standard Inverter QU Series (AKQ) features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device. Achieve energy efficiency without compromising comfort with ECO Mode with A.I. Control, Inverter technology and R32 refrigerant.

*BIG FLAP is applicable to CS-QU9AKQ, CS-QU12AKQ and CS-QU18AKQ. AEROWINGS is applicable to CS-QU24AKQ.

Please Select Your User Type

Standard Inverter QU Series (AKQ)

Recommended price:from ₱ 39,599.00

SHOP NOW

Where to Buy

Features

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect and control up to 200* air conditioning units with Panasonic Comfort Cloud App from anywhere, anytime (requires optional network adaptor CZ-TACG1 per unit). Remotely access all air conditioning features such as tracking and monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

*Connects up to 200 air conditioning units (up to 10 groups, with 20 units per group). Requires optional network adaptor CZ-TACG1 per unit.

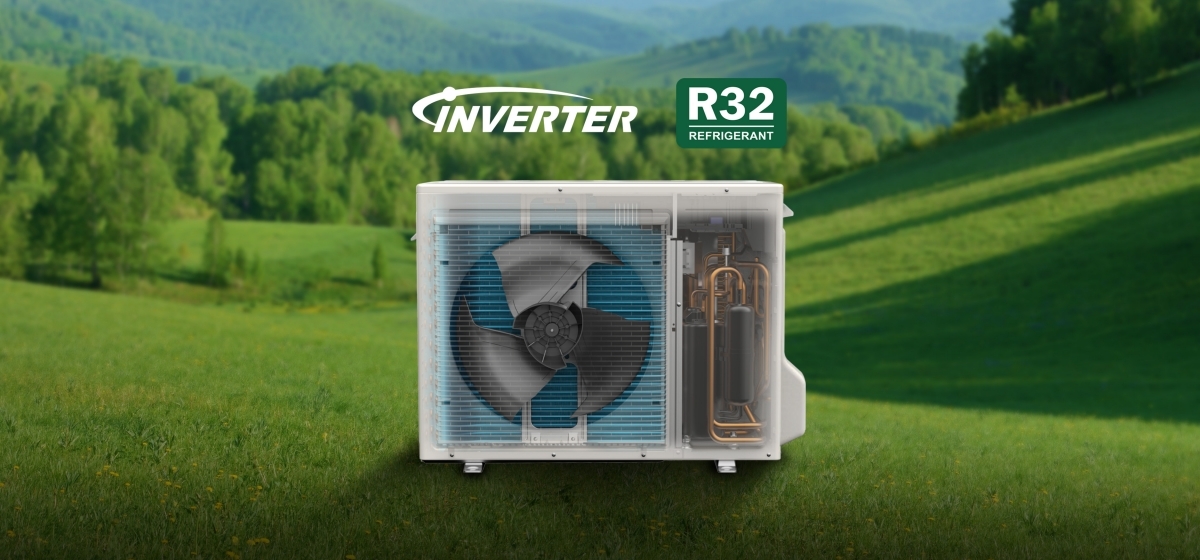

Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of energy-saving Inverter technology and environmentally friendly R32 refrigerant. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. A smarter, greener choice with energy-saving technologies for a sustainable living.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximize energy savings up to 20%* while providing consistent cooling comfort.

*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode cools your room faster by 18%*, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling even during start-up.

*Comparison of POWERFUL cool mode & normal cool mode by using 1.5HP Inverter Model.

LEARN MORE

Comfort Cooling Environment for Your Needs

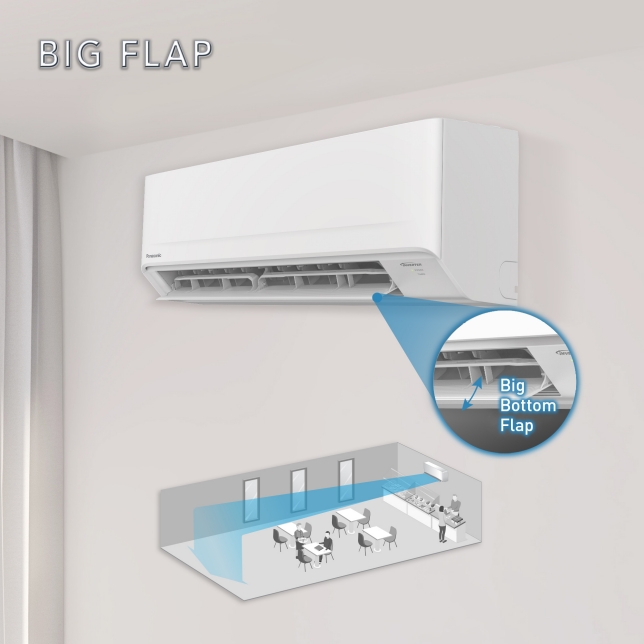

Long Airflow with Big Flap

Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.

*Applicable to CS-QU9AKQ, CS-QU12AKQ and CS-QU18AKQ only

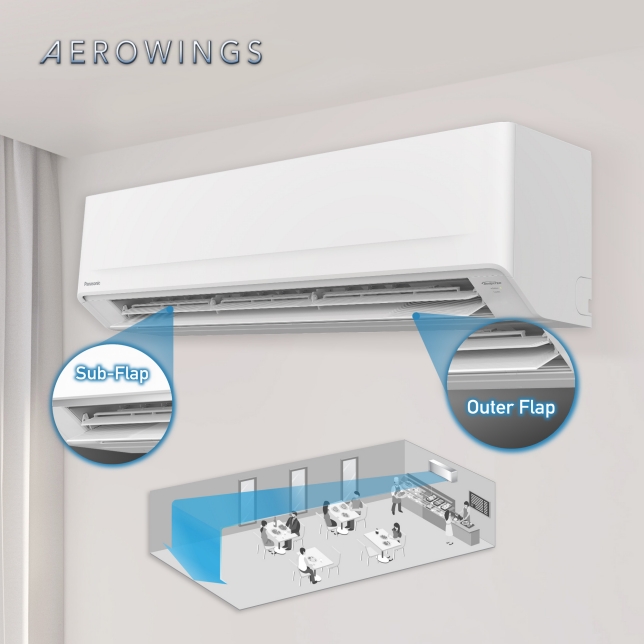

Stay Cool with Faster, Further Airflow

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.

*Applicable to CS-QU24AKQ only

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

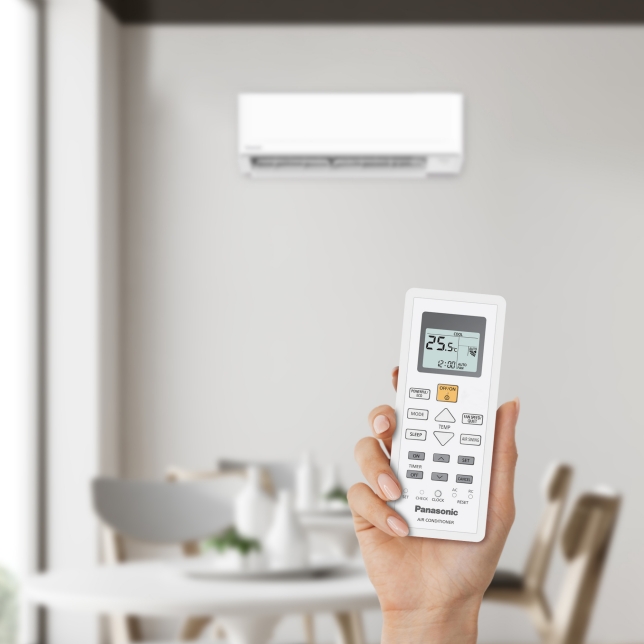

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

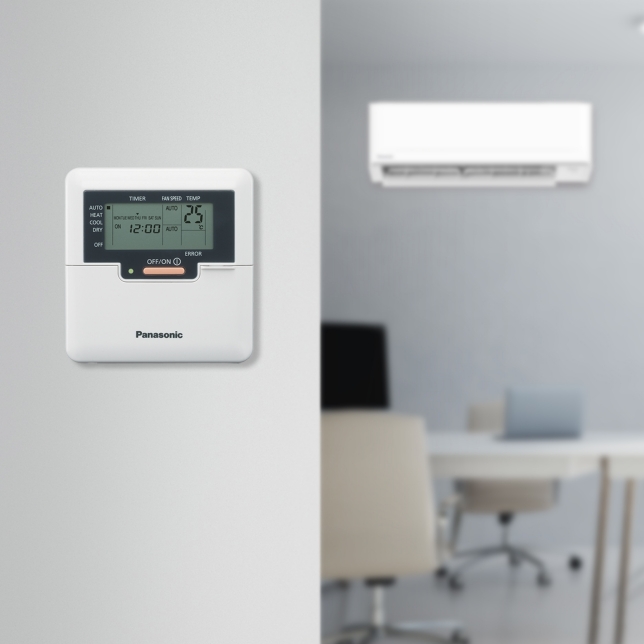

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.5 HP
Cooling Capacity	2.65 kW	3.52 kW	5.20 kW	6.25 kW
Cooling Capacity	9,540 kJ/h	12,670 kJ/h	18,720 kJ/h	22,500 kJ/h
Indoor Unit	CS-QU9AKQ	CS-QU12AKQ	CS-QU18AKQ	CS-QU24AKQ
Outdoor Unit	CU-RU9AKQ	CU-RU12AKQ	CU-RU18AKQ	CU-RU24AKQ
Recommended Price	₱ 39,599.00	₱ 44,899.00	₱ 57,499.00	₱ 68,999.00

Specs

CS-QU9AKQ_CU-RU9AKQ

CS-QU12AKQ_CU-RU12AKQ

CS-QU18AKQ_CU-RU18AKQ

CS-QU24AKQ_CU-RU24AKQ

Panasonic Comfort Cloud App
POWERFUL Mode
Inverter
ECO Mode with A.I. Control
BIG FLAP
AEROWINGS
R32 Refrigerant
Quiet Mode
Sleep Mode

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Intelligently balances energy savings and comfort using ECO Mode with A.I. Control

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

Energy savings with Inverter and environmentally friendly R32 refrigerant

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

	CS-QU9AKQ_CU-RU9AKQ	CS-QU12AKQ_CU-RU12AKQ	CS-QU18AKQ_CU-RU18AKQ	CS-QU24AKQ_CU-RU24AKQ
Cooling Capacity (min-max) (kW)	2.65 (0.90-3.40) kW	3.52 (1.02-4.10) kW	5.20 (1.10-5.60) kW	6.25 (1.12-7.18) kW
Cooling Capacity (min-max) (kJ/h)	9,540 (3,240-12,240) kJ/h	12,670 (3,670-14,760) kJ/h	18,720 (3,960-20,160) kJ/h	22,500 (4,030-25,850) kJ/h
EER (min-max) (kJ/hW)	12.72 (14.40-11.88) kJ/hW	12.30 (13.35-11.71) kJ/hW	10.95 (13.66-10.90) kJ/hW	12.50 (16.12-12.43) kJ/hW
CSPF (W/W)	5.36 W/W (5★)	5.37 W/W (5★)	5.28 W/W (5★)	6.11 W/W (5★)
Voltage (V)	230 V	230 V	230 V	230 V
Current (A)	3.60 A	4.60 A	7.50 A	7.90 A
Power Input (min-max) (W)	750 (225-1,030) W	1,030 (275-1,260) W	1,710 (290-1,850) W	1,800 (250-2,080) W
Moisture Removal (L/h)	1.6 L/h	2.0 L/h	2.9 L/h	3.5 L/h
Moisture Removal (Pt/h)	3.4 Pt/h	4.2 Pt/h	6.1 Pt/h	7.4 Pt/h
Indoor Unit Air Circulation	10.3 m³/min (365 ft³/min)	11.0 m³/min (390 ft³/min)	12.6 m³/min (445 ft³/min)	19.9 m³/min (700 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	36/26/21 dB(A)	38/28/21 dB(A)	44/34/28 dB(A)	45/34/29 dB(A)
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	290 mm x 765 mm x 214 mm	290 mm x 765 mm x 214 mm	290 mm x 765 mm x 214 mm	295 mm x 1,060 mm x 249 mm
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-1/8 inch x 8-7/16 inch	11-7/16 inch x 30-1/8 inch x 8-7/16 inch	11-7/16 inch x 30-1/8 inch x 8-7/16 inch	11-5/8 inch x 41-3/4 inch x 9-13/16 inch
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	266 mm x 847 mm x 373 mm	266 mm x 847 mm x 373 mm	266 mm x 847 mm x 373 mm	314 mm x 1,168 mm x 383 mm
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	10-1/2 inch x 33-3/8 inch x 14-11/16 inch	10-1/2 inch x 33-3/8 inch x 14-11/16 inch	10-1/2 inch x 33-3/8 inch x 14-11/16 inch	12-3/8 inch x 46 inch x 15-3/32 inch
Indoor Unit Net Weight	8 kg (18 lb)	8 kg (18 lb)	9 kg (20 lb)	12 kg (26 lb)
Indoor Unit Gross Weight	9 kg (20 lb)	9 kg (20 lb)	10 kg (22 lb)	15 kg (33 lb)
Outdoor Unit Air Circulation	26.7 m³/min (940 ft³/min)	30.6 m³/min (1,080 ft³/min)	39.3 m³/min (1,390 ft³/min)	34.9 m³/min (1,230 ft³/min)
Outdoor Unit Noise Level (H)	47 dB(A)	48 dB(A)	51 dB(A)	51 dB(A)
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch	21-11/32 inch x 30-23/32 inch x 11-13/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	582 mm x 793 mm x 356 mm	607 mm x 900 mm x 405 mm	684 mm x 967 mm x 425 mm	684 mm x 967 mm x 425 mm
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	22-15/16 inch x 31-1/4 inch x 14-1/32 inch	23-29/32 inch x 35-7/16 inch x 15-31/32 inch	26-15/16 inch x 38-3/32 inch x 16-3/4 inch	26-15/16 inch x 38-3/32 inch x 16-3/4 inch
Outdoor Unit Net Weight	18 kg (40 lb)	22 kg (49 lb)	29 kg (64 lb)	32 kg (71 lb)
Outdoor Unit Gross Weight	20 kg (44 lb)	25 kg (55 lb)	32 kg (71 lb)	35 kg (77 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length)	7.5 m	7.5 m	10 m	10 m
Pipe Extension (Maximum Pipe Length)	20 m	20 m	30 m	30 m
Pipe Extension (Maximum Elevation Length)	15 m	15 m	20 m	20 m
*Pipe Extension (Additional Refrigerant Gas)**	10 g/m	10 g/m	15 g/m	15 g/m
Power Supply	Outdoor	Outdoor	Outdoor	Outdoor
Odor Removing Function	Yes	Yes	Yes	Yes
Removable Washable Panel	Yes	Yes	Yes	Yes
Wi-Fi	Optional (Requires network adaptor CZ-TACG1)	Optional (Requires network adaptor CZ-TACG1)	Optional (Requires network adaptor CZ-TACG1)	Optional (Requires network adaptor CZ-TACG1)
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes
Wired Remote Control	Optional	Optional	Optional	Optional
Powerful Mode	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes
Airflow Direction Control (Up & Down)	Yes	Yes	Yes	Yes
Manual Horizontal Airflow Direction Control	Yes	Yes	Yes	Yes
Inverter Control	Yes	Yes	Yes	Yes
ECO Mode with A.I.	Yes	Yes	Yes	Yes
Refrigerant Type	R32	R32	R32	R32
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes
Long Piping (Maximum Pipe Length)	20 m	20 m	30 m	30 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
