Premium Inverter XU Series (AKQ)

Recommended price:from ₱ 49,999.00

SHOP NOW

Energy Labels

Model Number	CS-XU9AKQ_CU-XU9AKQ	CS-XU12AKQ_CU-XU12AKQ	CS-XU18AKQ_CU-XU18AKQ	CS-XU24AKQ_CU-XU24AKQ	CS-XU30AKQ_CU-XU30AKQ
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.5 HP	3.0 HP
Energy Efficiency Label

Purify Around-the-Clock with nanoe™ X

Panasonic Premium Inverter XU Series (AKQ) integrates nanoe™ X technology with nanoe X Generator Mark 3 for faster pollutant inhibition, while the improved Inside Cleaning cleans and dries the inside of the indoor unit. Built-In Easy Connect allows easier and faster Wi-Fi connectivity to Panasonic Comfort Cloud App. Enjoy comfortable cooling with AEROWINGS, and advanced humidity control with Dry Mode and iAUTO-X with Humidity Sensor. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.

Please Select Your User Type

Premium Inverter XU Series (AKQ)

Recommended price:from ₱ 49,999.00

Specs

CS-XU9AKQ_CU-XU9AKQ

nanoe X Generator Mark 3
Inside Cleaning On Demand
Built-In Easy Connect
Dry Mode with Humidity Sensor
iAUTO-X with Humidity Sensor
nanoe-G
AEROWINGS
Inverter
ECO Mode with A.I. Control
R32 Refrigerant

nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours

Inside Cleaning On Demand ensures the inside of the indoor unit is pollutant-free

Manage your air conditioner using your mobile device with Comfort Cloud App

Advanced humidity control operated by Dry Mode and iAUTO-X with built-in Humidity Sensor

15 meters long air distance with AEROWINGS

Energy efficiency with ECO Mode with A.I. Control, Inverter and environmentally friendly R32 refrigerant

	CS-XU9AKQ_CU-XU9AKQ	CS-XU12AKQ_CU-XU12AKQ	CS-XU18AKQ_CU-XU18AKQ	CS-XU24AKQ_CU-XU24AKQ	CS-XU30AKQ_CU-XU30AKQ
Cooling Capacity (min-max) (kW)	2.55 (0.92-3.20) kW	3.50 (1.02-4.20) kW	5.30 (1.10-6.21) kW	6.10 (1.12-7.18) kW	8.20 (1.30-10.00) kW
Cooling Capacity (min-max) (kJ/h)	9,180 (3,310-11,520) kJ/h	12,600 (3,670-15,120) kJ/h	19,080 (3,960-22,360) kJ/h	21,960 (4,030-25,850) kJ/h	29,520 (4,680-36,000) kJ/h
EER (kJ/hW)	14.34 (14.71-13.09) kJ/hW	14 (14.12-12.81) kJ/hW	15.14 (15.84-13.15) kJ/hW	14.17 (16.12-12.61) kJ/hW	12.83 (13.00-11.25) kJ/hW
CSPF (W/W)	6.26 W/W (5★)	6.53 (5★)	6.92 (5★)	6.81 (5★)	5.70 (5★)
Voltage (V)	230 V	230 V	230 V	230 V	230 V
Current (A)	3.1 A	4.1 A	5.7 A	6.9 A	10.2 A
Power Input (min-max) (W)	640 (225-880) W	900 (260-1,180) W	1,260 (250-1,700) W	1,550 (250-2,050) W	2,300 (360-3,200) W
Moisture Removal (L/h)	1.6 L/h	2.0 L/h	2.9 L/h	3.4 L/h	4.8 L/h
Moisture Removal (Pt/h)	3.4 Pt/h	4.2 Pt/h	6.1 Pt/h	7.2 Pt/h	10.1 Pt/h
Indoor Unit Air Circulation	11.8 m³/min (415 ft³/min)	12.5 m³/min (440 ft³/min)	18.7 m³/min (660 ft³/min)	19.2 m³/min (680 ft³/min)	22.2 m³/min (785 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	38/26/19 dB(A)	40/28/19 dB(A)	44/32/27 dB(A)	45/34/28 dB(A)	47/37/34 dB(A)
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	295 mm x 870 mm x 229 mm	295 mm x 870 mm x 229 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm	309 mm x 1,212 mm x 269 mm
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	11-5/8 inch x 34-9/32 inch x 9-1/32 inch	11-5/8 inch x 34-9/32 inch x 9-1/32 inch	11-5/8 inch x 40-31/32 inch x 9-5/8 inch	11-5/8 inch x 40-31/32 inch x 9-5/8 inch	12-3/16 inch x 47-23/32 inch x 10-19/32 inch
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	289 mm x 952 mm x 383 mm	289 mm x 952 mm x 383 mm	314 mm x 1,148 mm x 383 mm	314 mm x 1,148 mm x 383 mm	352 mm x 1,300 mm x 403 mm
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	11-13/32 inch x 37-1/2 inch x 15-3/32 inch	11-13/32 inch x 37-1/2 inch x 15-3/32 inch	12-3/8 inch x 45-7/32 inch x 15-3/32 inch	12-3/8 inch x 45-7/32 inch x 15-3/32 inch	13-7/8 inch x 51-3/16 inch x 15-7/8 inch
Indoor Unit Net Weight	10 kg (22 lb)	10 kg (22 lb)	12 kg (26 lb)	12 kg (26 lb)	16 kg (35 lb)
Indoor Unit Gross Weight	12 kg (26 lb)	12 kg (26 lb)	14 kg (31 lb)	14 kg (31 lb)	19 kg (42 lb)
Outdoor Unit Air Circulation	32.0 m³/min (1,130 ft³/min)	30.9 m³/min (1,090 ft³/min)	34.9 m³/min (1,230 ft³/min)	48.7 m³/min (1,720 ft³/min)	45.9 m³/min (1,620 ft³/min)
Outdoor Unit Noise Level (H)	47 dB(A)	48 dB(A)	50 dB(A)	53 dB(A)	53 dB(A)
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	695 mm x 875 mm x 320 mm	695 mm x 875 mm x 320 mm
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch	21-11/32 inch x 30-23/32 inch x 11-13/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	27-3/8 inch x 34-15/32 inch x 12-5/8 inch	27-3/8 inch x 34-15/32 inch x 12-5/8 inch
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	582 mm x 793 mm x 356 mm	607 mm x 900 mm x 405 mm	684 mm x 967 mm x 425 mm	761 mm x 1,049 mm x 460 mm	761 mm x 1,049 mm x 460 mm
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	22-15/16 inch x 31-1/4 inch x 14-1/32 inch	23-29/32 inch x 35-7/16 inch x 15-31/32 inch	26-15/16 inch x 38-3/32 inch x 16-3/4 inch	29-31/32 inch x 41-5/16 inch x 18-1/8 inch	29-31/32 inch x 41-5/16 inch x 18-1/8 inch
Outdoor Unit Net Weight	17 kg (37 lb)	22 kg (49 lb)	31 kg (68 lb)	38 kg (84 lb)	43 kg (95 lb)
Outdoor Unit Gross Weight	19 kg (42 lb)	25 kg (55 lb)	34 kg (75 lb)	42 kg (93 lb)	47 kg (104 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 12.7 mm (1/2 inch)	ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length)	7.5 m	7.5 m	10 m	10 m	10 m
Pipe Extension (Maximum Pipe Length)	20 m	20 m	30 m	30 m	30 m
Pipe Extension (Maximum Elevation Length)	15 m	15 m	20 m	20 m	20 m
*Pipe Extension (Additional Refrigerant Gas)**	10 g/m	10 g/m	15 g/m	15 g/m	25 g/m
Power Supply	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
nanoe™ X	Yes (Generator Mark 3)	Yes (Generator Mark 3)	Yes (Generator Mark 3)	Yes (Generator Mark 3)	Yes (Generator Mark 3)
nanoe-G	Yes	Yes	Yes	Yes	Yes
Inside Cleaning On Demand	Yes	Yes	Yes	Yes	Yes
Anti-Dust Coating	Yes	Yes	Yes	Yes	Yes
Odor Removing Function	Yes	Yes	Yes	Yes	Yes
Removable, Washable Panel	Yes	Yes	Yes	Yes	Yes
Wi-Fi	Built-in	Built-in	Built-in	Built-in	Built-in
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes	Yes
Wired Remote Control	Optional	Optional	Optional	Optional	Optional
iAUTO-X	Yes	Yes	Yes	Yes	Yes
Humidity Sensor	Yes	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes	Yes
Personal Airflow Creation	Yes	Yes	Yes	Yes	Yes
ECO Mode with A.I.	Yes	Yes	Yes	Yes	Yes
Inverter Control	Yes	Yes	Yes	Yes	Yes
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes	Yes
Long Piping (Maximum Pipe Length)	20 m	20 m	30 m	30 m	30 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Documents

Panasonic Residential Air Conditioners Leaflet 2024-2025 (PDF - 7.1 MB)

Case Studies

Features

Stay Safe Indoors with 24-hour nanoe™ X Air Protection

nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odors for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify your living spaces, providing a cleaner and comfortable space for you and your loved ones - making your home a safe haven 24/7.

LEARN MORE

*Energy consumption may vary depending on models.

Clean and Fresh Environment Every Day

New nanoe X Generator Mark 3*

Equipped with the latest nanoe X Generator Mark 3 to offer greater effectiveness in inhibiting various pollutants and deodorizing odors at a faster pace compared to the previous nanoe X Generator Mark 2.

Notes:

(1) nanoe X Generator Mark 2- •Testing organization: Panasonic Product Analysis Center •Test subject: Adhered nonenal (Body odor) •Test volume: Approximately 23m³ laboratory •Test result: Odor intensity reduced by 1.7 levels in 60 minutes •Test report No.: Y18HM059 (Difference in odor intensity from the blank is greater than 1.7 and the time until odor intensity is less than 2.6)

(2) nanoe X Generator Mark 3- •Testing organization: Panasonic Product Analysis Center •Test subject: Adhered nonenal (Body odor) •Test volume: Approximately 23m³ laboratory •Test result: Odor intensity reduced by 1.9 levels in 15 minutes • Test report No.: H21HM005-1

LEARN MORE

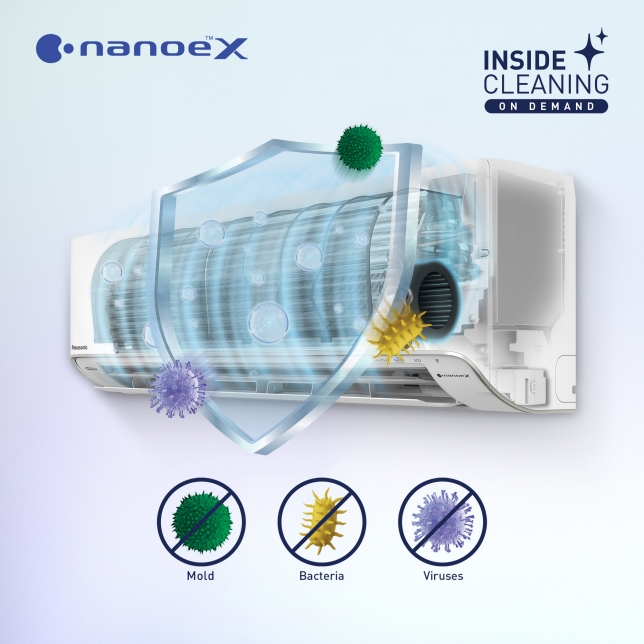

Inside Cleaning On Demand

The newly improved inside cleaning function can be activated on a need basis. It works inside of an indoor unit to remove moisture, and release nanoe™ X particles, inhibiting various pollutants while ensuring that the inside of the indoor unit is always dry and clean.

LEARN MORE

Effective in Removing 99% of Dust Particles

Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.

*Testing organization: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).

LEARN MORE

Effective in Removing 99% of Dust Particles

Cost-efficient Solutions for a Greener Environment

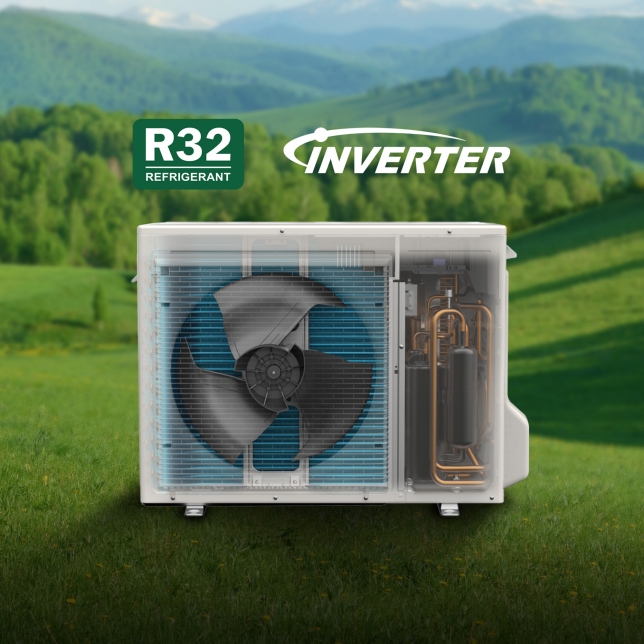

Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Energy-saving and Eco-friendly Technologies

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximize energy savings up to 20%* while providing consistent cooling comfort.

*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Connect & Control Your Air Conditioners Anywhere, Anytime

With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect and control multiple air conditioning units from anywhere, at home or away.

LEARN MORE

Connectivity and Control, Simplified

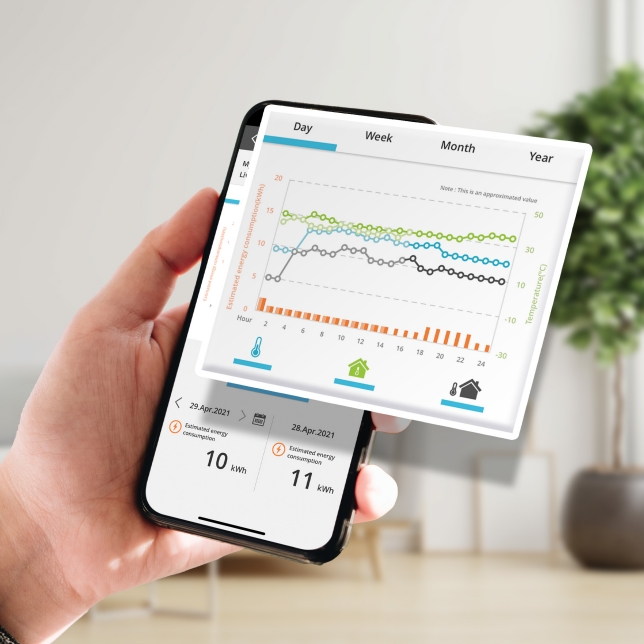

Monitor Energy Consumption

Monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting.

Secured & Easier Setup with Advanced Scan Connectivity*

Scan the QR code to enable easier and faster Wi-Fi connectivity to the air conditioner.

*Complied with internal cybersecurity guidelines based on cybersecurity trends and the regulations of each country.
Note: The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic is under license. Other trademarks and trade names are those of their respective owners.

Secured & Easier Setup with Advanced Scan Connectivity*

Installation and Servicing Made Easier

Panasonic air conditioners come with many design innovations and improvements. No more struggling to disassemble components, not being able to see what you’re doing, squeeze in pipes or having to juggle tools with one hand. Working with Panasonic air conditioners is now faster, easier and simpler than ever.

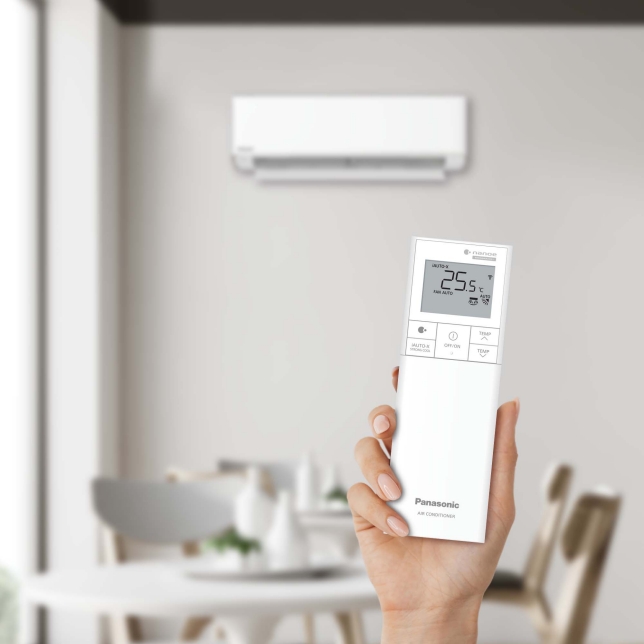

Wireless Remote Controller

The handheld wireless remote controller is designed for ease of operation and convenience with five quick access keys.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

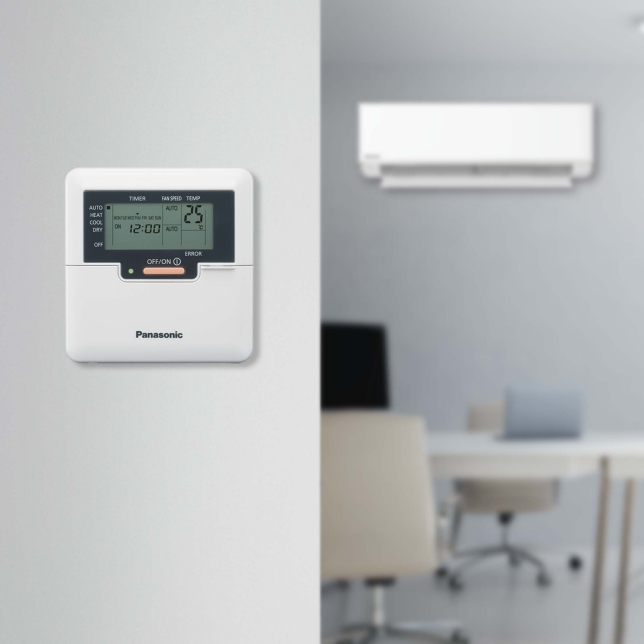

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.5 HP	3.0 HP
Cooling Capacity	2.55 kW	3.50 kW	5.30 kW	6.10 kW	8.20 kW
Cooling Capacity	9,180 kJ/h	12,600 kJ/h	19,080 kJ/h	21,960 kJ/h	29,520 kJ/h
Indoor Unit	CS-XU9AKQ	CS-XU12AKQ	CS-XU18AKQ	CS-XU24AKQ	CS-XU30AKQ
Outdoor Unit	CU-XU9AKQ	CU-XU12AKQ	CU-XU18AKQ	CU-XU24AKQ	CU-XU30AKQ
Recommended Price	₱ 49,999.00	₱ 55,699.00	₱ 68,999.00	₱ 81,299.00	₱ 99,699.00
