LUMIX S5IIX speilløst kamera i fullformat DC-S5M2XN

DC-S5M2XN
(DC-S5M2X + S-R1840)

Mestre det kreative universet ditt.

LUMIX DC-S5IIXN (sett med S5IIX-hus LUMIX S 18–40 mm / F4,5–6,3)
Avanserte funksjoner som PDAF og I.S. (Bildestabilisering) gjør bruken av LUMIX S5IIX til en virkelig givende opplevelse. Ta bilder og video av høy kvalitet med ubegrenset opptak, og opplev forbedret mobilitet med dette kompakte speilløse fullformatskameraet.

Legg til ønskelisteFjern fra ønskeliste

DC-S5M2XN
(DC-S5M2X + S-R1840)

Funksjoner

Designfilosofi

Under designfilosofien «Forming av følelser», ble LUMIX S5IIX laget med et eksepsjonelt matt svart design ulikt noe annet.
LUMIX DESIGN har som mål å skape verktøy som svarer til skaperens lidenskap. Form og funksjon gir hjertets følelser form; hver del føles riktig og er nøyaktig der de bør være. Når du vet hva du skal gjøre med hendene kan du holde blikket festet på motivet. Vårt mål er å skape det ideelle verktøyet, et kamera du kan bruke instinktivt med presisjonskontroll for maksimal fotograferingsglede.

LUMIX designfilosofi: forme følelser

Det nye helsvarte designet til LUMIX S5IIX er laget for å oppmuntre skaperen til å konsentrere seg om å ta bilder av motivet uten å tenke på verktøyet som brukes. Det er designet for å harmonisere med opptaksmiljøet og forhindre refleksjoner på irisen eller opptaksmedier som støtter kunstnerisk kreativitet.

Fastvare 2.0 forbedrer aggressive opptaksstiler

Klar for de mest ambisiøse opptakene

Phase Hybrid AF lar deg fotografere kontinuerlig med hastighet og presisjon, mens LUMIX S5IIXs svært avanserte AF dytter grensene for sport, dyreliv og bil-/motorsykkelfotografering.* I tillegg kan du gå tilbake i tid med før opptak-funksjonen.* Nå er du klar til å fange det perfekte øyeblikket.

*For å bruke dyreøye/bil/motorsykkel-gjenkjenning og før bildeserie-funksjon, må du oppdatere fastvaren til versjon 2.0.

FINN UT MER

Flott for opptak mens du er på farten

LUMIX S5IIX gjør det også enkelt å ta opp video mens du er på farten. Aktiv I.S. bestemmer statusen til kamerarystelser og optimerer korrigeringsforhold for å kompensere selv for betydelig bevegelse, mens avansert E.I.S.* undertrykker perifer forvrengning som oppstår under videoopptak. Dermed kan du nå ta vakre bilder, selv om du trenger å bevege deg raskt mens kameraet ruller.

*Oppdater fastvaren til versjon 2.0.

FINN UT MER

Fastvare 2.0 introduserer LUMIXs første funksjoner

Proxy-videoopptak

Denne nye funksjonen registrerer en proxy-fil med lav bithastighet når du spiller inn video. Samtidig opptak av en proxy-fil som er koblet til det originale videoopptaket, noe som muliggjør raskere levering fra produksjon til etterproduksjon.

･Oppdater fastvaren til versjon 2.0.

Innebygd kamera til sky-integrasjon med Adobes Frame.io

Med Frame.io kamera til sky blir skaperens bilder og videoer automatisk lastet opp, sikkerhetskopiert, delt og arbeidet med i fellesskap via skyen.

･Oppdater fastvaren til versjon 2.0.
･ Ikke alle funksjonene til Frame.io kamera til sky er garantert.
･Frame.io, Frame.io-logoen og Camera to Cloud er enten registrerte varemerker eller varemerker for Adobe i USA og/eller andre land.

Innebygd kamera til sky-integrasjon med Adobes Frame.io

En høyere grad av visuelt uttrykk

RAW-videodatautgang

LUMIX S5IIX muliggjør produksjon av RAW-videodata over HDMI som kan lagres som ProRes RAW på ATOMOS NINJA V+, NINJA V og Shogun CONNECT HDR skjermopptakere.* Blackmagic RAW kan også tas opp på Video Assist 12G HDR.**

*[ProRes RAW] ･Se ATOMOS-nettstedet for informasjon om den tilsvarende fastvareversjonen for ATOMOS Ninja V+, ATOMOS Ninja V eller ATOMOS Shogun CONNECT. ･Programvare som støtter ProRes RAW kreves for å redigere RAW-video tatt opp med ATOMOS ATOMOS Ninja V+, ATOMOS Ninja V eller ATOMOS Shogun CONNECT. Bruk LUT (oppslagstabell) som er tilgjengelig på følgende kundestøttenettsted for å lage samme fargegradering som V-Log/V-Gamut
https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･Alle funksjoner vil kanskje ikke være tilgjengelige avhengig av situasjon. **[Blackmagic RAW] ･Se Blackmagic Design-nettstedet for informasjon om tilsvarende fastvareversjon for Blackmagic Video Assist 12G HDR. ･DaVinci Resolve eller DaVinci Resolve Studio kreves for å spille av og redigere Blackmagic RAW-data. DaVinci Resolve Studio kreves for å levere prosjekter ved bruk av Blackmagic RAW-data i oppløsninger over 3840 x 2160. ･Alle funksjoner vil kanskje ikke være tilgjengelig avhengig av situasjon.

FINN UT MER

Eksternt USB SSD-opptak

Med LUMIX S5IIX støttes opptak og avspilling ved bruk av en ekstern SSD via USB. I tillegg har muligheten til å ta opp ProRes 422 HQ (maksimalt 1,9 Gbps) og 4:2:2 10-bits All-Intra direkte til SSD-er, som kombinerer portabilitet og høy kapasitet, forbedret effektiviteten i sikkerhetskopiering av data og etterproduksjonen.

FINN UT MER

Send direkte når som helst, hvor som helst

Velg favorittilnærmingen til strømming for å dele siste nytt i sanntid! Med LUMIX Sync-appen er det enkelt å sette opp trådløs direktestrømming (RTMP/RTMPS) for utendørsbruk. I tillegg er svært stabil kablet direktestrømming (RTP/RTSP) tilgjengelig for innendørs bruk.

･Direktestrømming til plattformer som er i samsvar med RTMP/RTMPS er i utgangspunktet mulig (kompatibilitet med alle plattformer kan ikke garanteres). Det kan være tilfeller der direktestrømming ikke er mulig når tjenesten til plattformen endres. Du finner mer informasjon i vilkår og betingelser for plattformen. ･Siden overføringshastigheten for direktestrømming varierer avhengig av internettmiljøet, smarttelefonens ytelse osv., anbefaler vi at du utfører en overføringstest på forhånd. *En kommersielt tilgjengelig USB ethernet-adapter er nødvendig for å konvertere DC-S5IIXs USB Type C-terminalen til en LAN-terminal. Kompatibilitet for USB ethernet-adapter: https://panasonic.jp/support/global/cs/dsc/connect/ethernet_adp/index.html

FINN UT MER

Send direkte når som helst, hvor som helst

Varmestyring for ubegrenset opptakstid

4:2:2 10-bits C4K/4K 60p/50p ubegrenset opptakstid.* LUMIX S5IIX har et kompakt kamerahus som tilsvarer S5, og en ny og optimalisert varmespredningsstruktur som muliggjør lengre opptakstid under opptak med tung belastning (f.eks. høyoppløselige videoer over 4K, HFR-video).

*Kameraet kan stoppe opptaket når det brukes i en temperatur som er lavere eller høyere enn anbefalt driftstemperatur (0 til 40 grader). Opptak stopper når kontinuerlig opptakstid overskrider 30 minutter med følgende innstillinger; [MOV] i [6K/29,97p] [6K/25,00p] [5,9K/29,97p] [5,9K/25,00p] eller [ProRes] i [5,8K/29,97p] [5,8K/25,00p] [C4K/59,94p] [C4K/50,00p] når Thermal Management-modus er satt til Standard.

FINN UT MER

LUMIX fargevitenskapsteknologi

LUMIX forpliktelse til overlegen bildekvalitet

Den nye motoren leverer flere virkelighetstro farger, bedre oppløsning og en naturlig tredimensjonal effekt. Og i kombinasjon med Dual Native ISO-teknologi undertrykker den effektivt støy selv under opptak ved ultrahøy følsomhet, og gjengir selv mørke området på en pen måte.

FINN UT MER

LUMIX forpliktelse til overlegen bildekvalitet

Enkel fargegradering med SANNTIDS-LUT

LUT-påførte bilder og videoer kan tas opp internt uten noen spesiell programvare. Selv om du ikke har spesialiserte redigeringsferdigheter, hjelper kameraet deg med å utvide uttrykksrekkevidden din så mye du vil.

LAST NED SKAPERENS LUT-er

Relaterte produkter

Objektiver som muliggjør fotografiske uttrykk og videouttrykk av høy kvalitet

LUMIX S-serien leverer overlegen og kompromissløs optisk ytelse, mobilitet og betjeningsevne. Selv når du bytter objektiv, viser alle bildene dine en konsistent gjengivelse av kunstverk med høy kvalitet.

FINN UT MER OM LUMIX S-objektiver

Objektiver som muliggjør fotografiske uttrykk og videouttrykk av høy kvalitet

LUMIX S5IIX S5 Series-utvalg

Nå kan du velge fra LUMIX S5IIX, som leverer enda bedre visuell kvalitet, og LUMIX S5II, som er laget for et bredere utvalg av foto- og videoskapere.

FINN UT MER OM LUMIX S5II

Flow State – Tatt opp med LUMIX S5IIX

Et prosjekt for innholdskaping som utfordrer tre innholdskapere til å flytte sine kreative grenser med LUMIX S5IIX.

Bli inspirert

Spesifikasjoner

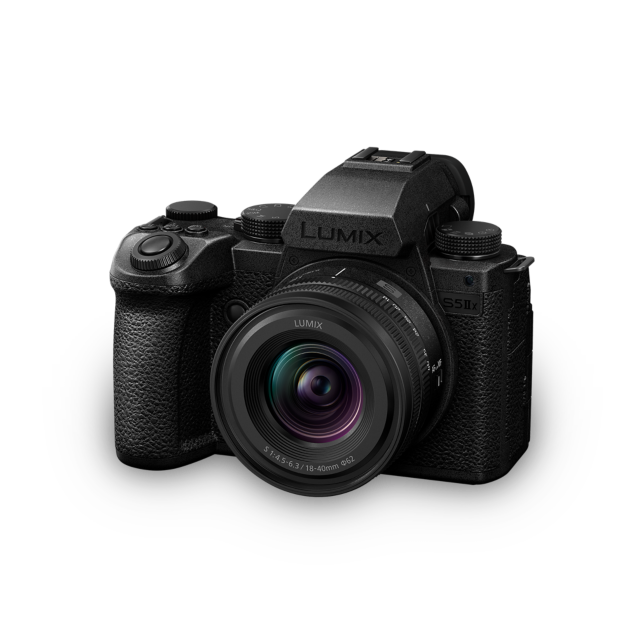

Foto av LUMIX S5IIX speilløst kamera i fullformat DC-S5M2XN

Størrelse og vekt

Høyde: 102.3mm

Bredde: 134.3mm

Dybde: 90.1mm

Vekt: 740g

Alle verdier er omtrentlige. Vekt med SD-kort og batteri. Objektiv er ekskludert. Kamerahus på bare 657 g. Målene ekskluderer fremspring.

L-feste
24,2 megapiksler
Fasehybrid AF
Aktiv I.S.- teknologi
C4K/4K 4:2:2 10-bits 60p/50p video
HFR/VFR 10-bits video
V-Log
RAW-videodatautgang
Direktesendt strømming
1840k-punkts frivinkelsskjerm
3680k-punkters OLED Live View Finder
Sprut- og støvbestandig

Ny 24,2 MP sensor med Dual Native ISO-teknologi og en ny generasjons motor

Fasedeteksjons-AF og aktiv I.S.- teknologi

C4K/4K 60p/50p 4:2:2 10-bits ubegrenset opptak

RAW videodatautgang, ProRes-video, All-Intra-video og eksternt USB-SSD-opptak

TYPE

Type
- Digital Single Lens Mirrorless camera
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
- 24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- Image sensor shift type

LATITUDE

14+ stops (V-Log)

STILL IMAGE

Recording file format
- JPEG (DCF, Exif 2.31), RAW
Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (pixels) when using full-frame lenses
- 3:2
  - 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode.
- 4:3
  - 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode.
- 16:9
  - 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode.
- 1:1
  - 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode.
- 65:24
  - 6000x2208(L)
- 2:1
  - 6000x3000(L)
File size (pixels) when using APS-C/Super 35mm lenses
- 3:2
  - 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
- 4:3
  - 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
- 16:9
  - 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
- 1:1
  - 2656x2656(L) / 1920x1920(M) / 1376x1376(S)
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
  MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format
- MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  MP4: AAC (2ch 48kHz/16-bit)
  *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
Image area of video
- Full / APS-C / PIXEL/PIXEL
Proxy (*⁶)
- ON / OFF
  Proxy Rec Quality: H / M / L
  Real Time LUT (Proxy): ON / OFF
  *When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, [HDMI RAW Data Output] and [Streaming].
MOV / 59.94Hz / FULL (*HLG is selectable.) (*¹) (*²)
- [6K] 5952x3968 (3:2)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6K] 5952x3136 (17:9)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160
  - 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 59.94Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
- [C4K] 4096x2160
  - 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Image Area of Video is set to APS-C.
MOV / 50.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
- [6K] 5952x3968 (3:2)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6K] 5952x3136 (17:9)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160
  - 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 50.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
- [C4K] 4096x2160
  - 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Image Area of Video is set to APS-C.
MOV / 24.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
- [6K] 5952x3968 (3:2)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6K] 5952x3136 (17:9)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 24.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
- [C4K] 4096x2160
  - 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
ProRes / 59.94Hz / FULL (*¹) (*²)
- [5.8K] 5776x3056 (17:9)
  - 29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    23.98p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [C4K] 4096x2160
  - 29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 59.94Hz / APS-C / PIXEL/PIXEL (*¹) (*²)
- [C4K] 4096x2160
  - 59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 29.97p, 913Mbps (ProRes 422 HQ) / 609Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    23.98p, 730Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 50.00Hz / FULL (*¹) (*²)
- [5.8K] 5776x3056 (17:9)
  - 25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [C4K] 4096x2160
  - 25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 50.00Hz / APS-C / PIXEL/PIXEL (*¹) (*²)
- [C4K] 4096x2160
  - 50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 50.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    25.00p, 761Mbps (ProRes 422 HQ) / 508Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 24.00Hz / FULL (*¹) (*²)
- [5.8K] 5776x3056 (17:9)
  - 24.00p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [C4K] 4096x2160
  - 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 24.00Hz / APS-C / PIXEL/PIXEL (*¹) (*²)
- [C4K] 4096x2160
  - 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [3.3K] 3328x2496 (4:3)
  - 24.00p, 731Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
MP4 / 59.94Hz / FULL (*¹)
- [4K] 3840x2160
  - 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 59.94Hz / APS-C / PIXEL/PIXEL (*¹)
- [4K] 3840x2160
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 50.00Hz / FULL (*¹)
- [4K] 3840x2160
  - 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 50.00Hz / APS-C / PIXEL/PIXEL (*¹)
- [4K] 3840x2160
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 24.00Hz / FULL (*¹)
- -
MP4 / 24.00Hz / APS-C / PIXEL/PIXEL (*¹)
- -

SLOW & QUICK

MOV / 59.94Hz / FULL (*¹)
- [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 59.94Hz / APS-C (*¹)
- [C4K] 4096x2160
  - 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 50.00Hz / FULL (*¹)
- [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 50.00Hz / APS-C (*¹)
- [C4K] 4096x2160
  - 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 24.00Hz / FULL (*¹)
- [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.
MOV / 24.00Hz / APS-C (*¹)
- [C4K] 4096x2160
  - 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [4K] 3840x2160
  - 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *External USB-SSD recording.
- [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    **External USB-SSD recording.

EXTERNAL USB-SSD RECORDING

Yes (ON / OFF)

HDMI RAW DATA OUTPUT

Compatible external devices
- ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V" / "Shogun CONNECT"
  *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT.
  *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
  https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
  *All functions may not be available depending on the situation.

  Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
  *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
  *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
  *All functions may not be available depending on the situation.
Rec quality / 59.94Hz / FULL
- [5.9K] 5888x3312 (16:9)
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
Rec quality / 59.94Hz / APS-C
- [4.1K] 4128x2176 (17:9)
  - 59.94p, 12-bit (LPCM)
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- [3.5K] 3536x2656 (4:3)
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
Rec quality / 50.00Hz / FULL
- [5.9K] 5888x3312 (16:9)
  - 25.00p, 12-bit (LPCM)
Rec quality / 50.00Hz / APS-C
- [4.1K] 4128x2176 (17:9)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
- [3.5K] 3536x2656 (4:3)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
Audio format
- LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

STREAMING

Wi-Fi / Protocol
- RTMP / RTMPS
Wi-Fi / 59.94Hz
- [FHD] 1920x1080
  - 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    29.97p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
Wi-Fi / 50.00Hz
- [FHD] 1920x1080
  - 50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    25.00p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
USB Tethering / Protocol
- RTMP / RTMPS
USB Tethering / 59.94Hz
- [4K] 3840x2160
  - 29.97p, 12.5Mbps (H.264)
- [FHD] 1920x1080
  - 59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
USB Tethering / 50.00Hz
- [4K] 3840x2160
  - 25.00, 12.5Mbps (H.264)
- [FHD] 1920x1080
  - 50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
Wired LAN / Protocol
- RTP / RTSP
Wired LAN / 59.94Hz
- [4K] 3840x2160
  - 59.94p, 50Mbps / 25Mbps (H.265)*
    59.94p, 50Mbps / 25Mbps (H.264)*
    29.97p, 25Mbps / 12.5Mbps (H.265)
    29.97p, 25Mbps / 12.5Mbps (H.264)
    *When Image Area of Video is set to APS-C or PIXEL/PIXEL.
- [FHD] 1920x1080
  - 59.94p, 20Mbps / 16Mbps (H.265)
    59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 12Mbps / 6Mbps (H.265)
    29.97p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
Wired LAN / 50.00Hz
- [4K] 3840x2160
  - 50.00p, 50Mbps / 25Mbps (H.265)*
    50.00p, 50Mbps / 25Mbps (H.264)*
    25.00p, 25Mbps / 12.5Mbps (H.265)
    25.00p, 25Mbps / 12.5Mbps (H.264)
    *When Image Area of Video is set to APS-C or PIXEL/PIXEL.
- [FHD] 1920x1080
  - 50.00p, 20Mbps / 16Mbps (H.265)
    50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 12Mbps / 6Mbps (H.265)
    25.00p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 3.68 million dots
Field of view / Magnification
- Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m^-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m^-1 / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels
- Approx. 1.84 million dots
Field of view
- Approx. 100%

STATUS LCD

FOCUS (*³)

Type
- Phase Detection AF system / Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
  *Automatic Detection can be turned ON to switch between Human / Animal / Car (*⁶) / Motorcycle (*⁶). Except when Pinpoint is set.
AF detective range
- EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Focus ring control
- Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
Others
- AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope (*⁵), Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial
- Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
  *The same exposure operations as P/A/S/M mode is available.
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)
- [Normal]
  Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO

  [V-Log]
  Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO

  [HLG]
  Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
Dual Native ISO
- [Normal]
  Native ISO: 100, 640
  Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 50* / 100-800 *Extended ISO
  High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

  [V-Log]
  Native ISO: 640, 4000
  Auto: Auto / 320* / 640-51200 *Extended ISO
  Low: Auto / 320* / 640-5000 *Extended ISO
  High: Auto / 2000* / 4000-51200 *Extended ISO

  [HLG]
  Native ISO: 400, 2500
  Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 400-3200
  High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

  [Cinelike D2 / Cinelike V2]
  Native ISO: 200, 1250
  Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
  Low: Auto /100* / 200-1600 *Extended ISO
  High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
  Motion picture: 1/16,000 - 1/25
  Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer
- 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions
Focus bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter / Electronic front curtain shutter
  - H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
    M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
- Electronic shutter
  - SH30: 30 frames/sec (AFS/AFC/MF)
    SH30 PRE: 30 frames/sec (AFS/AFC/MF) (*⁶)
    H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
    M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable images
- H/M/L*
  RAW+JPEG: More than 200 images
  RAW: More than 200 images
  JPEG: More than 300 images
  *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
  *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

  SH
  RAW / RAW+JPEG / JPEG: 200 images

FLASH

Flash type
- TTL External Flash (sold separately)
Synchronization speed
- Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION

2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.

COLOR SETTINGS

Photo Style
- Photo Style
  - Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome (*⁷) / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
    *Set to ON from Show/Hide Photo Style to select.
- Picture adjustment
  - Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
    *Adjustable settings vary depending on the Photo Style mode.
Filter
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT Library
- Vlog_709 / Set 1-10
  *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.

MOTION PICTURE FUNCTION

Time lapse shot
- Yes
Stop motion animation
- Yes
Live cropping
- Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0-1023 / 64-940 / 64-1023
Synchro scan
- Yes
Master pedestal level
- 31 steps
Color bars / 1kHz test tone
- Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist
- Supported file types: .vlt, .cube
  Monitor / HDMI
HLG view assist
- Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Wave form monitor / Vectorscope
- Selectable
Knee control
- Yes (in Like709 mode)
Red REC frame indicator
- ON / OFF

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)

LEVEL GAUGE

FUNCTION BUTTON

REC
- Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / AF-Point Scope (*⁵) / Proxy Recording (*⁶) / REAL TIME LUT (*⁷) / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Send Images to Frame.io (*⁶) / Restore to Default

INTERFACE

USB
- USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
HDMI (*⁴)
- HDMI
  - HDMI TypeA
    Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
    4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
- Playback
  - 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
    50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
    24.00Hz: C4K/24p / 4K/24p / 1080p
    *Only for playback.
Remote input
- φ2.5mm
Audio
- Build-in microphone
  - Stereo
    Wind Noise Canceller: OFF / Standard / High
- External microphone / External audio device input
  - φ3.5mm for external microphone / external audio device
    MIC (Plug-in Power) / MIC / LINE
    Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
    Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
- XLR microphone
  - Yes with DMW-XLR1 (sold separately)
- 4ch mic input
  - Yes with DMW-XLR1 (sold separately)
- Speaker
  - Monaural
- Headphone output
  - φ3.5mm
SD card slot
- Slot 1, Slot 2
  SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

Count up
- Rec Run / Free Run
Time code mode
- Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output
- ON / OFF

FAN

Auto1 / Auto2 / Fast / Normal / Slow* / OFF**
*Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p.
**OFF can be set when in iA/P/A/S/M mode.

WIRELESS

Wi-Fi
- 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
  5GHz bands (STA) (IEEE 802.11a/n/ac)
  Security: WPA/WPA2/WPA3
Bluetooth
- Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
- When using SD memory card
  - Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060
    Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50
    *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
- When using external USB-SSD
  - Approx. 300 images with S-R2060
    Approx. 300 images with S-S50
Continuous recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Actual recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Battery grip
- DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)
  Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions)
  Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)
Weight
- Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
  Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT

Operating temperature
- 0℃ to 40℃ (32℉ to 104℉)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- LUMIX Tether
  ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

  LUMIX Sync / LUMIX Lab (*⁷)
  ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
  https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)

  ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
  http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-S5M2X Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C)

  DC-S5M2XK Kit / DC-S5M2XC Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap, Lens Hood, Lens Rear Cap

  DC-S5M2XW Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap x 2, Lens Hood x 2, Lens Rear Cap x 2

  ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

(*1) About motion picture recording

- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: External USB-SSD, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: External USB-SSD, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: External USB-SSD, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: External USB-SSD, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more or ProRes: External USB-SSD

- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes

- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.8K]: 640GB

- If the resolution is higher than C4K, the frame rate is higher than 60p or set to ProRes, the camera may stop the recording to protect itself. Wait until the camera cools down.
- Recording stops when the continuous recording time exceeds 30 minutes with the following settings.
[MOV] in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
[ProRes] in [5.8K/29.97p] [5.8K/25.00p] [C4K/59.94p] [C4K/50.00p] when Thermal Management mode is set to Standard.

(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).

(*3) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

(*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).

(*5) Firmware must be updated to version 1.3.

(*6) Firmware must be updated to version 2.0.

(*7) Firmware must be updated to version 2.1.

Åpne en ny side for utskrift

Lignende produkter

DC-S5M2N
(DC-S5M2 + S-R1840)

Speilløst fullrammekamera med AF-fasehybrid, aktiv I.S., videomodus av høy kvalitet, C4K/4K 60p/50p 4:2:2 10-bit ubegrenset opptak og mer. (Sett med S5II-hus + LUMIX S 18–40 mm / F4,5–6,3)

DC-S5DN
(DC-S5D + S-R1840)

LUMIX DC-S5DN (sett med S5D-hus og LUMIX S 18–40 mm / F4,5–6,3 zoomobjektiv) Speilfritt kamera i fullformat med 24,2 MP MOS-sensor, 4K 60p / 50p 10-biters video og mer – alt i et kompakt og lett ka...

DC-S5DH
(DC-S5D + S-R28200)

LUMIX DC-S5DH (sett med S5D-hus og LUMIX S 28–200 mm / F4–7,1 zoomobjektiv) Speilfritt kamera i fullformat med 24,2 MP MOS-sensor, 4K 60p / 50p 10-biters video og mer – alt i et kompakt og lett kam...

DC-S9N
(DC-S9 + S-R1840)

LUMIX DC-S9N (sett med S9-hus + LUMIX S 18–40 mm / F4,5–6,3 zoomobjektiv) Lag fengende innhold direkte fra det nye LUMIX S9-fullformatkameraet. Det er fullpakket med profesjonelle funksjoner, helt ...

DC-S9

Lag fengende innhold direkte fra det nye LUMIX S9 full-frame-kameraet. Det er fullpakket med profesjonelle funksjoner, helt uten behov for redigeringsferdigheter – fra fotografering til innlegg på ...

DC-S9H
(DC-S9 + S-R28200)

LUMIX DC-S9H (sett med S9-hus + LUMIX S 28-200 mm / F4–7,1 zoomobjektiv) Lag fengende innhold direkte fra det nye LUMIX S9 full-frame-kameraet. Det er fullpakket med profesjonelle funksjoner, helt ...

DC-S9K
(DC-S9 + S-R2060)

LUMIX DC-S9K (sett med S9-hus LUMIX S 20–60 mm / F3,5–5,6-objektiv) Lag fengende innhold direkte fra det nye LUMIX S9 full-frame-kameraet. Det er fullpakket med profesjonelle funksjoner, helt uten ...

DC-S5

Speilfritt kamera i fullformat med 24,2 MP MOS-sensor, 4K 60p / 50p 10-biters video og mer – alt i et kompakt og lett kamerahus.

DC-S5K

Speilfritt kamera i fullformat med 24,2 MP MOS-sensor, 4K 60p / 50p 10-biters video og mer – alt i et kompakt og lett kamerahus. 20–60 mm linsesett

DC-S1H

Full-frame DSLM (Digital Single Lens Mirrorless) kamera med V-Log / V-Gamut med 14+ stopp med dynamisk rekkevidde, 6K full-frame capture og 10-bit Cinema 4K / 4K 60p / 50p-opptak.
