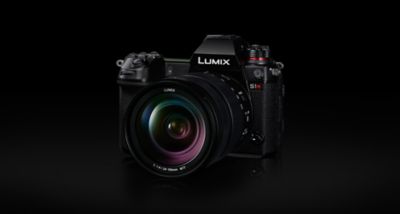

LUMIX DC-S1RM fullformat systemkamera

DC-S1RM

Optimal oppløsning. Profesjonell ytelse.

En ny 47,3 MP CMOS-sensor som leverer utrolig realistiske detaljer. Fokus- og bildestabiliseringssystemer som fanger hvert øyeblikk helt klart. Et kamerahusdesign som bidrar til uforglemmelige bilder. LUMIX S1RM-settet leveres med det kompakte og lette standardzoomobjektivet S-R24105mm som dekker en bred brennvidde på 24 mm i vidvinkel og 105mm midt-teleobjektiv.

Firmwareoppdateringen V1.8

Legg til ønskelisteFjern fra ønskeliste

DC-S1RM

Funksjoner

47,3 MP CMOS-sensor i fullformat for kompromissløs uttrykkskraft

LUMIX S1R har en 47,3 megapikslers CMOS-sensor i fullformat som produserer fint detaljerte og slående realistiske bilder uten at et lavpassfilter er i veien. Med et asfærisk mikroobjektiv på brikken og et optimert design som øker innfallende lys til fotodioden, kombinerer denne nye sensoren et høyt antall megapiksler med en enestående lyskondenseringshastighet.

Venus Engine Beauty

CMOS-sensoren og Venus Engine gjengir ekstraordinære fargedetaljer og naturlige teksturer. Multipikslet luminansgenerering og intelligent detaljbehandling skaper en intens lysstyrke og kontrast. Den tredimensjonale fargekontrollen fremhever rike fargenyanser i mørke og lyse toner. Multi Process NR får bildene dine til å skille seg ut selv ved høye følsomhetsinnstillinger.

5-akset Dual I.S. 2

Ved å kombinere Body I.S. (5-akset) i kameraet og O.I.S. (Optisk bildestabilisator, 2-akset) i LUMIX S Series-objektivet,* vil 5-akset Dual I.S. 2 kompenserer for uskarpheter, og muliggjøre bruk av en langsommere lukkerhastighet på 7-stopp. ** Den forbløffende kraften til 5-akset Body I.S. med 5,5-stopps kompensasjonskraft*** korrigerer risting for alle linser, også de som ikke er utstyrt med O.I.S.

* Fra og med 18. februar 2021 kan 5-akset Dual I.S.2 brukes med objektivene S-R24105, S-E70200, S-R70200 og S-R70300. ** Basert på CIPA-standarden (Yaw/Pitch-retning: fokuseringsavstand f=200 mm når S-E70200 brukes). ** Basert på CIPA-standarden (Yaw/Pitch-retning: fokuseringsavstand f=50 mm når S-X50 brukes).

Avansert gjenkjennelsesteknologi

Svært rask sensor-objektivkommunikasjon på 480 fps og Panasonics DFD (Depth From Defocus)-teknologi bidrar til å gjøre høypresisjons autofokus med høy hastighet på omtrent 0,08 sekunder til en realitet.* Avansert AI-teknologi gjenkjenner ikke bare menneskekroppen, men også dyr som canidae, felidae og fugler, mens sporingssystemet med høy ytelse bidrar til at motivet er i fokus til enhver tid. I tillegg yter autofokusen med lite lys under en imponerende -6EV.**

* 11EV, på den brede enden med S-R24105 (CIPA) i LVF120 fps-innstilling. **Ved ISO100, F1.4, AFS. 100 % kontrastmål.

5 760k-punkters Real View Finder

Real View Finder er den største i sin klasse med verdens høyeste oppløsning på 5 760 000 punkter.* Enestående klarhet gir deg følelsen av å se direkte på motivet med ditt eget øye og hjelper deg med konsentrasjonen mens du fotograferer.

* Blant digitale speilfrie kameraer i fullformat med enkelt-objektiv fra 01.02.19.

Dobbel minnekortspor for fleksibel databehandling

Solid kamerahus for alle slags værforhold

* Støv- og sprutbestandighet garanterer ikke at det ikke vil oppstå skade hvis dette kameraet utsettes for direkte kontakt med støv og vann

Dobbel minnekortspor for fleksibel databehandling

4K 60p/50p jevn videoopptak

Sammen leverer Panasonics 4K-teknologi, CMOS-sensor og Venus Engine spektakulær 4K 60p/50p-video i fullformat.* Takket være disse avanserte teknologiene fremstår også scener med mye bevegelser jevne og naturlige ut. Versjon 1.6 av fastvareoppdateringen muliggjør 5K 30p/25p/24p-opptak i MOV-format.

* Maksimal opptakstid på 15 minutter i 4K 60p/50p og 5K 30p/25p/24p.

Bli inspirert

Spesifikasjoner

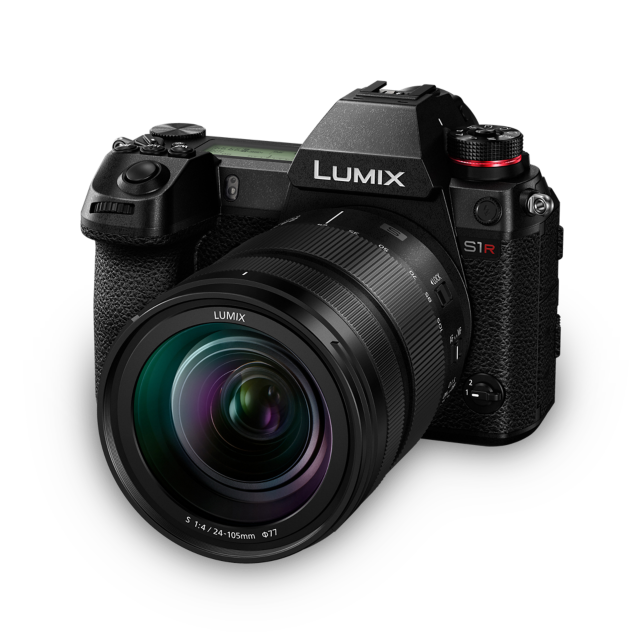

Foto av LUMIX DC-S1RM fullformat systemkamera

Størrelse og vekt

Høyde: 110.0mm

Bredde: 148.9mm

Dybde: 96.7mm

Vekt: 1,016g

Alle verdier er omtrentlige. Vekt med SD-kort og batteri (Vekt med XQD-kort og batteri er 1020 g). Objektiv er ekskludert. Dimensjoner ekskludert fremspring.

L-Mount
47,3 megapiksler
Mulighet for 4K-videoopptak
6K PHOTO
5-akset Dual I.S. 2 (Bildestabilisator)
5760k-punkts OLED LVF (Live View Finder)
2100k-punkts Triaksial vippeskjerm
Status-LCD
Sprut-, støv- og frostbestandig
Wi-Fi
Bluetooth

47,3 MP CMOS-sensor i fullformat med ultrahøy oppløsning

4K 60p / 50p jevnt videoopptak

Høyhastighets AF med høy presisjon takket være superrask kommunikasjon mellom sensor og objektiv på 480 bps og Panasonics DFD-teknologi

5760k-punkters ultra-høyoppløselig søker

TYPE

Type
- Digital Single Lens Mirrorless camera
Recording media
- XQD Memory Card, SD Memory Card / SDHC Memory Card* / SDXC Memory Card*, CFexpress Card (CFexpress Ver2.0 Type B) ******
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (36.0 x 24.0mm) CMOS sensor
Camera effective pixels / Total pixels
- 47.30 megapixels / 50.44 megapixels
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- Supersonic wave filter

STILL IMAGE

Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color Space
- sRGB, AdobeRGB
Recording file format
- Still image
  - JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
- 6K PHOTO** / 4K PHOTO**
  - 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
    4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
    Extracted still images: JPEG (DCF, Exif 2.31)
File size(Pixels)
- When using full-frame lenses / 3:2
  - 8368x5584(L) / 5952x3968(M) / 4272x2848(S) / 16736x11168(XL)* *High Resolution Mode. RAW file.
    5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 6464x4320(HLG PHOTO, 8K-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 4:3
  - 7440x5584(L) / 5296x3968(M) / 3792x2848(S) / 14880x11168(XL)* *High Resolution Mode. RAW file.
    4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5760x4320(HLG PHOTO, 8K-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 16:9
  - 8368x4712(L) / 5952x3352(M) / 4272x2400(S) / 16736x9424(XL)* *High Resolution Mode. RAW file.
    3840x2160(4K PHOTO) / 7680x4320(HLG PHOTO, 8K-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 1:1
  - 5584x5584(L) / 3968x3968(M) / 2848x2848(S) / 11168x11168(XL)* *High Resolution Mode. RAW file.
    2880x2880(4K PHOTO) / 4320x4320(HLG PHOTO, 8K-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 65:24
  - 8368x3088(L)
- When using full-frame lenses / 2:1
  - 8368x4184(L)
- When using APS-C lenses / 3:2
  - 5504x3664(L) / 3920x2608(M) / 2784x1856(S)
- When using APS-C lenses / 4:3
  - 4880x3664(L) / 3472x2608(M) / 2480x1856(S)
- When using APS-C lenses / 16:9
  - 5504x3096(L) / 3840x2160(M) / 1920x1080(S)
- When using APS-C lenses / 1:1
  - 3664x3664(L) / 2608x2608(M) / 1856x1856(S)

MOTION PICTURE

Recording file format
- MOV: H.265/HEVC (Audio format: LPCM (2ch 48kHz/24-bit*, 96kHz/24-bit*))******** *When attaching DMW-XLR1 (sold separately).
  MP4: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch))
  AVCHD Progressive (Audio format: Dolby Audio (2ch)), AVCHD (Audio format: Dolby Audio (2ch))
Switch NTSC / PAL********
- Yes (NTSC (59.94Hz) / PAL(50.00Hz))
MOV******** [5K] 4992x3744 High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (PIXEL/PIXEL) *HLG is selectable.
  25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (PIXEL/PIXEL) *HLG is selectable.
  23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (PIXEL/PIXEL) *HLG is selectable.
MP4** [4K] 3840x2160
- NTSC (59.94Hz)
  59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
  29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  PAL(50.00Hz)
  50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*******
  25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)*******
MP4** [FHD] 1920x1080
- NTSC (59.94Hz)
  59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
  29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  PAL(50.00Hz)
  50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)*******
  25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)*******
AVCHD Progressive** AVCHD** [FHD] 1920x1080
- 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
  50.00i, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 25.00fps)
  50.00i, 17Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 50.00fps)
  23.98p, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
MP4** High speed video *When Creative Video Mode is selected. [4K] 3840x2160
- NTSC (59.94Hz)
  29.97p (Sensor output is 60fps)
  23.98p (Sensor output is 48fps)

  PAL(50.00Hz)
  25.00p (Sensor output is 50fps)*******
MP4** High speed video *When Creative Video Mode is selected. [FHD] 1920x1080
- NTSC (59.94Hz)
  29.97p (Sensor output is 180fps / 120fps)

  PAL(50.00Hz)
  25.00p (Sensor output is 150fps / 100fps)*******
Continuous recordable time (Motion picture)**
- Approx. 150 min (rear monitor), 140 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.
Actual recordable time (Motion picture)**
- Approx. 75 min (rear monitor), 70 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 5,760k dots
Field of view / Magnification
- Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps
Display time lag
- Approx. 0.005sec

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Triaxial tilt, 3.2-inch (8.0cm), 3:2 aspect
Pixels
- Approx. 2,100k dots
Field of view
- Approx. 100%

STATUS LCD

STATUS LCD
- Yes

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Face/Eye/Body/Animal Detection / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
  (Full area touch is available) (Scalable AF frame size and flexible AF position)
AF detective range
- EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lamp
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking
- Yes / Yes
Others
- AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode
- Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
ISO sensitivity (Standard Output Sensitivity)
- Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200* (Changeable to 1/3 EV step) *Extended ISO
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

IMAGE STABILIZATION SYSTEM
- Image sensor shift type (5-axis)
  6.0-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]

  Dual I.S. (Dual I.S. 2 compatible)
  6.5-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=105mm, when S-R24105 is used.] Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-R70200 is used.]
  7.0-stop* * Firmware must be updated to version 1.3 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-E70200 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60
  Motion picture: 1/16,000 - 1/25
Shutter life
- Approx. 400,000 images
Self timer
- 10sec, 3 images / 2sec / 10sec
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture Bracket
- 3, 5 or all positions in 1 EV step
Focus Bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed -Mechanical shutter / Electronic front curtain shutter
- AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed -Electronic shutter
- AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images - When using CFexpress Card******
- RAW: More than 40 images
  RAW+JPEG: More than 35 images
  JPEG: More than 50 images
  *Using a Panasonic Corporation CFexpress Type B 256GB (RP-CFEX256) Memory Card or a SanDisk Corporation CFexpress Type B Extreme PRO 256GB (SDCFE-256G) Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
Number of recordable images - When using XQD memory card
- RAW: More than 40 images
  RAW+JPEG: More than 35 images
  JPEG: More than 50 images
  *Using a Sony Corporation XQD G Series Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.

6K PHOTO / 4K PHOTO

Burst speed
- 6K PHOTO: 30 frames/sec
  4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information
- Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

Flash type
- TTL External Flash (sold separately)
Flash Mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/320 second
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket
- Yes

EXTRA TELE CONVERSION

EXTRA TELE CONVERSION
- 2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
- Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / Like709 / Like2100 (HLG)******** / Standard (HLG) / Monochrome (HLG) / My Photo Style 1-10
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / ISO / WB

FILTER

FILTER
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
  *For photos only.

MOTION PICTURE FUNCTION

Luminance level
- 8-bit: 0-255 / 16-235******** / 16-255
  10-bit********: 0‒1023 / 64‒940 / 64‒1023
SS/Gain operation*********
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

FUNCTION BUTTON

REC
- Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode/MF / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift***** / AF-ON: Far Shift***** / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Sound Rec Level Disp. / Sound Rec Level Adj. / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect****** / Constant Preview / Level Gauge / Histogram / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Off (Disable Press and Hold)****** / Restore to Default
PLAY
- Magnify from AF Point / HLG View Assist(Monitor) / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold)****** / Restore to Default

Fn LEVER

Fn LEVER
- AF Mode / Photo Style / Picture Quality / Long Exposure NR / Focus Peaking / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / 6K/4K PHOTO (Pre-Burst) / Focus Ring Lock / Touch Screen / Touch Pad AF / Auto Review (Photo) / Live View Boost / Night Mode / Sheer Overlay / Front/Rear/Control Dial Lock / No Setting / Restore to Default

LEVEL GAUGE

LEVEL GAUGE
- Yes

OSD LANGUAGE

OSD LANGUAGE
- Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek, Russian

PRINT

PRINT
- PictBridge compatible

INTERFACE

USB
- SuperSpeed USB 3.1 Gen1 Type-C
HDMI*** Monitor-through
- 4:2:2 8bit (Except for [4K/60p]/[4K/50p]*******) / 4:2:0 8bit
  4:2:2 10bit******** (When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the memory card in the camera unit.)
HDMI*** Playback
- HDMI TypeA / VIERA Link
  Video: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
  Audio: Stereo
Audio video output
- No
Remote input
- φ2.5mm
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
Headphone output
- φ3.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
Speaker
- Monaural
Card slot
- Slot 1: XQD Memory Card, CFexpress Card (CFexpress Ver2.0 Type B)******
  Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

WIRELESS

Wi-Fi
- 2.4GHz (STA/AP) (IEEE802.11b/g/n)
  5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
  1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch
Bluetooth
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT

DUST AND SPLASH RESISTANT*
- Yes.
  *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
  USB power supply, USB power charging
Battery life (CIPA standard)/ When using CFexpress Card
- Approx. 360 images (rear monitor), 340 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using XQD memory card
- Approx. 360 images (rear monitor), 340 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using SD memory card
- Approx. 380 images (rear monitor), 360 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery grip
- DMW-BGS1 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions)
Weight
- Approx. 1,020g / 2.25 lb (XQD Memory Card x 1, Battery, Body)
  Approx. 1,016g / 2.24 lb (SD Memory Card x 1, Battery, Body)
  Approx. 898g / 1.98 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature****
- -10oC to 40oC (14oF to 104oF)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software- Recording
- LUMIX Tether
  ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording,
  and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Software- Playback / Editing
- ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
  https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
  ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
  http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-S1R Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead,
  USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder
  ・ The DC-S1R Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

INTERCHANGEABLE LENS-1

Lens Name
- LUMIX S 24-105mm F4 MACRO O.I.S.
Lens Construction
- 16 elements in 13 groups (2 aspherical ED lenses, 2 aspherical lenses, 1 UED lens, 2 ED lenses)
Mount
- L-Mount
Optical Image Stabilizer
- Yes
Focal Length
- f=24-105mm
Aperture Type
- 9 diaphragm blades / Circular aperture diaphragm
Maximum Aperture
- F4.0
Minimum Aperture
- F22
Closest Focusing Distance
- 0.30m / 0.98ft
Maximum magnification
- Approx. 0.5x
Diagonal Angle of View
- 84°(Wide) - 23°(Tele)
Dust and Splash Resistant
- Yes
  *Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Recommended Operating Temperature
- -10oC to 40oC (14oF to 104oF)
General
- Filter Size
  - φ77mm
- Max. Diameter
  - φ84mm / 3.31inch
- Overall Length
  - Approx. 118mm / 4.65inch (from the tip of the lens to the base side of the lens mount)
- Weight [g]
  - Approx. 680g (excluding lens cap, lens rear cap and lens hood)
- Weight [oz]
  - Approx. 23.99oz (excluding lens cap, lens rear cap and lens hood)
- Standard Accessories
  - Lens cap, Lens rear cap, Lens hood, Lens storage bag

NOTE

NOTE
- ** About motion picture recording / 6K PHOTO/4K PHOTO recording
  - 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
  - Use an SD memory card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD].
  - Use an XQD or SD memory card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
  - Use an XQD or SD memory card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] [High Speed Video] [6K PHOTO/4K PHOTO] or [MOV].
  (SD speed class is the speed standard regarding continuous writing.)
  - Recording stops when the continuous recording time exceeds 10 minutes with [MP4] in [High Speed Video] [6K PHOTO].
  - Recording stops when the continuous recording time exceeds 15 minutes with [MP4] in [4K] [4K PHOTO] or [MOV].
  - MP4 motion pictures with [MP4] in [4K]:
  - When using an XQD memory card of 32 GB or less, or an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  - When using an XQD memory card over 32 GB, or an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - MP4 motion pictures with [MP4] in [FHD]:
  - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
  - XQD is a registered trademark of Sony Corporation.

  *** For [5K] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

  **** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

  ***** Firmware must be updated to version 1.2 or later.

  ****** Firmware must be updated to version 1.3 or later.

  ******* Firmware must be updated to version 1.5 or later.

  ******** Firmware must be updated to version 1.6.
