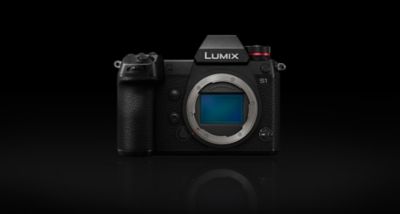

LUMIX DC-S1 fullformat systemkamera

DC-S1

Ultimat hybrid. Mor deg med stillebilder og videoopptak.

En ny 24,2 MP CMOS-sensor med utrolig realistiske detaljer. C4k/4k-videoopptak uten tidsbegrensninger kombinert med videoytelse på profesjonelt nivå.* Bryt grensene for stillebilder og video med dette speilløse fullformat kameraet og la deg inspirere.

* Maksimal filmetid på 29 minutter og 59 sekunder i C4K/4K 60p/50p.

Firmwareoppdateringen V2.0

Legg til ønskelisteFjern fra ønskeliste

DC-S1

Funksjoner

24,2 MP CMOS-sensor med Dual Native ISO-teknologi

24,2 MP CMOS-sensoren gir høy følsomhet og topp bildekvalitet i både stillbilder og videoer. Dual Native ISO-teknologi* forbedrer videoytelsen ytterligere.

* Oppdater fastvaren til versjon 2,0 eller nyere.

24,2 MP CMOS-sensor med Dual Native ISO-teknologi

Venus Engine Beauty

CMOS-sensoren og Venus Engine gjengir ekstraordinære fargedetaljer og naturlige teksturer. Multipikslet luminansgenerering og intelligent detaljbehandling skaper en intens lysstyrke og kontrast. Den tredimensjonale fargekontrollen fremhever rike fargenyanser i mørke og lyse toner. Multi Process NR får bildene dine til å skille seg ut selv ved høye følsomhetsinnstillinger.

5-akset Dual I.S. 2

Ved å kombinere Body I.S. (5-akset) i kameraet og O.I.S. (Optisk bildestabilisator, 2-akset) i LUMIX S Series-objektivet,* vil 5-akset Dual I.S. 2 kompenserer for uskarpheter, og muliggjøre bruk av en langsommere lukkerhastighet på 7-stopp. ** Den forbløffende kraften til 5-akset Body I.S. med 5,5-stopps kompensasjonskraft*** korrigerer risting for alle linser, også de som ikke er utstyrt med O.I.S.

* Fra og med 18. februar 2021 kan 5-akset Dual I.S.2 brukes med objektivene S-R24105, S-E70200, S-R70200 og S-R70300. ** Basert på CIPA-standarden (Yaw/Pitch-retning: fokuseringsavstand f=200 mm når S-E70200 brukes). ** Basert på CIPA-standarden (Yaw/Pitch-retning: fokuseringsavstand f=50 mm når S-X50 brukes).

4K 60p / 50p jevn video

Panasonics 4K-teknologi, i kombinasjon med en CMOS-sensor og Venus Engine, leverer spektakulær 4K 60p / 50p video i fullformat.* Den enestående varmespredningen gir mulighet for både 4K 30p/25p/24p og FHD-opptak uten tidsbegrensning.**

* Maksimal opptakstid på 29 minutter og 59 sekunder i 4K 60p / 50p. ** Utenom videoopptak med høy hastighet. Ved før høy omgivelsestemperatur eller kontinuerlig filming kan det hende kameraet stanser opptak for å beskytte seg selv. Vent til kameraet er avkjølt.

4:2:2 10-bits internt opptak / V-Log-opptak (valgfritt)

Oppgraderingsprogramvarenøkkelen DMW-SFU2 (selges separat)* og LUMIX S1 fastvareversjon 1.2 muliggjør 14+ stopp V-Log-opptak som er best i klassen. Fastvareversjon 2.0 muliggjør C4K/4K 60p/50p 4:2:0 10-bits, C4K 30p/25p/24p 4:2:2 10-bits, 6K/24p (3:2) 4:2:0 10-bits og anamorfisk 4K-opptak.**

* Se den medfølgende bruksanvisningen for aktiveringsprosedyren. ** Brukere som allerede har DMW-SFU2 trenger ikke kjøpe en ekstra DMW-SFU2. Det er ikke nødvendig å oppgradere kameraet med DMW-SFU2 hvis oppgradering med DMW-SFU2 har blitt gjort tidligere.

4:2:2 10-bits internt opptak / V-Log-opptak (valgfritt)

RAW-videodatautgang (valgfritt)

Oppgraderingsprogramvarenøkkelen DMW-SFU2 (selges separat)* og LUMIX S1 fastvareversjon 2.0 muliggjør utgang på maksimalt 29,97p 5,9K (5888 x 3312, 16:9) / 59,94p 4K (4128 x 2176, 17:9) og anamorfisk 3,5K (3536 x 2656, 4:3) 12-bits RAW-videodata over HDMI for å lagre dem som Apple ProRes RAW på Atomos Ninja V 4K HDR-skjermopptaker.

*Brukere som allerede har DMW-SFU2 trenger ikke kjøpe en ekstra DMW-SFU2. Det er ikke nødvendig å oppgradere kameraet med DMW-SFU2 hvis oppgradering med DMW-SFU2 har blitt gjort tidligere. ･Alle funksjoner er kanskje ikke tilgjengelige avhengig av situasjonen. ･Programvare som støtter Apple ProRes RAW kreves for å redigere RAW-video tatt opp med NINJA V. ･Apple og ProRes er varemerker eller registrerte varemerker som tilhører Apple Inc. i USA og/eller andre land. ･Ninja V / ATOMOS er registrerte varemerker som tilhører ATOMOS Limited.

Avansert gjenkjenningsteknologi

Superrask sensor-objektivkommunikasjon på 480 fps og Panasonics DFD (Depth From Defocus)-teknologi bidrar til å gjøre autofokus med høy hastighet og presisjon på omtrent 0,08 sekunder til en realitet.* Avansert AI-teknologi gjenkjenner ikke bare menneskekroppen, men også dyr i hundefamilien, kattefamilien og fugler,mens sporingssystemet med høy ytelse bidrar til å holde fokus på motivet til enhver tid.

5 760k-punkters Real View Finder

Robust kamerahus for et bredt spekter av værforhold

*11EV, i vid ende med S-R24105 (CIPA) i LVF120 fps-innstilling.
** Støv- og sprutbestandighet garanterer ikke at det ikke vil oppstå skade hvis dette kameraet utsettes for direkte kontakt med støv og vann.

Bli inspirert

Spesifikasjoner

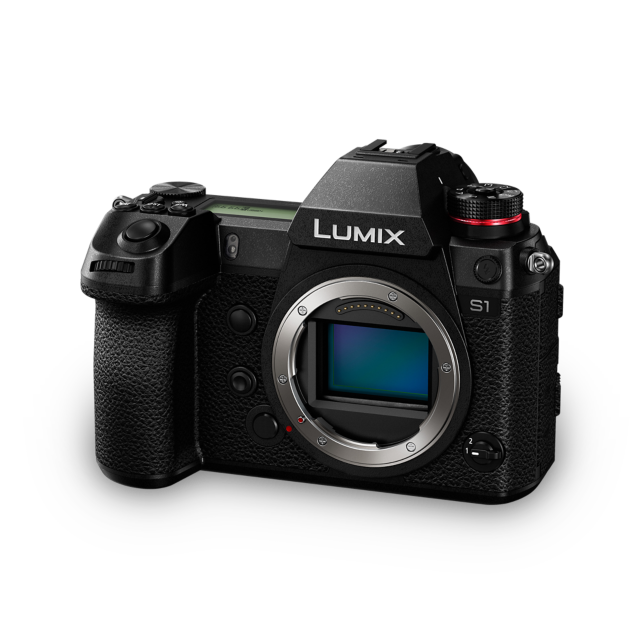

Foto av LUMIX DC-S1 fullformat systemkamera

Størrelse og vekt

Høyde: 110.0mm

Bredde: 148.9mm

Dybde: 96.7mm

Vekt: 1,017g

Alle verdier er omtrentlige. Vekt med SD-kort og batteri (vekt med XQD-kort og batteri er 1021 g.). Objektiv er ekskludert. Dimensjoner ekskludert fremspring.

L-Mount
24,2 megapiksler
Mulighet for 4K-videoopptak
6K PHOTO
5-akset Dual I.S. 2 (Bildestabilisator)
5760k-punkts OLED LVF (Live View Finder)
2100k-punkts Triaksial vippeskjerm
Status-LCD
Sprut-, støv- og frostbestandig
Wi-Fi
Bluetooth

24,2 MP CMOS-sensor i fullformat

4K 30p / 25p / 24p video uten begrenset opptakstid og 4K 60p / 50p video

4:2:2 10-biters internopptak og 14+ stopp på V Log / V-Gamut (valgfritt)

Høyhastighets AF med høy presisjon takket være superrask kommunikasjon mellom sensor og objektiv på 480 bps og Panasonics DFD-teknologi

TYPE

Type
- Digital Single Lens Mirrorless camera
Recording media
- XQD Memory Card, SD Memory Card / SDHC Memory Card* / SDXC Memory Card*, CFexpress Card (CFexpress Ver2.0 Type B) *******
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
- 24.20 megapixels / 25.28 megapixels
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- Supersonic wave filter

LATITUDE

LATITUDE
- 14+ stops (V-Log)*****

STILL IMAGE

Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color Space
- sRGB, AdobeRGB
Recording file format
- Still image
  - JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
- 6K PHOTO** / 4K PHOTO**
  - 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
    4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
    Extracted still images: JPEG (DCF, Exif 2.31)
File size(Pixels)
- When using full-frame lenses / 3:2
  - 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* *High Resolution Mode. RAW file.
    5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 4:3
  - 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* *High Resolution Mode. RAW file.
    4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 16:9
  - 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* *High Resolution Mode. RAW file.
    3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 1:1
  - 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* *High Resolution Mode. RAW file.
    2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 65:24
  - 6000x2208(L)
- When using full-frame lenses / 2:1
  - 6000x3000(L)
- When using APS-C lenses / 3:2
  - 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
- When using APS-C lenses / 4:3
  - 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
- When using APS-C lenses / 16:9
  - 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
- When using APS-C lenses / 1:1
  - 2656x2656(L) / 1920x1920(M) / 1376x1376(S)

MOTION PICTURE

MOV(*2) (*5) [6K] 5952x3968 (3:2) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
MOV(*2) (*5) [5.4K] 5376x3584 (3:2) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
MOV(*2) (*5) [5.9K] 5888x3312 High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
MOV(*2) (*5) [C4K] 4096x2160 High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9)
  50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9)
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
MOV(*2) (*5) [Anamorphic 4K] 3328x2496 (4:3) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9)
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*9) *HLG is selectable.

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 5,760k dots
Field of view / Magnification
- Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps
Display time lag
- Approx. 0.005sec

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Triaxial tilt, 3.2-inch (8.0cm), 3:2 aspect
Pixels
- Approx. 2,100k dots
Field of view
- Approx. 100%

STATUS LCD

STATUS LCD
- Yes

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
  (Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.*********
AF detective range
- EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lamp
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking
- Yes / Yes
Others
- AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode

EXPOSURE CONTROL

Dual Native ISO (*9)
- Auto / Low / High

IMAGE STABILIZATION SYSTEM

IMAGE STABILIZATION SYSTEM
- Image sensor shift type (5-axis)
  6.0-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]

  Dual I.S. (Dual I.S. 2 compatible)
  6.5-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=105mm, when S-R24105 is used.] Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-R70200 is used.]
  7.0-stop* * Firmware must be updated to version 1.3 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-E70200 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
  Motion picture: 1/16,000 - 1/25
Shutter life
- Approx. 400,000 images
Self timer
- 10sec, 3 images / 2sec / 10sec
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture Bracket
- 3, 5 or all positions in 1 EV step
Focus Bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed -Mechanical shutter / Electronic front curtain shutter
- AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed -Electronic shutter
- AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images - When using CFexpress Card******
- [Panasonic Corporation CFexpress Card]
  RAW: More than 999 images
  RAW+JPEG: More than 75 images
  JPEG: More than 999 images
  *Using a Panasonic Corporation CFexpress Type B 256GB (RP-CFEX256) Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.

  [SanDisk Corporation CFexpress Card]
  RAW: More than 450 images
  RAW+JPEG: More than 75 images
  JPEG: More than 999 images
  *Using a SanDisk Corporation CFexpress Type B Extreme PRO 256GB (SDCFE-256G) Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
Number of recordable images - When using XQD memory card
- RAW: More than 90 images
  RAW+JPEG: More than 70 images
  JPEG: More than 999 images
  *Using a Sony Corporation XQD G Series Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.

6K PHOTO / 4K PHOTO

Burst speed
- 6K PHOTO: 30 frames/sec
  4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information
- Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

Flash type
- TTL External Flash (sold separately)
Flash Mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/320 second *The guide number decreases at 1/320 second. Only when set to M mode or S mode.
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket
- Yes

EXTRA TELE CONVERSION

EXTRA TELE CONVERSION
- 2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
- Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / Like709 / V-Log***** / Standard (HLG) / Monochrome (HLG) / Like2100 / My Photo Style 1-10
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / ISO / WB
  *Adjustable settings vary depending on the Photo Style mode.

FILTER

FILTER
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
  *For photos only.

MOTION PICTURE FUNCTION

Vertical Position Information (*9)
- ON / Off
Anamorphic desqueeze display (*9)
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Time code (*5) (*9)
- Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC is selected.)

FUNCTION BUTTON

REC
- Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode/MF / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift****** / AF-ON: Far Shift****** / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Sound Rec Level Disp. / Sound Rec Level Adj. / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect******* / Constant Preview / Level Gauge / Histogram / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor)***** / LUT View Assist (HDMI)***** / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM***** / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Off (Disable Press and Hold)******* / Restore to Default
PLAY
- Magnify from AF Point / HLG View Assist(Monitor) / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / HLG View Assist (HDMI) / LUT View Assist (HDMI)***** / HLG View Assist (HDMI)***** / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold)******* / Restore to Default

Fn LEVER

Fn LEVER
- AF Mode / Photo Style / Picture Quality / Long Exposure NR / Focus Peaking / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / 6K/4K PHOTO (Pre-Burst) / Focus Ring Lock / Touch Screen / Touch Pad AF / Auto Review (Photo) / Live View Boost / Night Mode / Sheer Overlay / Front/Rear/Control Dial Lock / No Setting / Restore to Default

LEVEL GAUGE

LEVEL GAUGE
- Yes

OSD LANGUAGE

OSD LANGUAGE
- Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek, Russian

PRINT

PRINT
- PictBridge compatible

INTERFACE

USB
- SuperSpeed USB 3.1 Gen1 Type-C
HDMI*** Monitor-through
- MP4: 4:2:2 8bit (Except for [4K/60p]/[4K/50p]********) / 4:2:0 8bit
  MOV: 4:2:2 10bit***** (When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the memory card in the camera unit.)
HDMI*** Playback
- HDMI TypeA / VIERA Link
  Video: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
  Audio: Stereo
Audio video output
- No
Remote input
- φ2.5mm
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
Headphone output
- φ3.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
Speaker
- Monaural
Card slot
- Slot 1: XQD Memory Card, CFexpress Card (CFexpress Ver2.0 Type B)*******
  Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

WIRELESS

Wi-Fi
- 2.4GHz (STA/AP) (IEEE802.11b/g/n)
  5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
  1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch
Bluetooth
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT

DUST AND SPLASH RESISTANT*
- Yes.
  *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
  USB power supply, USB power charging
Battery life (CIPA standard)/ When using CFexpress Card
- Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using XQD memory card
- Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using SD memory card
- Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery grip
- DMW-BGS1 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions)
Weight
- Approx. 1,021g / 2.25 lb (XQD Memory Card x 1, Battery, Body)
  Approx. 1,017g / 2.24 lb (SD Memory Card x 1, Battery, Body)
  Approx. 899g / 1.98 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature****
- -10oC to 40oC (14oF to 104oF)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software- Recording
- LUMIX Tether
  ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording,
  and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Software- Playback / Editing
- ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
  https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
  ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
  http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-S1 Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead, USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder
  ・ The DC-S1 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

NOTE
- ** About motion picture recording / 6K PHOTO/4K PHOTO recording
  - 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
  - Use an SD memory card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD].
  - Use an XQD or SD memory card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
  - Use an XQD or SD memory card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] [High Speed Video], [MOV] or [6K PHOTO/4K PHOTO].
  (SD speed class is the speed standard regarding continuous writing.)
  - Recording stops when the continuous recording time exceeds 10 minutes with [MP4] in [6K PHOTO].
  - Recording stops when the continuous recording time exceeds 15 minutes with [MP4] in [High Speed Video] [4K PHOTO].
  - Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds with [MP4] in [4K/60p] [4K/50p].
  - MP4 motion pictures with [MP4] in [4K]:
  - When using an XQD memory card of 32 GB or less, or an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  - When using an XQD memory card over 32 GB, or an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - MP4 motion pictures with [MP4] in [FHD]:
  - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
  - XQD is a registered trademark of Sony Corporation.

  *** For [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

  **** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

  ***** Firmware must be updated to version 1.2 or later. Upgrade Software Key (DMW-SFU2) is required.

  ****** Firmware must be updated to version 1.2 or later.

  ******* Firmware must be updated to version 1.3 or later.

  ******** Firmware must be updated to version 1.5 or later.

  ********* Firmware must be updated to version 1.6.

HDMI RAW DATA OUTPUT (*5)

Compatible external devices
- ATOMOS Ninja V 4K HDR Monitor-Recorder (AtomosOS 10.63 or higher) *Firmware must be updated to version 2.0 or later.
  Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (version 3.43 or higher)* *Firmware must be updated to version 2.1.
  *This does not guarantee all of the capabilities that the compatible external recorder may have.
Rec quality
- NTSC (59.94Hz)[5.9K] 5888x3312
  - 29.97p, 12-bit (LPCM, High-Res Audio)
    23.98p, 12-bit (LPCM, High-Res Audio)
- NTSC (59.94Hz)[4K] 4128x2176 (17:9)
  - 59.94p, 12-bit (LPCM, High-Res Audio)
    29.97p, 12-bit (LPCM, High-Res Audio)
    23.98p, 12-bit (LPCM, High-Res Audio)
- NTSC (59.94Hz)[Anamorphic 3.5K] 3536x2656 (4:3)
  - 29.97p, 12-bit (LPCM, High-Res Audio)
    23.98p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz)[5.9K] 5888x3312
  - 25.00p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz)[4K] 4128x2176 (17:9)
  - 50.00p, 12-bit (LPCM, High-Res Audio)
    25.00p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz)[Anamorphic 3.5K] 3536x2656 (4:3)
  - 50.00p, 12-bit (LPCM, High-Res Audio)
    25.00p, 12-bit (LPCM, High-Res Audio)
Audio format
- LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).

Åpne en ny side for utskrift

Skriv den første anmeldelsen.

SKRIV EN BRUKERANMELDELSE

Lyd & Bilde, "Spesielt anbefalt", 30. mai 2019

"Panasonic Lumix S1 er det mest komplette allroundkameraet, blant de nye fullformat, speilløse systemkameraene."
TIPA World Awards 2019, Best Full Frame Photo / Video, April 2019

“The S1 doubles as a 24.2MP still camera with very fast AF speed and tracking performance and a pro-style full-frame video camera.”
